Outsunny Wooden Garden Bench Manual – SKU: 84B-844BU

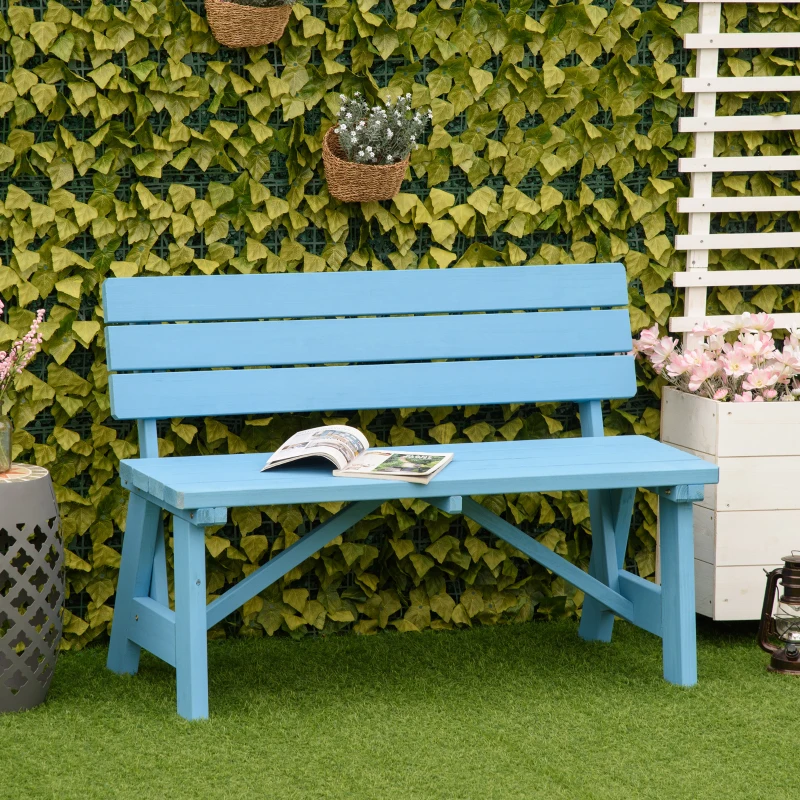

The Outsunny Wooden Garden Bench is a sturdy 2-person outdoor seat made from durable pine wood with a powder-coated finish. Its high backrest, wide seat, and simple modern design make it a comfortable and attractive addition to porches, decks, and garden spaces.

Safety & Usage Information

• Designed for domestic use only.
• Place the bench on a flat and stable surface.
• Keep away from open flames or heat sources.
• Do not exceed the maximum weight capacity of 484 lbs.
• Avoid using the bench during storms, high winds, or severe weather.
• When not in use for long periods, cover or store the bench to protect it from moisture and sun exposure.
• Do not stand on the bench or hang items from the structure.

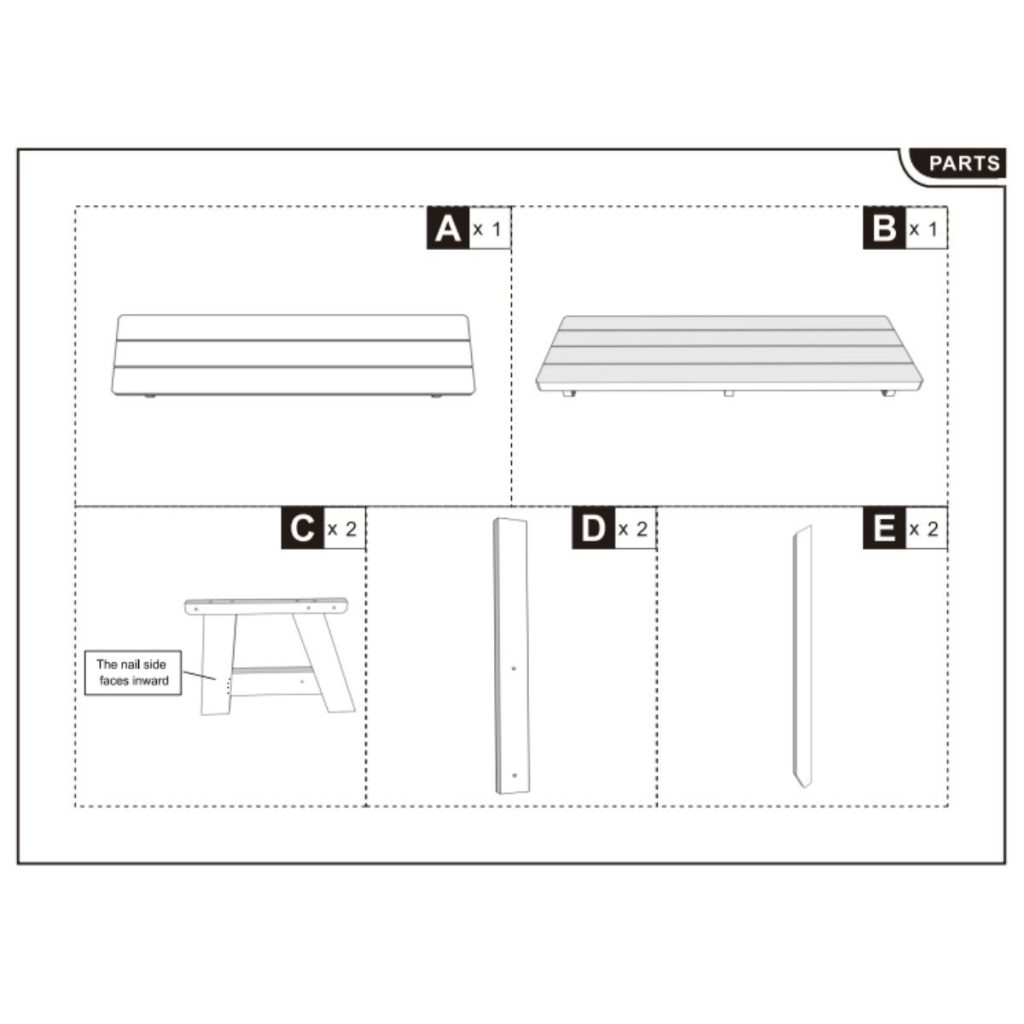

Parts List

• A × 1 — Seat Panel
• B × 1 — Backrest Panel
• C × 2 — Leg Frames (Left & Right)
• D × 2 — Backrest Support Bars
• E × 2 — Side Braces

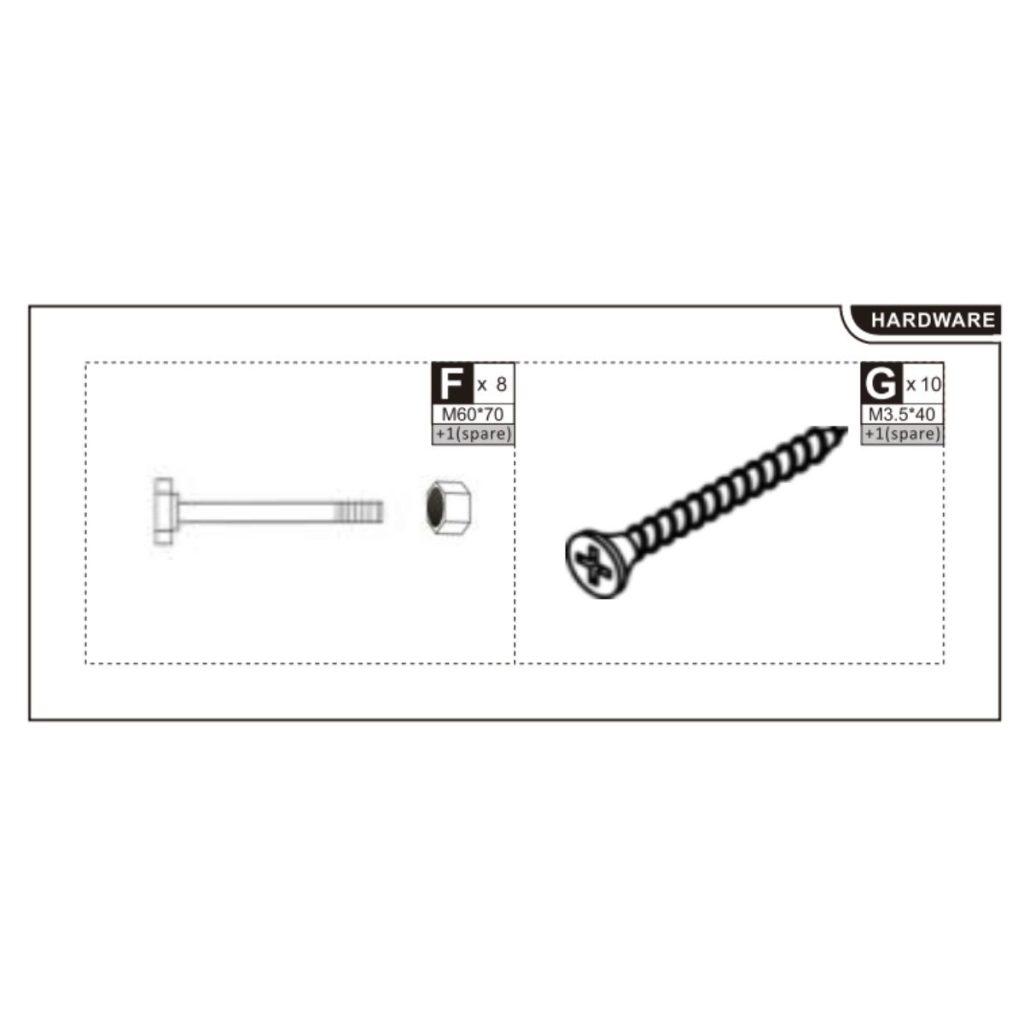

Hardware List

• F × 8 (+1 spare) — Hex Bolt with Nut (M6 × 70)
• G × 10 (+1 spare) — Wood Screw (M3.5 × 40)

Before Assembly

• Prepare a clean, dry workspace.
• Check that all parts and hardware are included and undamaged.
• Keep all small parts away from children and pets.
• Do not fully tighten any screws or bolts until the final step.

Assembly Instructions

Follow the steps below to assemble your Outsunny Wooden Garden Bench (84B-844BU).

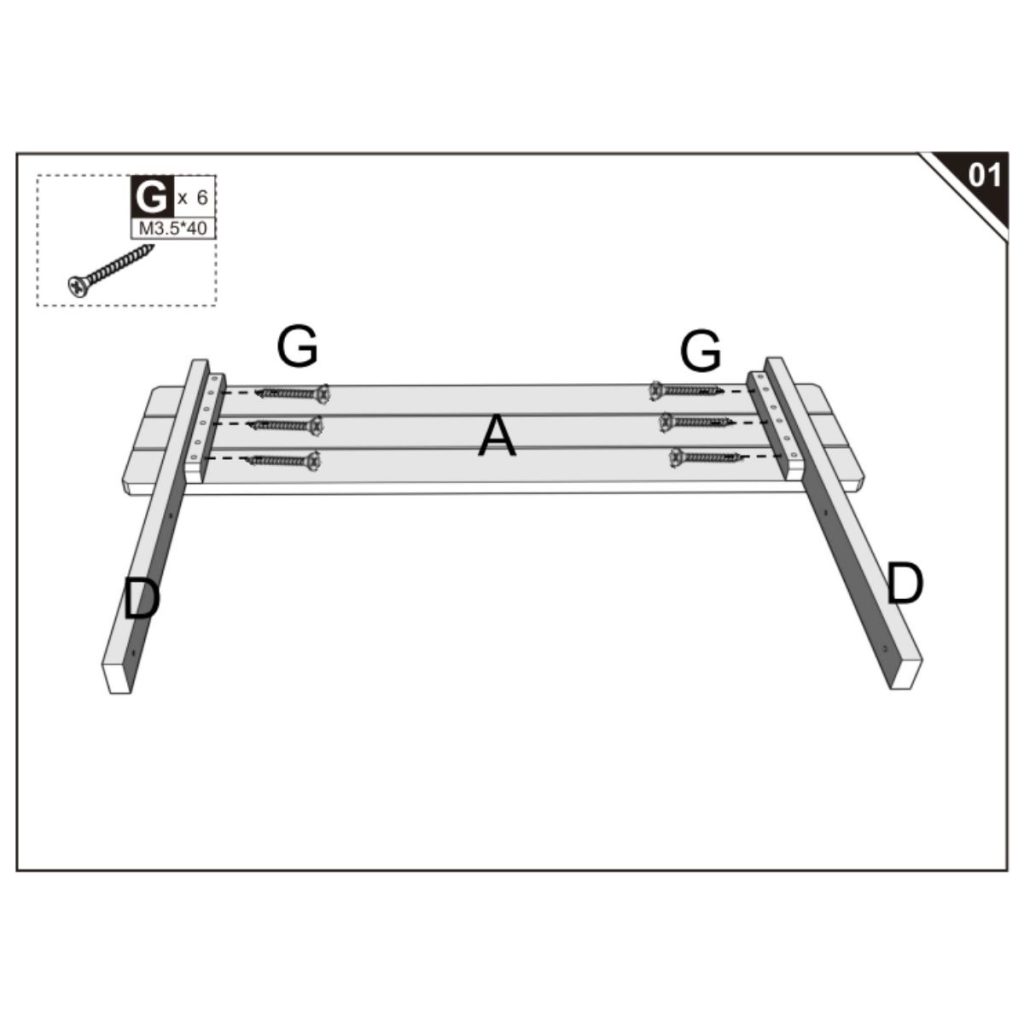

Step 1: Attach the Leg Panels (D) to the Seat Panel (A)

1. Lay the Seat Panel (A) flat on your working surface.
2. Position both Leg Panels (D) at each end of the seat, making sure the pre-drilled holes align.
3. Secure each leg to the seat using 6 × Wood Screws G (M3.5×40).
4. Do not fully tighten the screws yet, leave them slightly loose to allow for alignment in later steps.

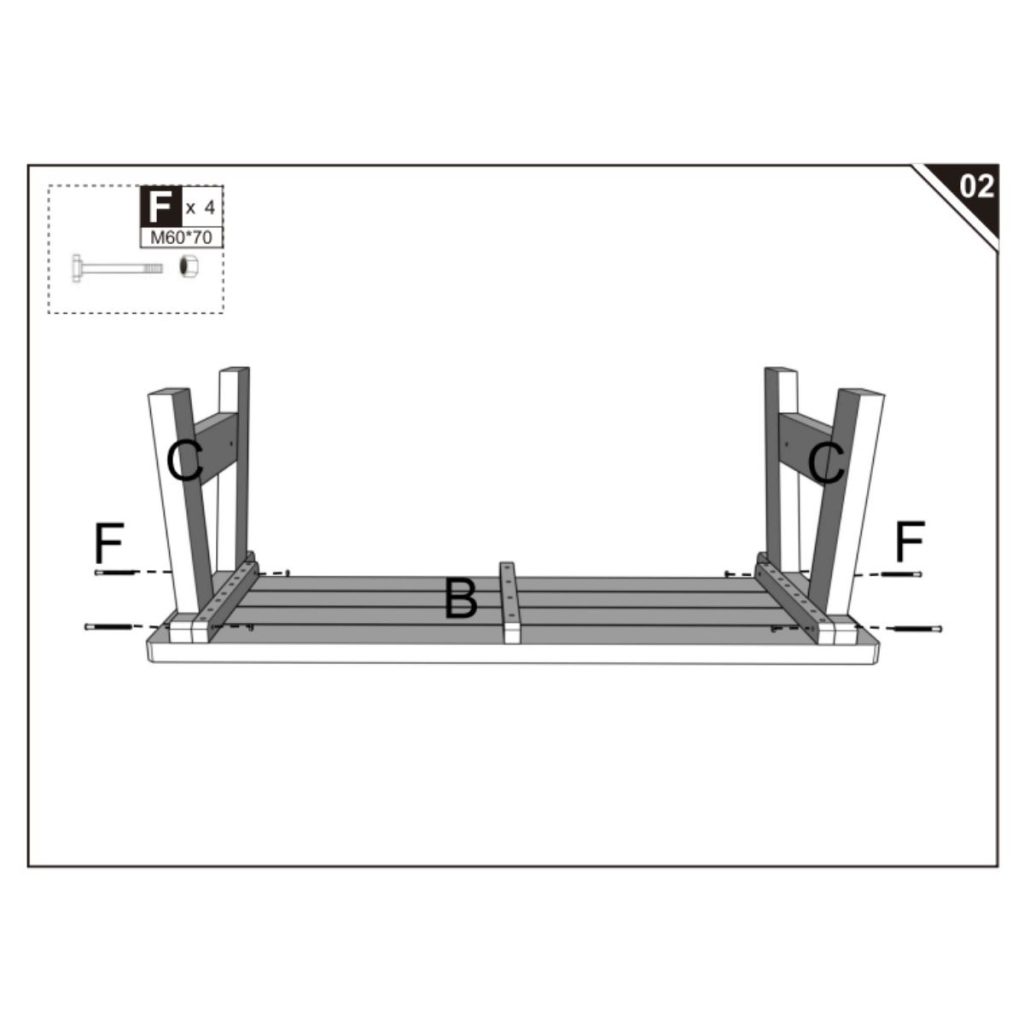

Step 2: Attach the Backrest Support Frames (C) to the Seat Base (B)

1. Turn the bench frame upside down to expose the underside.
2. Position the Backrest Support Frames (C) on each side, aligning them with the pre-drilled holes on the Seat Base (B).
3. Insert 4 × Hex Bolts F (M6×70) through the support frames and into the seat base.
4. Add the matching nuts and tighten them lightly, do not fully tighten until the full structure is assembled.

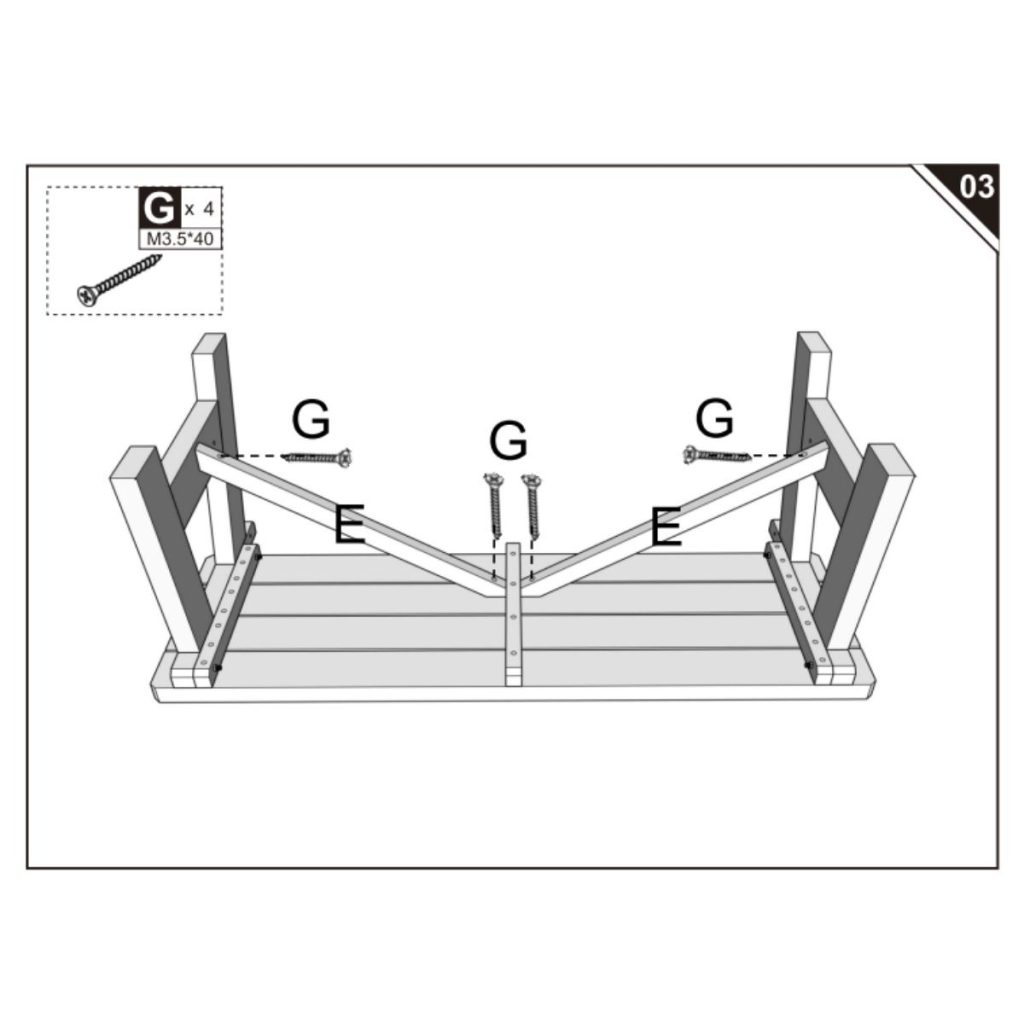

Step 3: Install the Side Braces (E) to Support the Backrest Frames

1. Position both Side Braces (E) so they connect between the center support and each backrest frame.
2. Align the pre-drilled holes on the braces with the holes on the middle seat support and the backrest support frames.
3. Secure each brace using 4 × Wood Screws G (M3.5×40), two in the center and one on each side.
4. Tighten the screws firmly once everything is aligned properly.

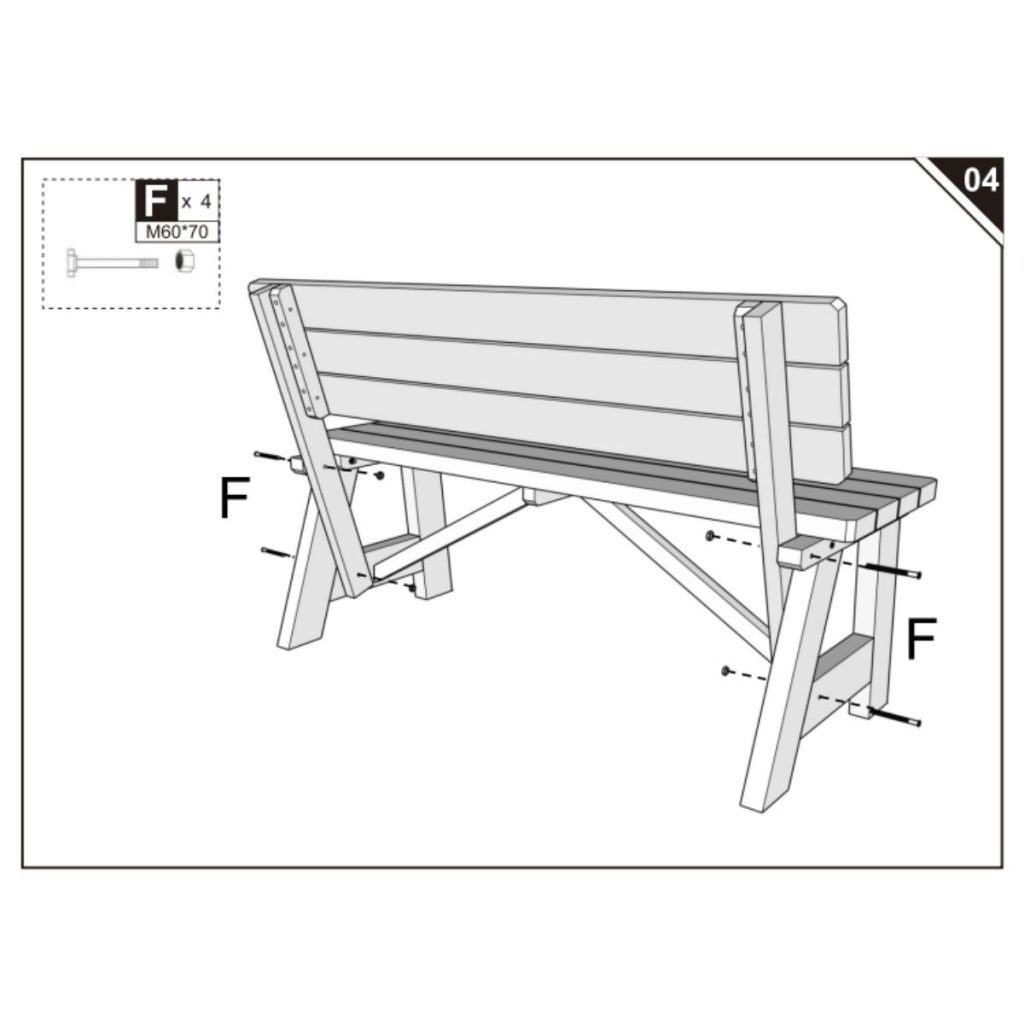

Step 4: Attach the Backrest Panel (B) to the Backrest Frames ©

1. Position the Backrest Panel (B) against the two Backrest Frames (C), making sure the pre-drilled holes align correctly.
2. Insert 4 × Hex Bolts F (M6×70) through the holes in the frames and into the backrest panel.
3. Add the nuts on the inside and tighten the bolts securely.
4. Once all parts are aligned, go back and fully tighten all bolts and screws from previous steps to complete the bench assembly.

Assembly Complete

Your Outsunny Wooden Garden Bench is now fully assembled and ready for use. Before sitting on the bench, double-check that all screws and bolts are securely tightened and the structure feels stable.

Maintenance & Care

• Wipe clean with a soft, dry cloth.
• Remove dirt, leaves, or standing water regularly.
• Inspect screws and bolts every few months and re-tighten if necessary.
• Apply a wood-safe sealant annually to extend outdoor durability.
• Store in a covered area during heavy rain, snow, or long periods of non-use.

Troubleshooting

Bench feels wobbly:

• Check and tighten all screws and bolts.
• Ensure the bench is placed on an even surface.

Backrest not aligning:

• Loosen screws slightly, reposition, and retighten.
• Check that support bars (D) and braces (E) are installed correctly.

Wood appears faded or dry:

Apply outdoor wood oil or sealant to restore the finish.

Customer Support

For assistance or replacement parts, contact: Aosom Customer Service

Thank you for choosing the Outsunny Wooden Garden Bench (SKU: 84B-844BU). With proper care, regular maintenance, and correct assembly, your bench will provide long-lasting comfort and style to your outdoor space. If you encounter any issues or need further assistance, do not hesitate to contact our customer support team for help.

FAQs

1. Why does my bench creak when someone sits on it, and how can I fix it?

Creaking is usually caused by slight movement between wooden joints or bolts that have settled after initial use. Loosen each bolt slightly, realign the frame, and then re-tighten all screws and bolts evenly. Applying a small amount of wood-safe lubricant or wax between rubbing wood surfaces can also reduce noise.

2. Is it safe to place the bench directly on grass or soil?

You can place the bench on grass or soil, but long-term exposure to moisture may reduce the wood’s lifespan. For best durability, position the bench on a patio, deck, pavers, or a levelled outdoor mat to prevent moisture absorption.

3. What should I do if one leg feels slightly shorter or the bench rocks on the ground?

First, move the bench to a different spot to check if it’s the ground, not the bench. If it still rocks, loosen the screws on the affected leg frame, adjust the alignment, and re-tighten. For minor unevenness caused by outdoor flooring, use a small furniture pad or shim under the shorter leg to stabilize the bench.
