Outsunny 3-Pieces Wicker Patio Furniture Set Assembly Manual – SKU: 863-170V00DB

The Outsunny 3-Piece Patio Chair and Table Set (SKU: 863-170V00 ) is designed to create a comfortable and stylish outdoor seating area for patios, balconies, gardens, or small lounge spaces. With its sturdy steel frame, supportive fabric panels, and matching slatted side table, this set offers a practical setup for relaxing, reading, or enjoying outdoor conversations.

Before You Begin

Estimated Assembly Time: 45–60 minutes
Assembly Surface: Place all parts on a clean, smooth, flat surface to prevent scratches, dents, or frame damage.

Important Notes

• Confirm that all components and hardware are present before starting the assembly.
• Assemble the furniture with two people to ensure safe handling and proper alignment.
• Do not confuse similar screws, check the lengths and labels carefully before inserting them.
• Do not fully tighten any bolts until every part is connected; this helps prevent misalignment.
• Keep all bolts, washers, and small fittings away from children and pets during assembly.
• Periodically check all fasteners and re-tighten them as needed to maintain stability over time.

Parts & Hardware

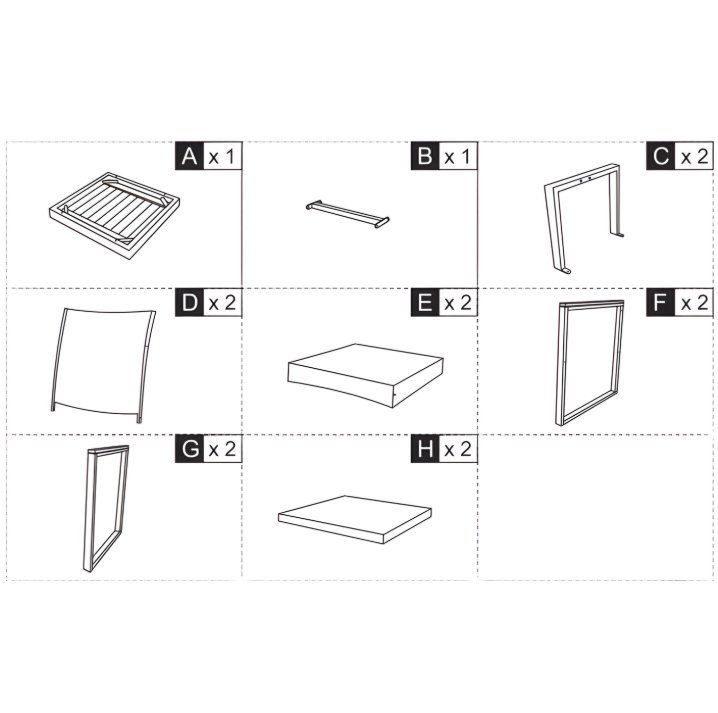

Parts List

Label	Quantity	Name / Description
A	1	Slatted Tabletop Panel
B	1	Table Support Bar
C	2	Table Frame Legs
D	2	Chair Backrest Fabric Panel (Curved)
E	2	Chair Seat Cushion Panel
F	2	Chair Back Frame
G	2	Chair Side Frame (with lower support)
H	2	Chair Seat Base Panel

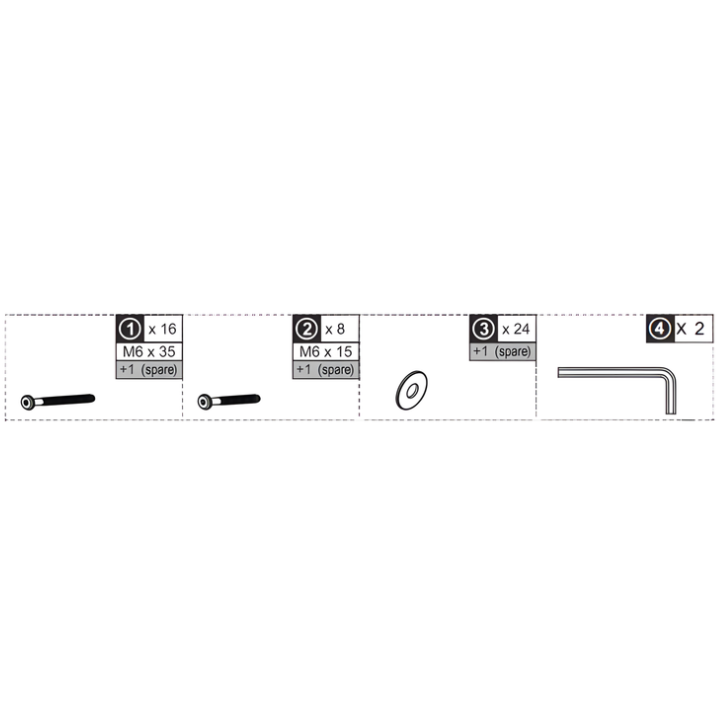

Hardware List

No.	Quantity	Name / Description
1	16 + 1 spare	M6 × 35 Bolts
2	8 + 1 spare	M6 × 15 Bolts
3	24 + 1 spare	Washers
4	2	Allen Keys

Assembly Instructions

Follow these steps carefully and proceed sequentially to assemble your 3 Pieces Wicker Patio Furniture Set (SKU: 863-170V00DB)

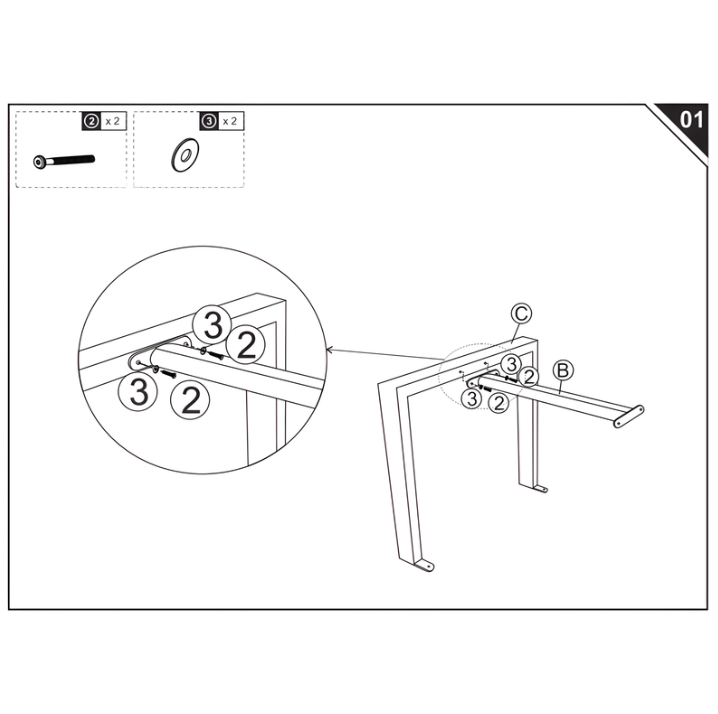

Step 1: Connect the Table Support Bar to the Table Legs

This step requires the following parts and hardware:

• Table Legs – C (x1 pair)
• Support Bar – B (x1)
• M6 × 15 Bolts – (x2)
• Washers – (x2)

Instructions:

1. Position one Table Leg (C) upright on your assembly surface.
2. Align the Support Bar (B) with the mounting holes on the inside of the leg frame.
3. Insert one M6 × 15 Bolt through the washer, then into the aligned holes.
4. Repeat for the second bolt on the opposite hole.
5. Tighten the bolts only until loosely secure, you will fully tighten later once all pieces are connected.

Guide:

• The Support Bar (B) must sit inside the Table Leg frame (C) exactly as shown.
• Do not overtighten at this stage to allow room for adjustment in Step 2.

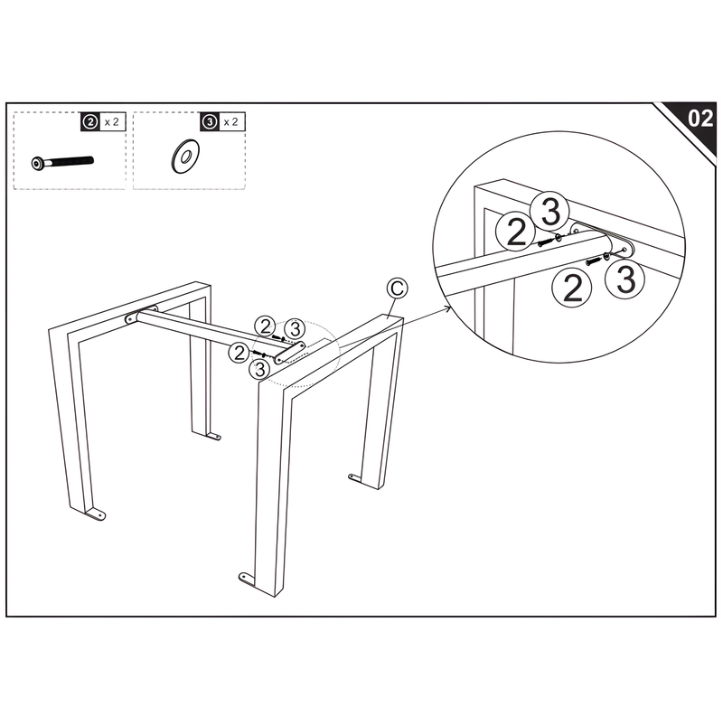

Step 2: Attach the Support Bar to the Second Table Leg

This step requires the following parts and hardware:

• Table Leg – C (x1)
• Support Bar – B (already attached on one side)
• M6 × 15 Bolts – (x2)
• Washers – (x2)

Instructions:

1. Position the second Table Leg (C) upright and align it with the free end of the Support Bar (B).
2. Line up the holes on the Support Bar with the mounting points inside the leg frame.
3. Insert an M6 × 15 Bolt with a Washer through the aligned holes.
4. Repeat the same process for the second bolt.
5. Tighten both bolts lightly so the structure holds its shape but still allows slight adjustments.

Guide:

• Ensure the Support Bar is level and sits inside both Table Legs evenly.
• Keep all bolts slightly loose for now, final tightening will happen after the tabletop is installed.

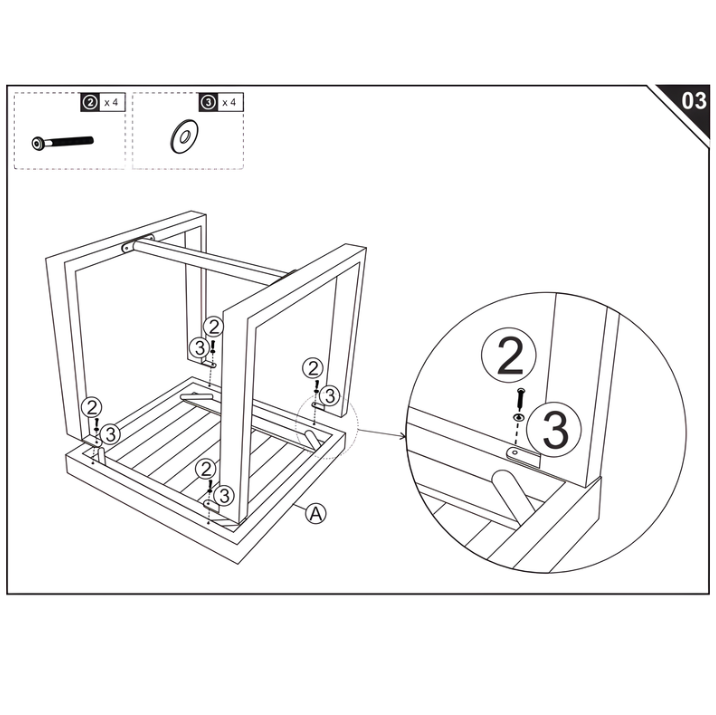

Step 3: Secure the Table Frame to the Tabletop

This step requires the following parts and hardware:

• Tabletop – A (x1)
• Assembled Leg Frame (from Steps 1–2)
• M6 × 15 Bolts – (x4)
• Washers – (x4)

Instructions:

1. Place the Tabletop (A) upside down on your assembly surface.
2. Carefully position the assembled leg frame over the tabletop, aligning all corner holes with the mounting points on the legs.
3. Insert an M6 × 15 Bolt with a Washer into each connection point.
4. Repeat this for all four corners to secure both legs to the tabletop.
5. Tighten all bolts lightly, ensure the frame sits evenly before fully securing in later steps.

Guide:

• Confirm that each leg sits flush inside the tabletop frame before tightening.
• Do not overtighten yet; a slight looseness helps maintain proper alignment for the next steps.

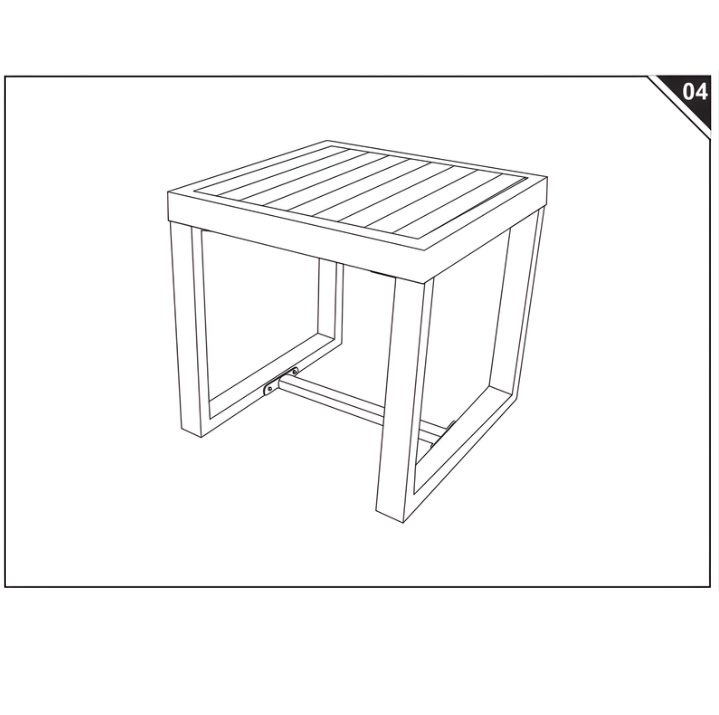

Step 4: Confirm the Table Assembly is Complete

Instructions:

1. Turn the table upright carefully, holding both legs to avoid uneven pressure.
2. Check that the frame sits firmly and evenly on the ground without wobbling.
3. Make sure the Support Bar and all leg connections are aligned correctly.
4. If the table sits unevenly, adjust the positioning and tighten bolts gradually until fully secure.

Guide:

• This step is mainly for stability checking; ensure all bolts from previous steps are now tightened fully.
• Your table is now complete and ready to use after final inspection.

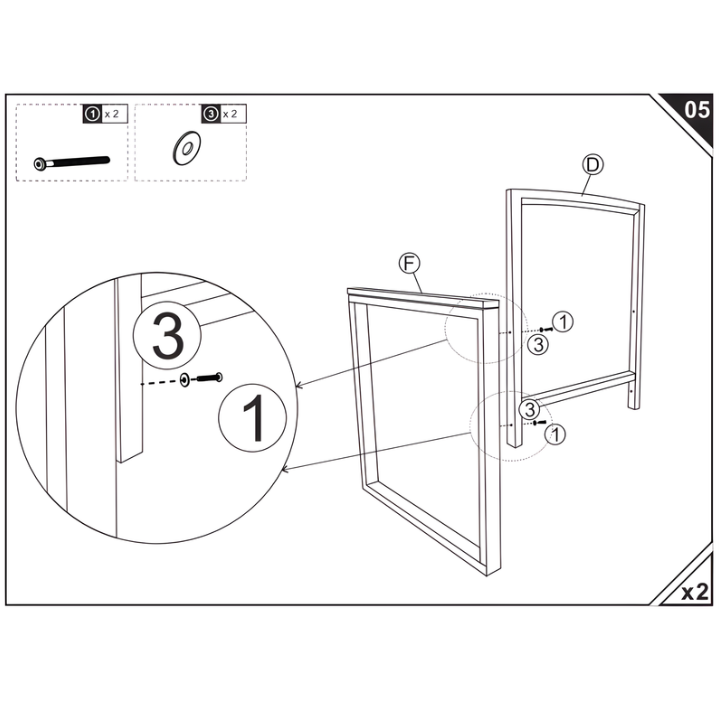

Step 5: Attach the Chair Back Frame to the Backrest Panel

This step requires the following parts and hardware:

• Backrest Panel – D (x1)
• Chair Back Frame – F (x1)
• M6 × 35 Bolts – (x2)
• Washers – (x2)

Instructions:

1. Position the Chair Back Frame (F) upright on your assembly surface.
2. Align the Backrest Panel (D) with the mounting holes on the inside of the frame.
3. Insert an M6 × 35 Bolt through a Washer and slide it through the pre-drilled hole.
4. Repeat the same process for the second bolt at the lower connection point.
5. Tighten both bolts lightly to hold the panel in place while keeping room for final adjustment.

Guide:

• Ensure the curved top edge of part D faces upward as shown in the diagram.
• Do not fully tighten yet, this helps prevent misalignment in the following chair assembly steps.

Note: This step will be repeated for both chairs.

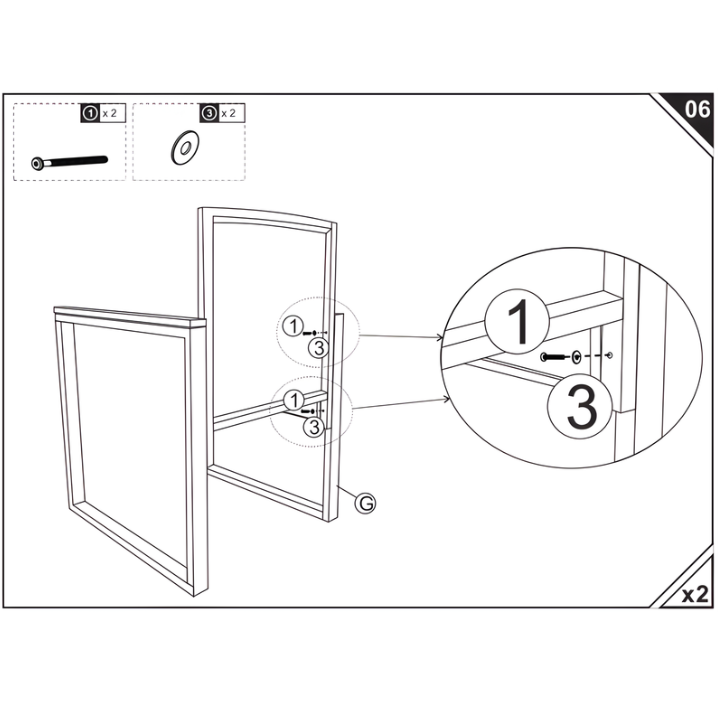

Step 6: Attach the Side Frame to the Chair Back Assembly

This step requires the following parts and hardware:

• Side Frame – G (x1)
• Chair Back Assembly (from Step 5)
• M6 × 35 Bolts – (x2)
• Washers – (x2)

Instructions:

1. Position the Side Frame (G) next to the Chair Back Assembly so the mounting holes align.
2. Insert an M6 × 35 Bolt combined with a Washer through the upper connection point.
3. Repeat the same process at the lower connection point, securing the second bolt.
4. Tighten both bolts lightly, just enough to hold the frame in place without restricting movement.

Guide:

• Ensure part G aligns straight and sits flush against the Chair Back Assembly to avoid twisting the frame.
• Final tightening will be done once the full chair frame is connected in upcoming steps.

Note: This step will also be repeated for the second chair.

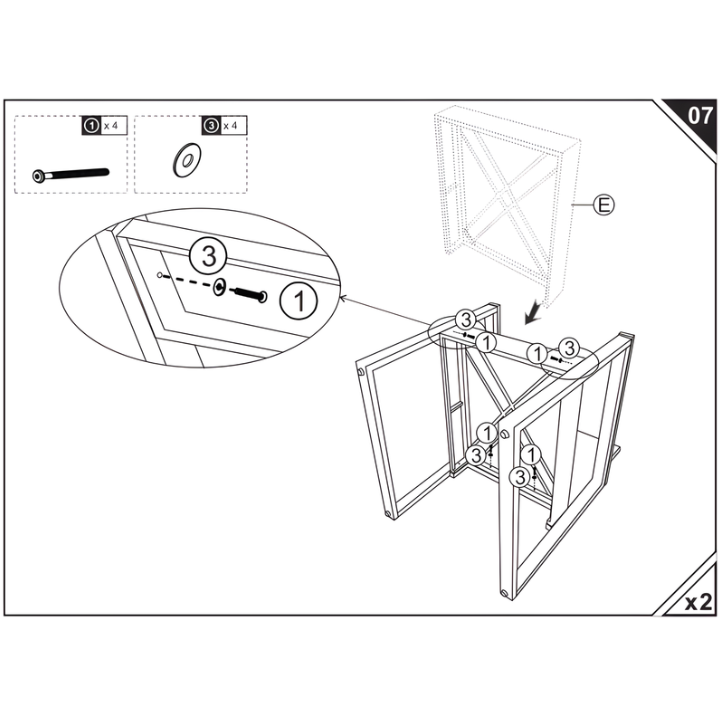

Step 7: Install the Seat Base Panel onto the Chair Frame

This step requires the following parts and hardware:

• Seat Base Panel – E (x1)
• Chair Frame Assembly (from Steps 5–6)
• M6 × 35 Bolts – (x4)
• Washers – (x4)

Instructions:

1. Position the Seat Base Panel (E) above the assembled chair frame.
2. Lower it gently into place, ensuring the mounting holes along the underside of the seat panel align with the holes on the side and back frames.
3. Insert an M6 × 35 Bolt with a Washer into each mounting point.
4. Repeat this process for all four corners of the seat base.
5. Lightly tighten each bolt to secure the panel while still allowing for small adjustments.

Guide:

• Make sure the Seat Base Panel sits evenly and flush across the entire frame.
• Do not fully tighten the bolts yet, wait until the chair is fully assembled for best alignment.

Note: This step will be completed twice, once for each chair.

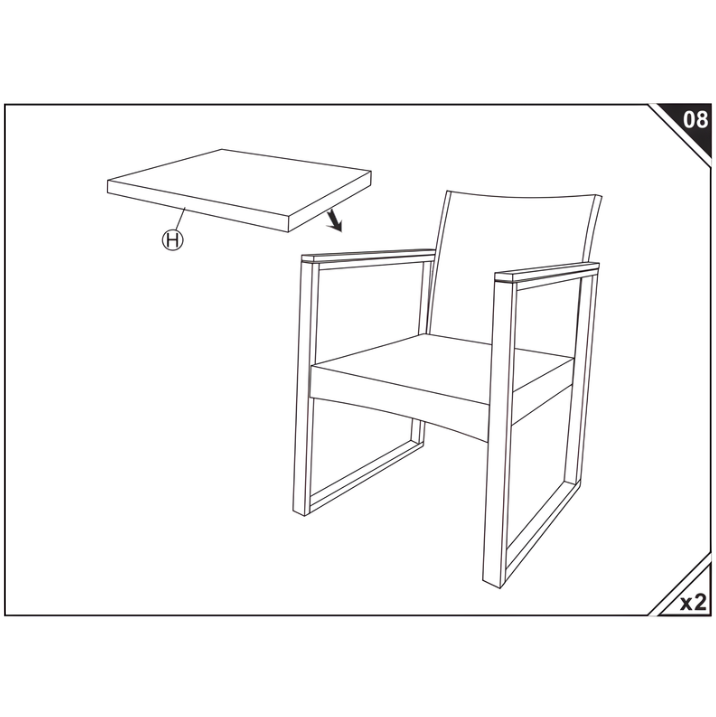

Step 8: Place the Seat Cushion Panel onto the Chair

This step requires the following parts:

• Seat Cushion Panel – H (x1)
• Chair Assembly (from Step 7)

Instructions:

1. Hold the Seat Cushion Panel (H) with both hands to ensure even placement.
2. Lower the panel gently onto the top frame of the chair.
3. Make sure it sits flat and properly aligned with the edges of the chair frame.
4. Adjust the positioning if necessary so the cushion panel fits securely without movement.

Guide:

• Ensure the cushion panel is fully supported by the upper frame before use.
• Repeat this step for the second chair.

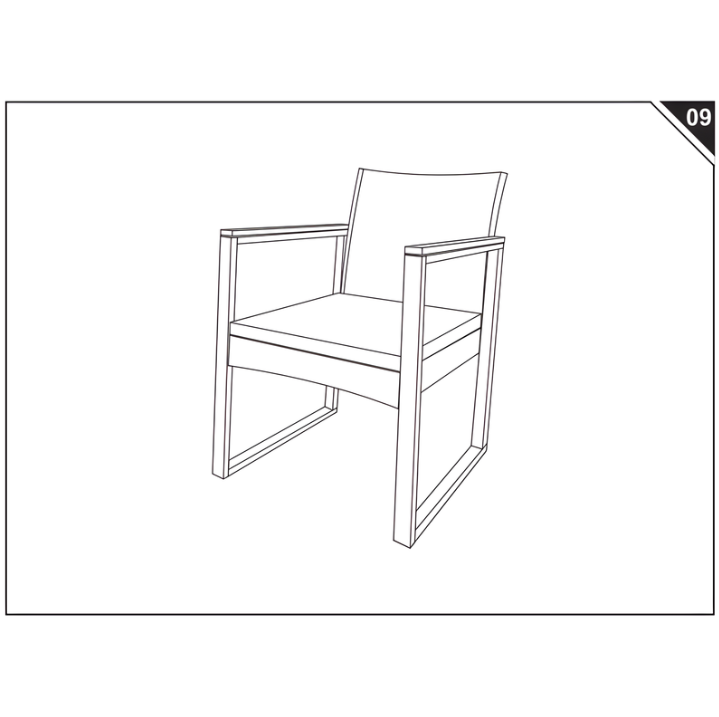

Step 9: Confirm the Chair Assembly is Complete

Instructions:

1. Carefully place the fully assembled chair upright on a flat surface.
2. Check that all frame connections are secure and the chair stands evenly without wobbling.
3. Ensure the seat cushion panel (H) is properly aligned and fully supported by the frame.
4. Once alignment is confirmed, go back and fully tighten all bolts from previous steps using the provided Allen key.

Guide:

• This step ensures the chair is safe and stable before use.
• Repeat the same process to finalize the second chair.

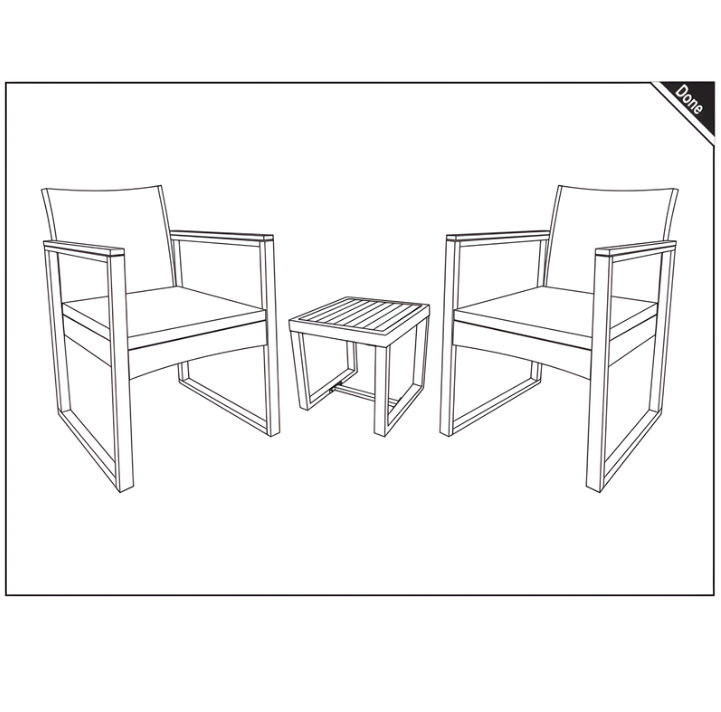

Step 10: Complete the 3-Piece Set Assembly

Instructions:

1. Arrange both fully assembled chairs and the completed table on a flat surface.
2. Check that all components sit evenly and do not wobble.
3. Ensure every bolt from previous steps is now fully tightened for maximum stability.
4. Confirm that all panels, frames, and seat bases are aligned correctly and securely attached.

Guide:

• This step completes your entire 3-piece outdoor seating set.
• Your chairs and table are now ready for use after a final stability check.

Care & Maintenance

• Wipe the chairs and table regularly with a soft, damp cloth to remove dust and outdoor debris.
• Avoid using harsh chemicals, bleach, or abrasive cleaners that may damage the metal frame or fabric backrest.
• Allow all fabric parts to dry completely before storage to prevent mould or mildew buildup.
• Although designed for outdoor use, prolonged exposure to direct sunlight, heavy rain, or snow can shorten lifespan, storing the set under cover during harsh weather or off-season.
• Keep the furniture on flat, stable ground to avoid unnecessary stress on the frame structure.

Safety Precautions

• Keep children and pets away during assembly to avoid injuries from loose parts or tools.
• Do not exceed the recommended weight capacity for each chair (follow warnings in product manual).
• Avoid placing open flames, hot items, or sharp objects directly on the table or fabric areas.
• Always ensure all bolts are fully tightened before using the chairs or table.
• Do not use the chairs during storms or severe weather conditions, and avoid sitting if the fabric is wet or slippery.

Ready to Use!

Your Outsunny 3-Piece Patio Chair and Table Set is now fully assembled and ready to enhance your outdoor space with comfort and modern style. Whether on a patio, garden corner, or balcony, the set offers a sturdy, relaxing seating experience.

You may download the Outsunny 3-Pieces Wicker Patio Furniture Set (SKU: 863-170V00DB) Assembly Manual for future reference.

For technical support, replacement parts, or product-related assistance, contact Aosom Customer LLC’s Service for quick and friendly help.
