The HOMCOM Kids Bookcase with Storage Drawer is a charming and practical addition to any child’s room, classroom, or play area. Designed in a soft pink finish, it combines playful style with everyday functionality. Featuring three open shelves, two cubby compartments, and a spacious pull-out drawer with wheels, it provides ample space for storing books, toys, and art supplies.
Warning
- Small parts can cause choking. Not safe for kids under 3 years old.
- Adults should put it together. Keep children away while assembling.
- Always use it when an adult is watching.
- Set it on a flat, clean floor and make sure all parts are tight before using.
Parts and Hardware Overview
Before you begin assembling your HOMCOM Kids Bookcase with Storage Drawer (SKU: 311-048V80PK), please review the lists below carefully. Make sure all parts and hardware are present and in good condition. If anything is missing or damaged, contact customer service before starting assembly.

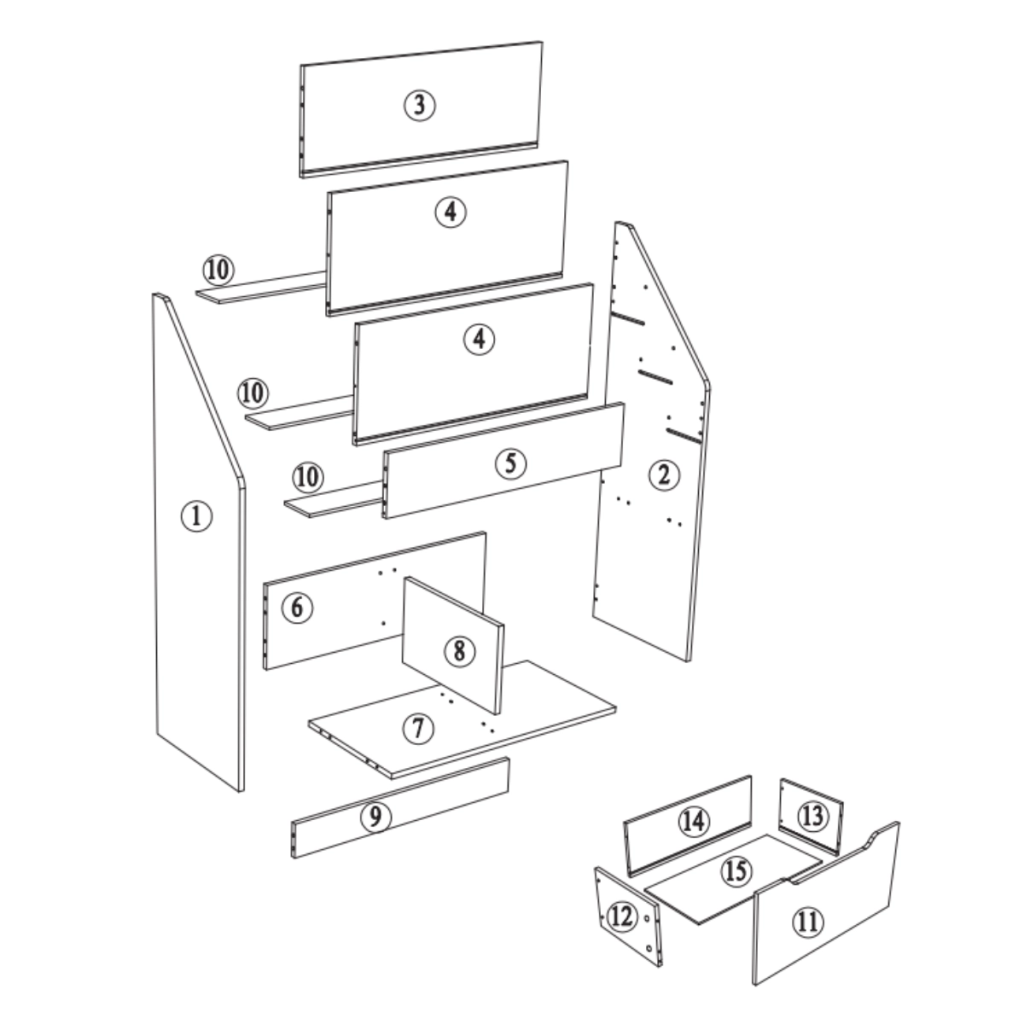

1. Parts List
| No. | Part Name | Quantity |
| 1 | Left Side Panel | 1 |
| 2 | Right Side Panel | 1 |
| 3 | Top Shelf Panel | 1 |
| 4 | Middle Shelf Panels | 2 |
| 5 | Front Panel | 1 |
| 6 | Back Panel | 1 |
| 7 | Bottom Panel | 1 |
| 8 | Center Divider Panel | 1 |
| 9 | Front Base Panel | 1 |
| 10 | Support Bars | 3 |
| 11 | Drawer Front Panel | 1 |
| 12 | Drawer Left Side Panel | 1 |
| 13 | Drawer Right Side Panel | 1 |
| 14 | Drawer Back Panel | 1 |
| 15 | Drawer Bottom Panel | 1 |
Note: Check that all parts are included and undamaged before starting assembly. Assemble on a flat, clean surface to prevent scratches.

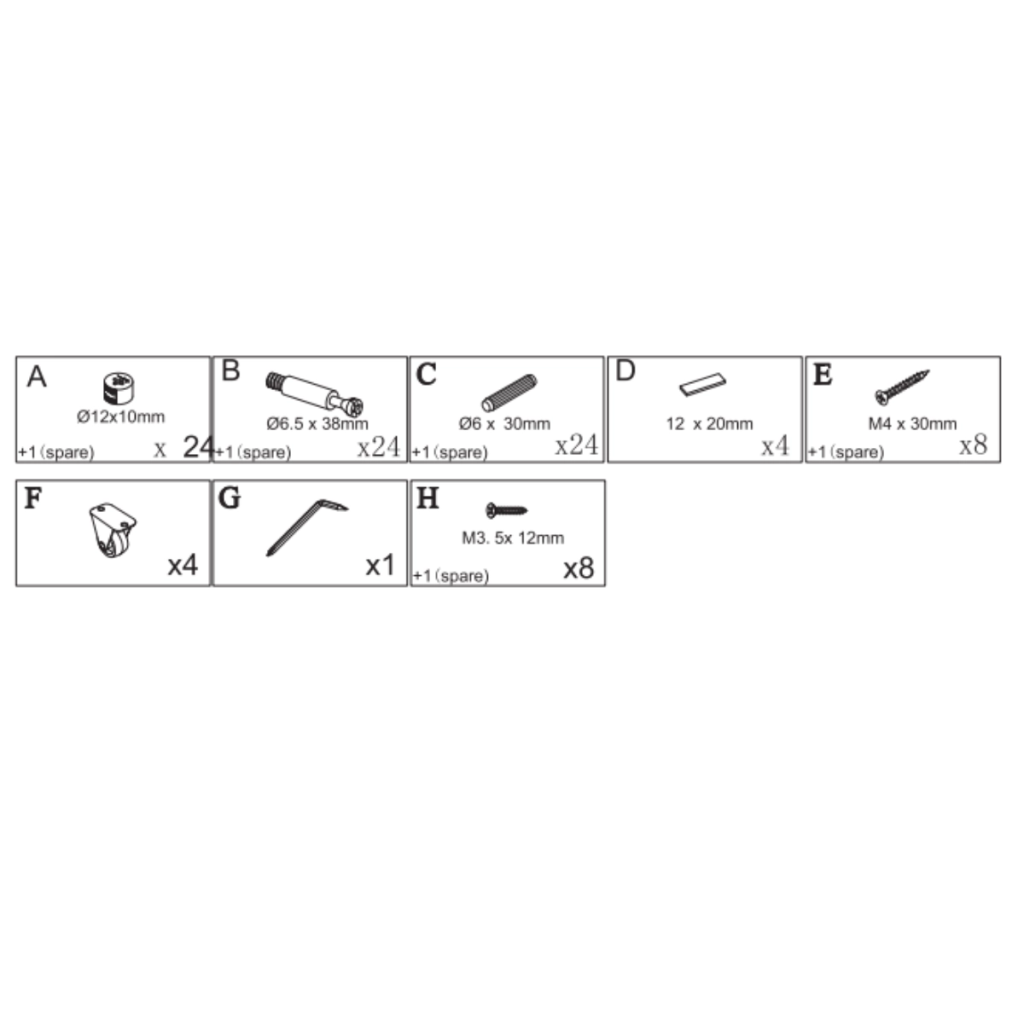

2. Hardware List
| Label | Description | Size | Quantity | Extra (Spare) |
| A | Cam Lock | Ø12 × 10 mm | 24 | +1 |
| B | Cam Bolt | Ø6.5 × 38 mm | 24 | +1 |
| C | Wooden Dowel | Ø6 × 30 mm | 24 | +1 |
| D | Metal Connector | 12 × 20 mm | 4 | — |
| E | Screw | M4 × 30 mm | 8 | +1 |
| F | Wheel | — | 4 | — |
| G | Allen Key | — | 1 | — |
| H | Screw | M3.5 × 12 mm | 8 | +1 |
Tip: Extra (spare) parts are provided for your convenience. Keep them safely in case replacements are needed later.
Assembly Instructions
Follow these steps to assemble your HOMCOM Kids Pink Bookcase with Storage Drawer (SKU: 311-048V80PK) easily.

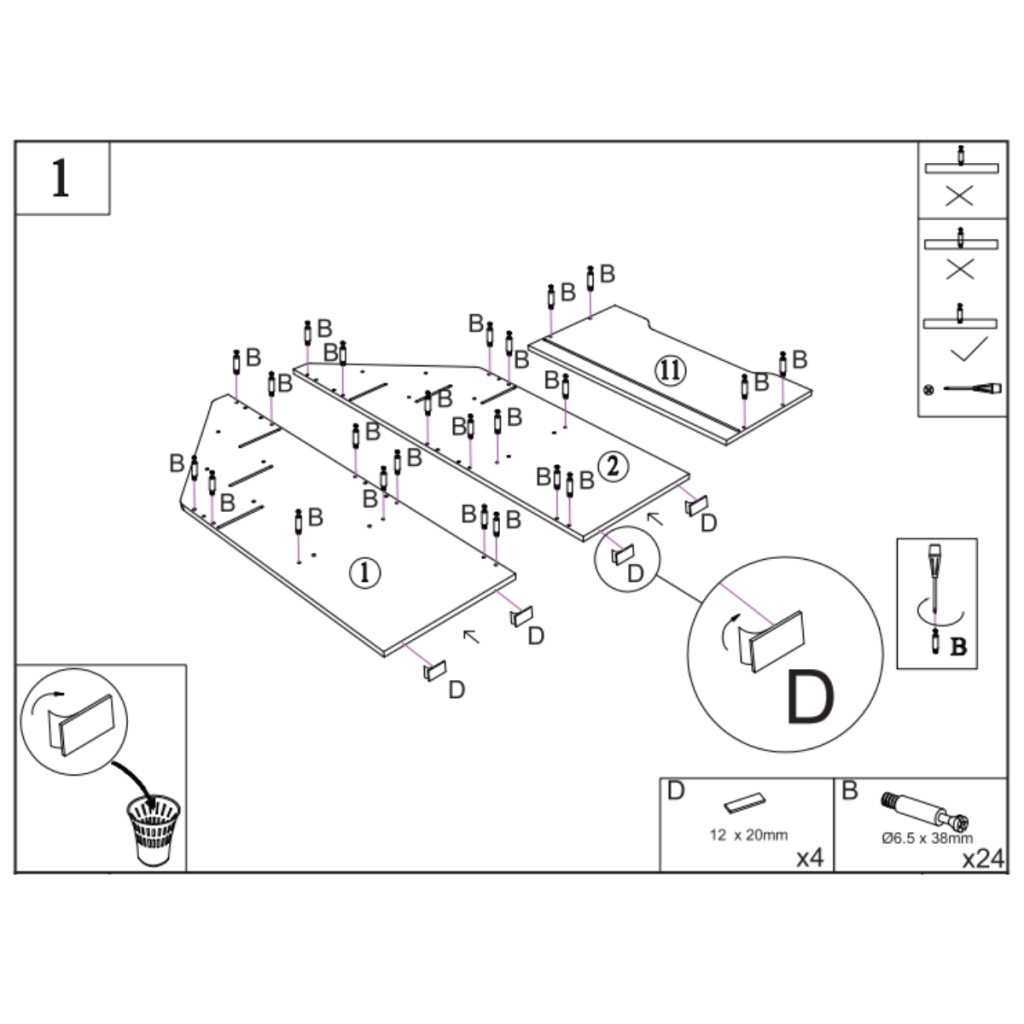

Step 1: Install Cam Bolts and Metal Connectors
- Lay out the Left Side Panel (1), Right Side Panel (2), and Drawer Front Panel (11) on a clean, flat surface.
- Insert Cam Bolts (B) into the pre-drilled holes on each of these panels. Tighten them gently using a screwdriver, do not over-tighten.
- Attach Metal Connectors (D) at the bottom edges of the side panels as shown.
- Double-check that all Cam Bolts (B) are firmly in place and all connectors (D) are aligned properly.
Tip: Ensure the cam bolts are inserted straight into the holes. A tilted bolt may cause difficulty during later assembly steps.

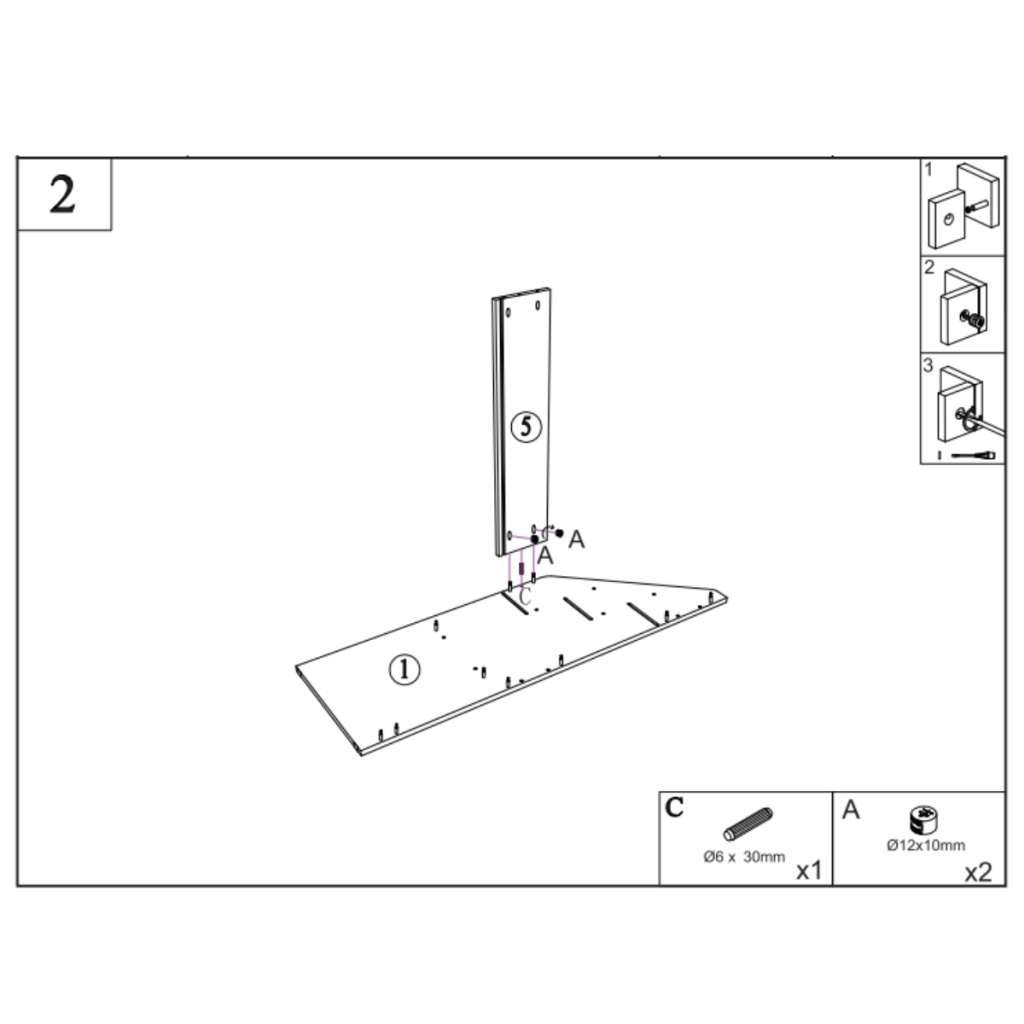

Step 2: Attach the Front Panel to the Left Side Panel
- Take the Left Side Panel (1) and place it flat on the floor with the inner side facing up.
- Insert one Wooden Dowel (C) into the pre-drilled hole on the Front Panel (5).
- Align the Front Panel (5) with the corresponding holes on the Left Side Panel (1).
- Insert two Cam Locks (A) into the holes on the Left Side Panel (1).
- Rotate the cam locks clockwise using a screwdriver to secure the Front Panel (5) firmly in place.
Tip: Make sure the panel edges are flush and the cam locks are tightened until you feel resistance, do not over-tighten.

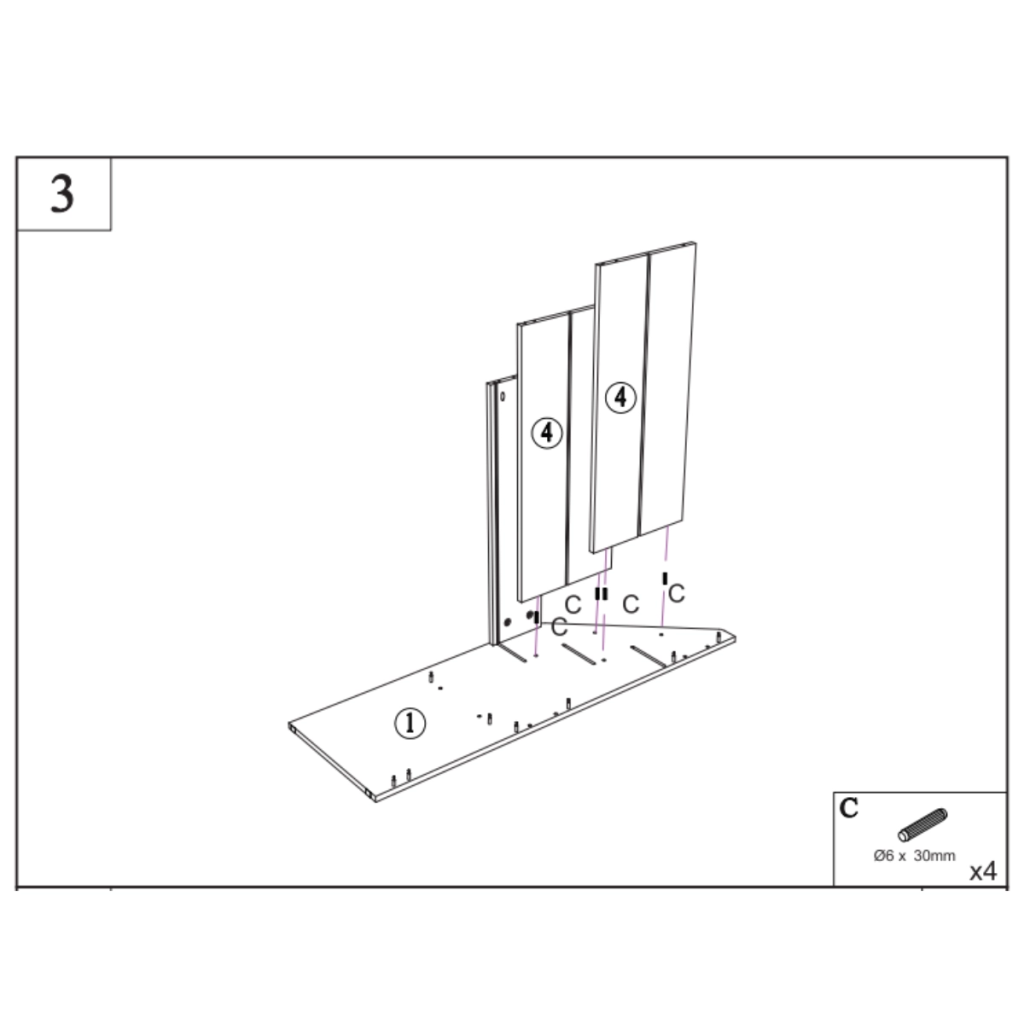

Step 3: Install the Middle Shelf Panels
- Take two Middle Shelf Panels (4) and position them above the Left Side Panel (1) as shown.
- Insert four Wooden Dowels (C) into the pre-drilled holes on the Left Side Panel (1).
- Align the Middle Shelf Panels (4) with the dowels and gently press them into place.
- Make sure both shelves fit firmly and are evenly spaced.
Tip: Use a soft cloth or hand pressure to fit the shelves securely to avoid using excessive force that might damage the dowels or panels.

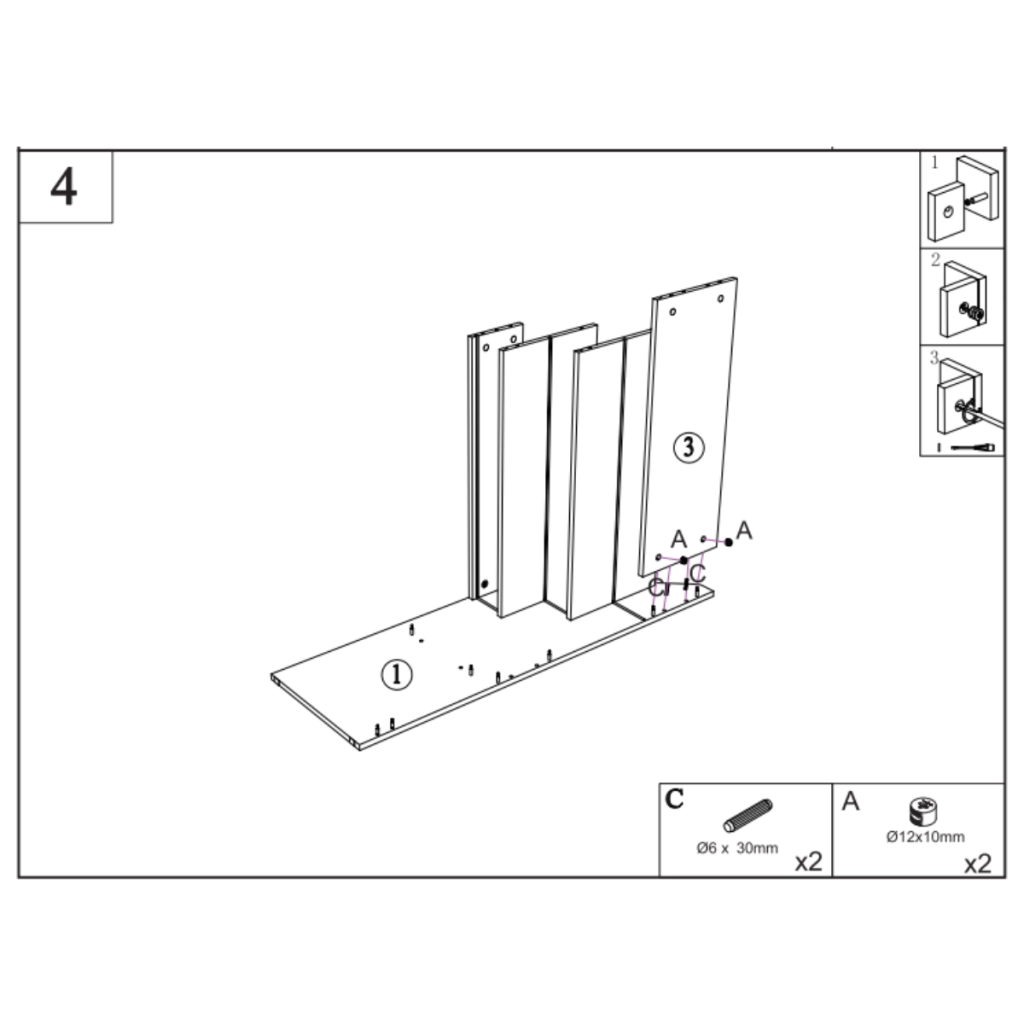

Step 4: Attach the Top Shelf Panel
- Insert two Wooden Dowels (C) into the pre-drilled holes on the Left Side Panel (1), just above the middle shelves.
- Align the Top Shelf Panel (3) with the dowels and position it in place.
- Insert two Cam Locks (A) into the holes on the Top Shelf Panel (3) and rotate them clockwise using a screwdriver to lock it securely.
- Make sure the top shelf sits evenly and firmly on the side panel.
Tip: Double-check that the cam locks click into place, this ensures a tight connection and prevents wobbling later.

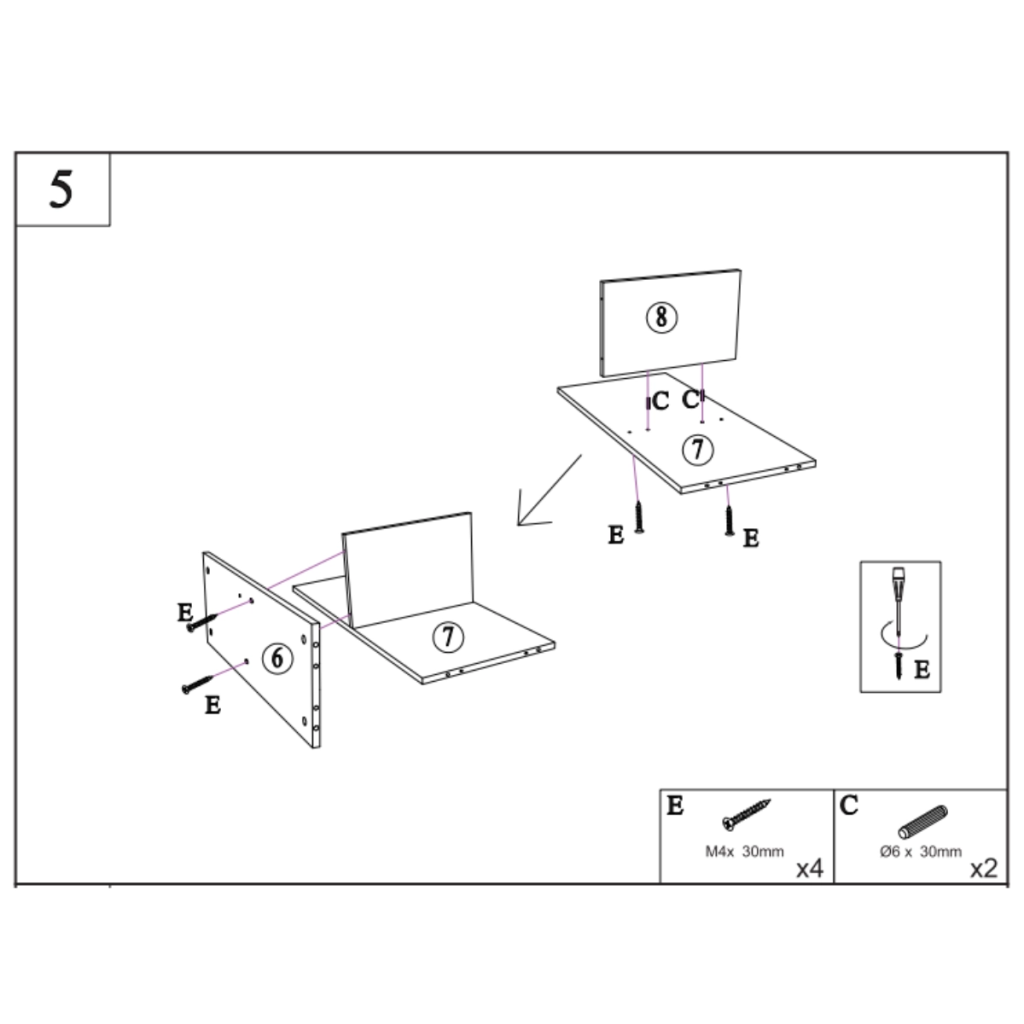

Step 5: Assemble the Bottom Section
- Insert two Wooden Dowels (C) into the pre-drilled holes on the Bottom Panel (7).
- Attach the Center Divider Panel (8) onto the dowels, ensuring it stands upright.
- Secure the Center Divider (8) to the Bottom Panel (7) using two Screws (E).
- Align the Back Panel (6) with the assembly and fasten it to the Bottom Panel (7) using two more Screws (E).
- Tighten all screws carefully to ensure a sturdy connection.
Tip: Keep the panels upright and aligned while tightening to prevent gaps or uneven joints.

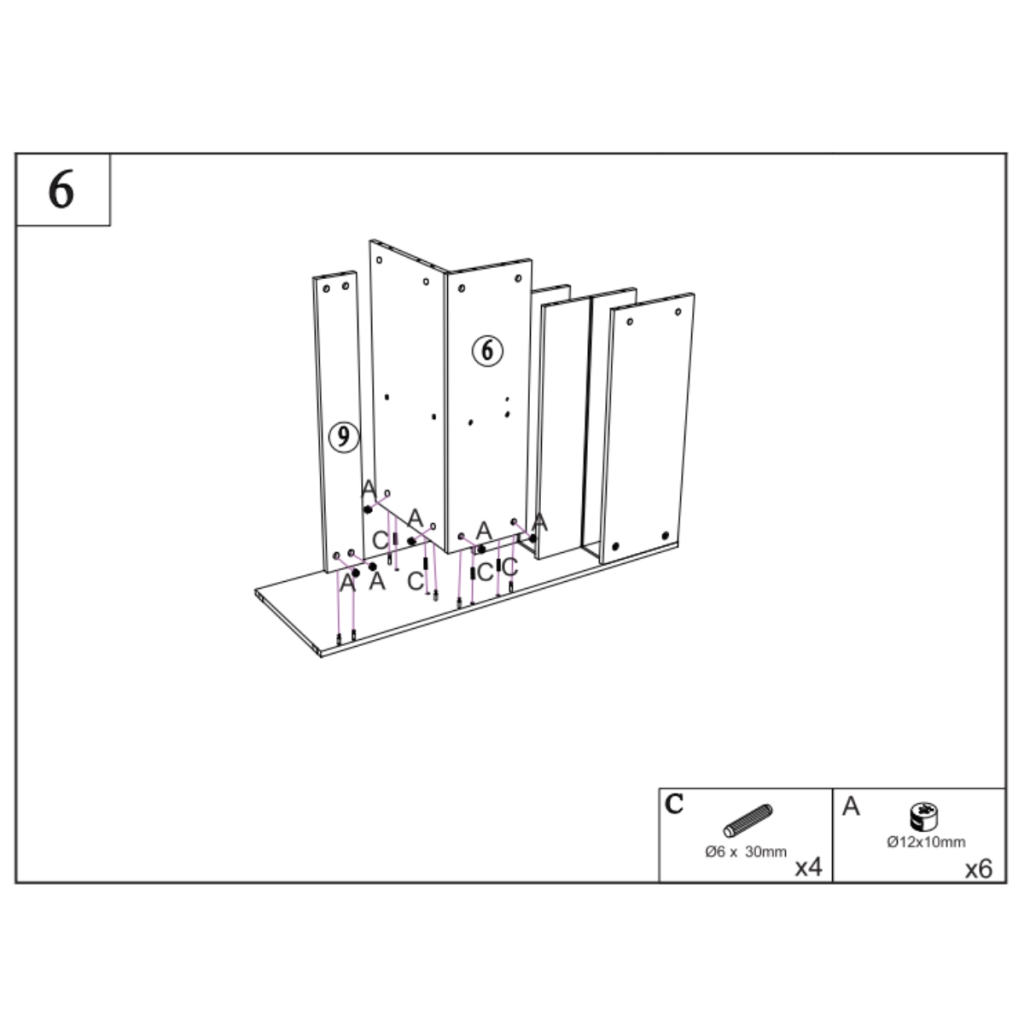

Step 6: Connect the Bottom Assembly to the Main Frame
- Insert four Wooden Dowels (C) into the pre-drilled holes on the Bottom Panel (7).
- Position the Back Panel (6) and the Front Base Panel (9) onto the dowels, aligning them carefully with the frame.
- Secure the connections using six Cam Locks (A), two for each connecting point.
- Rotate each cam lock clockwise with a screwdriver until it tightens firmly.
Tip: Ensure all panels (6 and 9) sit flush against the structure before tightening. Proper alignment will keep the frame stable and even.

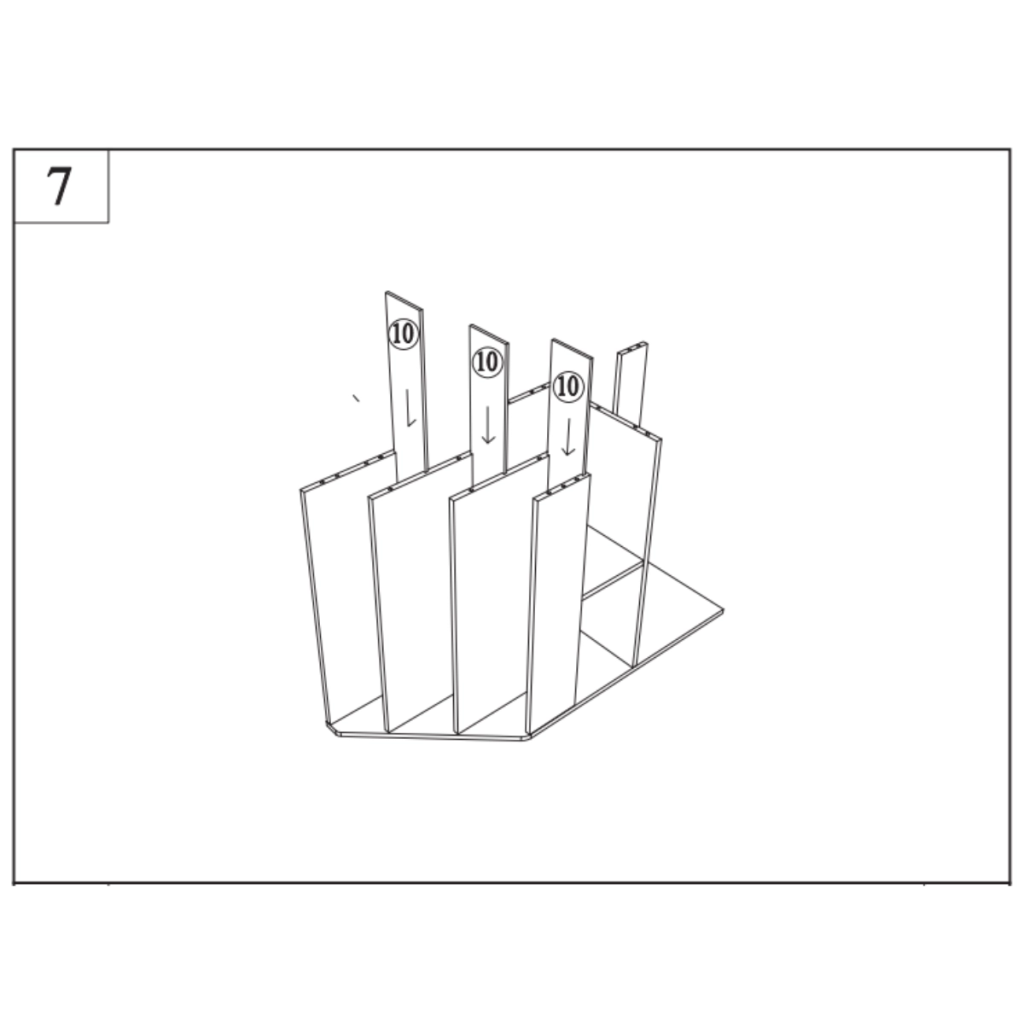

Step 7: Insert the Support Bars
- Take the three Support Bars (10) and align them with the slots located at the top of the unit.
- Carefully slide each bar down into its respective space between the panels.
- Press firmly to ensure the bars fit securely and sit evenly across the structure.
Tip: Make sure all support bars are fully inserted and level, they help strengthen the frame and support the upper shelves.
Step 8: Attach the Right Side Panel
- Insert eleven Wooden Dowels (C) into the pre-drilled holes on the top edges of the panels.
- Align the Right Side Panel (2) with the dowels, making sure all holes and connectors line up properly.
- Insert ten Cam Locks (A) into the designated holes on the Right Side Panel (2).
- Use the Allen Key (G) to rotate each cam lock clockwise until it locks firmly.
Tip: Start tightening from the middle and work outward to ensure the panel sits evenly and securely on the structure.

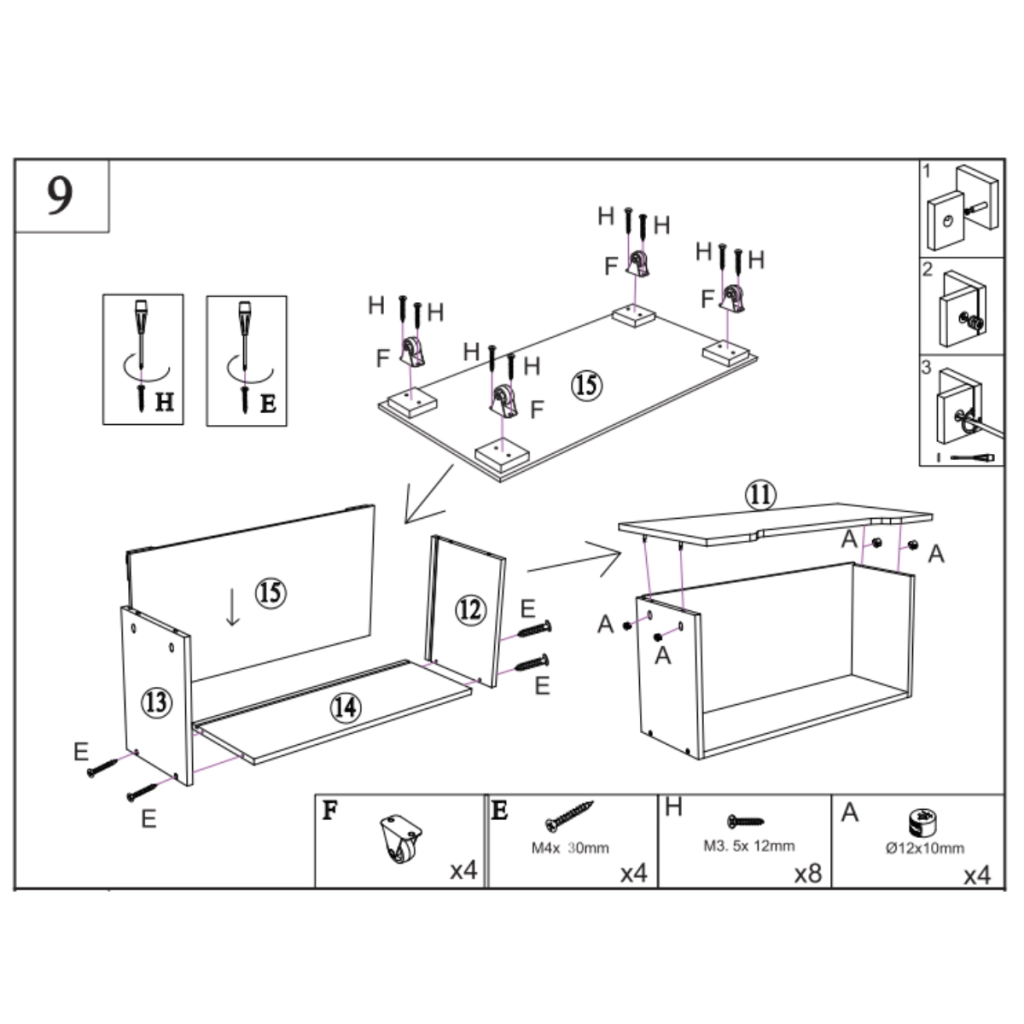

Step 9: Assemble the Drawer
- Attach the Drawer Left Side Panel (12) and Drawer Right Side Panel (13) to the Drawer Back Panel (14) using four Screws (E).
- Slide the Drawer Bottom Panel (15) into the grooves on each side panel until it fits snugly.
- Secure four Wheels (F) to the underside of the Drawer Bottom Panel (15) using four Screws (H). Tighten them firmly.
- Place the Drawer Front Panel (11) onto the structure and insert four Cam Locks (A) into the designated holes.
- Rotate each cam lock clockwise with the Allen Key (G) until the front panel is tightly fixed.
Tip: Make sure the drawer slides smoothly after assembly if not, adjust the wheels or retighten screws slightly for better alignment.

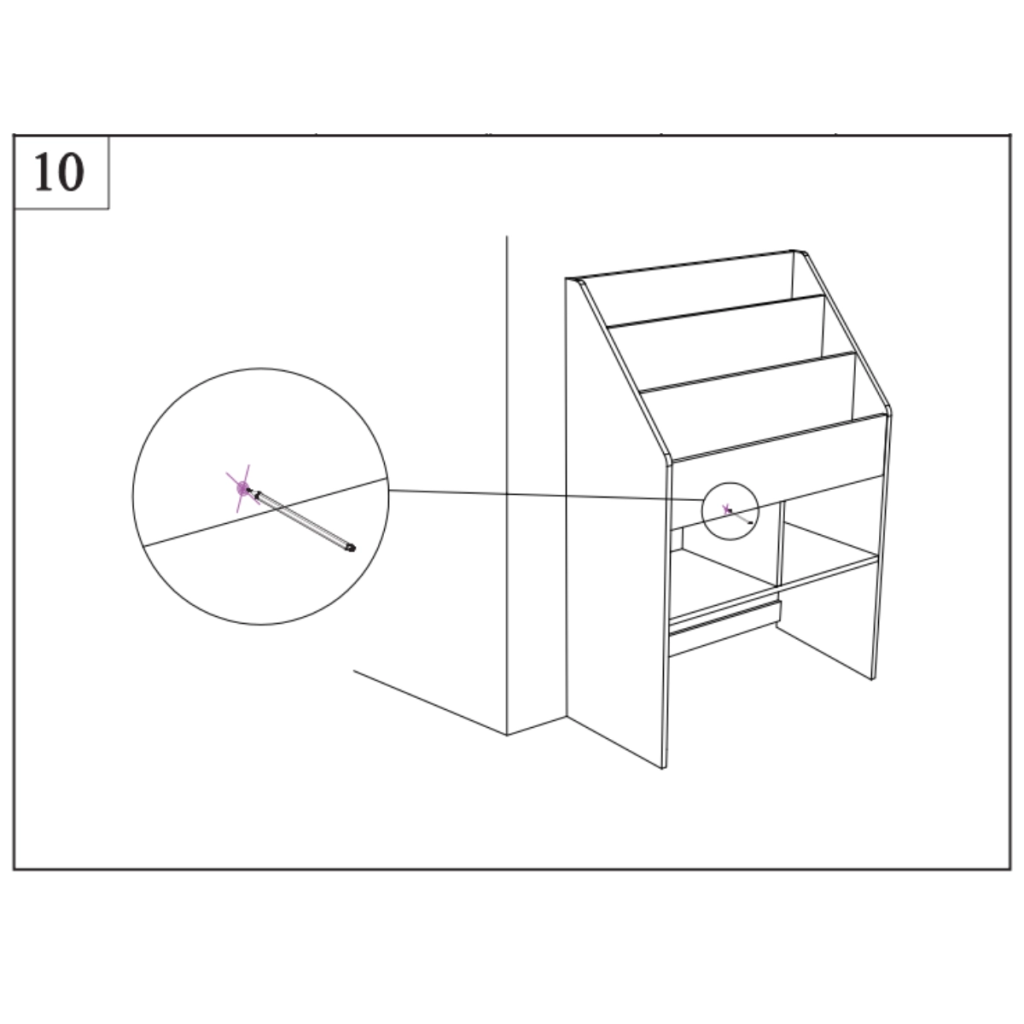

Step 10: Install the Anti-Toppling Device
- Locate the anti-toppling hole at the back of the bookshelf.
- Attach the anti-toppling strap (included in the package) to the hole using the provided screw.
- Secure the other end of the strap firmly to the wall with a suitable wall anchor (not included).
- Adjust the strap to make sure the bookcase stands straight and securely against the wall.
Safety Tip: Always install the anti-toppling device to prevent the bookshelf from tipping over, especially when used by children.

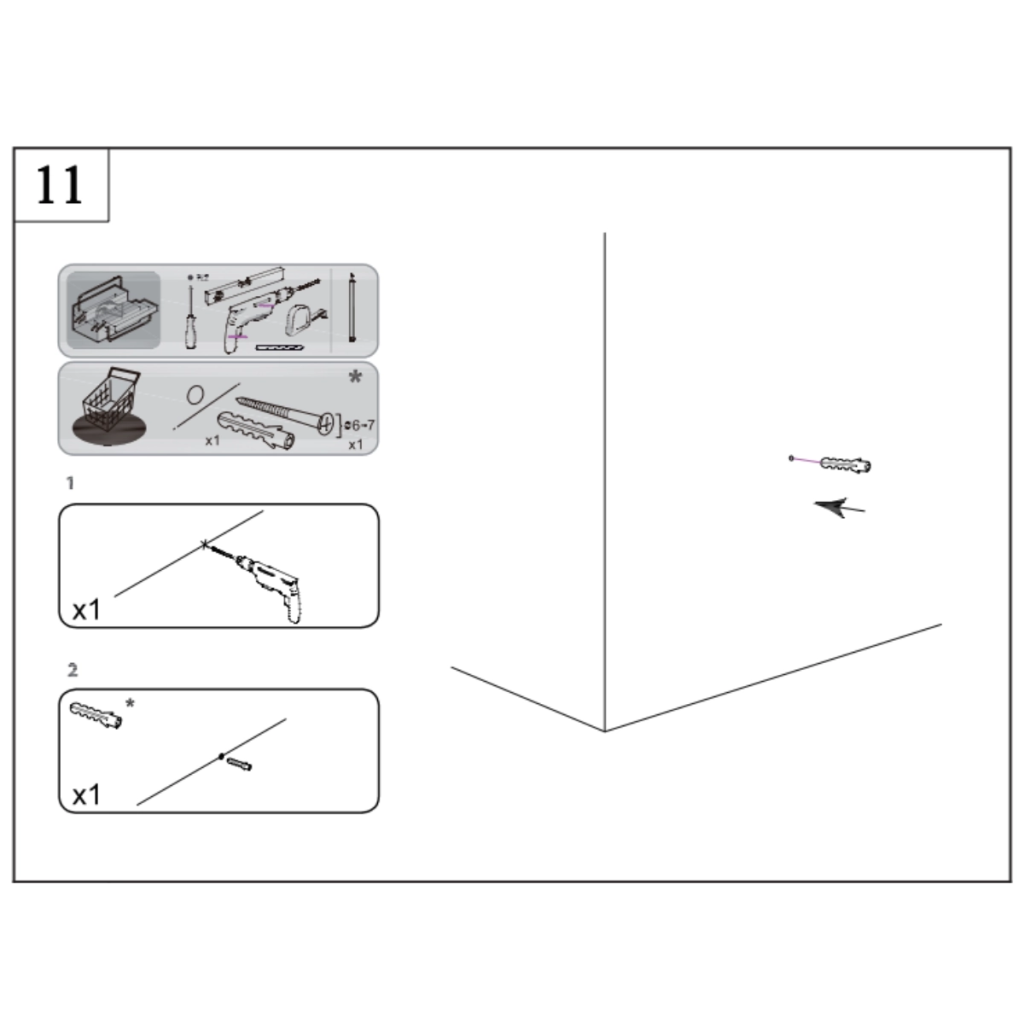

Step 11: Secure the Anti-Toppling Device to the Wall
- Choose a suitable spot on the wall directly behind the bookshelf where the anti-toppling strap will be attached.
- Using a drill (Ø6–7 mm bit), make a small hole in the wall.
- Insert a wall plug (anchor) into the drilled hole.
- Fasten the screw through the anti-toppling strap and into the wall plug. Tighten securely with a screwdriver.
- Adjust the strap so that it holds the bookcase firmly against the wall without slack.
Safety Tip: Make sure the wall anchor is suitable for your wall type (drywall, concrete, brick, etc.) for maximum safety and stability.

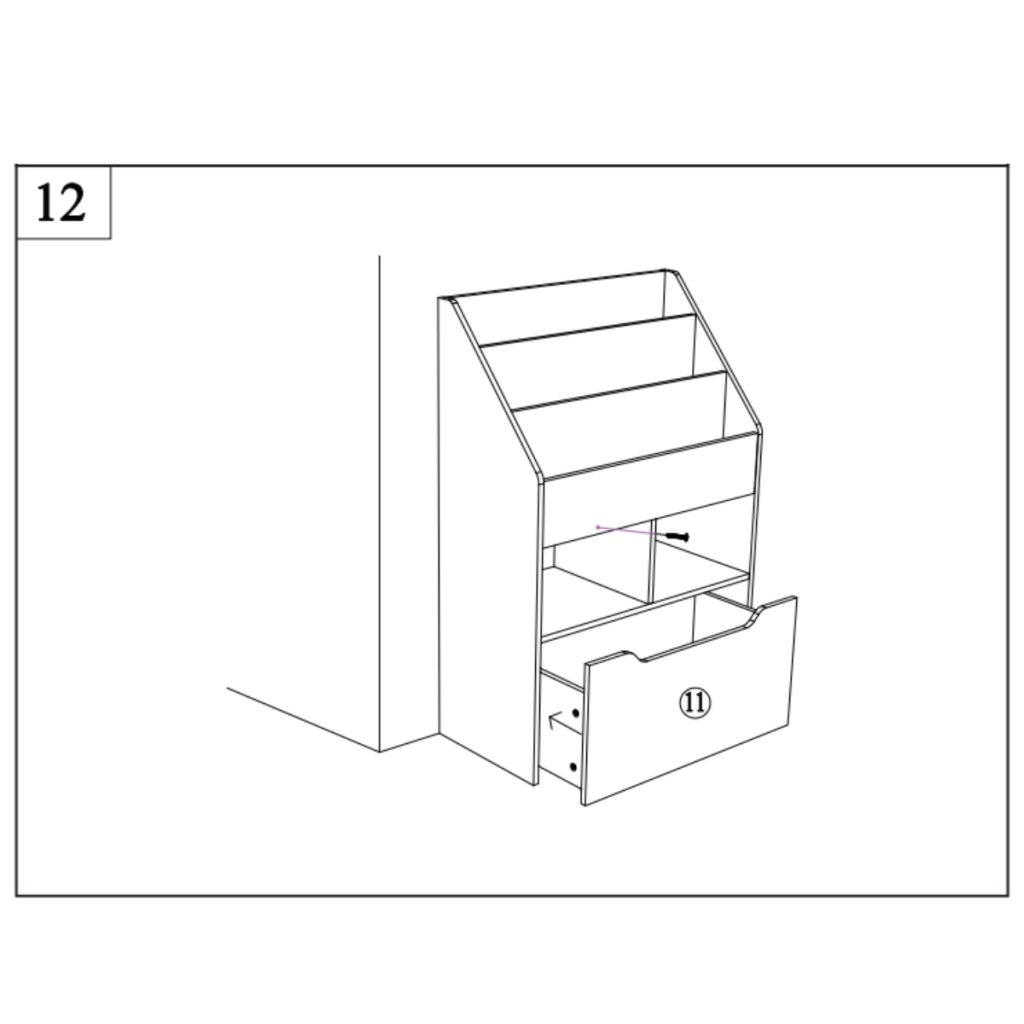

Step 12: Insert the Drawer
- Carefully slide the assembled drawer (11) into the open space at the bottom of the bookshelf.
- Make sure the drawer wheels align properly with the base so it moves in and out smoothly.
- Test the drawer’s movement to confirm it glides easily and sits evenly when closed.
Tip: If the drawer feels tight or uneven, gently adjust the alignment or retighten any loose screws on the wheel mounts.
Maintenance & Care
- Keep this manual and all product parts for future reference.
- Wipe the surface with a dry or slightly damp cloth to clean.
Assembly Complete
Your HOMCOM Kids Pink Bookcase with Storage Drawer (SKU: 311-048V80PK) is now ready for use.
User Guide
Download the HOMCOM Kids Pink Bookcase with Storage Drawer SKU: 311-048V80PK (PDF) for your reference.
FAQs
1. Why does the drawer get stuck or feel hard to pull out?
The drawer wheels might not be aligned properly or could be tightened unevenly. Remove the drawer and check that all wheels are level and secure. Adjust or loosen them slightly so the drawer slides smoothly without friction.
2. How can I fix the bookcase if it wobbles after assembly?
Make sure the unit is placed on a flat surface and all cam locks are fully tightened. If the floor is uneven, add small felt pads under the corners. For extra stability, always secure the anti-toppling strap to the wall.
3. What should I do if one of the shelves doesn’t fit correctly?
Remove the shelf and check that all wooden dowels are straight and inserted fully into the holes. Clear out any dust or debris that might block alignment. Reinsert the shelf carefully and tighten nearby screws evenly.
4. Why is there a visible gap between panels after tightening?
A slight misalignment can occur if dowels or cam bolts aren’t fully seated. Loosen the surrounding screws a little, realign the panels by hand, and then retighten gradually. Always assemble the unit on a clean, level surface.
