Outsunny 8-Seater Outdoor Dining Table Assembly Manual – (SKU: 84B-915ND)

Create a welcoming outdoor dining space with this Outsunny rectangular table, featuring a wood-grain plastic top and a powder-coated aluminium frame. Designed for up to eight people, it offers a spacious, easy-clean surface, reliable stability, and a rustic style that fits patios, porches, and garden settings. Perfect for everyday meals, gatherings, and relaxed outdoor living.

Before You Begin

• Read all instructions before starting.
• Assemble on a flat, clean surface.
• Two people are recommended for safe and easy assembly.
• Keep all hardware organised and do not fully tighten screws until the final step.

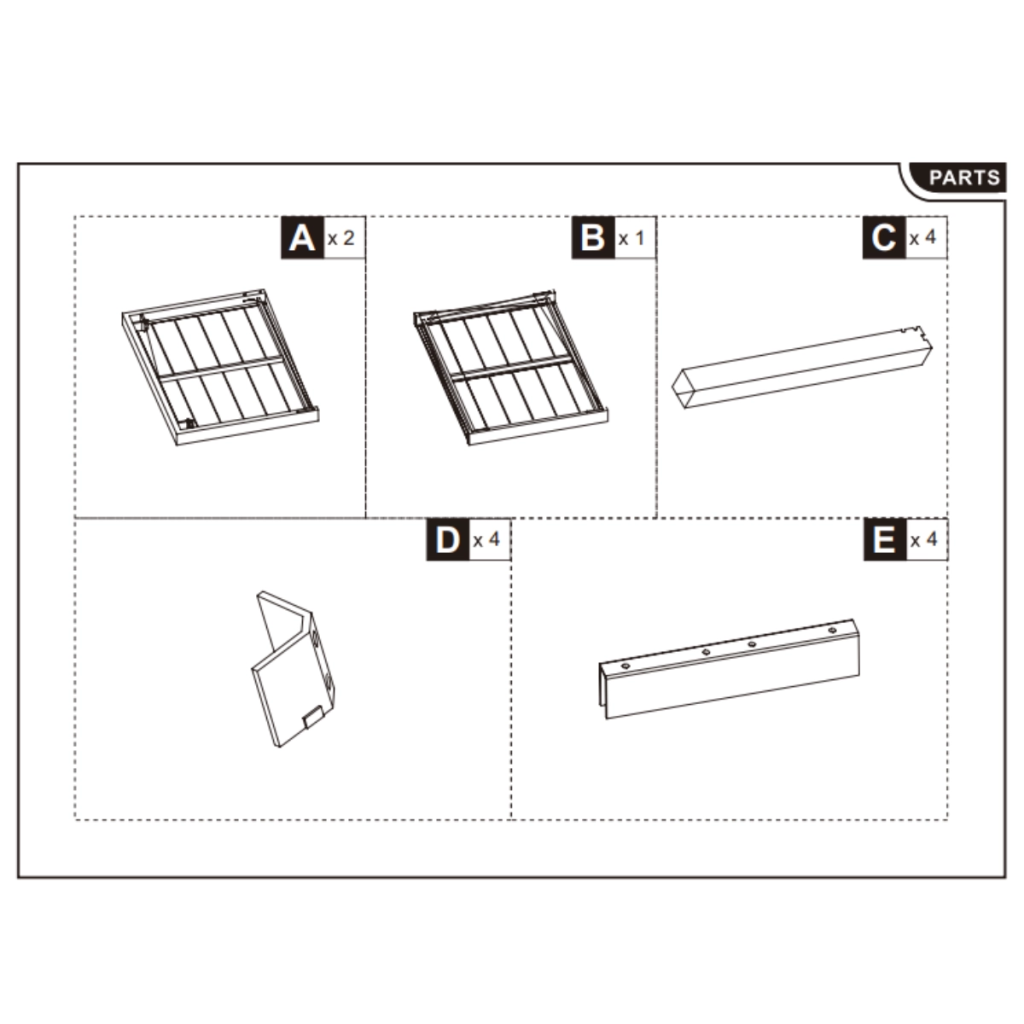

Parts List

• A × 2 — Side Frame Panels
• B × 1 — Centre Base Panel
• C × 4 — Top Support Bars
• D × 4 — Corner Brackets
• E × 4 — Bottom Support Bars

Hardware List

• F × 8 — M8×40 Bolts
• G × 32 — M6×15 Bolts
• H × 8 — M8 Washers
• L × 32 — M6 Washers
• M × 1 — M8 Allen Key
• N × 1 — M6 Allen Key

Assembly Instructions

Before beginning, ensure all parts and hardware are available. Assemble your Outsunny 8-Seater Outdoor Dining Table on a flat, clean surface and follow the steps below for a smooth and accurate setup.

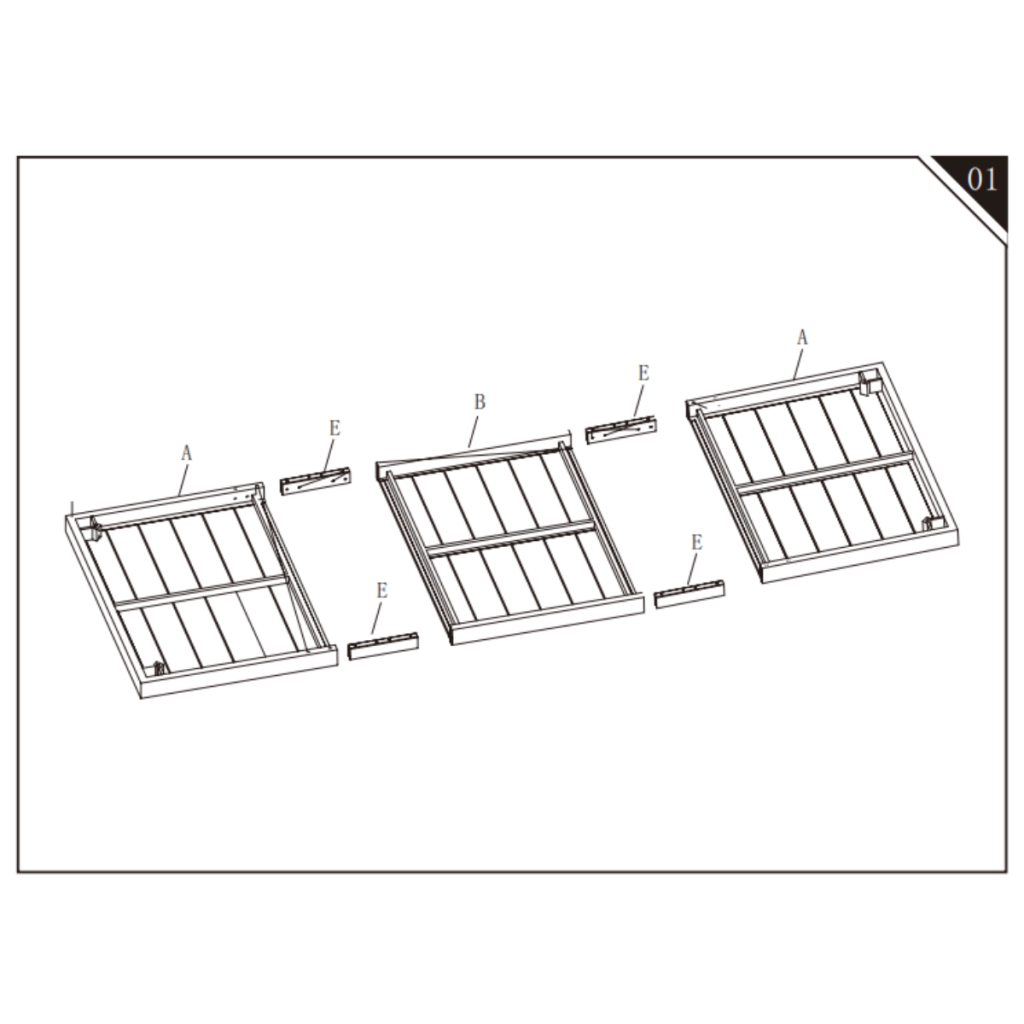

Step 1: Attach the Bottom Support Bars (E) to the Side Panels (A) and Base Panel (B)

1. Place both Side Panels (A) on the left and right sides as shown in the diagram.
2. Position the Base Panel (B) in the centre between the two Side Panels.
3. Take the Bottom Support Bars (E) and align them with the lower connection points on each Side Panel (A).
4. Attach one Support Bar (E) to the left Side Panel (A) and one Support Bar (E) to the right Side Panel (A).
5. Next, attach the remaining Support Bars (E) to the Base Panel (B), aligning them with the corresponding lower holes.
6. Ensure all parts (A, B, and E) are aligned properly before inserting bolts in the next step.

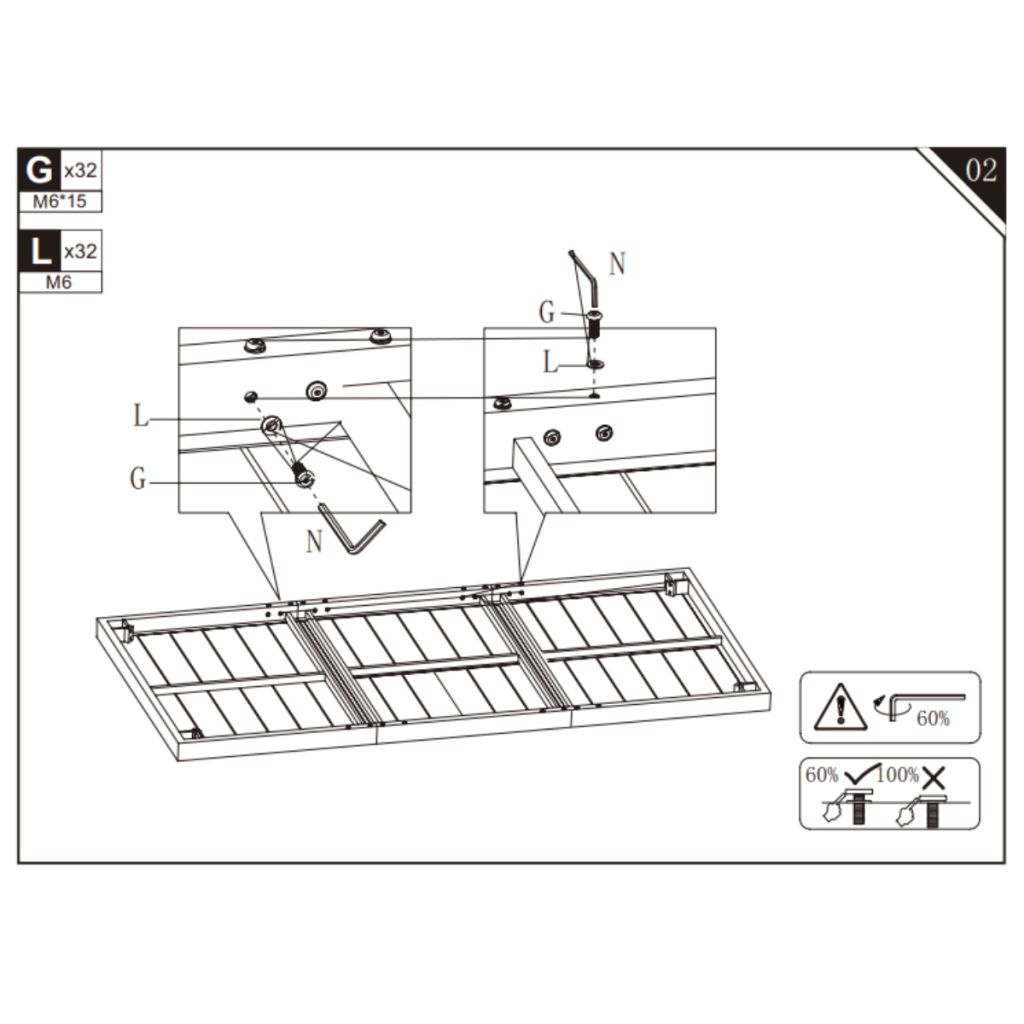

Step 2: Secure the Panels Using Bolts (G) and Washers (L)

1. With the frame laid flat, align the pre-drilled holes on the Side Panels (A), Base Panel (B), and Bottom Support Bars (E).
2. Insert one M6×15 Bolt (G) through each hole.
3. Place an M6 Washer (L) onto each bolt before tightening.
4. Use the M6 Allen Key (N) to tighten every bolt to 60% tightness.

   • This ensures the structure stays flexible for alignment in later steps.

5. Continue installing all 32 bolts (G) with their 32 washers (L) across the entire bottom frame.
6. Do not fully tighten at this stage, leave final tightening for Step 04.

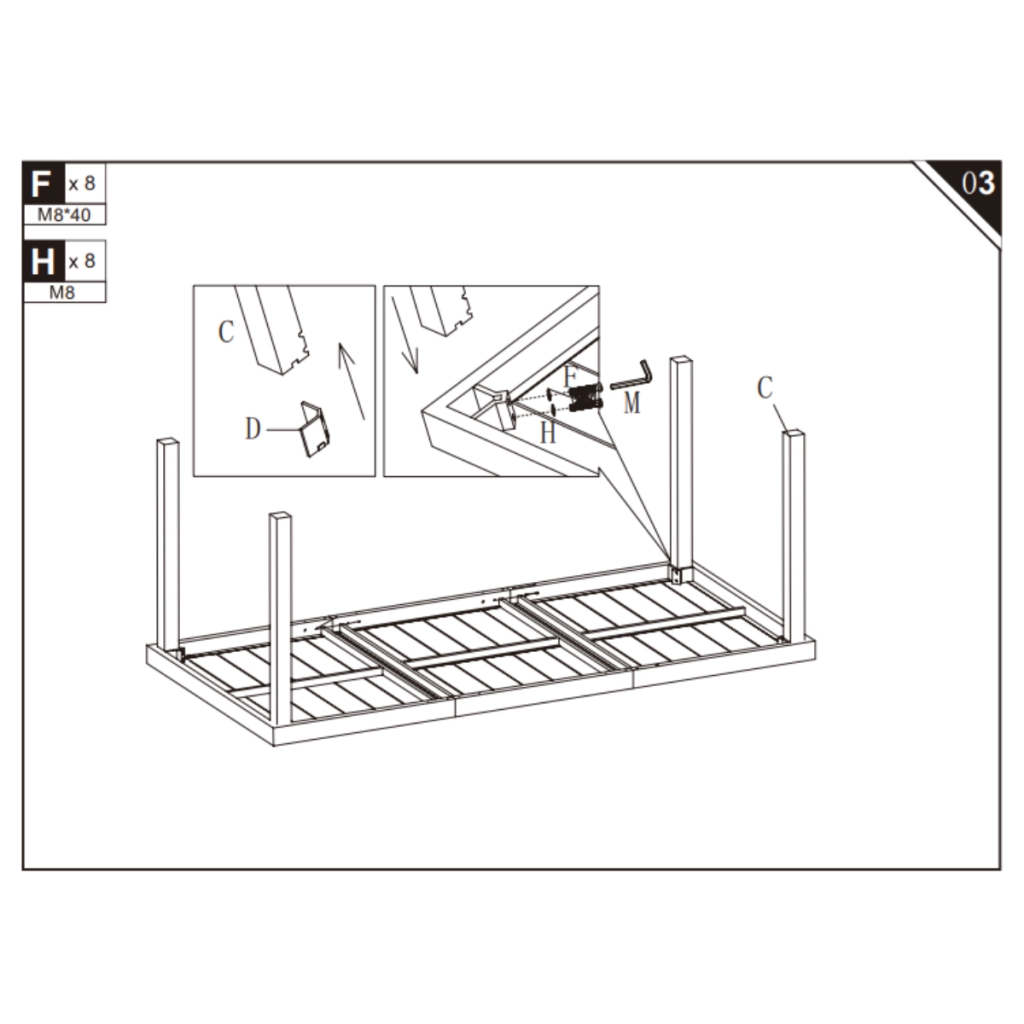

Step 3: Attach the Corner Brackets (D) and Install the Top Support Bars (C)

1. Take one Top Support Bar (C) and position it vertically above the corner where it will connect.
2. Align the bottom of the Top Support Bar (C) with the designated corner area of the frame.
3. Place one Corner Bracket (D) inside the corner where the bar meets the frame.
4. Insert an M8×40 Bolt (F) through the bracket and into the Top Support Bar (C).
5. Add an M8 Washer (H) onto the bolt.
6. Use the M8 Allen Key (M) to tighten the bolt securely.
7. Repeat this process for all four corners using:
   • 4 Corner Brackets (D)
   • 4 Top Support Bars (C)
   • 8 Bolts (F) and 8 Washers (H)
8. Ensure each corner is firmly secured before moving on.

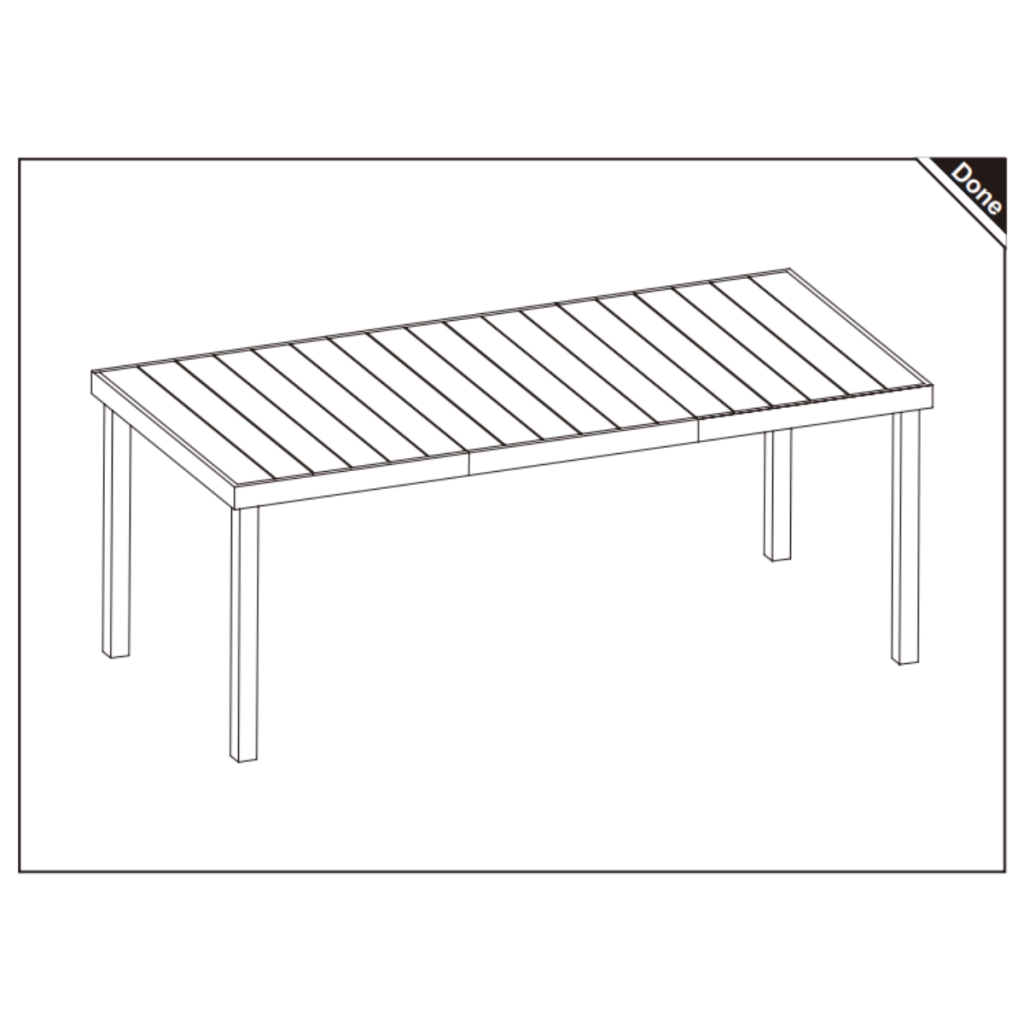

Step 4: Final Tightening and Completion

1. Once all Top Support Bars (C), Corner Brackets (D), and frame connections are installed, check the entire structure for proper alignment.
2. Tighten all M6 and M8 bolts fully, ensuring the table frame is secure and stable.
3. Carefully flip the table upright with assistance, this is a two-person lift.
4. Verify that all legs sit evenly on the ground. Adjust if needed.
5. Your table assembly is now complete.

Care and Maintenance Instructions

• Clean the table with a soft cloth, warm water, and mild soap. Do not use harsh or abrasive cleaners.
• When not in use, keep the table in a dry, shaded place to protect it from weather damage.
• Check the table regularly for any signs of wear or damage. Stop using it if any part becomes loose or unsafe.

Thank you for choosing Outsunny, designed to bring durability, convenience, and style to your outdoor space. If you need help with setup, replacement parts, or have any product questions, the Aosom LLC Customer Service team is always ready to provide helpful support.

FAQs

1. What should I do if the tabletop makes a slight noise when pressure is applied?

This can happen if some of the upper bolts are not tightened evenly. Check the Top Support Bars (C) and Corner Brackets (D), and tighten all M8 bolts gradually in a balanced sequence. This helps eliminate minor shifts that cause noise.

2. How can I keep the table stable on grass or uneven outdoor surfaces?

Use the adjustable foot pads on each leg to level the table. Extend or retract the foot pads until the table no longer rocks. For very uneven terrain, placing small flat pavers under the legs can improve long-term stability.

3. What if the table becomes difficult to clean after long outdoor exposure?

For tough dirt or residue, apply a mild soap solution and let it sit for a few minutes before wiping. Avoid scrubbing tools, but use a soft sponge in circular motions. Rinse and dry thoroughly. For future protection, consider occasionally applying a plastic-safe outdoor furniture spray to prevent buildup.
