HOMCOM Armless Accent Chair Assembly Manual -SKU: 839-448V00GY

The HOMCOM Armless Accent Chair (SKU: 839-448V00GY) is designed to add style and comfort to bedrooms, living rooms, dressing areas, or reading spaces. Its cushioned seat, supportive backrest, sturdy wood legs, and seamless armless profile give it a modern, space-saving design perfect for compact or open-plan rooms.

Before You Begin

• Estimated Assembly Time: 20–30 minutes
• Recommended Personnel: 1–2 adults
• Assemble on a flat, soft surface to protect fabric and parts.
• Check that all parts and hardware are included and undamaged.
• Do not tighten screws fully until all parts are aligned.
• Keep small components away from children and pets.
• Maximum Weight Capacity: 264 lbs (120 kg)

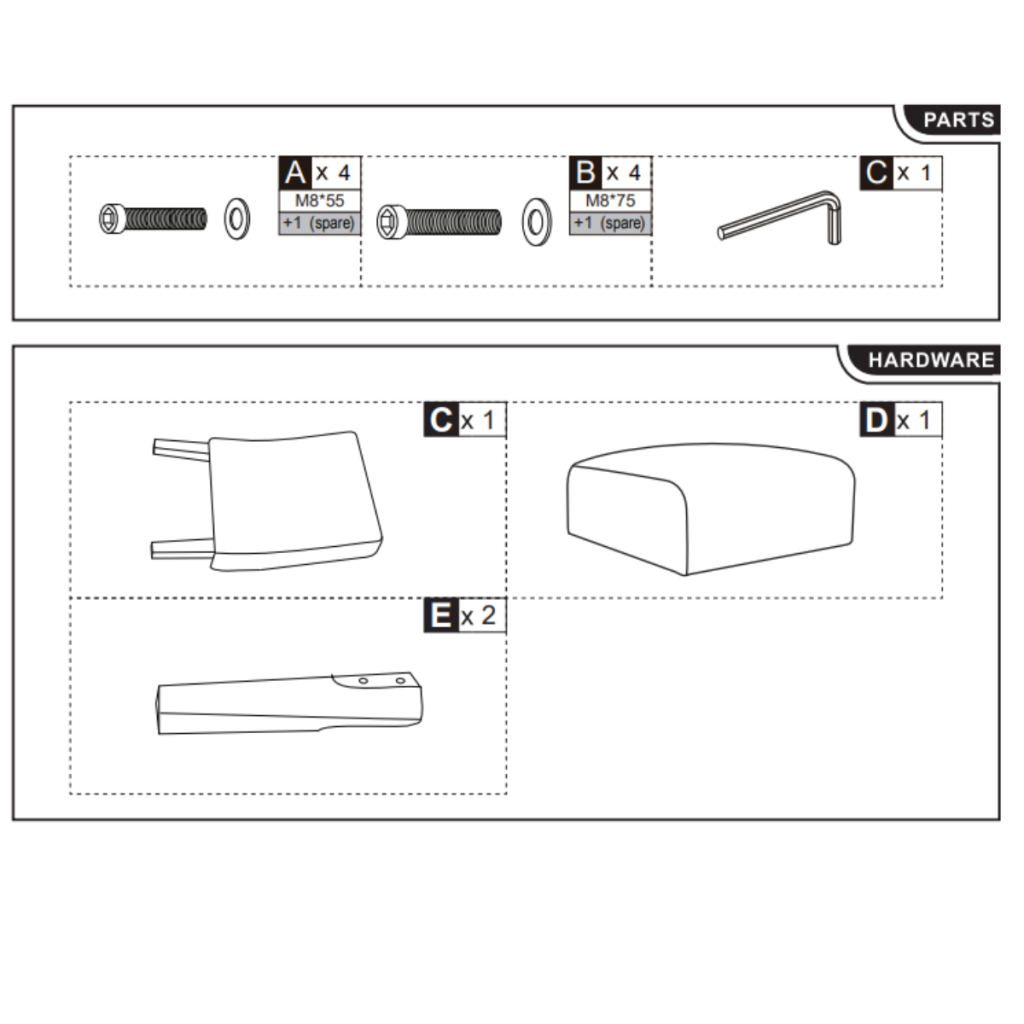

Parts & Hardware

Parts

Label	Quantity	Description / Name
C	1	Backrest Panel
D	1	Seat Cushion
E	2	Armrests

Hardware

Label	Quantity	Description / Name
A	4 (+1 spare)	Bolt M8×55
B	4 (+1 spare)	Bolt M8×75
C	1	Allen Key (L-shaped)

Assembly Instructions

When you are going to assemble your HOMCOM Armless Accent Chair Assembly Manual -SKU: 839-448V00GY, please follow these steps carefully and proceed sequentially.

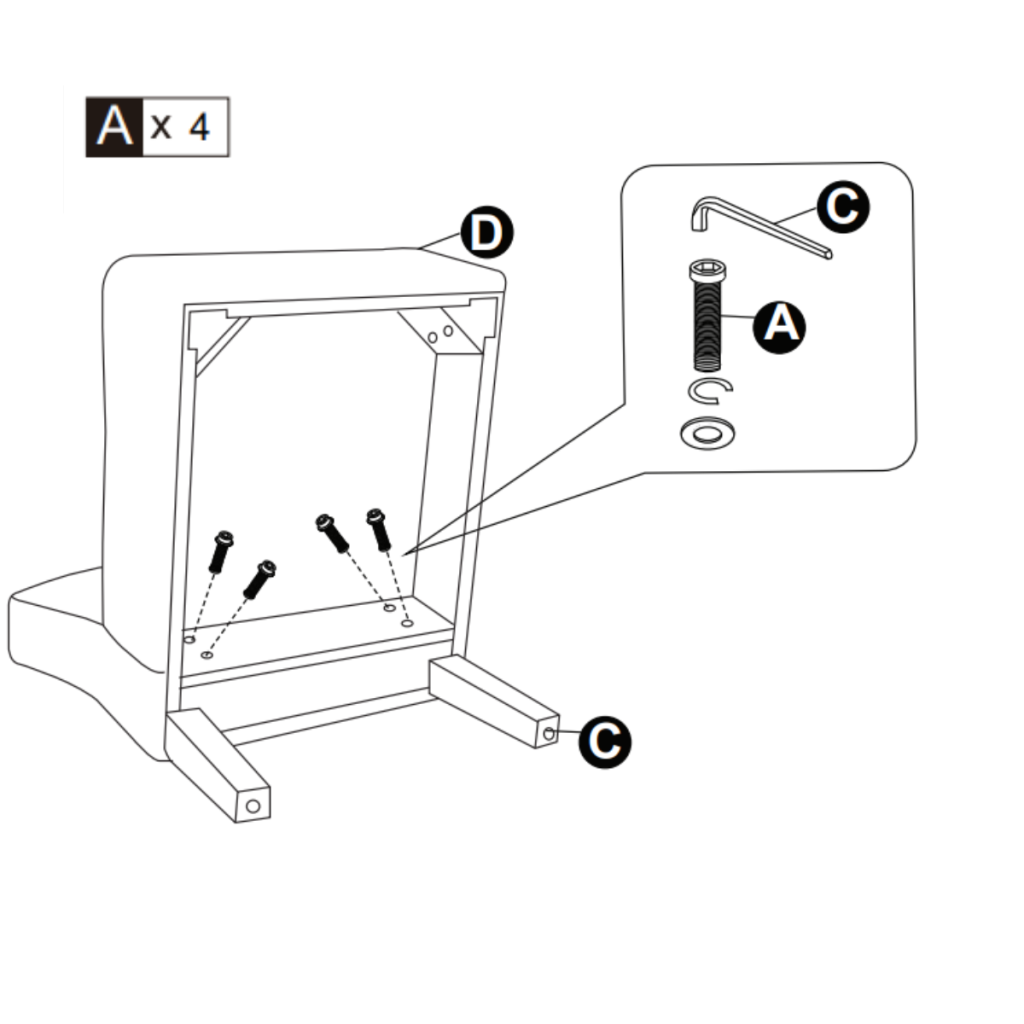

Step 1: Attaching the Legs to the Seat Cushion

Parts & Hardware Needed:

• Seat Cushion – D
• Armrest / Leg Frame – C
• Bolts M8×55 – A (x4)
• Allen Key – C

Instructions:

1. Place the seat cushion (D) upside down on a clean, flat surface to prevent damage.
2. Align the leg frames (C) with the pre-drilled holes at the bottom of the seat.
3. Insert the bolts (A) through the leg frame into the seat. Make sure each bolt has a washer if included.
4. Using the Allen key (C), tighten all four bolts. Do not overtighten aim for around 90% tightness so you can adjust later if needed.
5. Ensure the leg frames are stable and correctly aligned with the seat before moving to the next step.

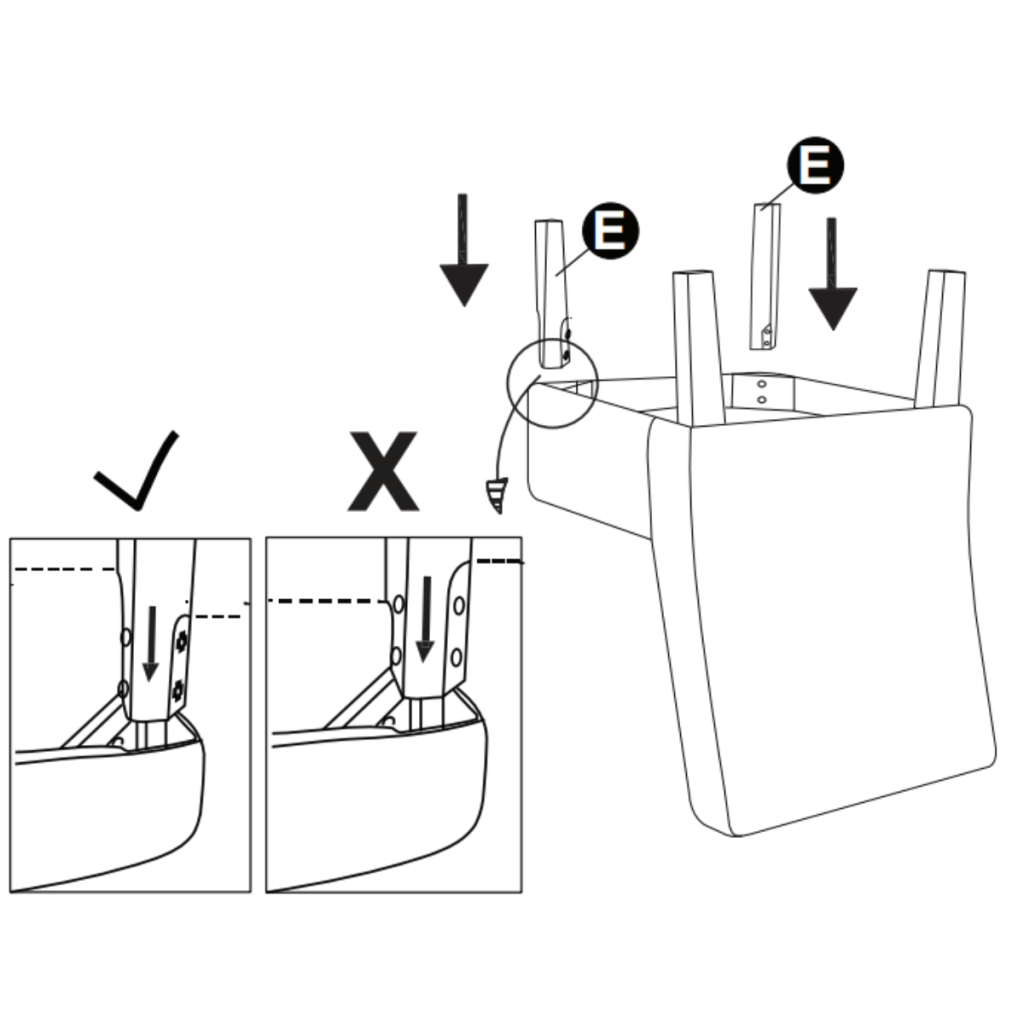

Step 2: Attaching the Back Legs / Armrests

Parts Needed:

• Armrests / Back Legs – E (x2)
• Seat Assembly (from Step 1)

Instructions:

1. Turn the seat assembly (with legs attached) upside down.
2. Take one armrest/back leg (E) and align it with the pre-drilled holes at the rear corners of the seat.
3. Correct alignment is critical:

   • Ensure the holes on part E line up perfectly with the holes on the seat frame (refer to the check mark in the diagram).
   • Avoid the incorrect placement shown with the “X”. Misalignment will prevent proper assembly.
4. Insert the bolts (from previous step or new hardware if indicated) and loosely secure the back legs.
5. Repeat the same process for the second armrest/back leg (E).

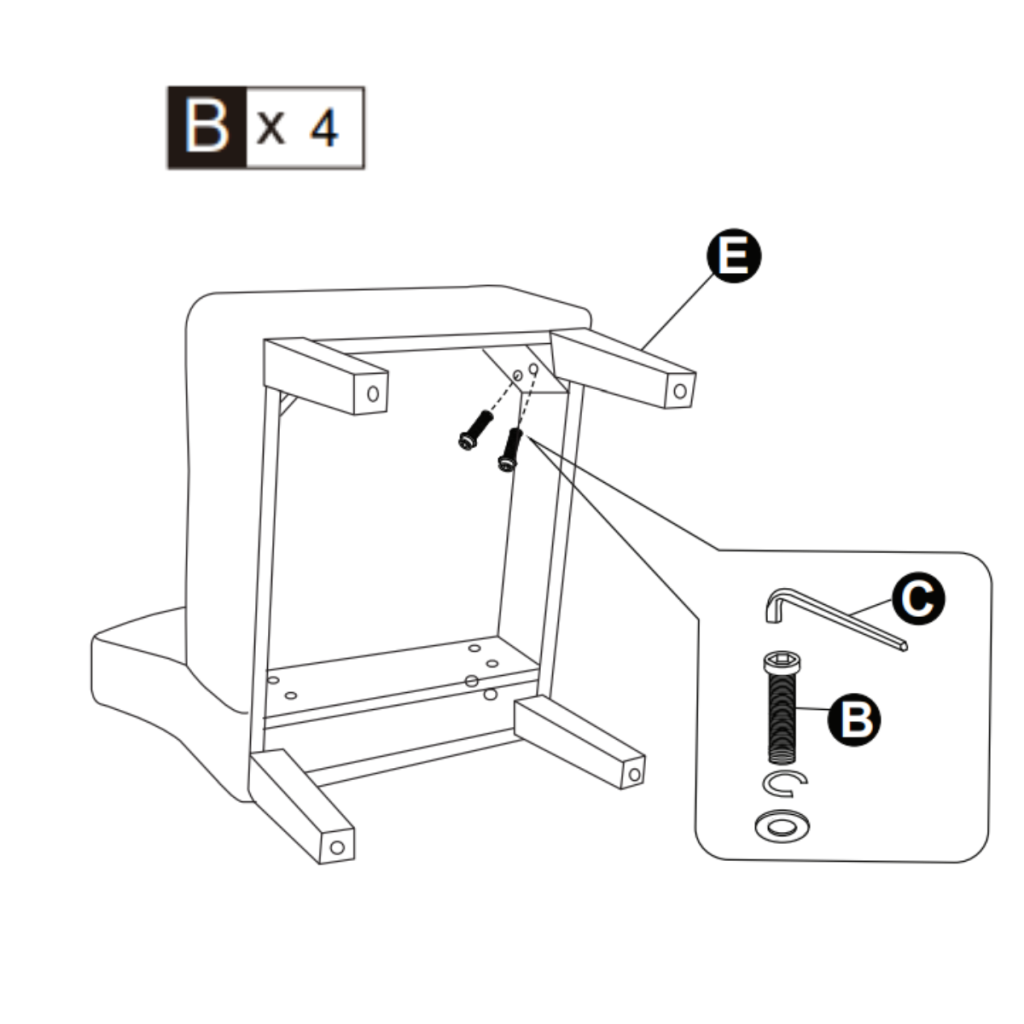

Step 3: Securing the Back Legs / Armrests to the Seat

Parts & Hardware Needed:

• Armrests / Back Legs – E (already attached loosely)
• Bolts M8×75 – B (x4)
• Allen Key – C

Instructions:

1. Take the armrests/back legs (E) positioned in Step 2.
2. Align the holes on each armrest with the corresponding holes in the seat frame.
3. Insert the M8×75 bolts (B) through the washers and into the holes.
4. Using the Allen key (C), tighten all four bolts.

   • Ensure the armrests are straight and fully aligned before fully tightening.
   • Tighten bolts until secure, but avoid overtightening to prevent damage to the frame.

Step 4: Adjusting the Balance of the Chair

1. Once all bolts and screws are fully tightened, carefully turn the chair upright and place it on a flat surface.
2. Sit gently on the chair to test stability.
3. Check that all four legs are evenly touching the floor.
4. If the chair rocks or tilts slightly:
   • Double-check that all bolts are tightened evenly.
   • Adjust the placement of the legs slightly if needed.
5. Once the chair sits level and feels stable, it is ready for use.

Step 5: Fully Tightening All Screws

1. With the chair now fully assembled and positioned upright, return to the underside of the chair.
2. Using the Allen keys provided (C), go through all bolts and screws installed in previous steps.
3. Tighten each screw completely to 100%, ensuring the chair is fully secure and stable.
4. Check each leg and armrest/back leg for firmness; no wobbling should be present

Step 6: Attaching the Black Bottom Cover

1. Turn the chair upside down so the bottom is accessible.
2. Take the black bottom cover (M) and align it with the underside of the seat.
3. Press the cover firmly into place so it sticks evenly along all edges.
4. Ensure that all corners and sides are flush with the seat bottom.

Step 7: Completed Assembly

1. After following all previous steps, the chair should now be fully assembled.
2. Check the chair for stability:
   • All legs should sit evenly on the floor.
   • Armrests/back legs should be firmly attached with no wobbling.
3. Sit gently on the chair to confirm comfort and balance.
4. Your chair is now ready for use.

Final Checks

Before using your chair, make sure:

• All bolts are fully tightened.
• The backrest is firmly secured with no wobble.
• The legs sit evenly on the floor without rocking.
• No fabric is trapped between components.

Care & Maintenance

Fabric Care

• Spot clean with mild soap and warm water.
• Avoid bleach or harsh chemicals that may damage the fabric.
• Allow fabric to air dry; do not use heat.

Frame & Leg Care

• Dust wooden legs regularly with a soft cloth.
• Avoid soaking legs in water or exposing them to humidity.
• Re-tighten bolts every 2–3 months to maintain stability.

Usage Tips

• Do not stand or jump on the chair.
• Avoid placing chairs near heaters, radiators, or direct sunlight.
• Lift the chair when moving; do not drag across the floor.

Safety Precautions

• Use only on an even, stable surface.
• Keep fingers clear of bracket joints during assembly.
• Not intended for commercial or high-traffic public seating.

Ready to Use!

Your Armless Accent Chair for Bedroom is now fully assembled and ready for use.
With its sturdy frame, comfortable cushioned seat, and stylish design, it’s perfect for bedrooms, living rooms, or reading corners.

You can also download a copy of the Armless Accent Chair for Bedroom (SKU-839-703V70) Manual PDF for future reference.

Thank you for choosing HOMCOM, crafted for comfort, function, and style.
For technical support, replacement parts, or product questions, contact Aosom LLC’s Customer Service and get friendly assistance.

FAQs

1. What if the accent chair legs don’t align properly during assembly?

If the legs aren’t aligning, double-check the placement of the bolts and ensure they are inserted through the correct pre-drilled holes. Make sure the seat cushion is placed upside down for easier alignment. Slight adjustments to the leg position may be needed for a perfect fit.

3. What should I do if the seat cushion of accent chair isn’t securely attached?

If the seat cushion is loose, recheck that all four bolts are tightened correctly and that the leg frame is aligned properly with the seat. Ensure no washers are missing, and tighten the bolts evenly to avoid any instability.

4. How can I make sure the black bottom cover of accent chair stays in place?

Press the black bottom cover firmly against the underside of the seat, making sure it sticks evenly along all edges. Check that all corners and sides are flush with the seat bottom and that no fabric is caught between components.
