The Outsunny 63″ Extendable Outdoor Dining Table is designed to adapt to any gathering, expanding from a compact square table to a spacious dining surface in seconds. With its sturdy aluminum frame, tempered glass top, and sleek modern look, it’s built for everyday outdoor use, from casual meals to larger get-togethers.
Before You Begin
- Unpack all components and compare them with the parts list to ensure nothing is missing.
- Attach the legs to the tabletop following the numbered assembly steps in this manual.
- Make sure all screws, nuts, and connections are secure before turning the table upright.
- Avoid overtightening hardware, as this may damage the aluminum frame.
- Clean the table using a soft cloth and mild soap only, do not use abrasive cleaners.
- When not in use, store the table in a dry, shaded area to reduce weather-related wear.
- Check the table periodically for any signs of damage or loosened hardware. Do not use the table if structural integrity is compromised.
Parts List
- A ×1 — Tabletop
- B ×4 — Connecting Rods
- C ×4 — Legs
- G ×4 — Leg End Caps

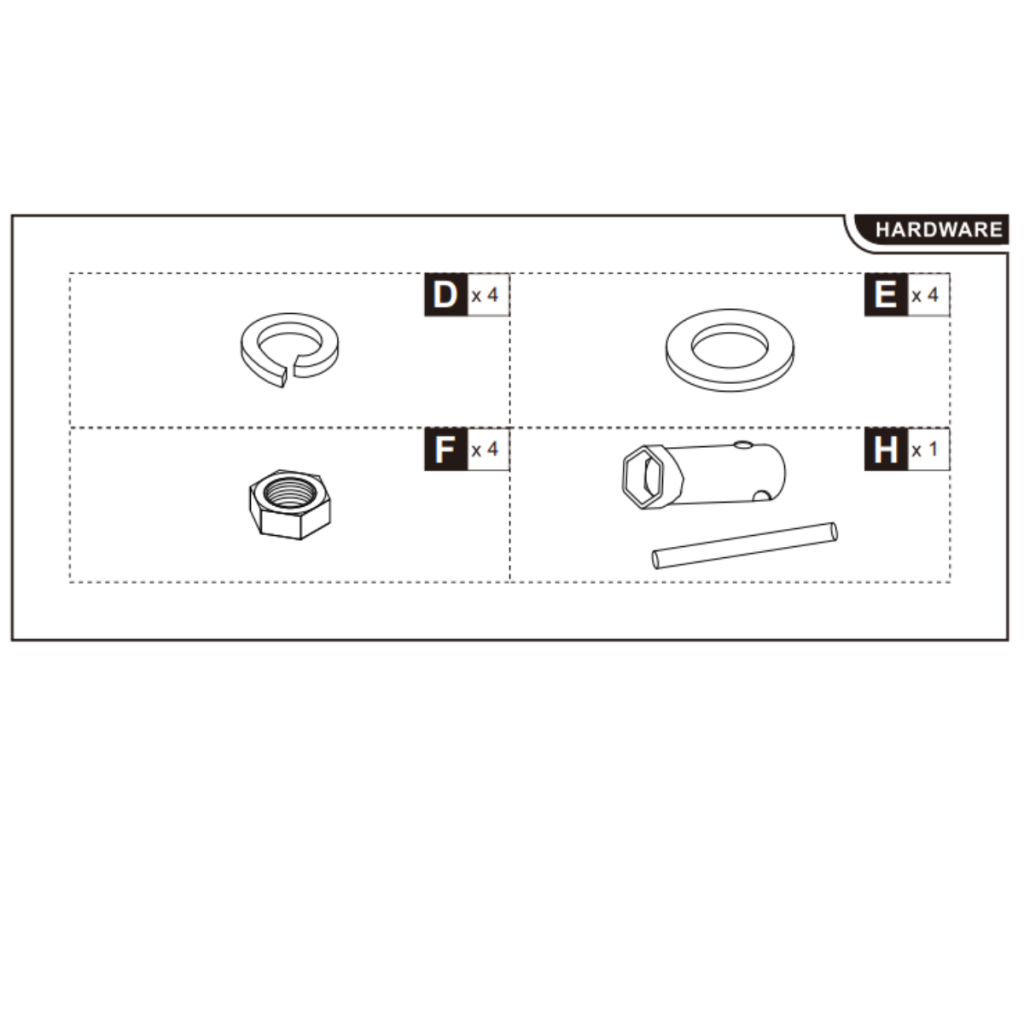

Hardware List
- D ×4 — Spring Washers
- E ×4 — Flat Washers
- F ×4 — Hex Nuts
- H ×1 — Wrench Tool
Assembly Instructions
When assembling your Outsunny 63″ Extendable Outdoor Dining Table – SKU: 84B-297V00BK, use the following steps in order and complete each one carefully.

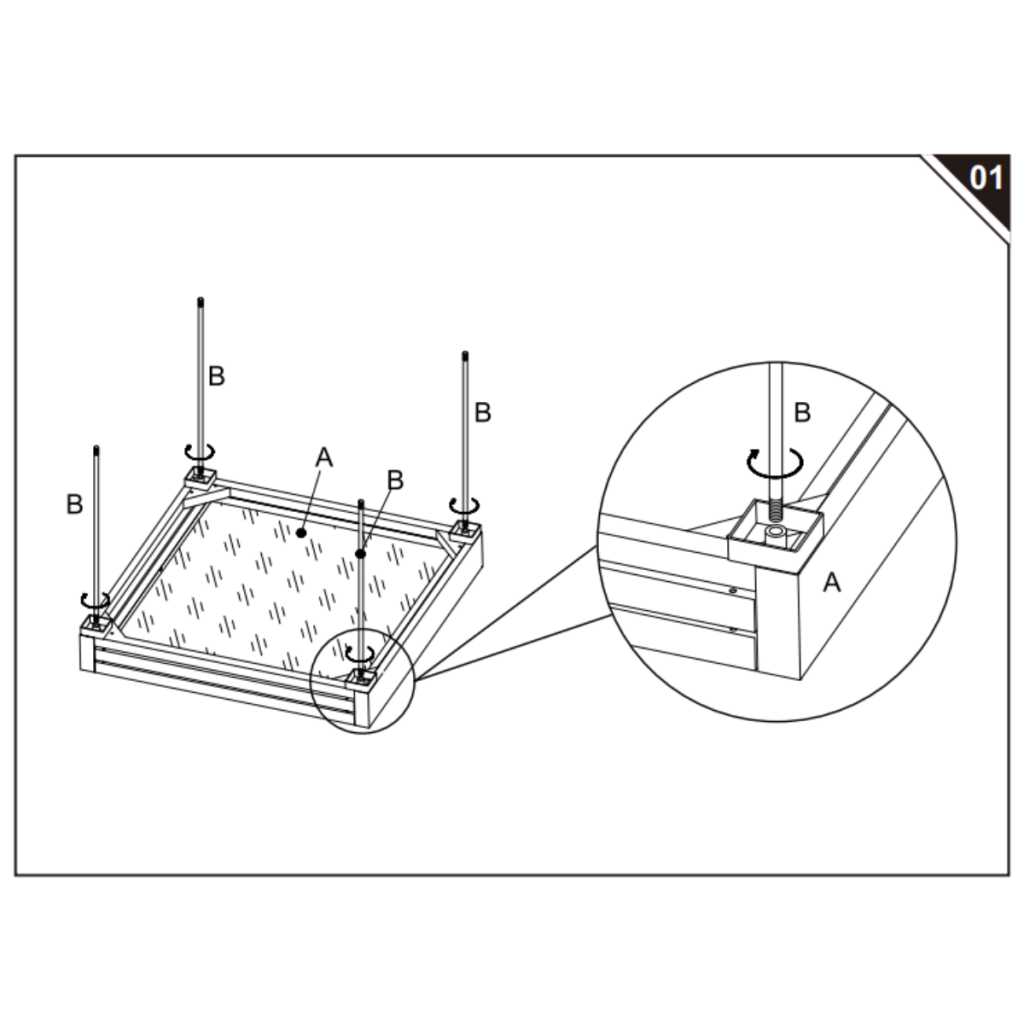

Step 1: Install the Connector Rods (B)
- Insert each Connector Rod (B) into the threaded openings on the Tabletop (A).
- Turn clockwise to tighten until all four rods are securely fixed in place.

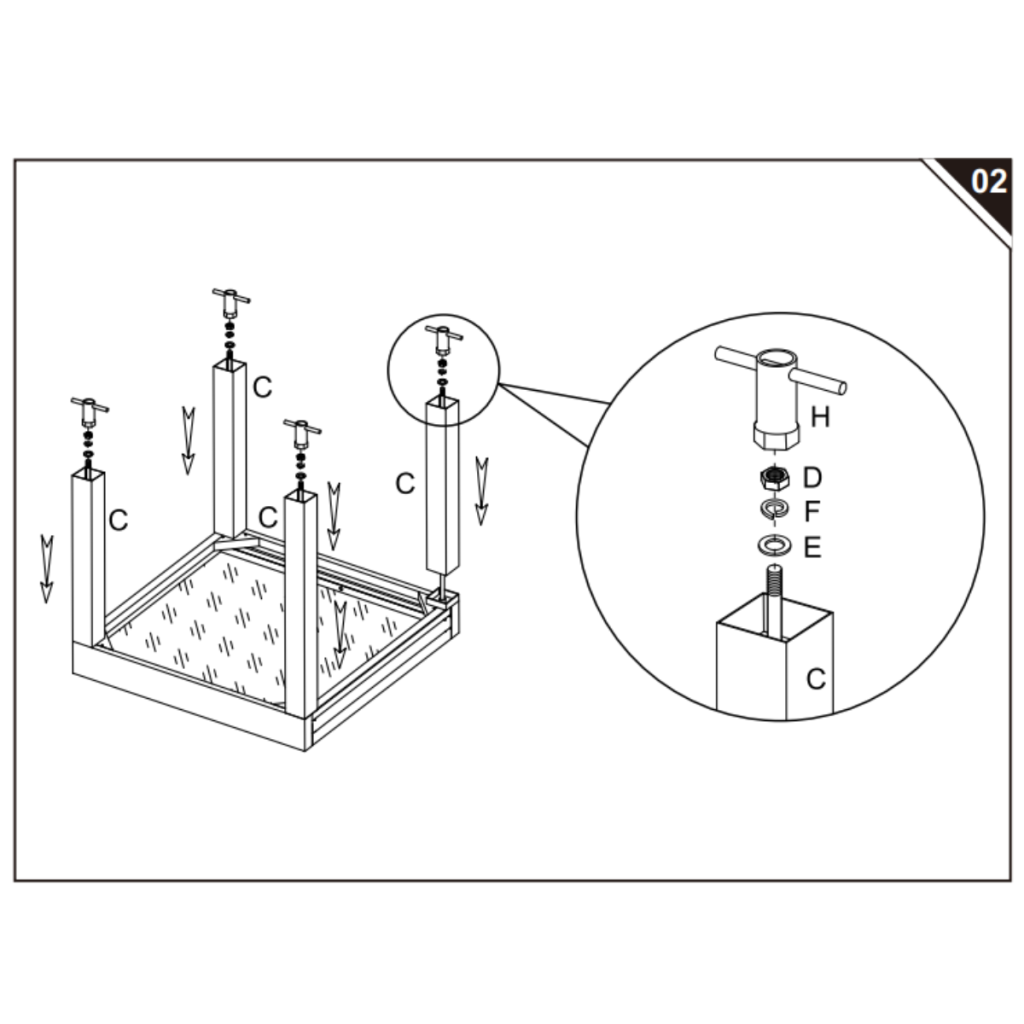

Step 2: Attach the Legs (C)
- Slide each Leg (C) down onto the connector rods installed in Step 1.
- Place the hardware onto each rod in this order: Flat Washer (E) → Hex Nut (F) → Spring Washer (D).
- Use the Wrench Tool (H) to tighten all nuts securely.

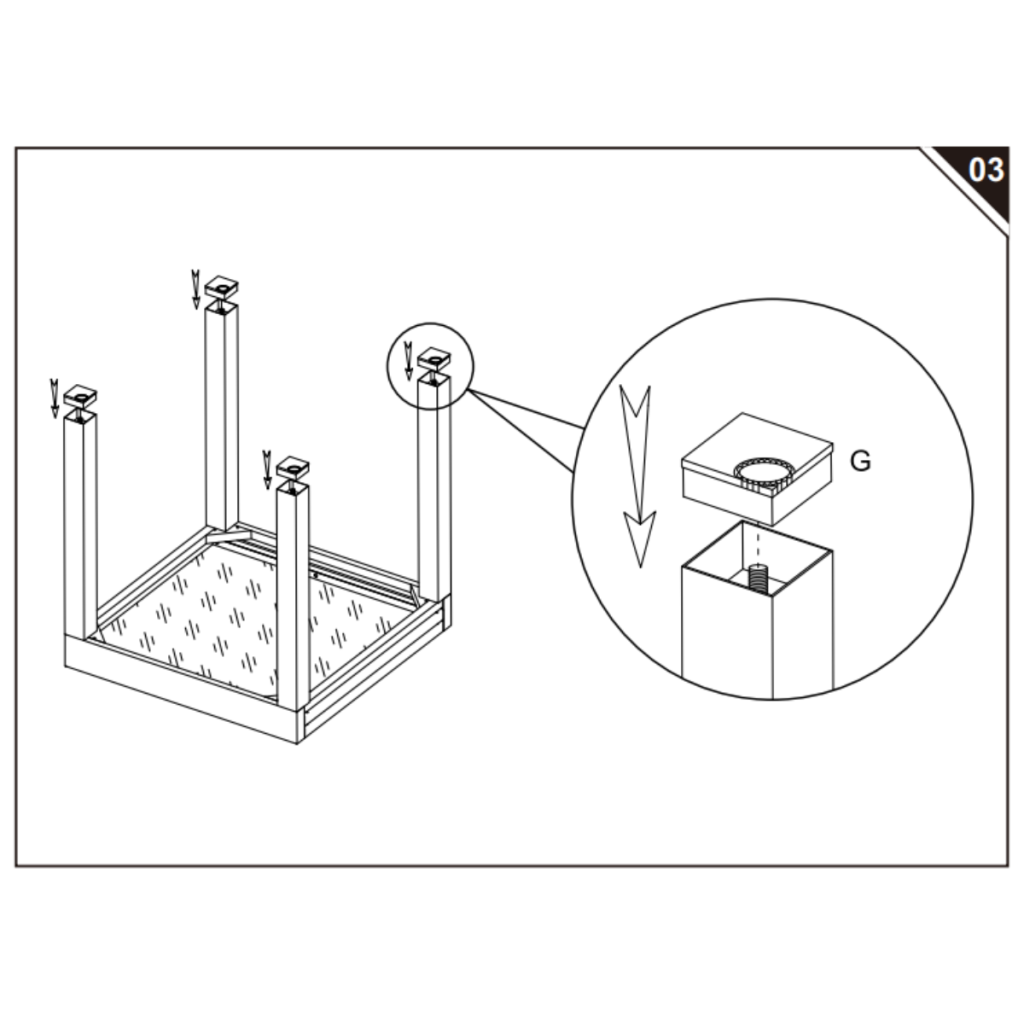

Step 3: Insert the Leg Caps (G)
- Place a Leg Cap (G) onto the top of each leg.
- Press downward firmly until each cap is fully seated and secure.

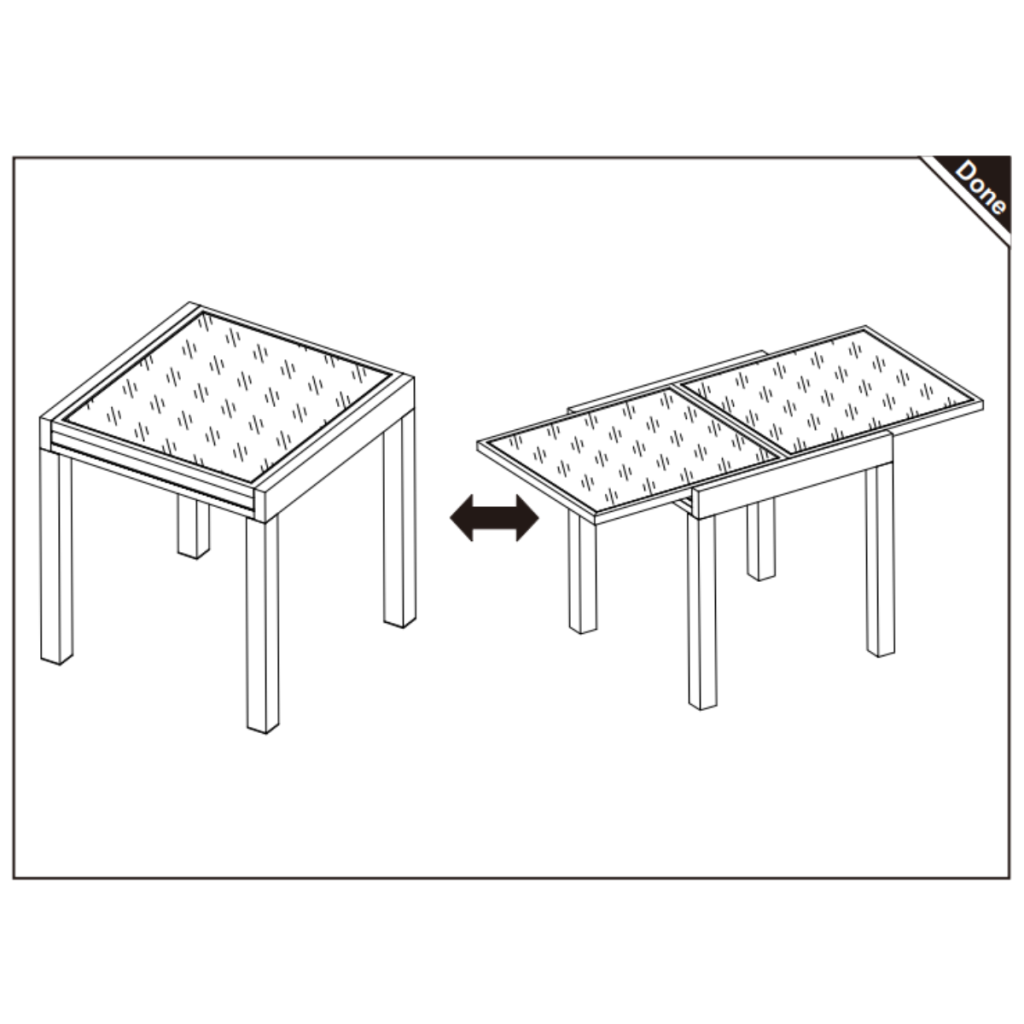

Done: Table Assembly Complete
- Carefully turn the table upright.
- Your table can now be used in its compact form or extended to full length as needed.
Care and Maintenance Instructions:
- Clean with a soft, damp cloth and mild soap, avoid abrasive cleaners or harsh chemicals.
- Store in a dry, shaded place when not in use to reduce weather wear.
- Check hardware and parts regularly, stop using the table if any damage or looseness is found.
Thank you for choosing Outsunny, designed to bring style, practicality, and durability to your outdoor living space. For technical support, replacement parts, or product questions, contact Aosom LLC’s Customer Service for friendly assistance.
FAQs
1. What should I do if the table doesn’t extend evenly on both sides?
If one side feels slower or uneven, check the sliding tracks for dust or small debris. Clean the rails and pull both sides gently at the same time to help the mechanism move evenly.
2. Why is one leg slightly shorter when the table is placed on a flat surface?
This usually means the leveling feet need adjustment. Rotate the bottom foot pad on the leg until all four legs make firm, even contact with the ground.
3. What if the nuts loosen after a few weeks of use?
It’s normal for hardware to settle after initial use. Simply use the included wrench to re-tighten the nuts and restore full stability to the table.
4. How can I reduce fingerprints on the tempered glass top?
A quick wipe with a microfiber cloth and glass cleaner will keep the surface clear. Cleaning in circular motions helps minimize streaks and marks.
5. The table feels slightly tilted, how can I correct it?
Ensure all leg caps are fully pressed into place, as a loose cap can cause imbalance. Then adjust the leveling feet until the table sits straight and stable.
