HOMCOM Foldable Clothes Drying Rack Assembly Manual – SKU: 850-208V00BK

The HOMCOM 4-Tier Foldable Clothes Drying Rack is a practical indoor/outdoor laundry solution designed to hold a large load of clothing while saving floor space. With multiple drying shelves, two side wings for hangers, and smooth-rolling castors, this steel rack keeps your clothing organised, well-ventilated, and easy to move around your home.
Follow these step-by-step instructions to assemble your drying rack safely and correctly.

Warning & Safety Instructions

Always read and follow these guidelines before assembly or use:

• Assemble the rack on a flat, stable floor to prevent tipping.
• Avoid overloading the drying shelves and distribute weight evenly.
• Keep fingers clear of folding joints while adjusting shelves.
• Do not hang extremely heavy or water-soaked items on a single bar.
• Use the unit indoors or in dry outdoor conditions—avoid strong winds.
• Ensure all screws, connectors, and joints are fully tightened before use.
• Keep children away during assembly to avoid accidental pinching.
• Do not climb, lean heavily, or sit on the drying rack.

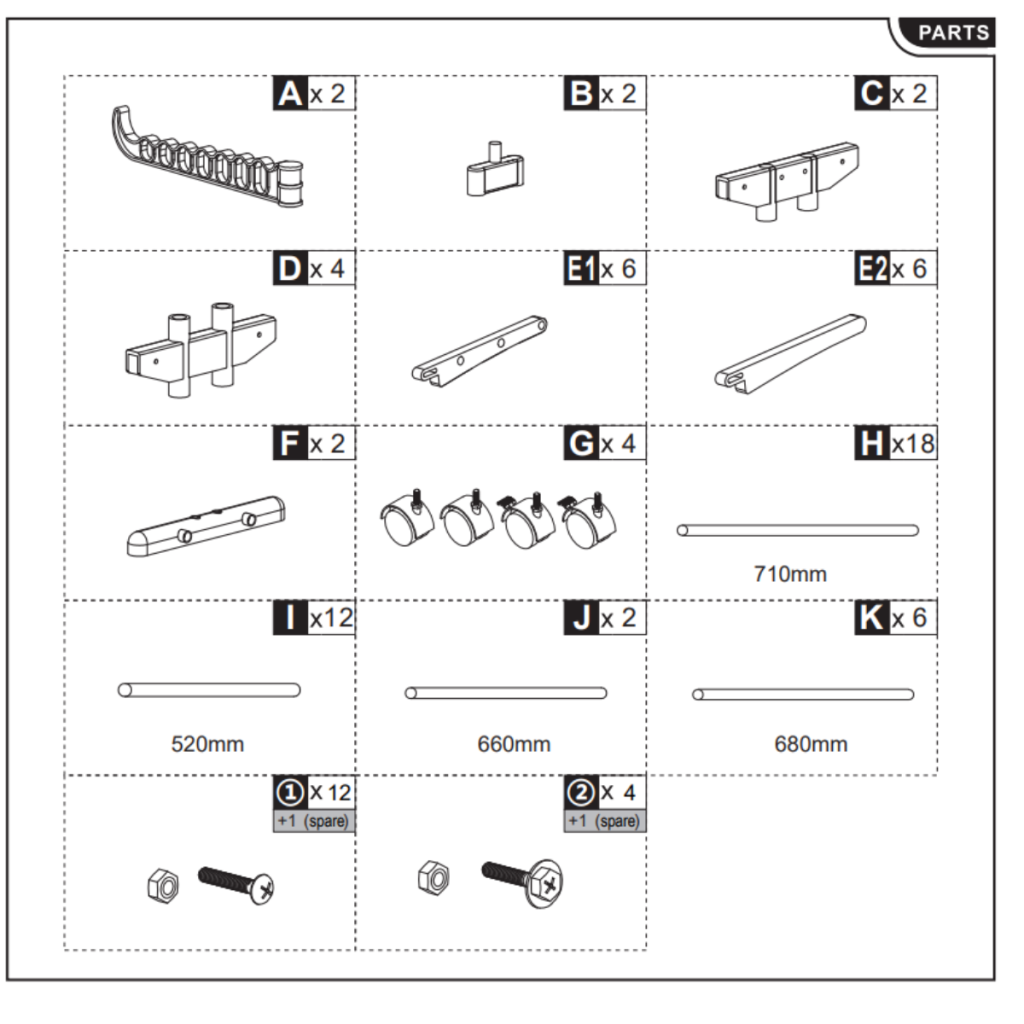

Parts & Hardware List

When you unbox your HOMCOM Foldable Clothes Drying Rack you will find the following things with it.

Parts

1. A ×2 – Multi-Hook Hanger Arms
   Curved arms with multiple hook slots for hanging clothes and small items.
2. B ×2 – Hanger Arm Lock Clips
   Clips used to secure the hanger arms onto the top frame.
3. C ×2 – Upper Support Brackets
   L-shaped brackets that hold the upper horizontal tube in place.
4. D ×4 – Middle Crossbar Connectors
   Support clamps used to attach the mid-level rods.
5. E1 ×6 – Left Shelf Rails (Two-Hole Plate Side)
   Short rails with a plate and screw holes used on one side of each shelf.
6. E2 ×6 – Right Shelf Rails (Smooth End)
   Short rails with a smooth end used on the opposite side of each shelf.
7. F ×2 – Base Support Bars
   Base tubes with sockets for inserting castor wheels.
8. G ×4 – Castor Wheels
   Wheels that attach to the base bars for easy movement.
9. H ×18 – Shelf Slat Rods (Long)
   Long rods forming the drying surface of each shelf.
10. I ×12 – Side Rods (520 mm)
    Short side support tubes for shelf framing.
11. J ×2 – Lower Support Rods (710 mm)
    Long support rods used in the base structure.
12. K ×6 – Mid-Length Horizontal Rods (680 mm)
    Horizontal tubes used across the different shelf levels.

Hardware

1. ① ×12 (+1 spare) – Screws
2. ② ×4 (+1 spare) – Screws

How to Assemble Your Foldable Clothes Drying Rack

Follow each step carefully to assemble your HOMCOM Foldable Clothes Drying Rack SKU: 850-208V00BK  to make it perfect and ready for usage.

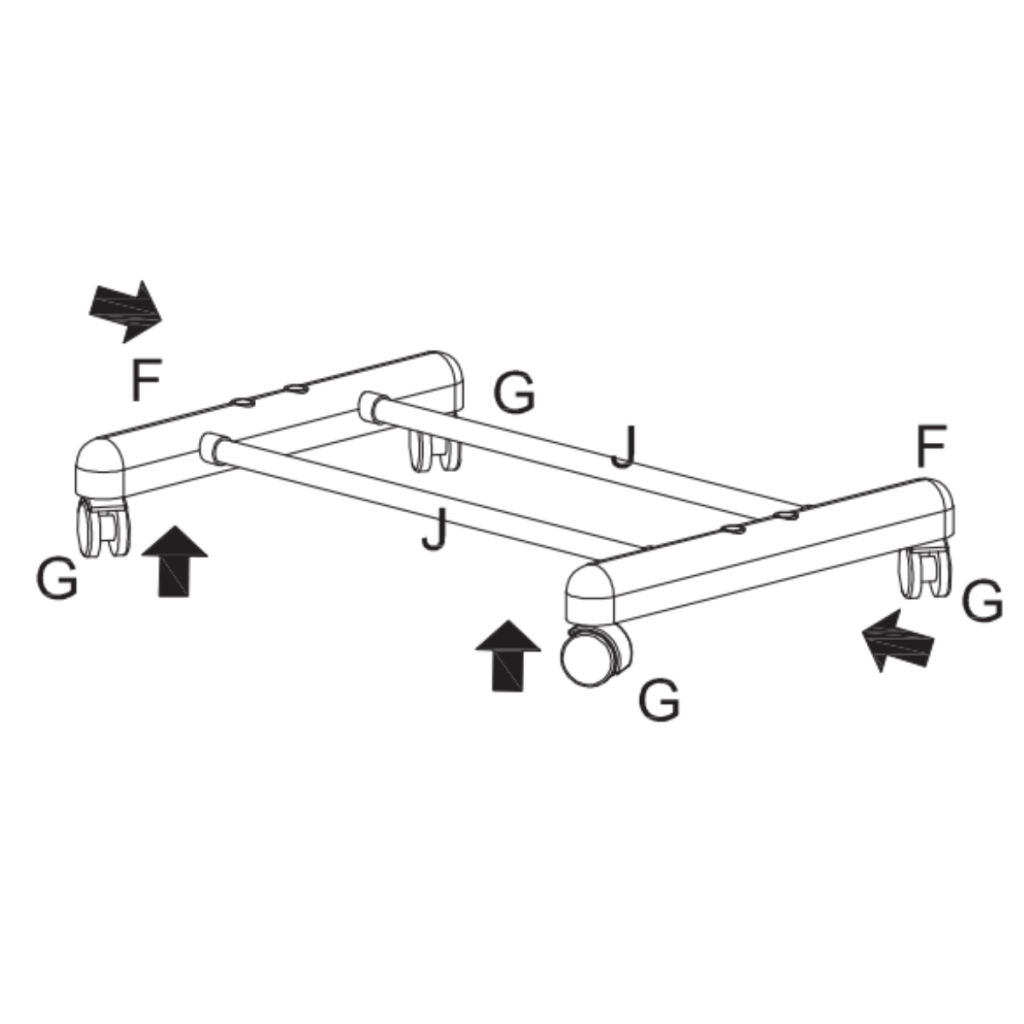

Step 1 – Assemble the Base Support Frame

1. Place both F – Base Support Tubes on the floor, aligning them parallel to each other.
2. Insert all four G – Castor Wheels into the sockets on the underside of each base tube. Push firmly until each wheel clicks securely in place.
3. Connect the two base tubes using both J – Lower Support Tubes (710 mm) by inserting each J tube into the openings between the base tubes.
4. Ensure the J tubes are fully seated so the base frame becomes rectangular and stable.
5. Once connected, check that all four castors rotate smoothly and the base stands evenly.

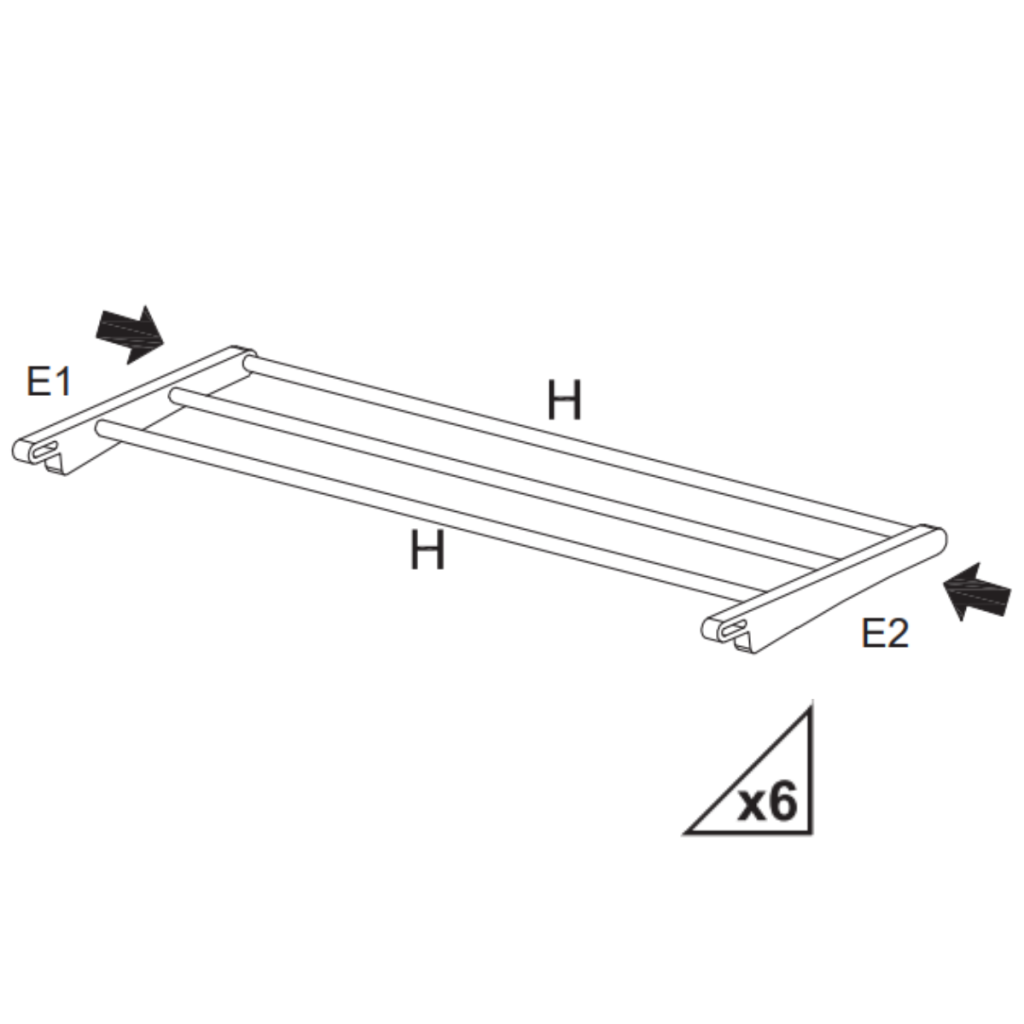

Step 2 – Assemble the Drying Shelf Frames

1. Take one E1 – Left Shelf Rail (Two-Hole Plate Side) and place it on the left.
2. Take one E2 – Right Shelf Rail (Smooth End) and place it on the right.
3. Insert three H – Drying Rods into the openings between E1 and E2, sliding each rod fully into position to form a complete shelf frame.
4. Ensure all rods sit evenly and the connections are firm.
5. Repeat this process to assemble six (6) identical shelf frames.

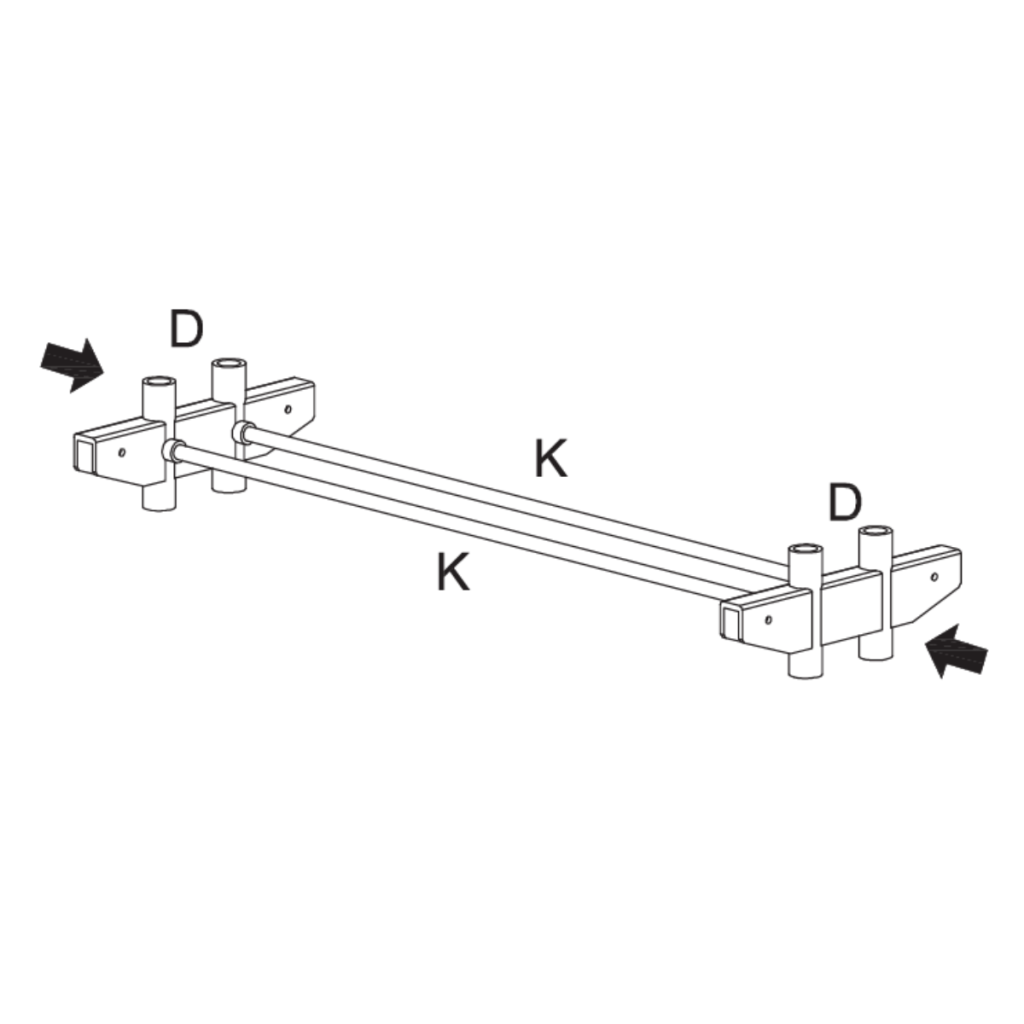

Step 3 – Assemble the Middle Crossbar Sections

1. Take two D – Middle Crossbar Connectors and position them on opposite sides.
2. Insert two K – Horizontal Tubes (680 mm) into the connector openings, sliding each tube fully through to create a stable crossbar assembly.
3. Ensure both tubes sit evenly and the connectors are aligned straight.
4. Repeat this step to create two (2) identical middle crossbar sections.

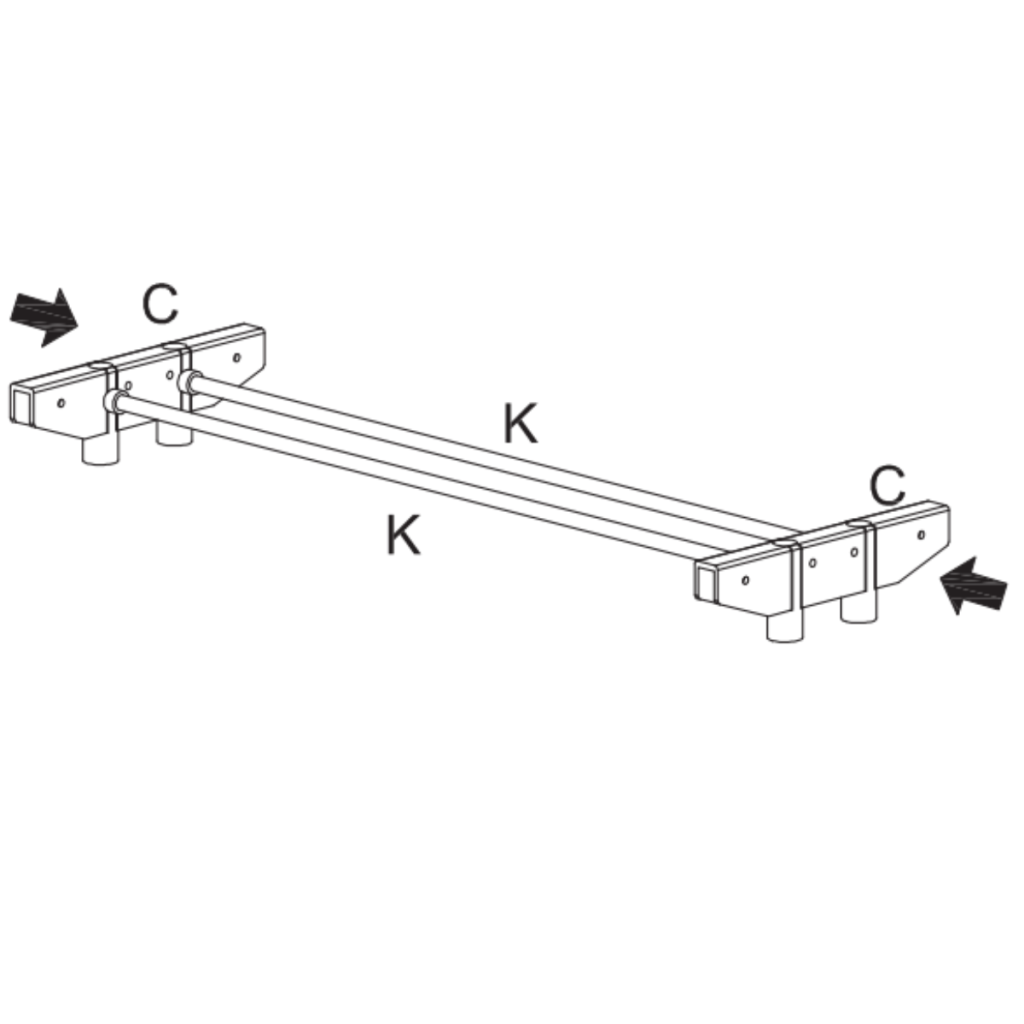

Step 4 – Assemble the Upper Support Crossbar

1. Position two C – Upper Support Brackets on opposite sides.
2. Insert two K – Horizontal Tubes (680 mm) into the bracket openings, sliding each tube fully into place.
3. Ensure both tubes sit straight and the brackets are aligned evenly to form the upper support section.

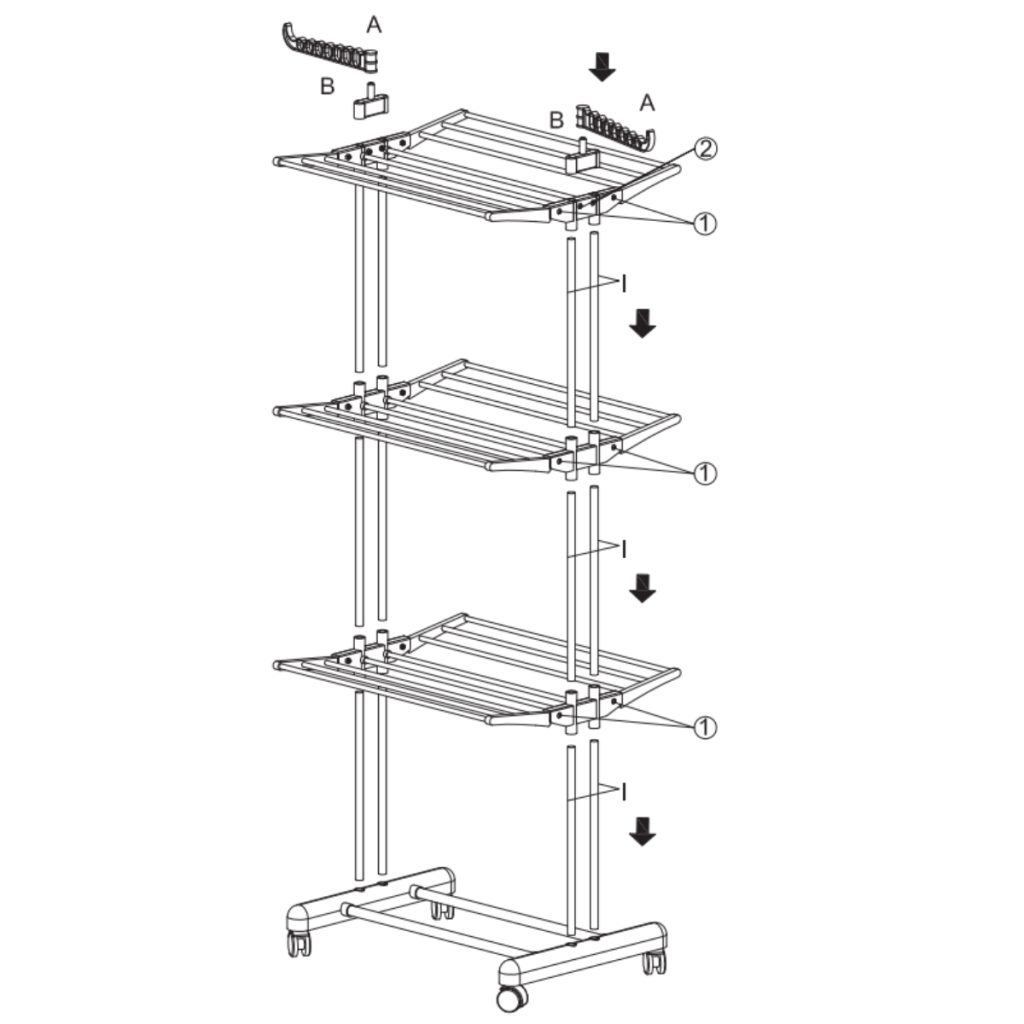

Step 5 – Install the Vertical Frame and Attach All Shelves

1. Insert all I – Short Support Tubes (520 mm) vertically into the connectors on the base frame, ensuring the tubes slide fully into the openings.
2. Take one assembled shelf and slide its side openings onto the vertical tubes, positioning it at the lowest level.
3. Secure this shelf by tightening hardware ① – Long Hex Bolt + Nut Set through the connector holes on each side.
4. Slide the second shelf onto the vertical tubes above the first one, then again fasten it securely using hardware ①.
5. Repeat the process for the third shelf, ensuring all shelves are evenly spaced and level.
6. Once all shelves are fixed, attach the two A – Multi-Hook Hanger Arms to the top section of the rack.

7. Lock each hanger arm into place using B – Hanger Arm Lock Clips, pressing the clips firmly until the arms sit securely.

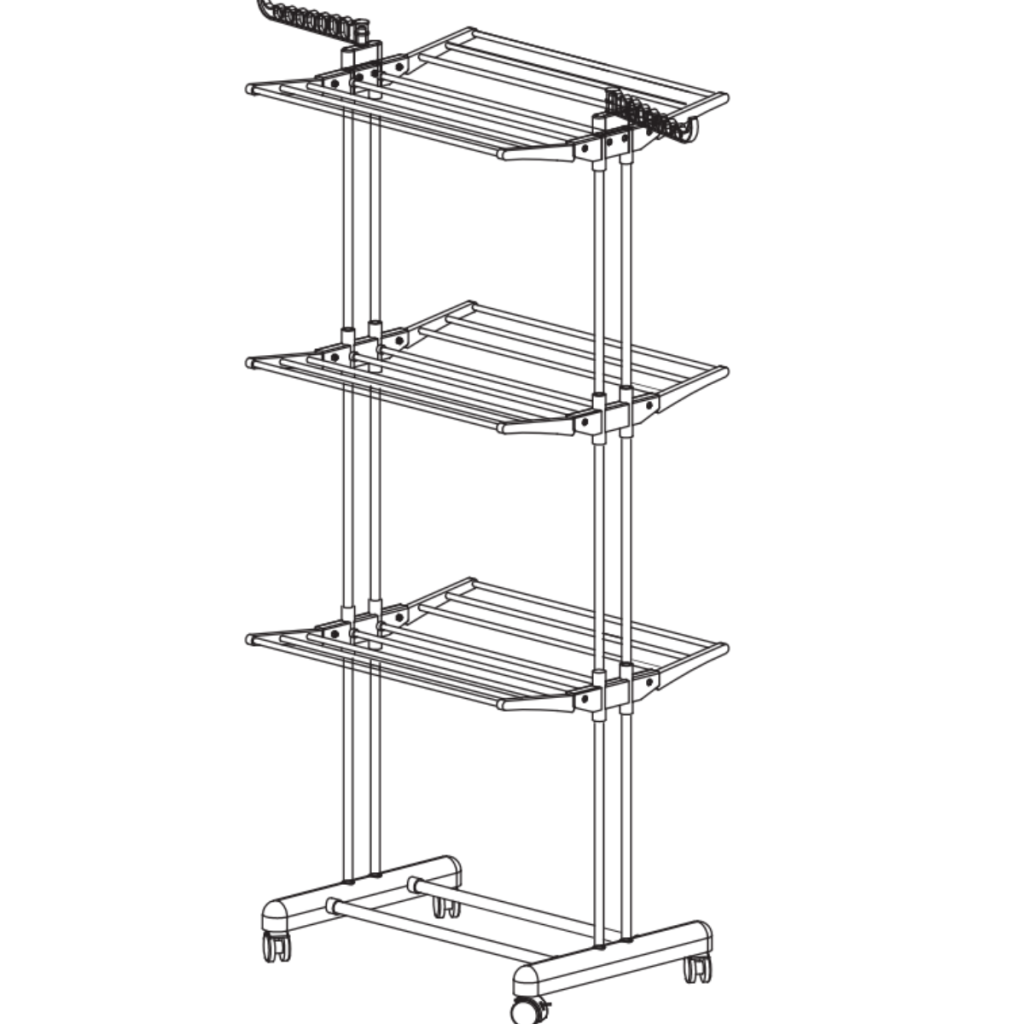

Assembly Complete

Your HOMCOM Foldable Clothes Drying Rack (SKU: 850-208V00BK) is now fully assembled. All shelves should sit securely on the vertical tubes, the hanger arms should be firmly clipped into place at the top, and the castor wheels should roll smoothly on flat surfaces.

The rack is now ready for everyday use whether you’re drying clothes, airing towels, or organising laundry items. Fold or lift each shelf as needed to accommodate different clothing sizes and drying loads.

You should now have a fully assembled, 4-tier foldable drying rack with castors and side hanger wings ready for immediate use.

Care & Maintenance Tips

• Clean the steel frame with a soft cloth and mild soap—avoid abrasive cleaners.
• Keep the joints dry to prevent rust and maintain smooth folding.
• Store the rack folded when not in use.
• Do not overload the shelves, especially when drying heavy items like blankets.
• Check screws and connectors monthly to ensure stability.

Troubleshooting

Issue	Possible Cause	Solution
Rack feels unstable	Uneven assembly or loose screws	Tighten all hardware; ensure level floor
Shelves tilt or sag	Incorrect shelf placement	Recheck shelf alignment on brackets
Castors wobble	Wheels not fully inserted	Press wheels firmly into sockets
Hard to fold	Joints are stiff	Apply a small amount of silicone lubricant

You may also download and save the official PDF manual for future reference.

For technical support, replacement parts, or product questions, contact Aosom LLC’s Customer Service and get friendly assistance.

FAQs

1. How do I prevent my drying rack from tipping over during use?

To prevent the drying rack from tipping over, always make sure the weight is evenly distributed across the shelves. Avoid overloading a single shelf, especially with heavy items, and ensure the rack is placed on a stable, flat surface.

2. Can I use the drying rack outdoors in windy conditions?

The drying rack is designed for indoor or dry outdoor use only. Avoid placing it in areas with strong winds to prevent the risk of the rack tipping or items blowing off.

3. What should I do if the drying rack is difficult to assemble?

If you’re having trouble assembling the rack, make sure all parts are correctly oriented and properly aligned before tightening screws. Doub
