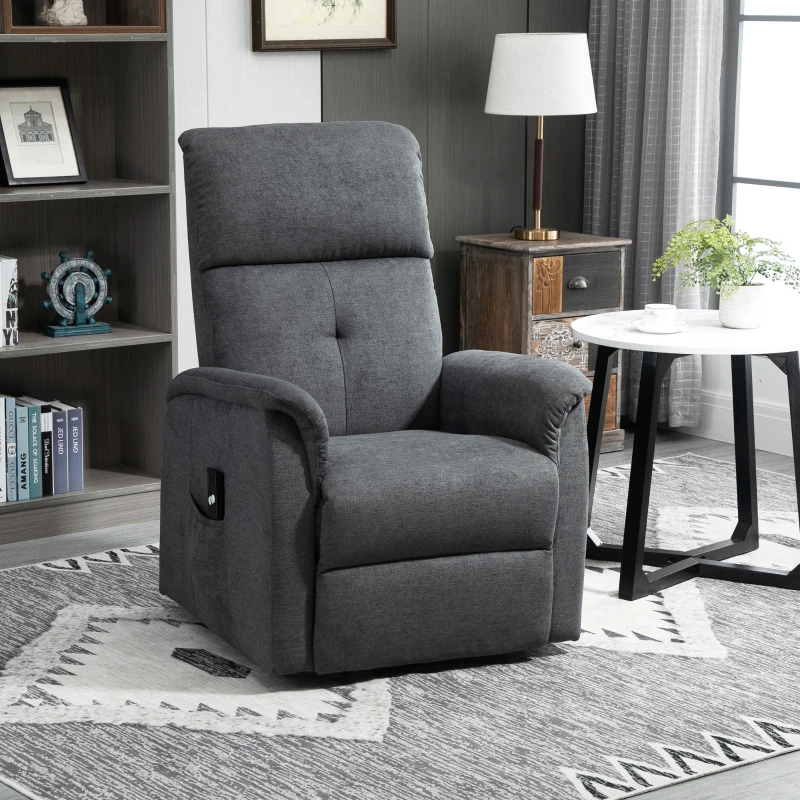

The HOMCOM Power Lift Chair (713-104) is designed for elderly users or anyone needing extra comfort and assistance. With an electric motor, remote control, and convenient side pocket, it allows smooth reclining and lift functions for safe standing. Follow these instructions closely to ensure correct assembly, safe use, and long product life.

Warning and Safety Instructions

• For indoor residential use only.
• Do not exceed the chair’s weight ca
• Keep power cord away from heat, moisture, or sharp objects.
• Avoid direct contact with water or damp environments.
• Do not allow children to play on or operate the lift chair.
• Use only the supplied power adapter and remote control.
• Always unplug the unit before cleaning or moving.
• Do not modify or alter any components.
• The manufacturer is not responsible for damage due to misuse or incorrect installation.

Unboxing Your Power Lift Chair: What’s Inside the Box

Panels and Parts

• Backrest ×1
• Seat Base ×1
• Left Armrest ×1
• Right Armrest ×1
• Power Adapter ×1
• Remote Control ×1
• Side Pocket ×1 (pre-attached)

Hardware Pack

• Screws & bolts
• Washers
• Allen key or wrench

How to Assemble Your Power Lift Chair

When assembling the HOMCOM Power Lift Chair (713-104), follow these steps carefully. Place all components on a flat surface and ensure all hardware is ready.

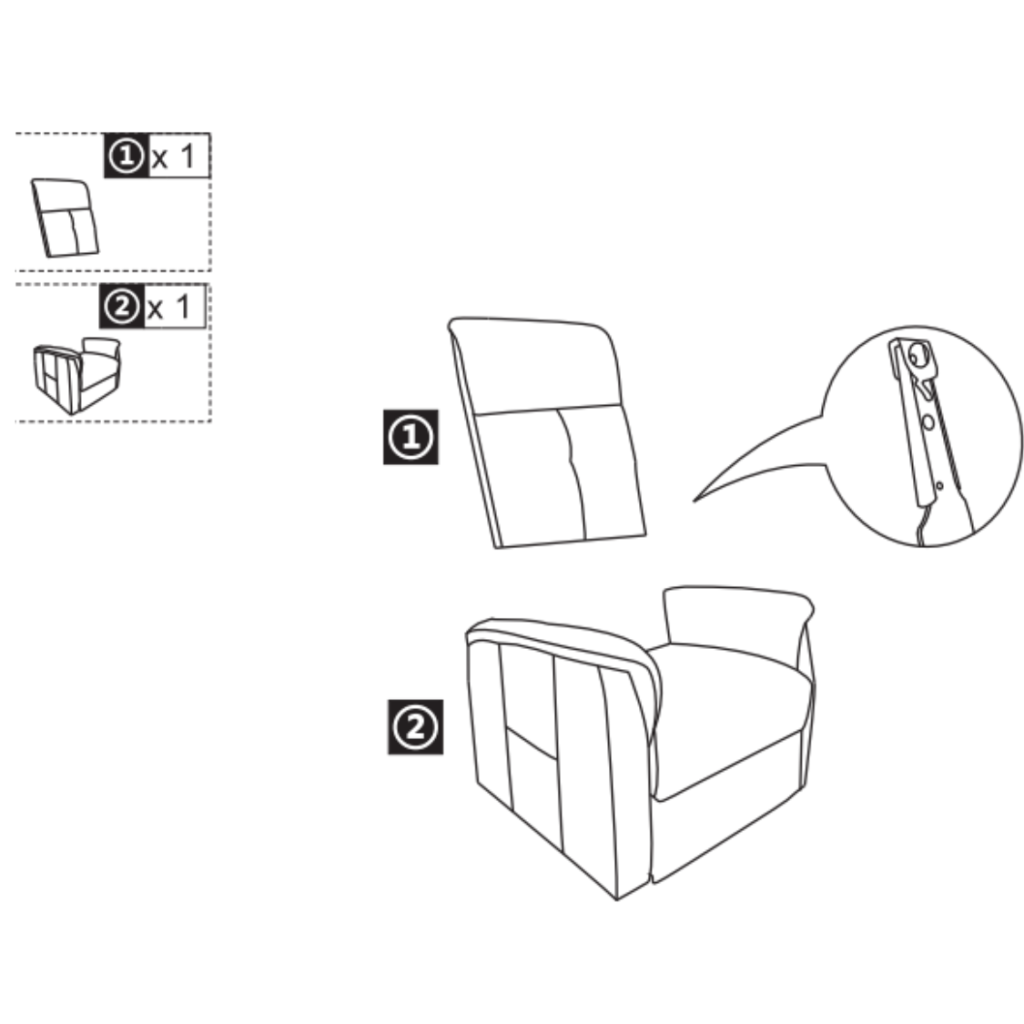

Step 1: Attach the Backrest

1. Locate the backrest (①) and the seat base (② with armrests).
2. Align the metal brackets on the backrest with the corresponding guides on the base.
3. Carefully slide the backrest down until you hear a “click,” ensuring both sides are fully locked into position.
4. Pull gently on the backrest to confirm it is secure before moving on.

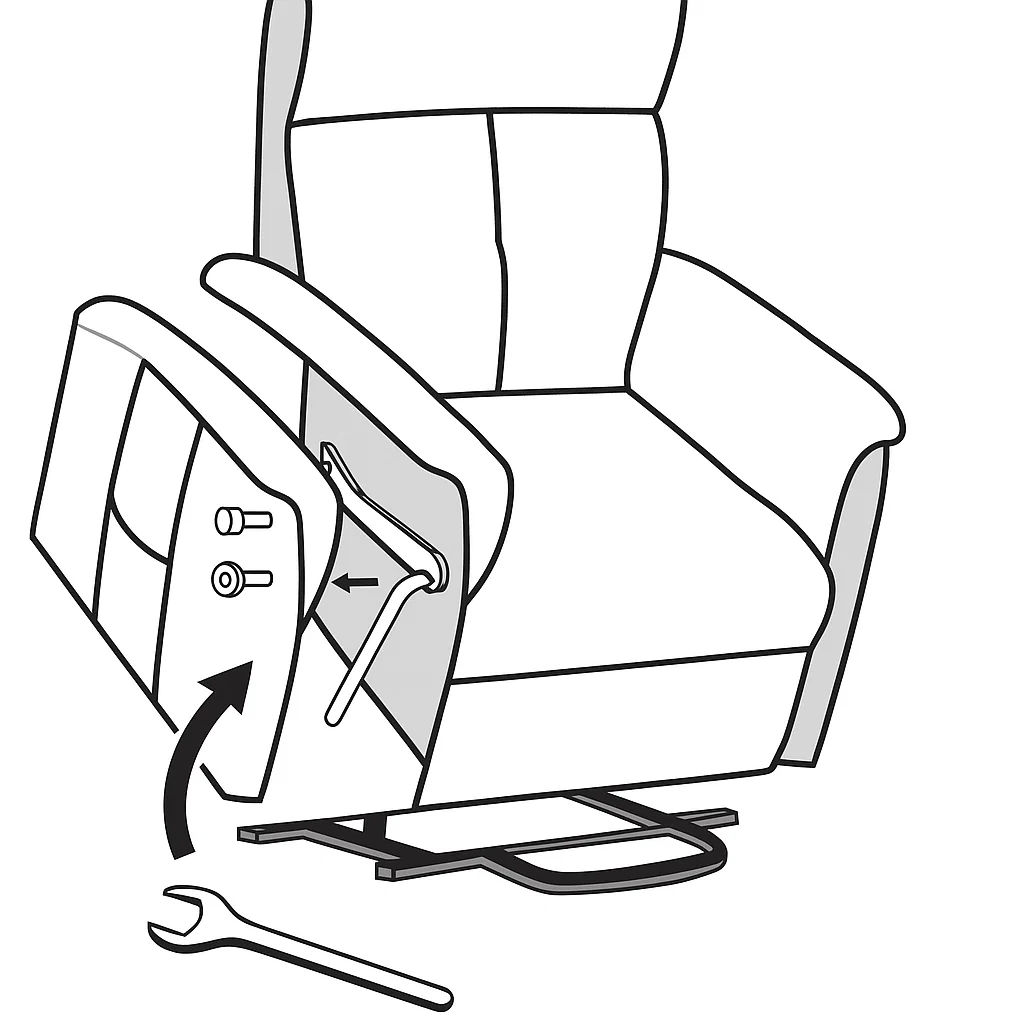

Step 2: Attach the Armrests

1. Identify the left and right armrests.
2. Position each armrest above the metal guides on the seat base.
3. Slide or bolt them securely into place using the provided hardware.
4. Tighten all screws with the supplied wrench.
5. Ensure both armrests are aligned evenly and firmly attached.

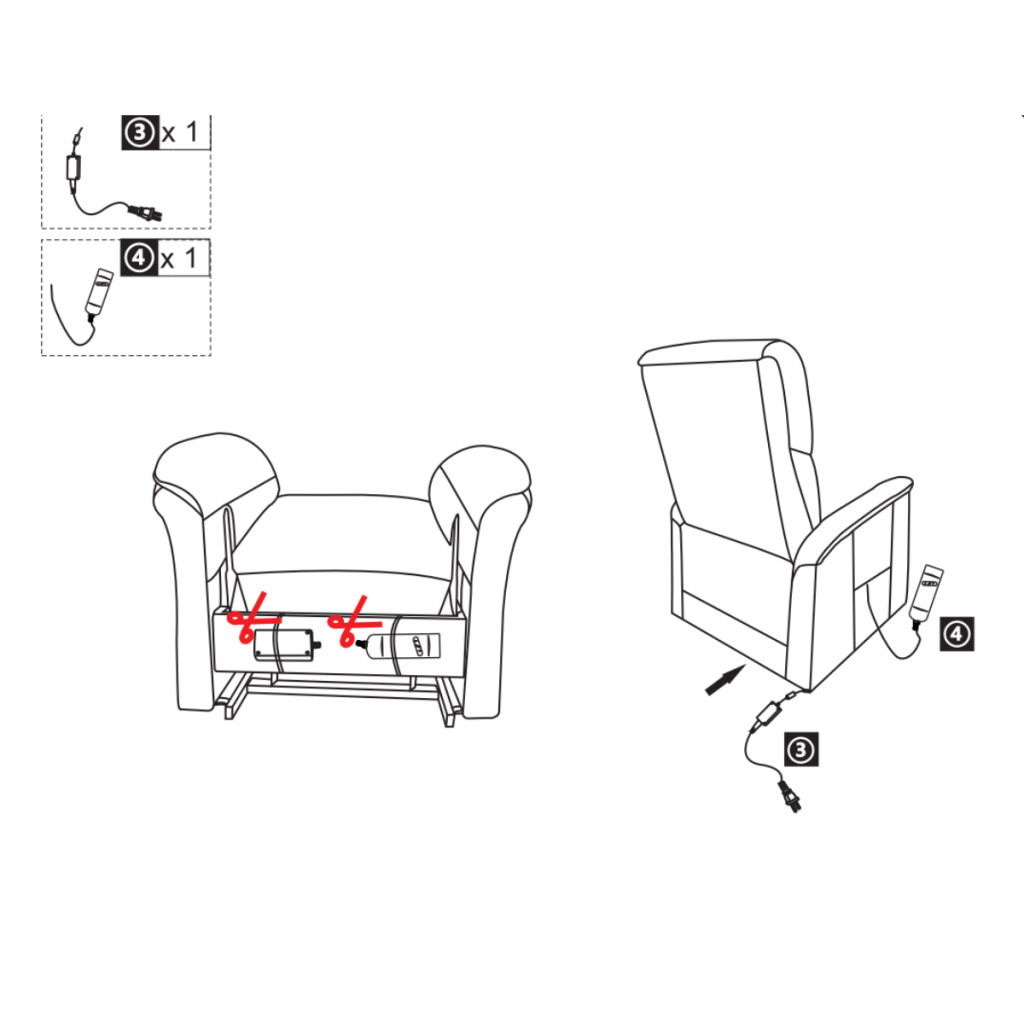

Step 3: Connect the Power Supply

1. Turn the chair onto its side or front carefully to access the underside.
2. Cut the protective cable ties (marked in red in the diagram) that secure the motor cables during shipping.
3. Locate the motor cable under the chair.
4. Plug the power adapter (③) into the motor cable.
5. Connect the other end of the adapter to a grounded household wall outlet.
6. Route the power cord neatly along the wall or floor to prevent tripping hazards.

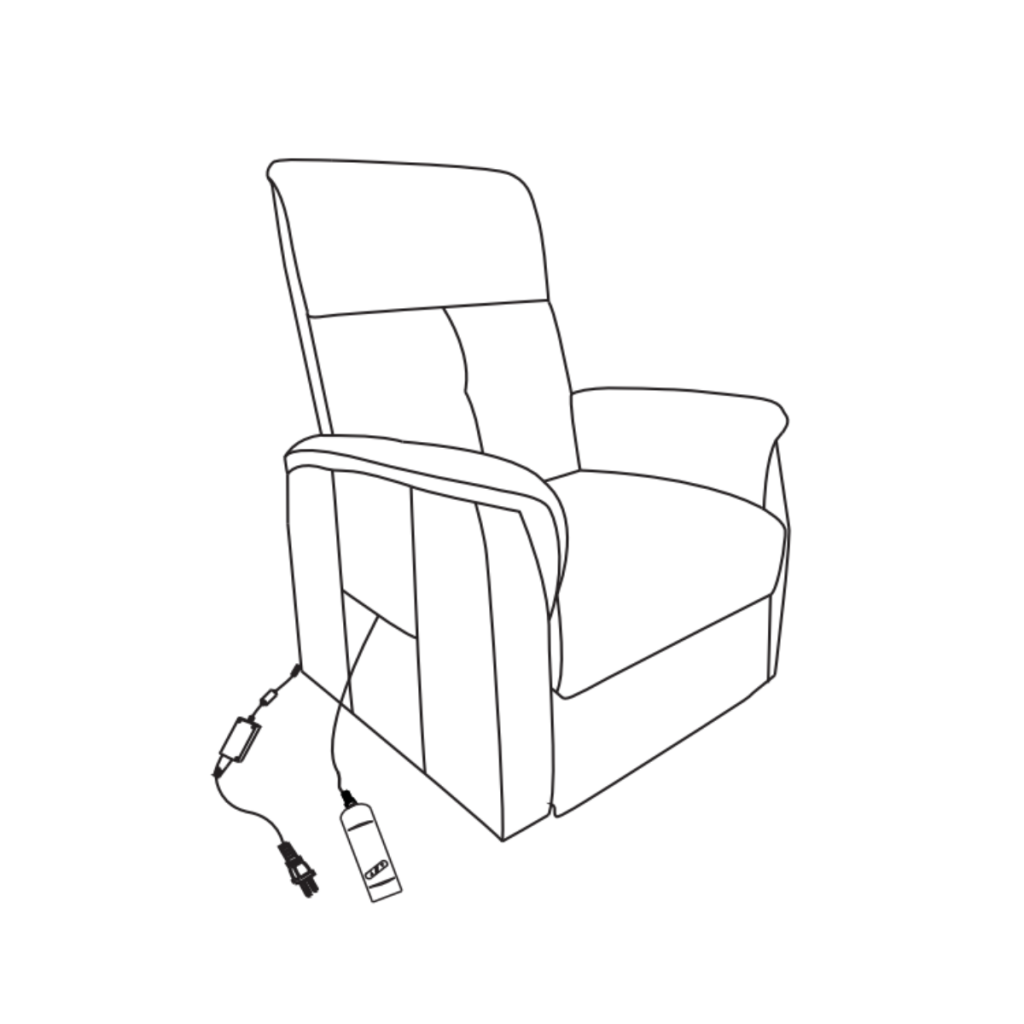

Step 4: Connect the Remote Control

1. Plug the remote control (④) into the designated control port on the side of the chair.
2. Store the remote in the side pocket when not in use for convenience.
3. Test the buttons to ensure they respond properly before sitting down.

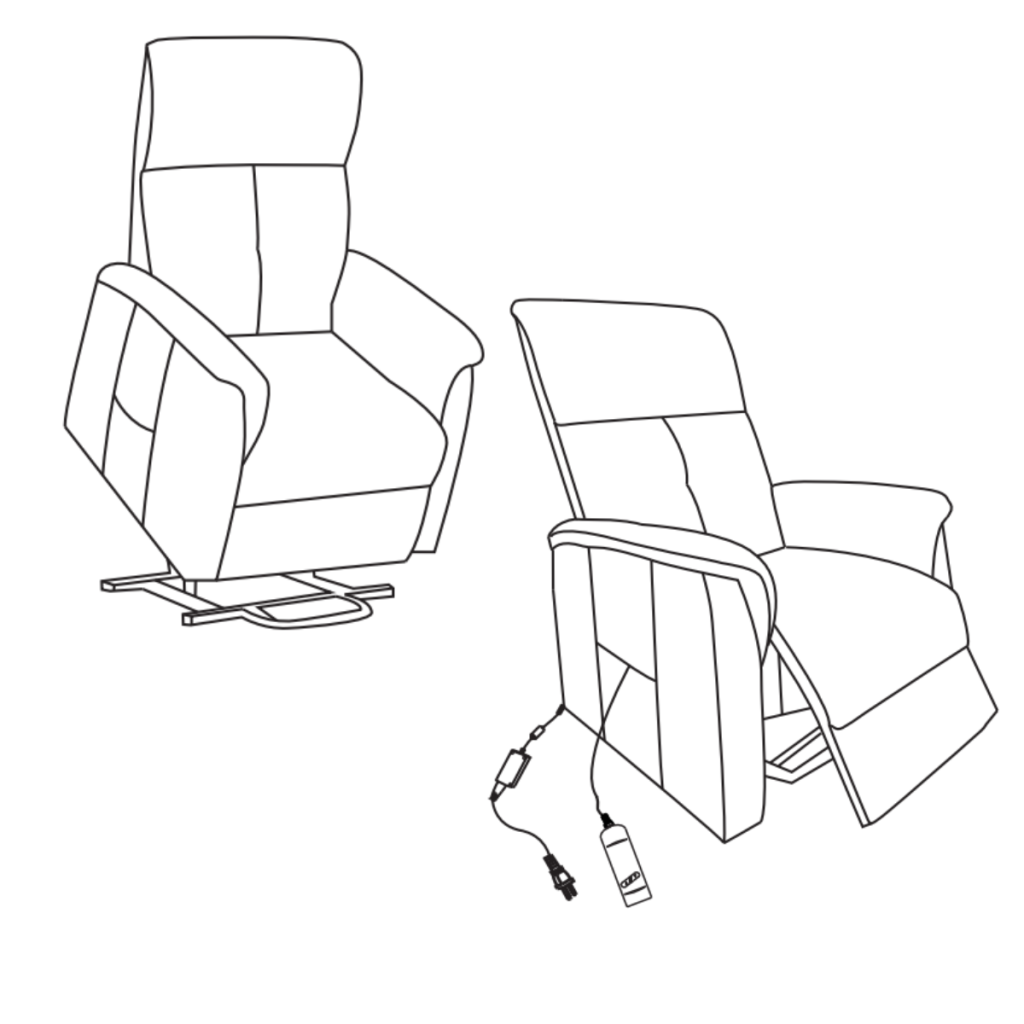

Step 5: Test the Chair

1. With the chair plugged in and remote connected, press the lift button to raise the chair to its upright position.
2. Sit carefully and press the recline button to lean back smoothly.
3. Try both functions (lift and recline) several times to confirm smooth operation.
4. Ensure there are no obstructions under or behind the chair while testing.

Care and Maintenance Tips

• Wipe surfaces with a soft, dry cloth.
• For spills, use a damp cloth with mild soap (avoid harsh cleaners).
• Keep electrical components dry at all times.
• Periodically check and tighten screws.
• Do not overload the chair or force movements beyond its limits.
• Store in a dry, ventilated environment.

When to Call a Professional

• Unusual noise from the power motor or complete failure to operate requires professional help.
• Damaged or frayed wiring should be inspected by an expert immediately.
• Uneven lifting or reclining after assembly signals the need for service.
• Cracked or broken major components must be addressed by the Aosom’s customer support or technician.

User Guide

Download HOMCOM Power Lift Chair Manual User Manual (PDF) for your reference.

FAQs

1. Why won’t my chair power on after assembly?

Check the power adapter connection at both ends and ensure it’s plugged into a grounded outlet. Test the outlet with another device to confirm power. If still unresponsive, inspect cables for damage before calling support.

2. What should I do if the remote stops working?

Ensure the remote cable is firmly connected to the chair’s port. Try unplugging and reconnecting both the chair and remote. If the issue persists, test with a replacement remote if available.

3. How do I fix unusual noises when reclining?

Unusual sounds often come from loose screws or misaligned parts. Tighten all bolts with the supplied tool and check for obstructions under the chair. If noise continues, discontinue use and seek professional help.

4. What if the chair lifts unevenly or feels unstable?

Verify all screws and brackets are fully tightened. Make sure the chair is placed on a flat, stable surface. If the problem persists, contact a technician as it may indicate a motor alignment issue.

5. How can I prolong the life of my power lift chair?

Avoid overloading beyond the weight limit and keep electrical parts dry. Clean with mild soap and check screws monthly. Always unplug before moving or cleaning the chair.
