Retro Style Console Table with 3 Drawers and 2 Open Shelves Manual – SKU: F-HSS-N852P245619P

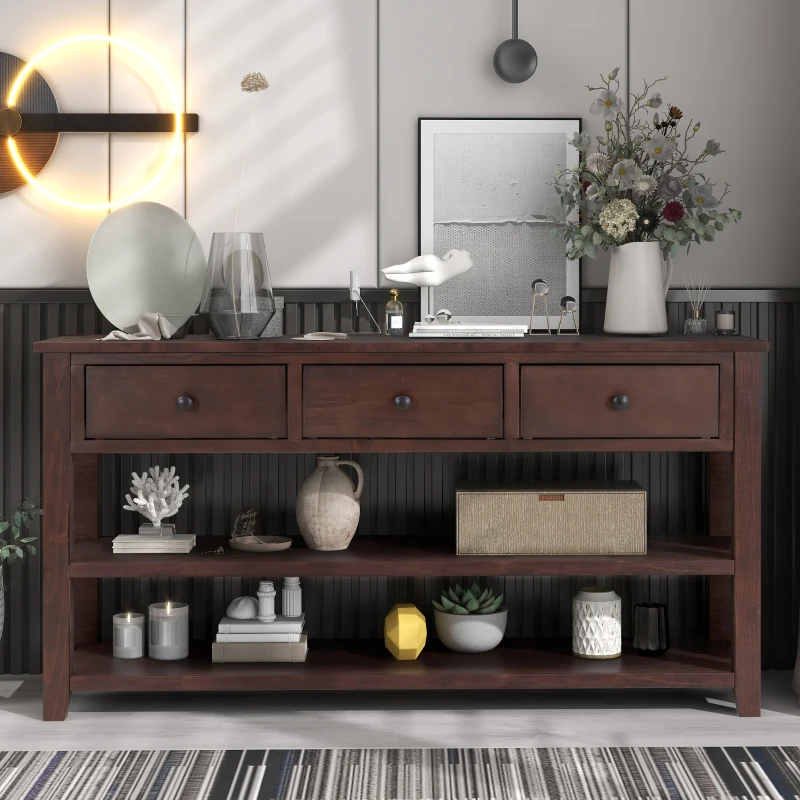

Elevate your living space with this Retro Style Console Table, crafted from solid pine wood and MDF for durability and timeless beauty. Featuring a mid-century design, circular handles, and a distressed dark brown finish, it offers both style and practicality. The three drawers and two open shelves provide generous storage, while the solid pine legs ensure lasting stability.

With a 50″ tabletop width, this piece supports up to 220 lbs, making it ideal for decorative accents, lamps, or books in your living room or entryway.

Safety & Caution

• Read all instructions before assembly and keep them for future reference.
• Assemble on a flat, soft surface to avoid scratching. Two adults are recommended.
• Do not climb, stand, or sit on the table.
• Keep small parts and plastic bags away from children.
• Tighten all hardware only after complete assembly and alignment.
• Avoid exposure to heat, moisture, and direct sunlight.
• Clean with a soft, damp cloth only.
• Weight Limits: 220 lbs tabletop / 66 lbs shelf / 17 lbs per drawer.

Before You Begin

Check all parts and hardware before starting assembly. Lay everything out on a clean, flat surface and group by type for easy identification.

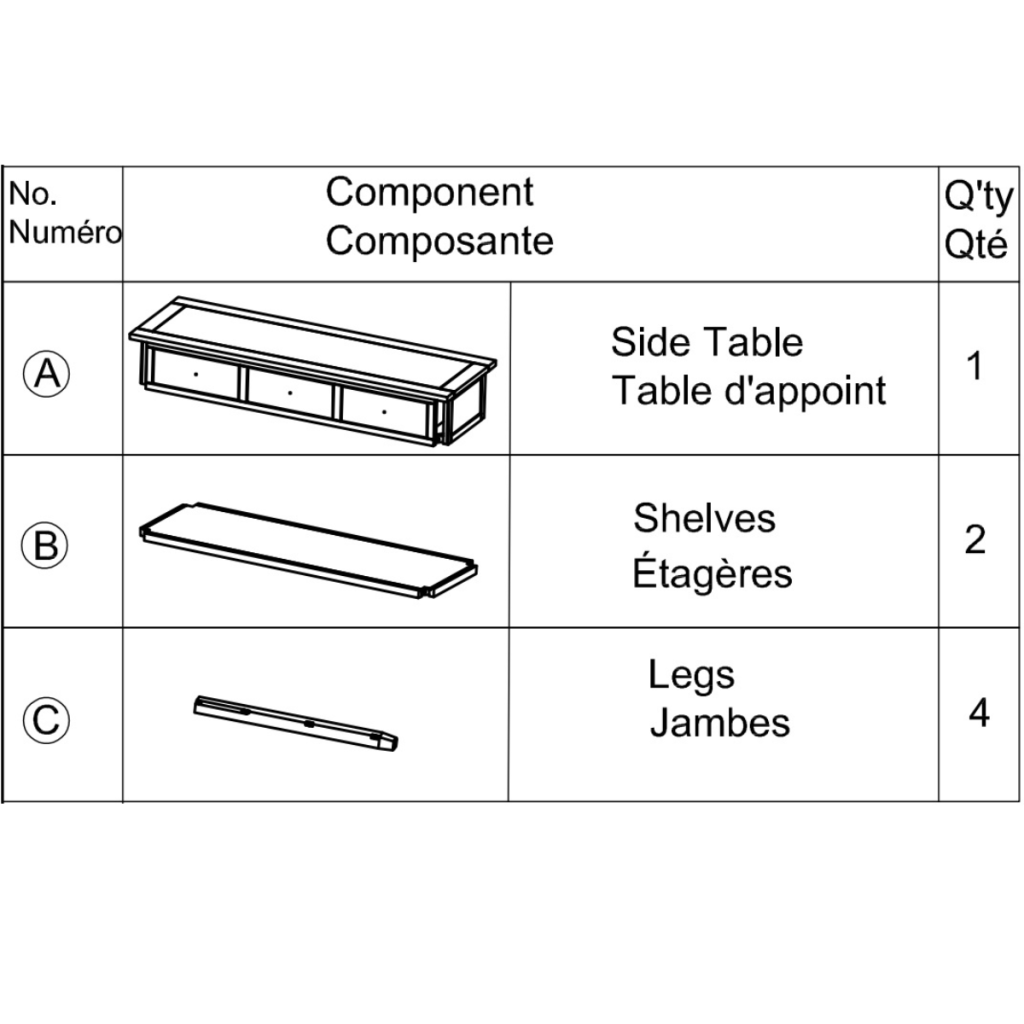

Parts

No.	Component	Qty
A	Side Table (Main Body with Drawers)	1
B	Shelves	2
C	Legs	4

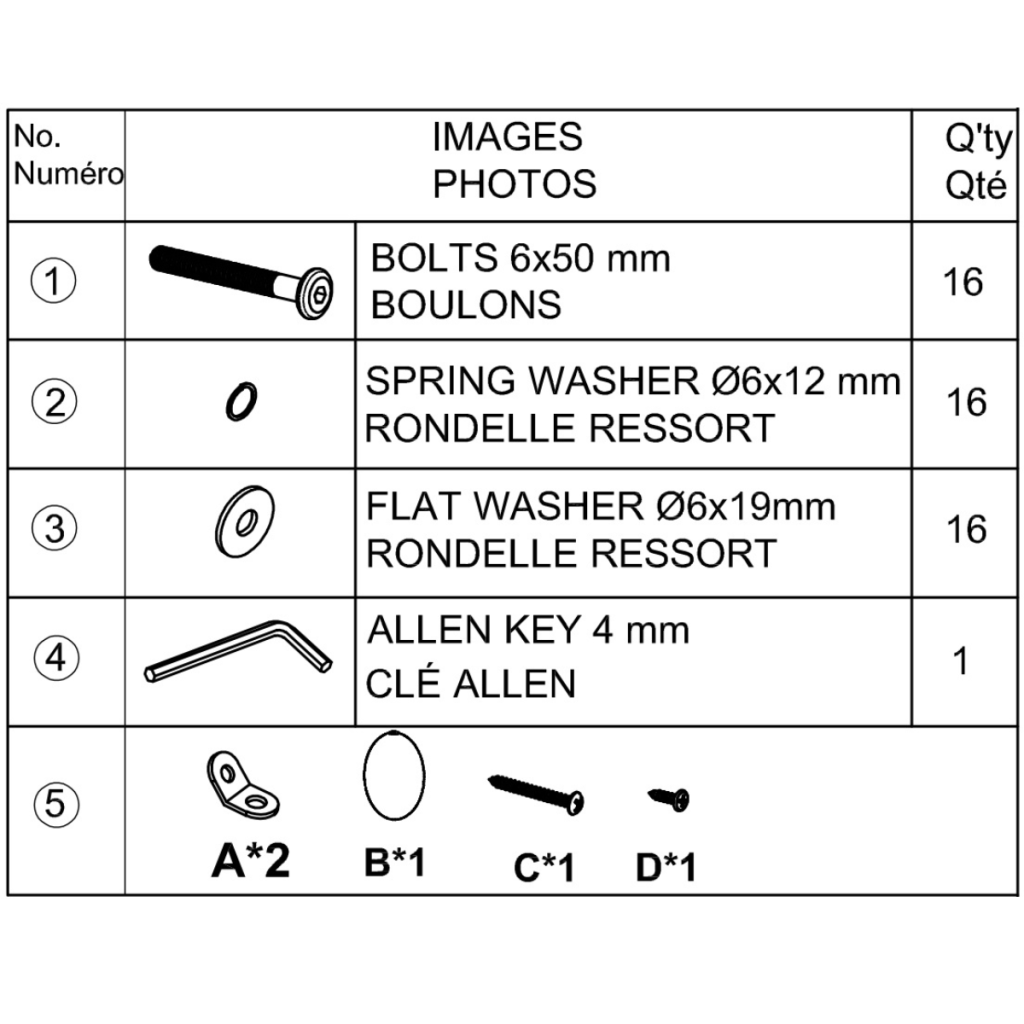

HARDWARE LIST

No.	Hardware	Specification	Qty
①	Bolts	M6 × 50 mm	16
②	Spring Washers	Ø6 × 12 mm	16
③	Flat Washers	Ø6 × 19 mm	16
④	Allen Key	4 mm	1
⑤	Brackets (for shelf support)		2

Assembly Instructions

Follow the steps below to assemble the Retro Style Console Table with 3 Drawers and 2 Open Shelves – SKU: (F-HSS-N852P245619P).

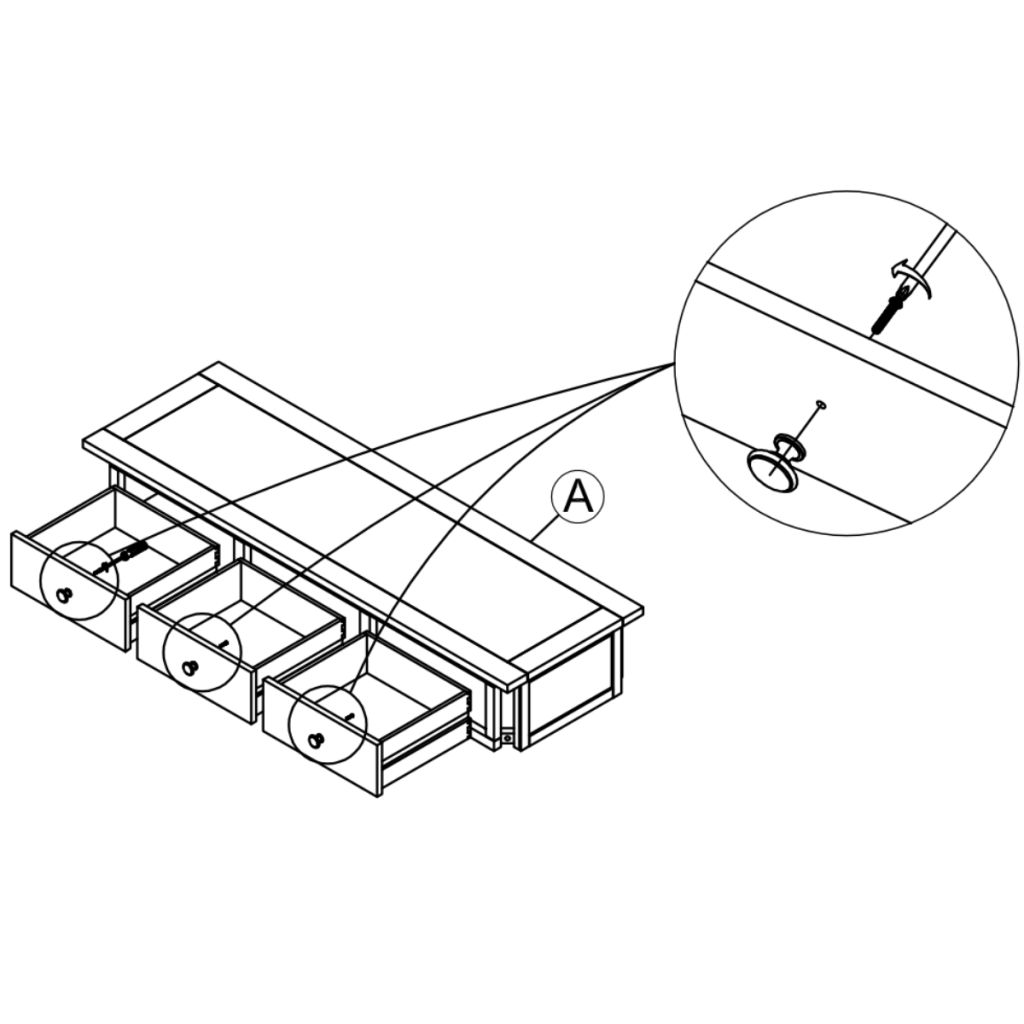

Step 1 – Insert Drawer Handles

1. Remove the three drawers from the main table body (A).
2. Insert each handle (⑥) through the pre-drilled hole on the front of the drawer.
3. Secure from the inside with the corresponding bolt and tighten using a screwdriver.
4. Reinsert the drawers into the table after tightening all handles.

Step 2 – Secure Drawer Handles with Washers

1. Insert each handle bolt through the drawer front from inside the drawer.
2. Place one spring washer (②) and one flat washer (③) onto each bolt.
3. Tighten securely into the handle (⑥) on the front using a screwdriver.
4. Ensure all handles are firmly fixed and correctly aligned before closing the drawers.

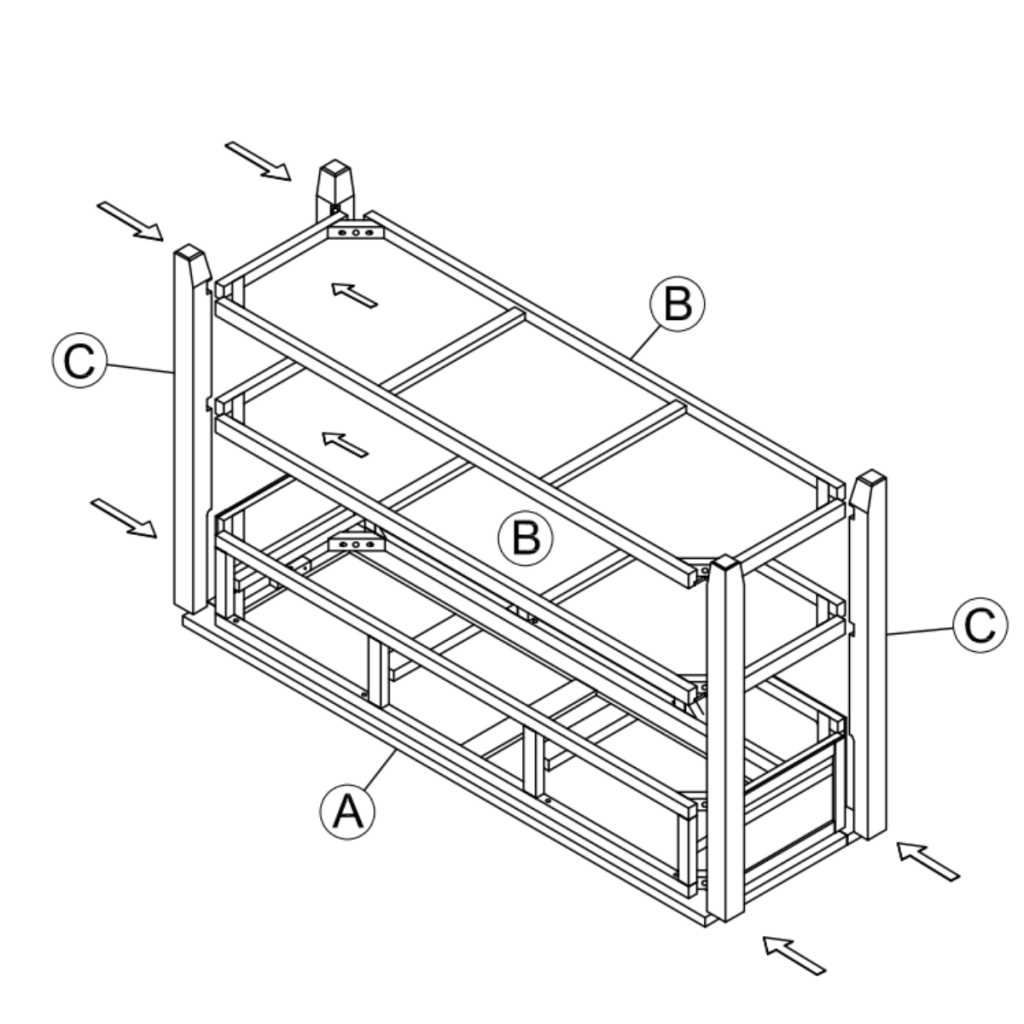

Step 3 – Attach Shelves and Legs

1. Place the main table body (A) upside down on a soft, flat surface to avoid scratching.
2. Insert both shelves (B) between the four legs (C), aligning the pre-drilled holes on the legs and shelf frames.
3. Insert each bolt (①) with one spring washer (②) and one flat washer (③) through the holes.
4. Tighten all bolts using the Allen key (④). Do not overtighten until all bolts are inserted.
5. Ensure the structure is evenly aligned and stable before moving to the next step.

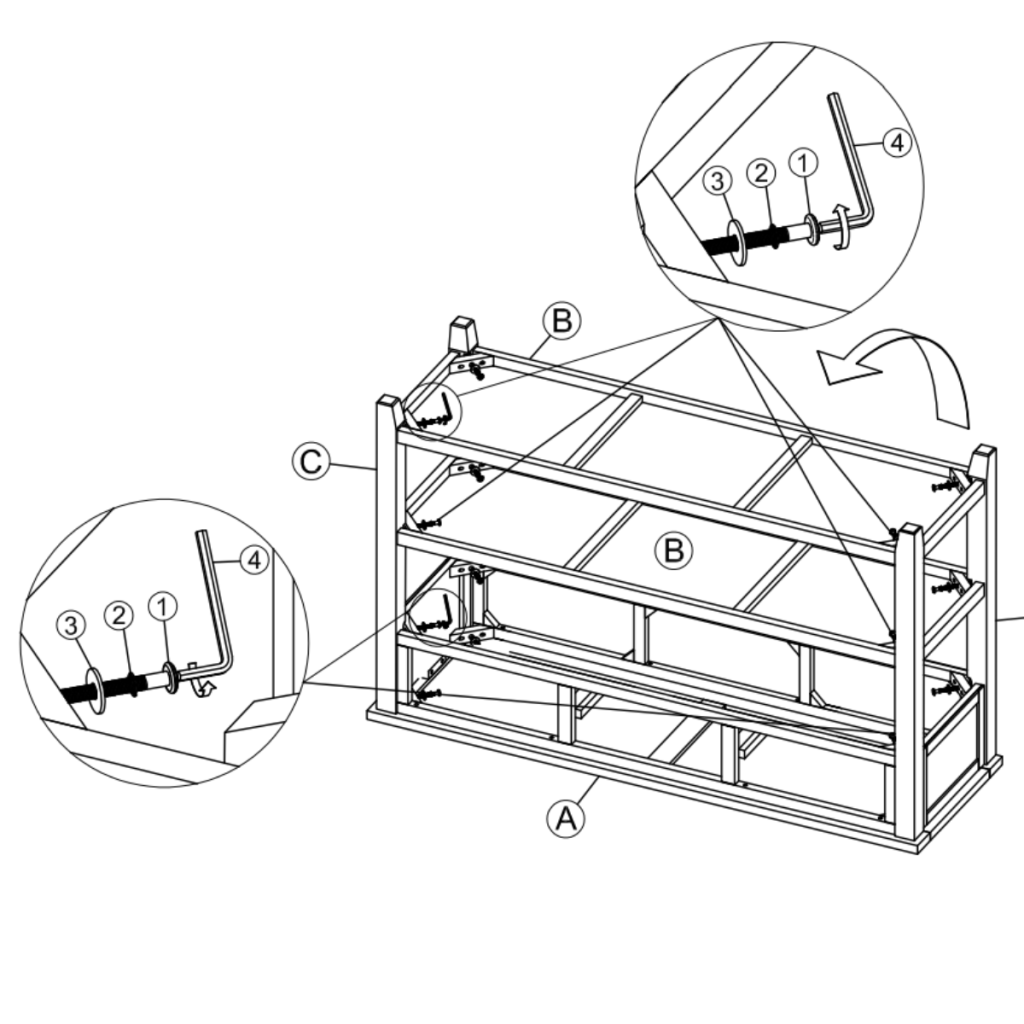

Step 4 – Tighten All Bolts Securely

1. Insert one bolt (①) through a spring washer (②) and a flat washer (③) as shown in the diagram.
2. Align each connection point where the legs (C) meet the shelves (B) and main table body (A).
3. Using the Allen key (④), tighten all bolts evenly.
4. Ensure each bolt is snug but avoid overtightening, which could damage the wooden frame.
5. Double-check that all four legs are firmly secured and the structure feels stable.

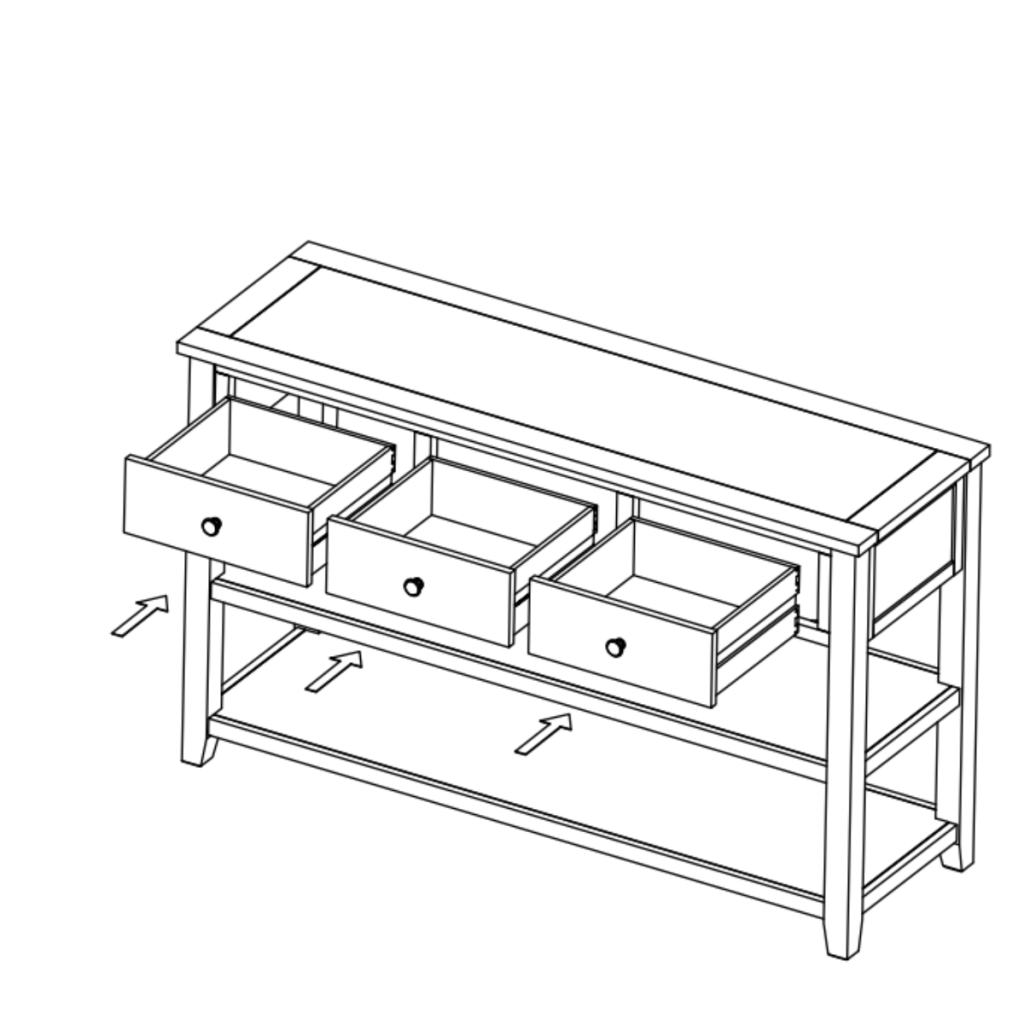

Step 5 – Insert Drawers and Final Setup

1. After ensuring the table frame is stable and all bolts are tightened, turn the console upright carefully.
2. Align each drawer with its designated track inside the main table body.
3. Gently slide the three drawers into place until they move smoothly in and out.
4. Check that all drawers are evenly aligned and operate without obstruction.
5. Wipe the table with a soft cloth to remove any dust before use.

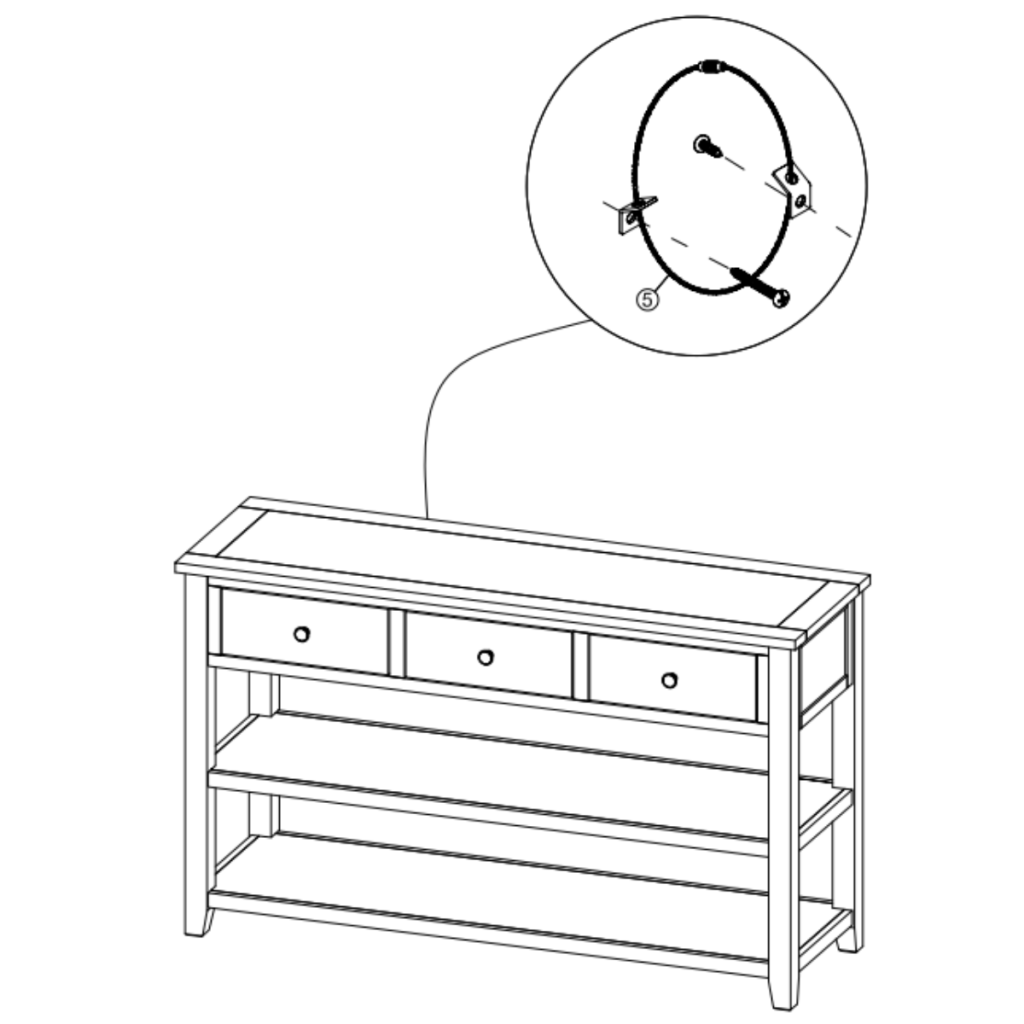

Step 6 – Install Anti-Tip Safety Strap

1. Locate the anti-tip strap (⑤) and position it at the upper back of the console table as shown.
2. Use the provided mounting brackets and screws to attach the strap firmly to the back frame of the table.
3. Choose an appropriate wall location, mark the drilling point, and insert the wall plug (if provided).
4. Secure the other end of the strap to the wall with the supplied screw and bracket.
5. Adjust the strap length until snug ensure there is no slack, and the table sits evenly against the wall.

Maintenance and Care

• Wipe surfaces regularly with a soft, dry cloth.
• Avoid harsh cleaners, solvents, or abrasives.
• Retighten screws every 3–6 months to maintain stability.
• Do not overload drawers or shelves beyond their weight capacity.
• Keep away from direct sunlight and excessive humidity.

Warranty and Support

This product is manufactured by Aosom LLC under the HOMCOM brand.

Warranty Coverage and Return Policy

• Covered by a standard limited warranty against manufacturing defects.
• All purchases may be returned within 30 days from the date of delivery.
• Returns are free of charge if the product is defective or arrives damaged.
• For non-defective returns, customers are responsible for the return shipping costs.


You can also download the Retro Style Console Table Manual (SKU: F-HSS-N852P245619P) PDF for your records and future reference.

For technical support, replacement parts, or product questions, please contact Aosom LLC’s Customer Service for quick and friendly assistance.

Assembly Complete

Your Retro Style Console Table is now fully assembled and ready for use.
Enjoy its elegant design, generous storage, and durable build for years to come.

FAQs

1. Why are my drawers not sliding smoothly?

Ensure the console frame is level and all bolts are evenly tightened.Check for obstructions in the drawer rails and adjust alignment if necessary.Apply a small amount of furniture wax or silicone spray to ease movement.

2. What should I do if a bolt won’t fit correctly?

Loosen the nearby connections slightly to realign the holes.Insert the bolt gently without forcing it into the wood.Once aligned, tighten all hardware evenly to secure the structure.

3. How do I secure the table safely to the wall?

Use the included anti-tip strap and attach it to both the table and wall.Ensure the strap is tightened until there’s no slack.Mount it on a solid stud or use proper wall anchors for stability.

4. What can I do if the surface gets scratched during setup?

Wipe the area clean with a soft cloth to remove dust or residue.Use a furniture touch-up marker or wax repair stick in a matching color.Gently buff the area to restore the wood’s smooth appearance.
