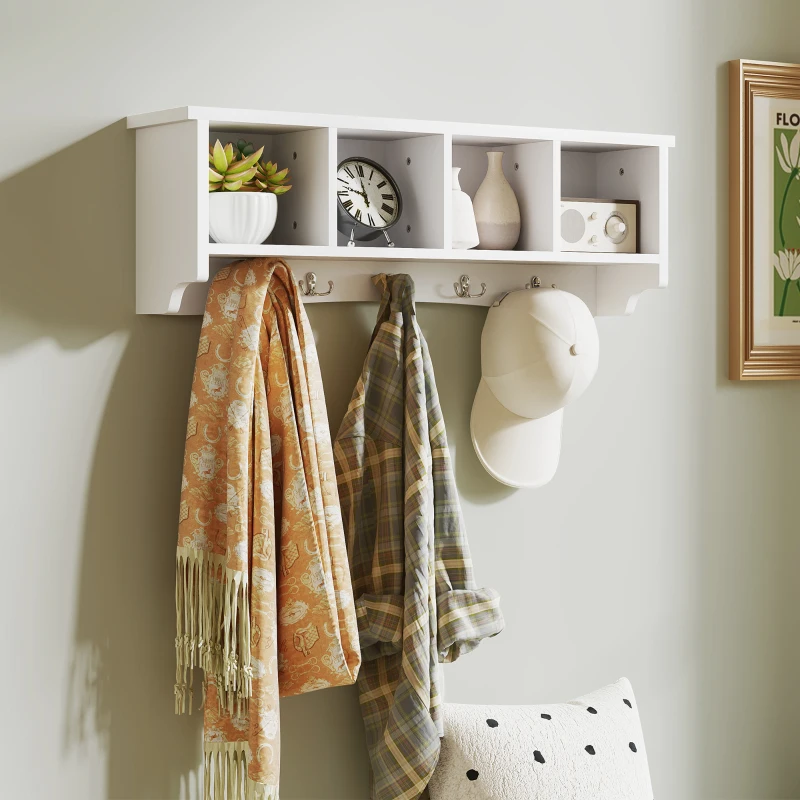

The HOMCOM Wall Mounted Coat Rack with Shelf is a functional and stylish storage solution designed to keep your entryway, living room, or bedroom organized. Its 2-in-1 design features four open compartments and five double hooks, providing plenty of space to hang coats, bags, and hats while keeping everyday essentials within reach.
Safety Information
Please read all instructions carefully before beginning assembly. Keep this manual for future reference.
- Ensure the wall type is suitable for installation.
- For solid walls, use both expansion and self-tapping screws.
- For wooden walls, use self-tapping screws only.
- Do not overtighten any screws to avoid damage.
- Use the anti-dumping belt to secure the product to the wall if additional stability is needed.
- Assemble the unit on a flat, clean surface to prevent scratches or instability.
- Keep all small parts away from children until assembly is complete.

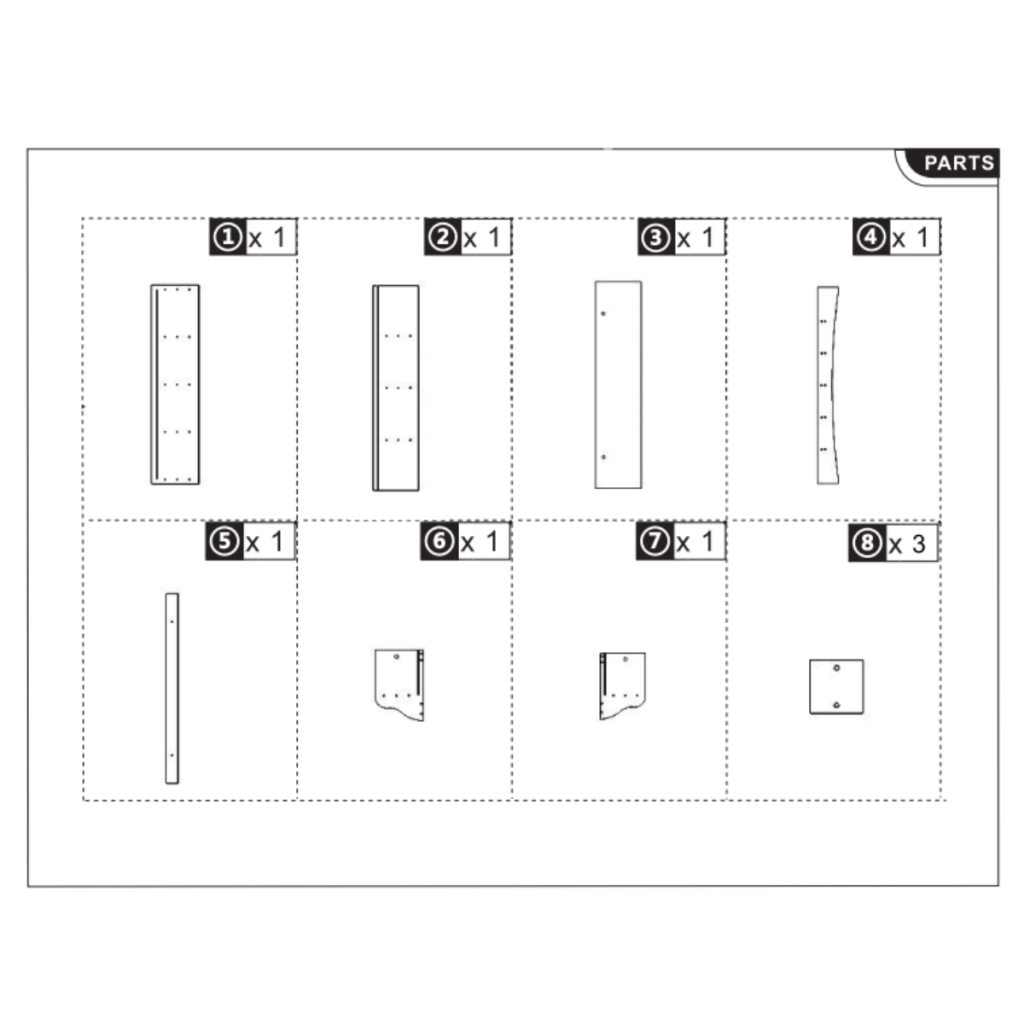

Parts List
| Part No. | Quantity |
| ① | ×1 |
| ② | ×1 |
| ③ | ×1 |
| ④ | ×1 |
| ⑤ | ×1 |
| ⑥ | ×1 |
| ⑦ | ×1 |
| ⑧ | ×3 |

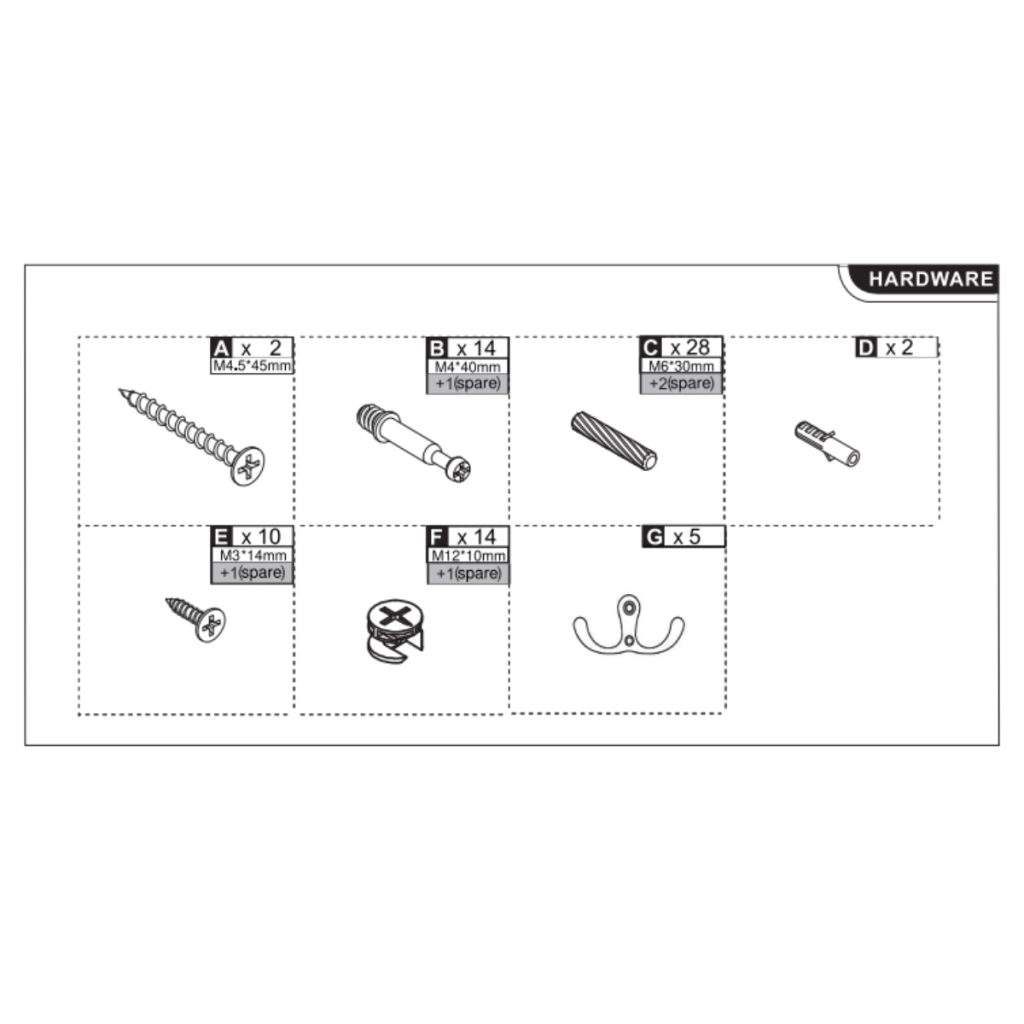

Hardware List
| Label | Specification | Quantity |
| A | M4.5 × 45 mm | 2 |
| B | M4 × 40 mm (+1 spare) | 14 |
| C | M6 × 30 mm (+2 spare) | 28 |
| D | — | 2 |
| E | M3 × 14 mm (+1 spare) | 10 |
| F | M12 × 10 mm (+1 spare) | 14 |
| G | — | 5 |
Tip: Do not confuse similar screws.
Assembly Instructions for HOMCOM Coat Rack Wall Mount with Shelf – SKU: 837-544V80WT
Follow these step-by-step assembly instructions to securely assemble your HOMCOM Coat Rack Wall Mount with Shelf (SKU: 837-544V80WT) for reliable use and lasting stability.

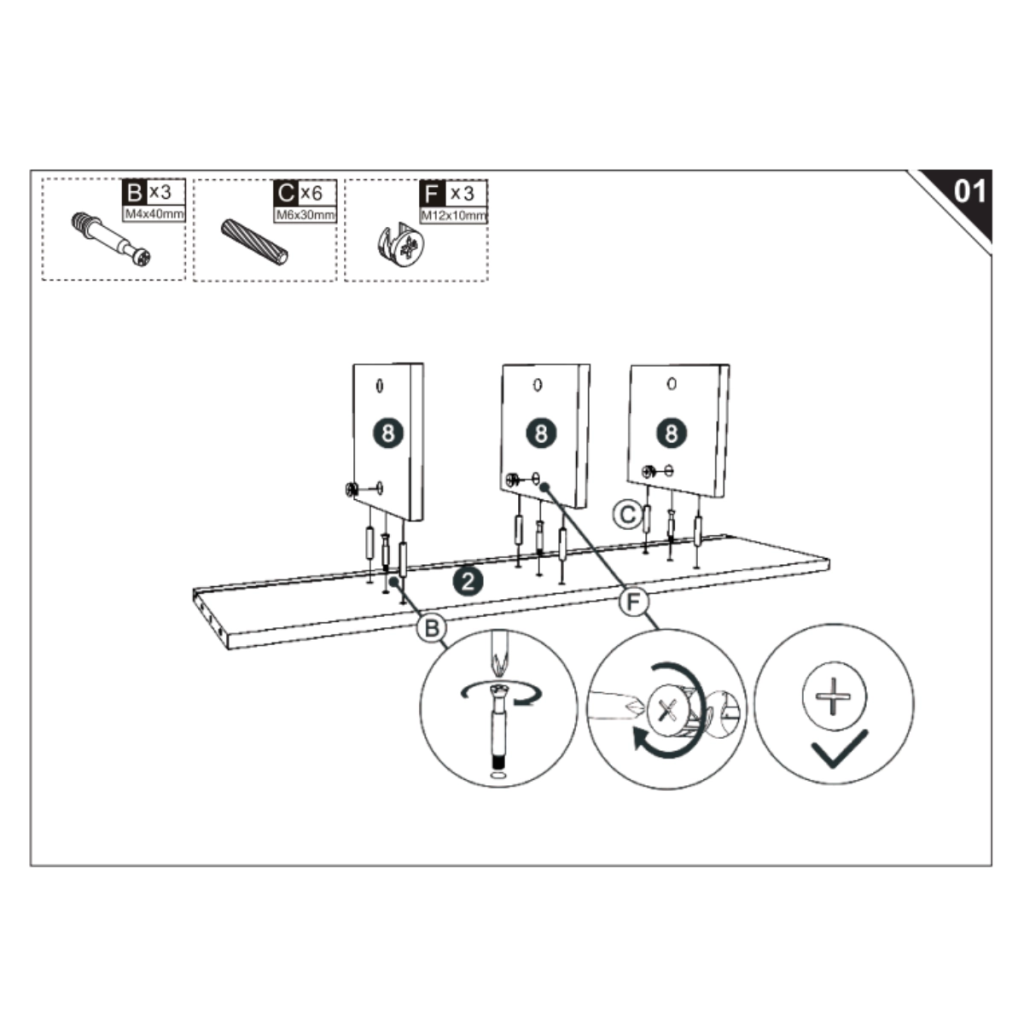

Step 1: Assemble ② and ⑧ × 3
- Parts Used: ②, ⑧ × 3
- Hardware Used: B × 3, C × 6, F × 3
Instructions:
- Insert C × 6 into the pre-drilled holes on ②.
- Align ⑧ × 3 vertically with ②, ensuring all holes match properly.
- Secure each ⑧ to ② using B × 3 and lock in place with F × 3.
- Check alignment from both sides before tightening all fittings securely as shown.

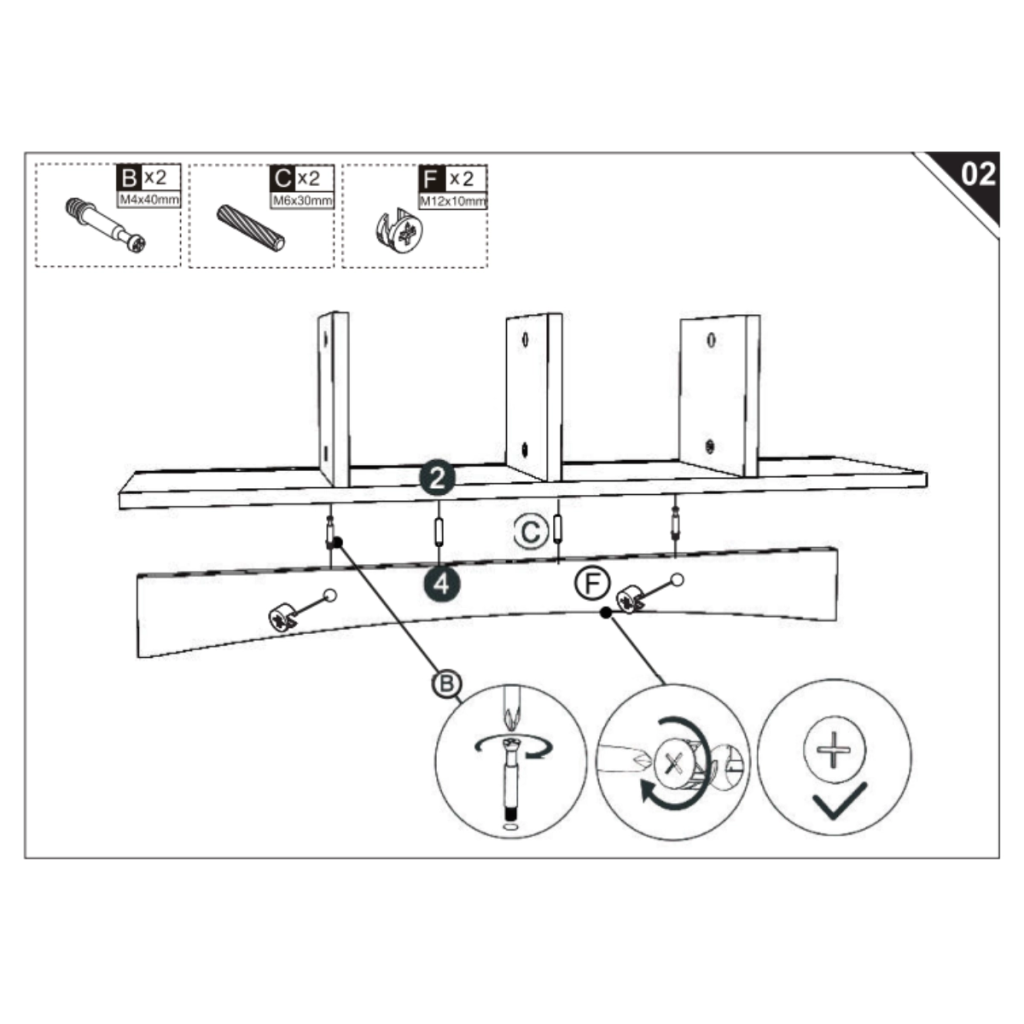

Step 2: Attach ④ to the Assembled Unit
- Parts Used: ④
- Hardware Used: B × 2, C × 2, F × 2
Instructions:
- Insert C × 2 into the pre-drilled holes on the assembled base from Step 1.
- Align ④ with the dowels and ensure proper positioning.
- Fasten ④ using B × 2, then secure with F × 2.
- Confirm the panel is level and edges are evenly aligned before proceeding.

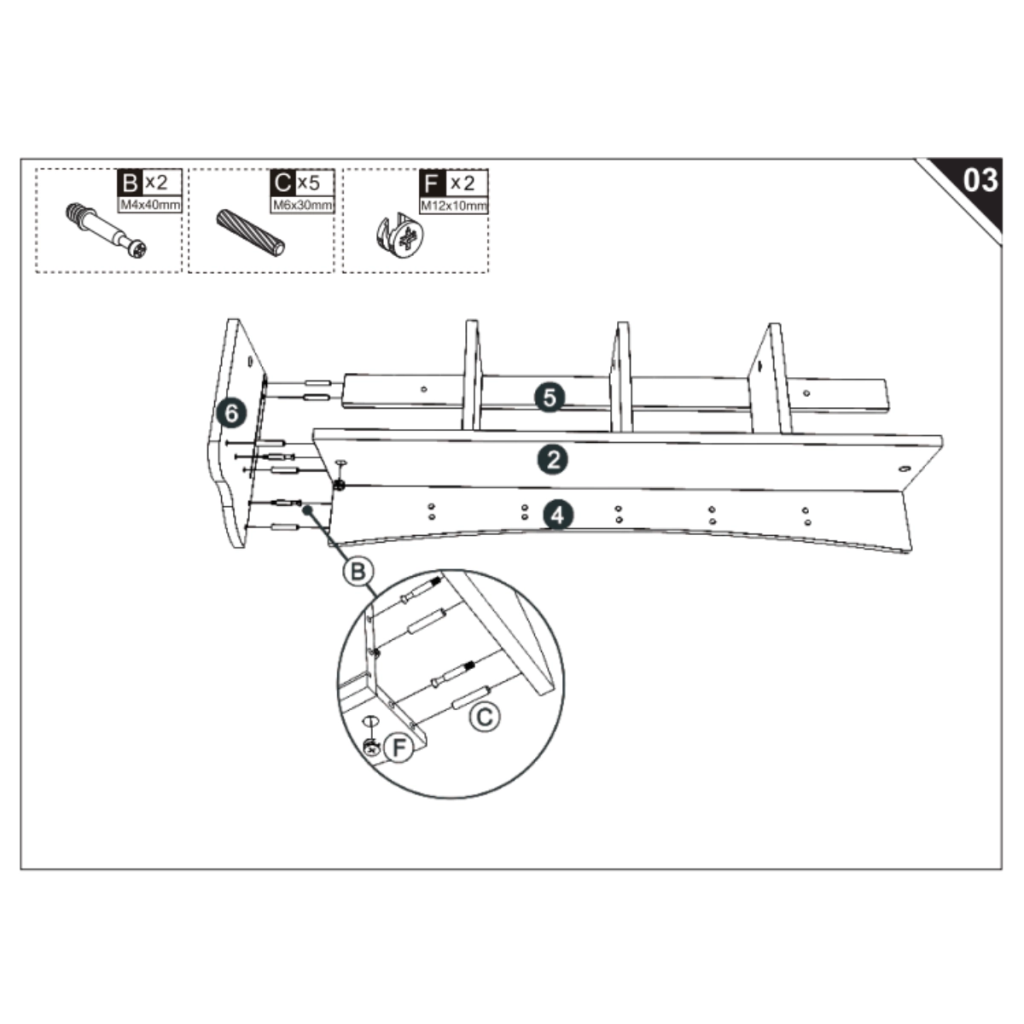

Step 3: Attach ⑤ and ⑥
- Parts Used: ⑤, ⑥
- Hardware Used: B × 2, C × 5, F × 2
Instructions:
- Insert C × 5 into the pre-drilled holes of the assembled frame.
- Position ⑤ horizontally and align ⑥ on the side as shown.
- Secure ⑥ using B × 2, then lock firmly with F × 2.
- Ensure all joints are flush and stable before tightening all connectors.

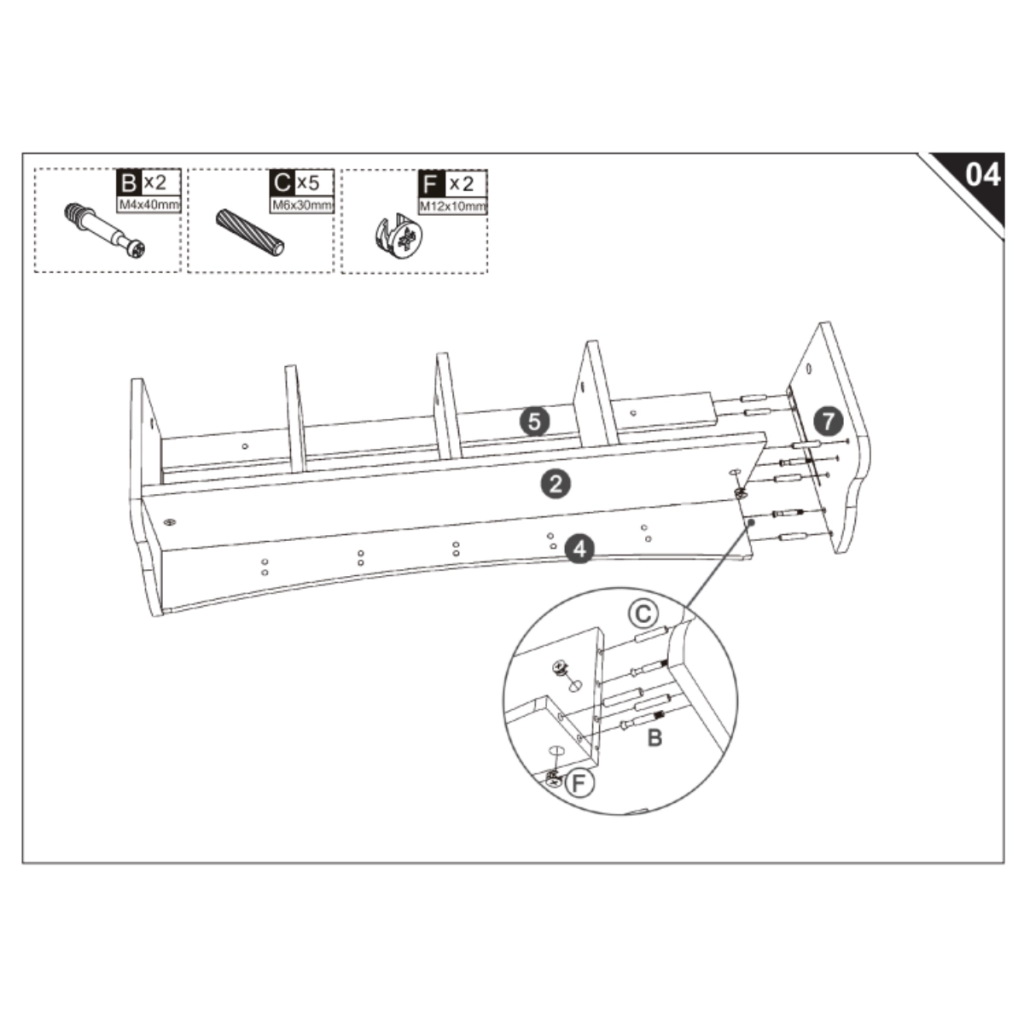

Step 4: Attach ⑦ to the Assembled Unit
- Parts Used: ⑦
- Hardware Used: B × 2, C × 5, F × 2
Instructions:
- Insert C × 5 into the pre-drilled holes on the right side of the assembled structure.
- Align ⑦ with the dowels and position it parallel to ⑥ on the opposite end.
- Secure ⑦ using B × 2, then tighten the connectors with F × 2.
- Check that both side panels (⑥ and ⑦) are aligned evenly with the top and bottom edges before tightening completely.

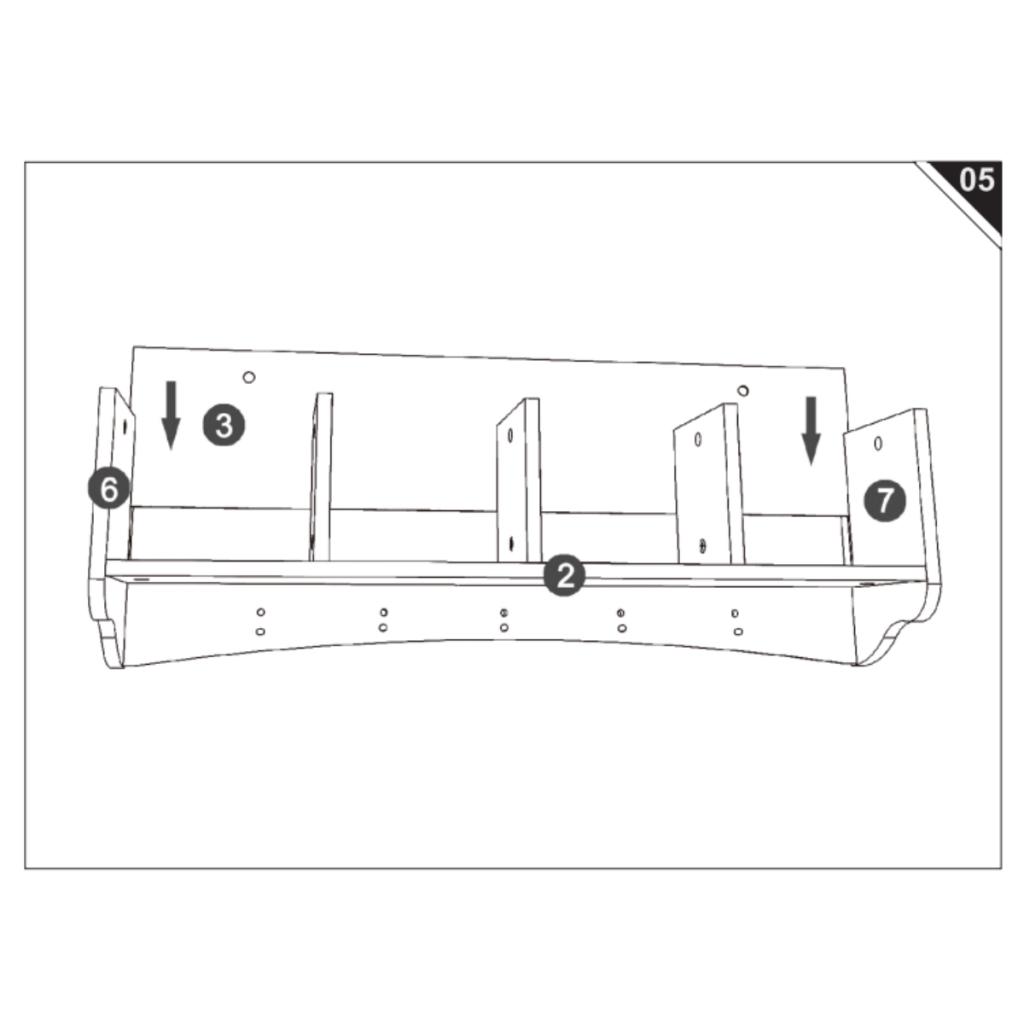

Step 5: Attach ③ to the Assembled Unit
- Part Used: ③
Instructions:
- Position ③ on top of the assembled unit between ⑥ and ⑦.
- Lower it carefully so that the edges align with the top of ⑥, ⑦, and ⑧ × 3.
- Ensure ③ sits firmly in place and the structure remains even on all sides before proceeding.

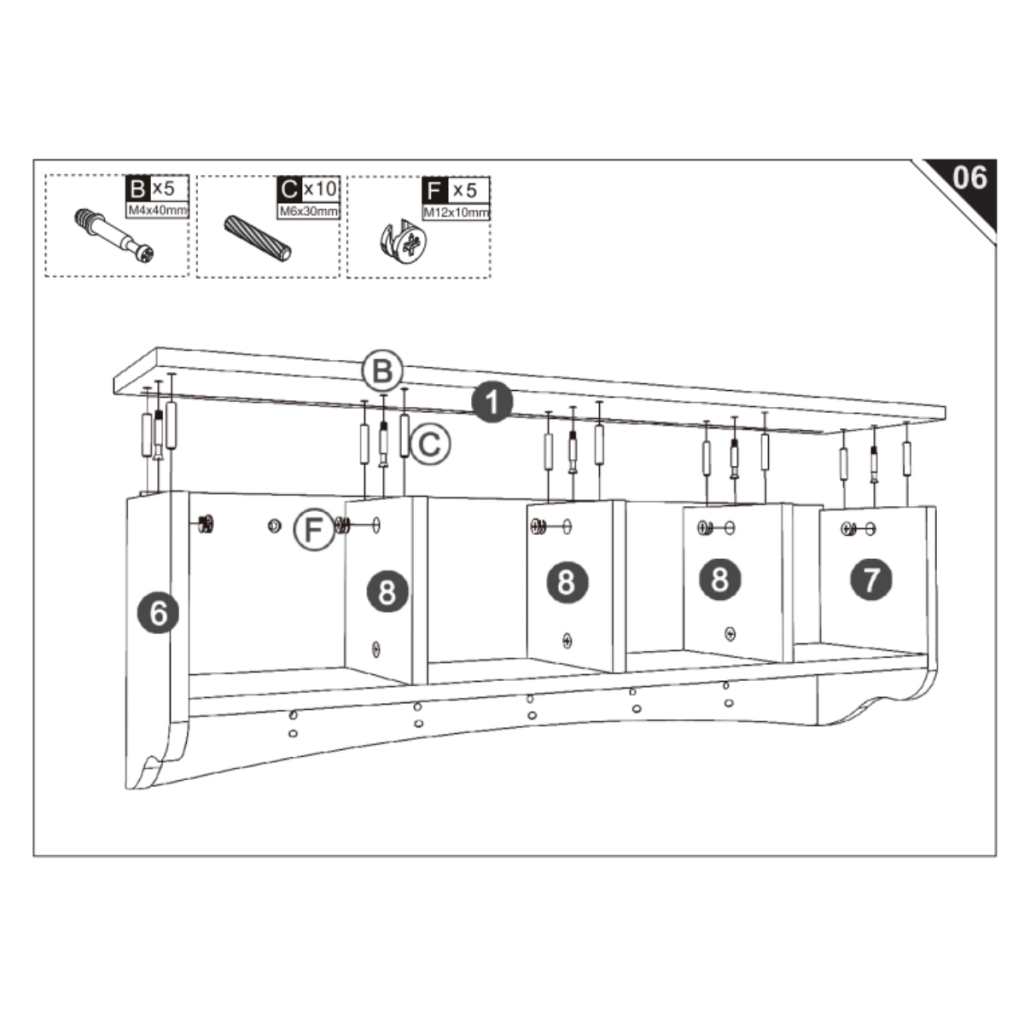

Step 6: Attach ① to the Assembled Unit
- Part Used: ①
- Hardware Used: B × 5, C × 10, F × 5
Instructions:
- Insert C × 10 into the pre-drilled holes on the top of the assembled unit.
- Align ① with the dowels and position it carefully on top of ⑥, ⑦, and ⑧ × 3.
- Secure ① using B × 5, then lock the connections firmly with F × 5.
- Check that the top panel is level and that all joints are tight and evenly aligned before proceeding.

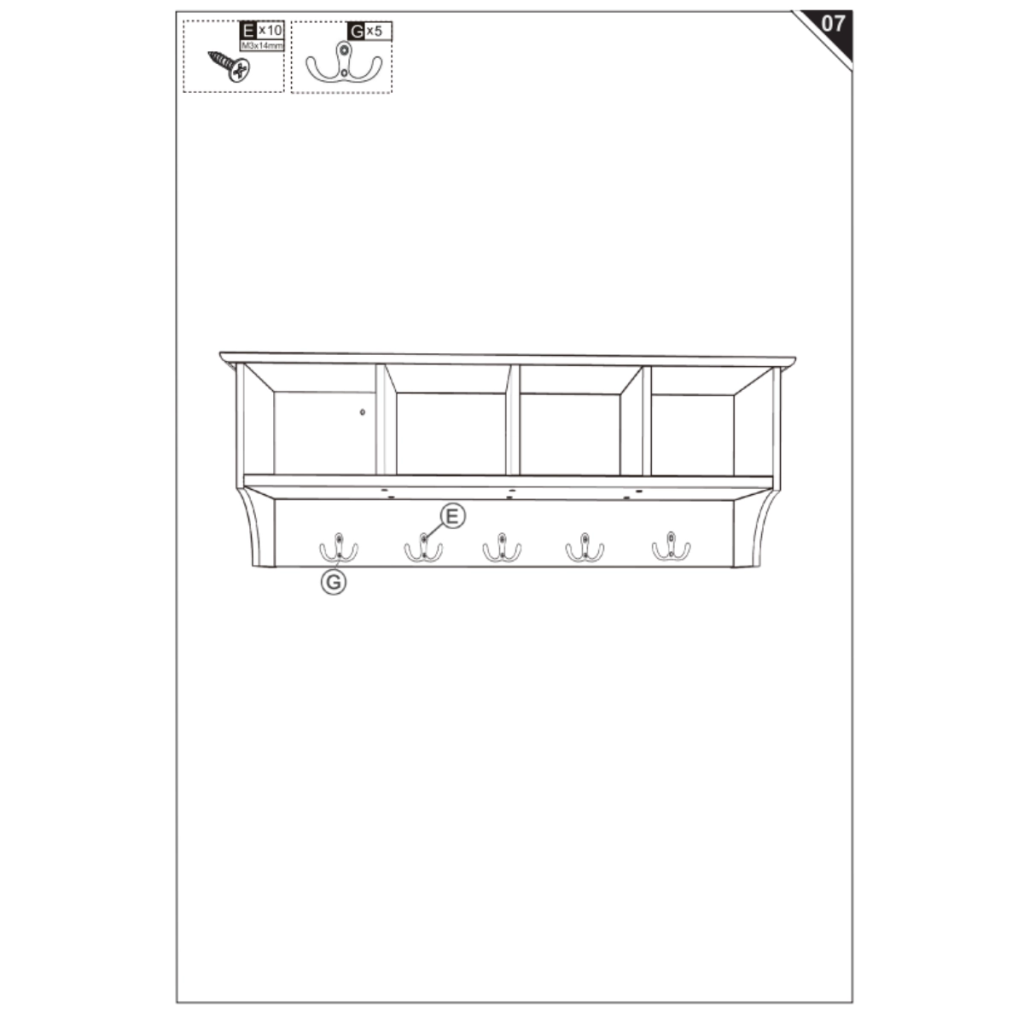

Step 7: Install G Using E
- Parts Used: G × 5
- Hardware Used: E × 10
Instructions:
- Align G × 5 evenly along the lower front edge of the assembled unit.
- Secure each G in place using E × 10, with two screws per hook as shown.
- Tighten all screws evenly to ensure the hooks are firmly attached and properly aligned.
- Check that all hooks are straight and securely fixed before use.

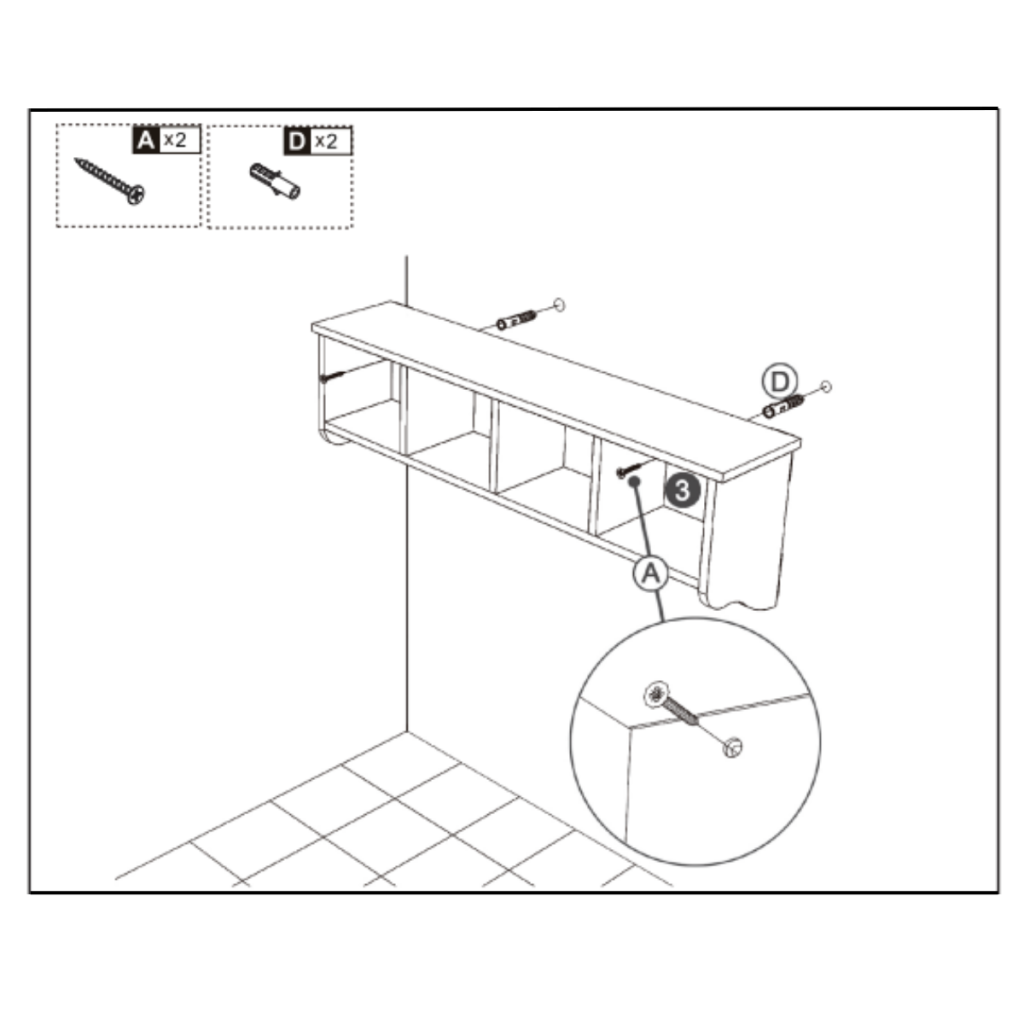

Step 8: Install the Unit on the Wall
- Hardware Used: A × 2, D × 2
Instructions:
- Drill two holes in the wall at the desired mounting height.
- Insert D × 2 into the drilled holes if fixing onto a solid wall.
- Align the assembled coat rack with the wall and secure it using A × 2.
- Ensure the unit is level and firmly attached before use.
Maintenance and Care
- Wipe with a soft, dry cloth to keep clean.
- Avoid harsh cleaners or excessive moisture.
- Check and retighten screws periodically.
- Keep away from heat sources and direct sunlight.
- Do not exceed the recommended weight capacity.
Assembly Complete
Your HOMCOM Coat Rack Wall Mount with Shelf is now ready for use. Ensure it is securely mounted before placing any items.
User Guide
Download the HOMCOM Coat Rack Wall Mount with Shelf Manual (SKU: 837-544V80WT) PDF for your reference.
FAQs
1. What should I do if the coat rack tilts slightly after mounting?
If the rack tilts after installation, check that both wall anchors are level and securely tightened. Loosen one side slightly, adjust the position using a level, and then retighten the screws to ensure the unit sits flat and balanced against the wall.
2. Can I replace the hooks with different designs?
Yes, you can replace the hooks as long as the new ones match the same screw spacing. Always choose durable, well-balanced hooks that can support similar weight to maintain stability and prevent uneven load distribution on the panel.
3. How can I keep the coat rack stable over time?
To keep your coat rack stable, regularly check all screws, fittings, and wall anchors for tightness. Tighten any loose connections and avoid overloading the hooks or compartments to prevent unnecessary strain and ensure long-lasting stability.
4. What should I do if a screw hole becomes loose during assembly?
If a screw hole becomes loose, fill it with a small wooden dowel or a piece of toothpick coated with glue. Allow it to dry completely before reinstalling the screw, ensuring a tight and secure hold without damaging the surrounding surface.
5. Can I mount the coat rack on a tiled wall?
Yes, the rack can be installed on a tiled wall, but you’ll need to drill slowly using a tile drill bit to avoid cracking the tiles. Insert strong wall plugs and make sure the surface is dry and clean before securing the screws for a firm installation.
