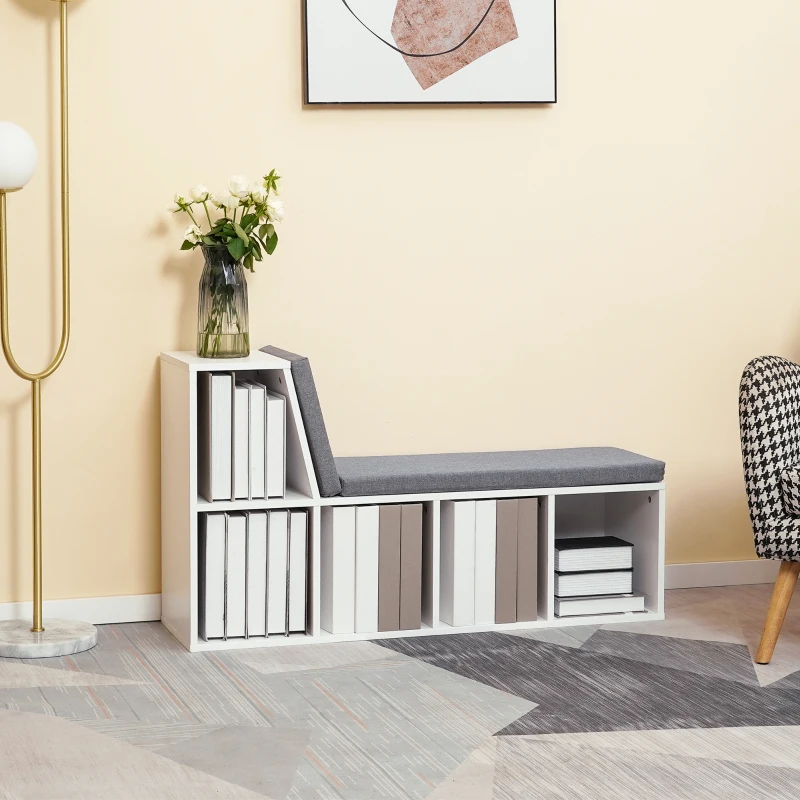

The HOMCOM Multi-Purpose Bookshelf with 5 Cubes is more than just a bookcase, it’s a modern storage and seating solution for any room. With five open compartments and a cushioned reading nook, it provides both function and comfort in one piece. Its compact design makes it ideal for the living room, bedroom, study, or office, helping you keep items neatly organized while offering a cozy spot to sit and relax.

Important Safety Instructions

• Check all parts and hardware before starting assembly.
• Throw away plastic bags and packing safely to protect children and pets.
• Build the item on a flat, steady surface.
• Have two people help with heavy or tall parts.
• Do not fully tighten screws until the item is assembled.
• Keep these instructions for future use.

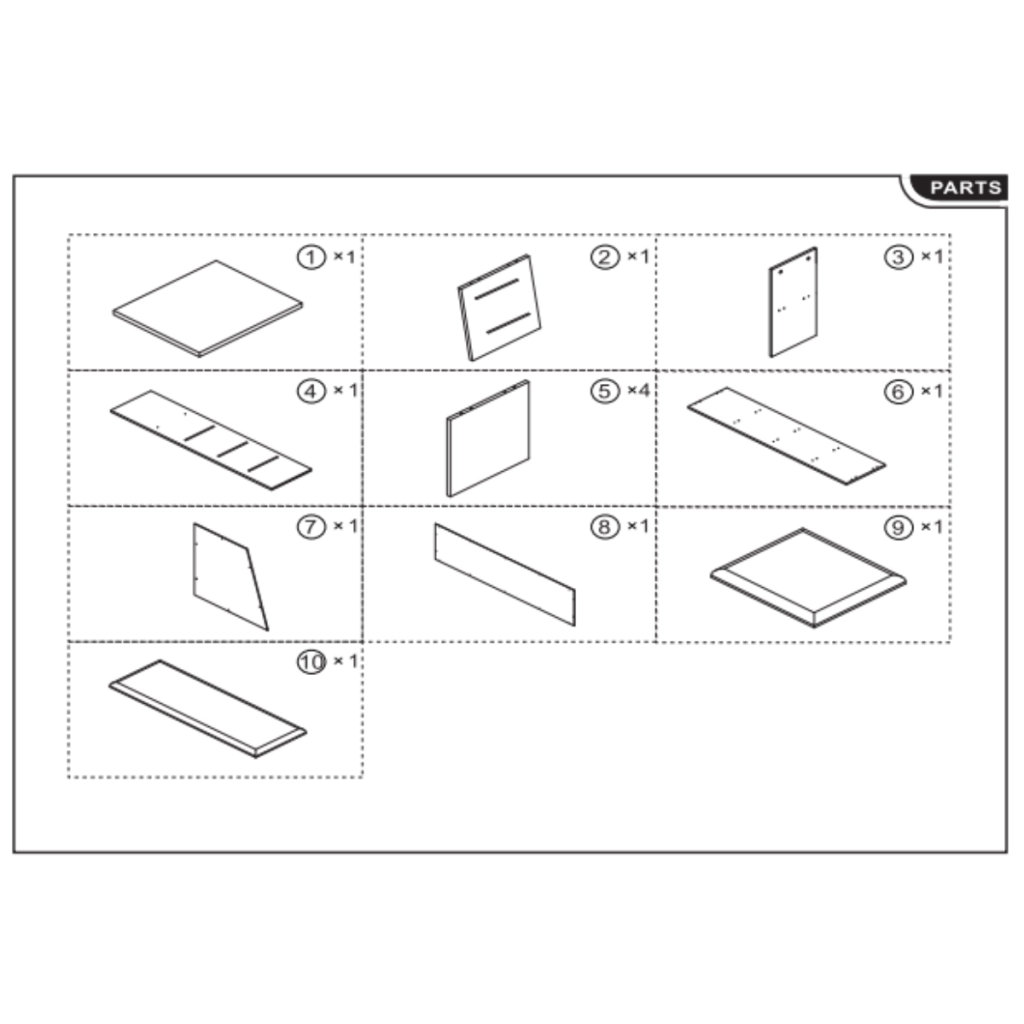

Parts List

1. Top Panel ×1
2. Inner Panel ×1
3. Side Panel (Left) ×1
4. Bench Support Panel ×1
5. Divider Panels ×4
6. Bottom Panel ×1
7. Trapezoid Side Panel ×1
8. Back Panel ×1
9. Small Cushion ×1
10. Large Cushion ×1

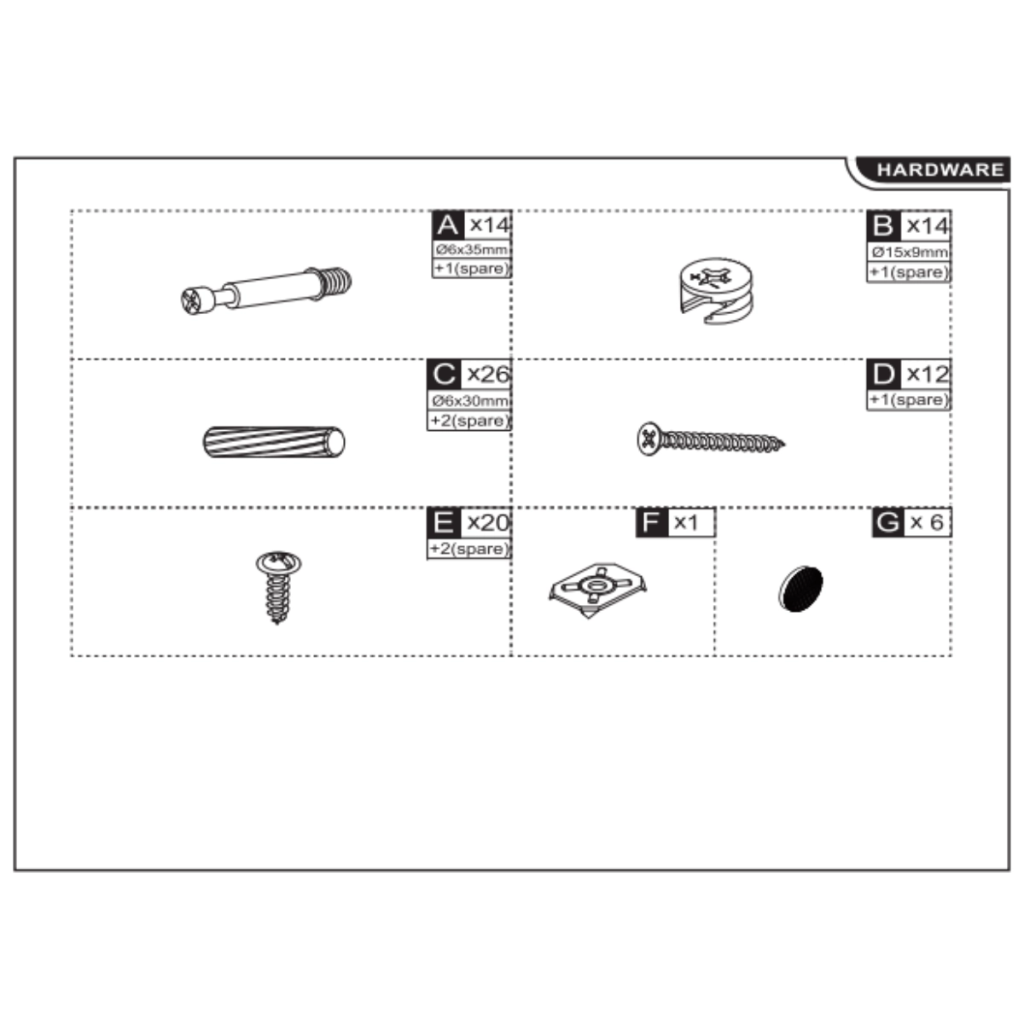

Hardware Pack

• A: Cam Bolt (Ø6 × 35 mm) ×14 (+1 spare)
• B: Cam Lock (Ø15 × 9 mm) ×14 (+1 spare)
• C: Wooden Dowel (Ø6 × 30 mm) ×26 (+2 spare)
• D: Screw (Ø4 × 40 mm) ×12 (+1 spare)
• E: Screw (Ø4 × 15 mm) ×20 (+2 spare)
• F: Metal Bracket ×1

G: Plastic Cover ×6

Assembly Instructions

Follow the steps below to assemble your HOMCOM Multi-Purpose 5-Cube Bookshelf (SKU: 836-536GY). Do not fully tighten screws until the final step to allow for adjustments.

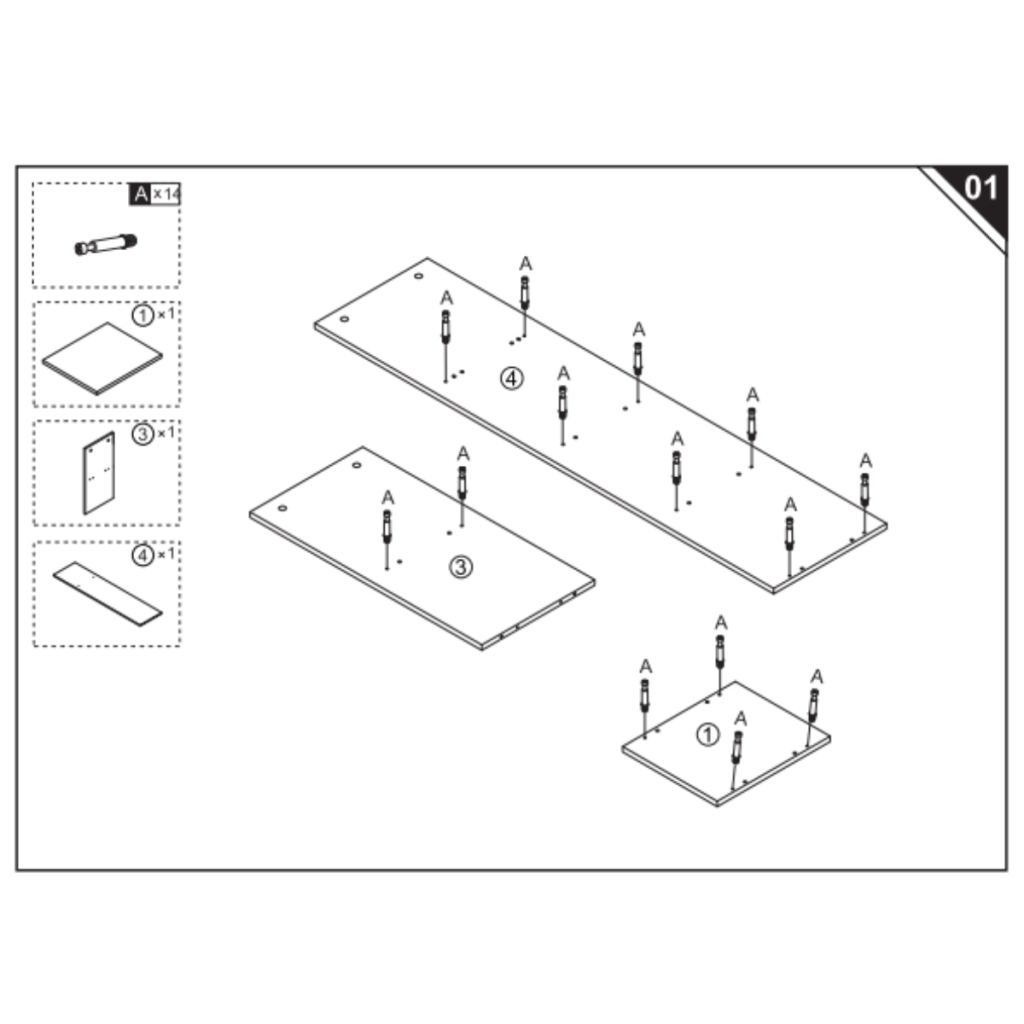

Step 1: Attach Cam Bolts

• Insert Cam Bolts (A ×14) into the pre-drilled holes on Panel ①, Panel ③, and Panel ④.
• Ensure all bolts are tightened securely and aligned straight for the next assembly step.

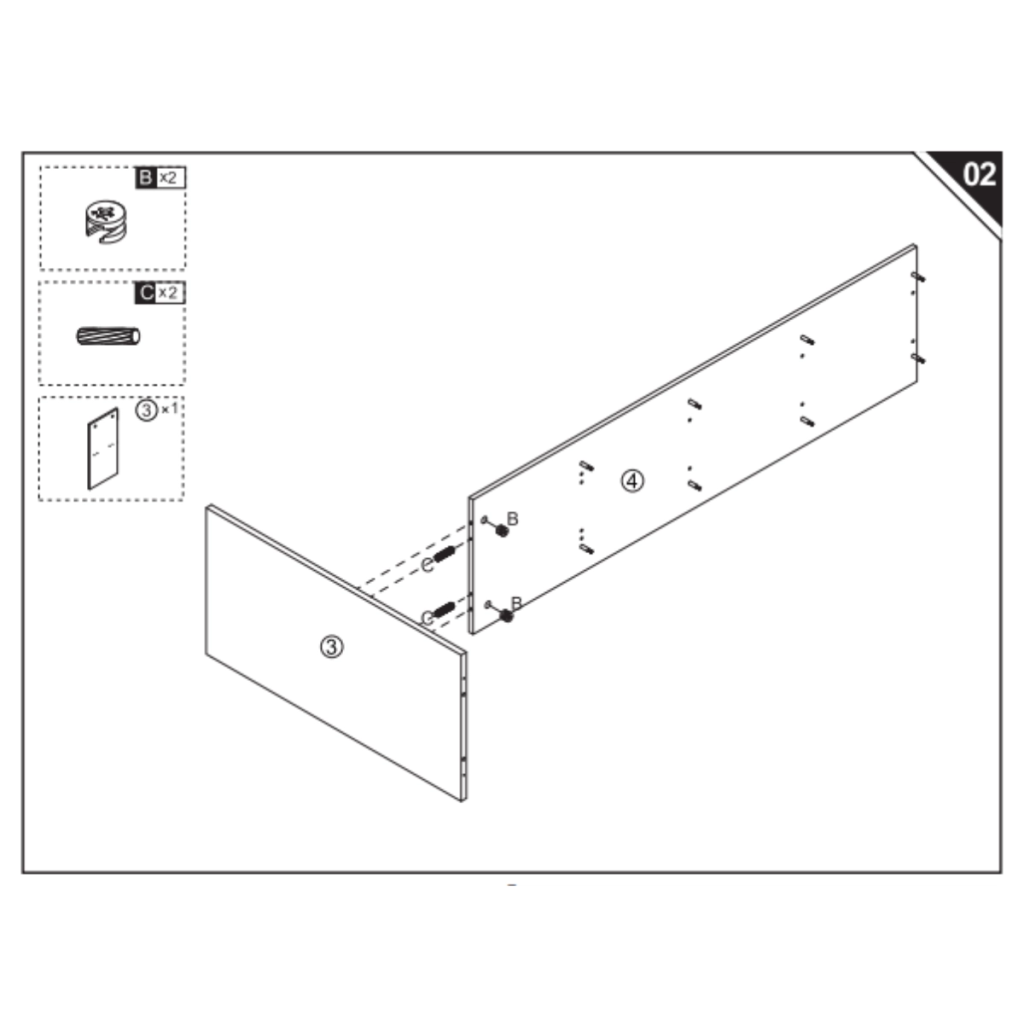

Step 2: Connect Side Panel to Bench Support

• Insert Wooden Dowels (C ×2) into the holes of Panel ④.
• Attach Side Panel ③ to Panel ④ using Cam Locks (B ×2) and secure them tightly.

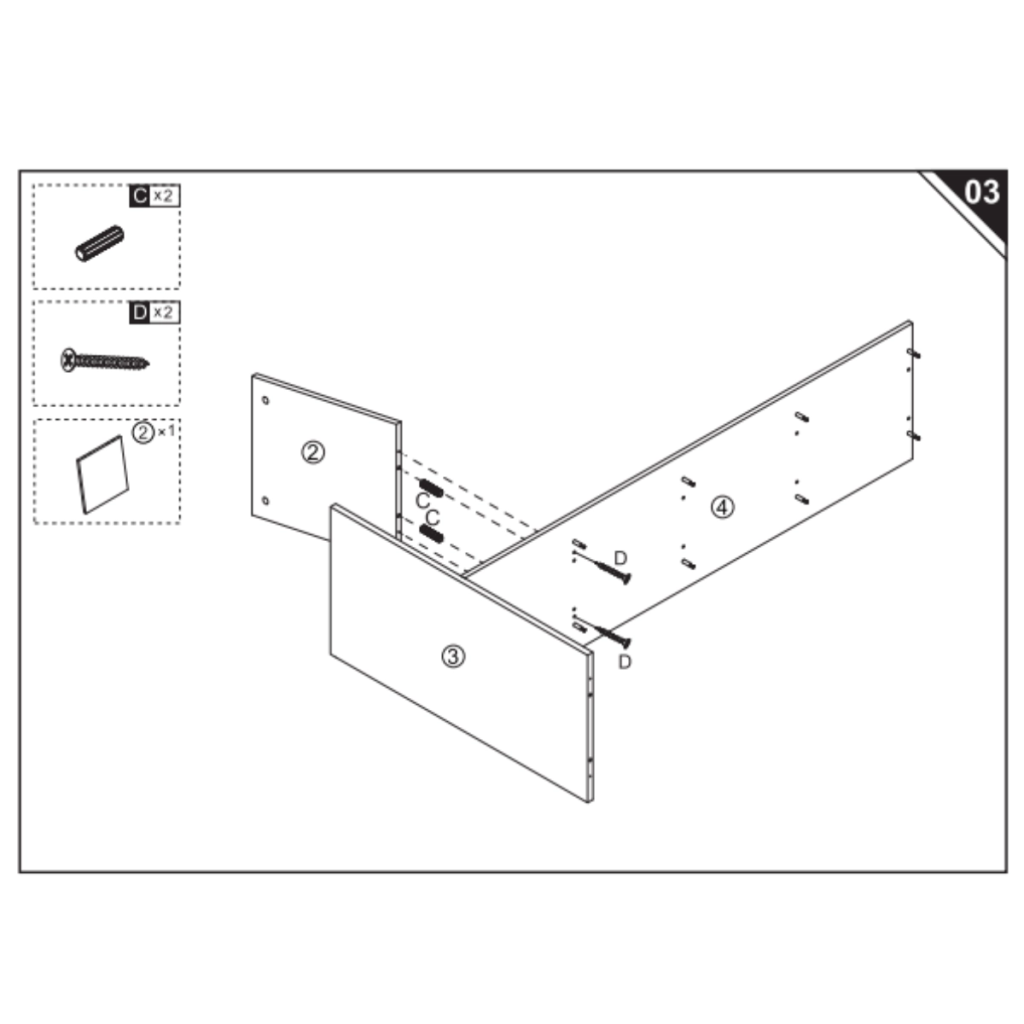

Step 3: Fix Inner Panel

• Insert Wooden Dowels (C ×2) into Bench Support Panel ④.
• Attach Inner Panel ② and secure it with Screws (D ×2).

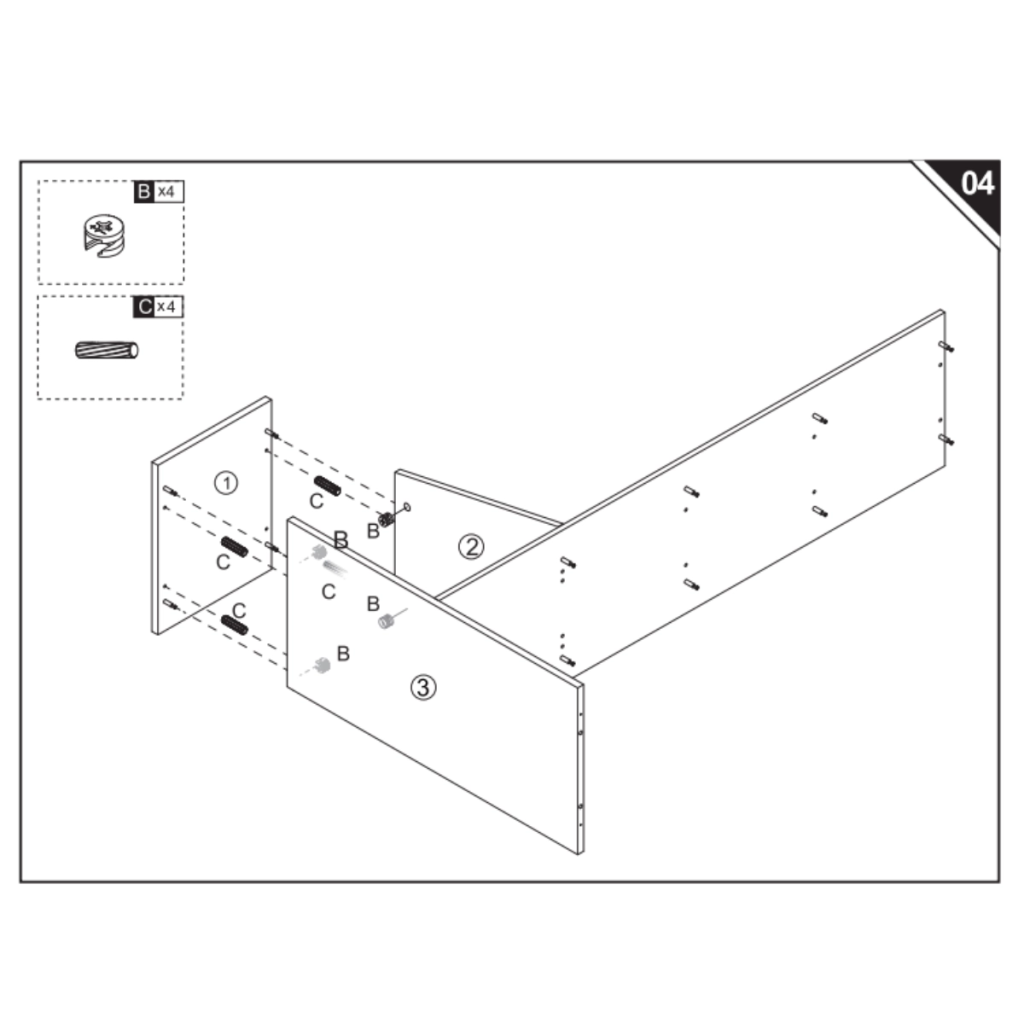

Step 4: Install Top Panel

• Place Wooden Dowels (C ×4) into the edges of Top Panel ①.
• Connect Top Panel ① onto Inner Panel ② and Side Panel ③, then lock with Cam Locks (B ×4).

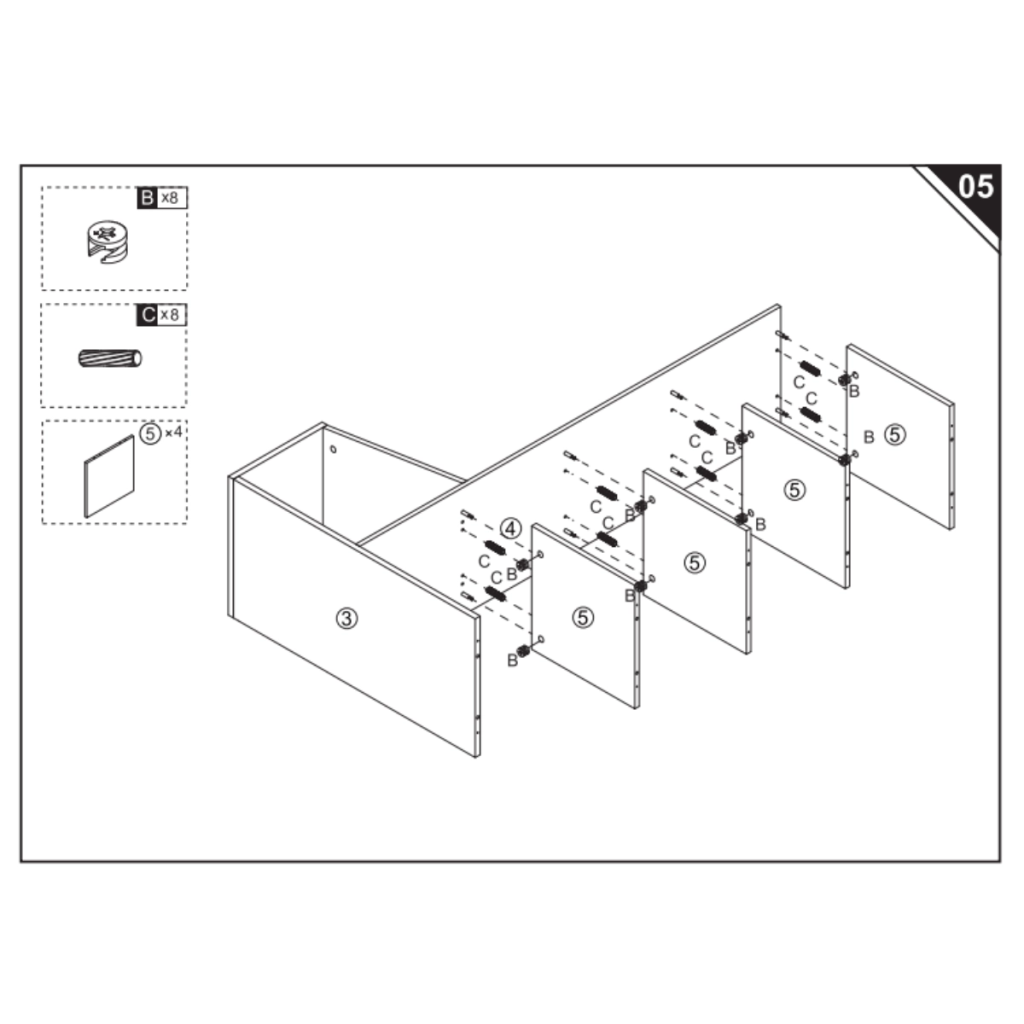

Step 5: Install Divider Panels

• Insert Wooden Dowels (C ×8) into the edges of the Divider Panels (⑤ ×4).
• Attach all Divider Panels ⑤ onto Bench Support Panel ④, then secure each with Cam Locks (B ×8).

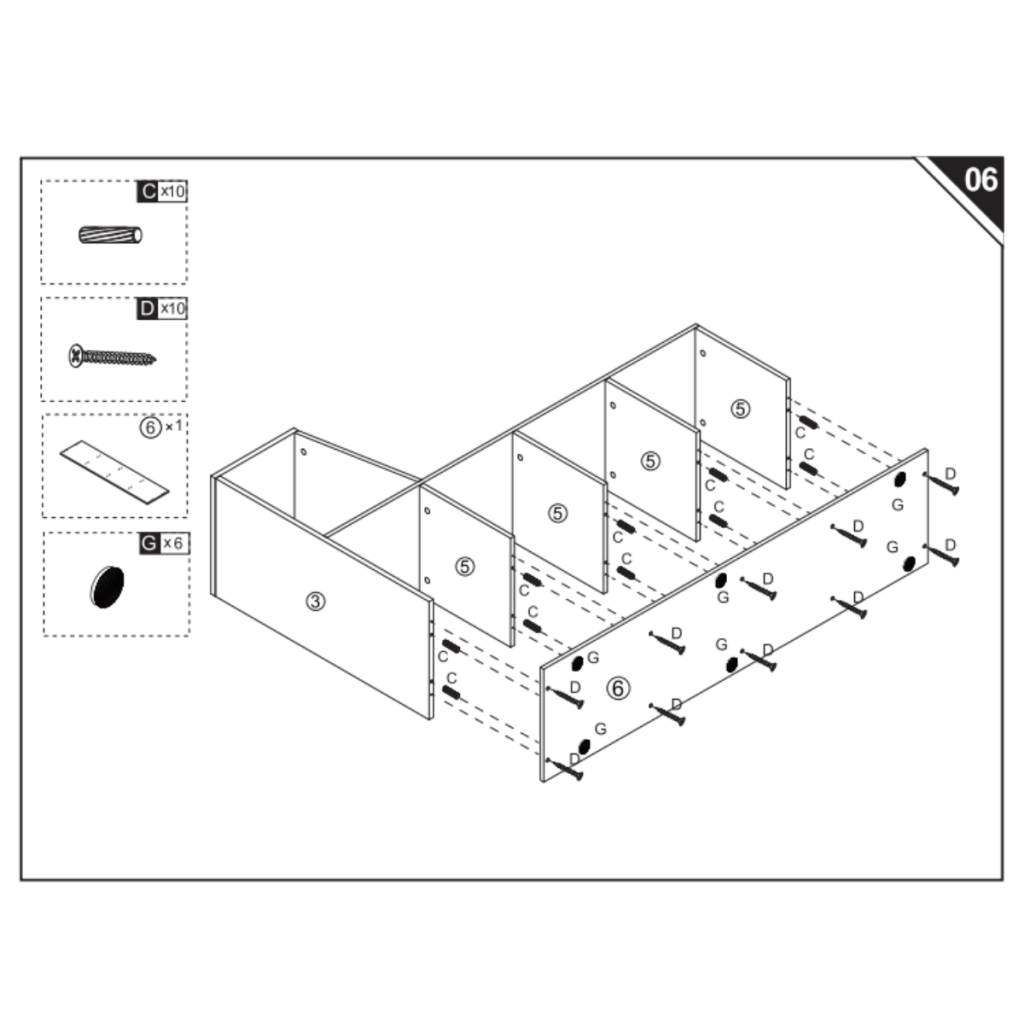

Step 6: Attach Bottom Panel

• Insert Wooden Dowels (C ×10) into Divider Panels ⑤ and Side Panel ③.
• Place Bottom Panel ⑥ into position, then secure using Screws (D ×10).
• Cover exposed holes with Plastic Covers (G ×6) for a clean finish.

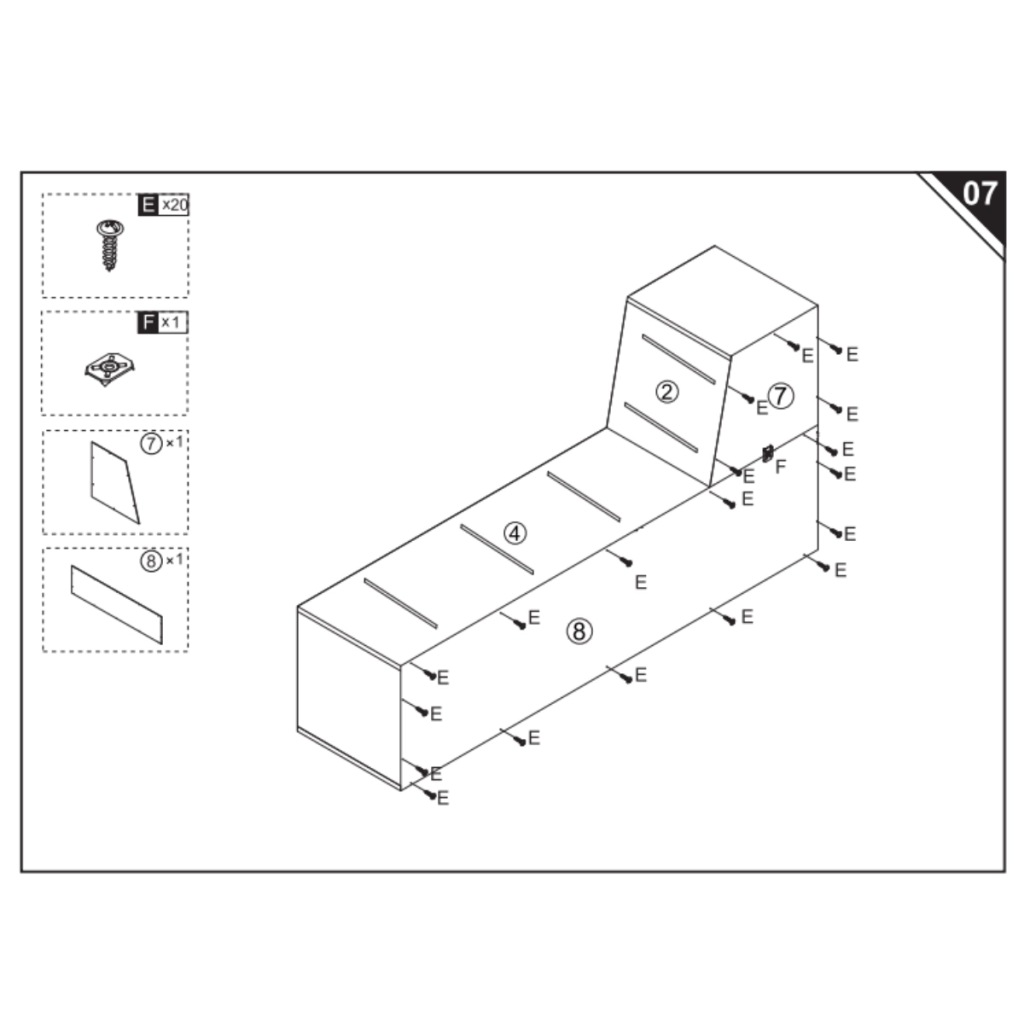

Step 7: Fix Back Panels

• Position Back Panel ⑧ and Trapezoid Back Panel ⑦ onto the frame.
• Secure panels using Screws (E ×20) evenly along all edges.
• Attach Metal Bracket (F ×1) for extra reinforcement.

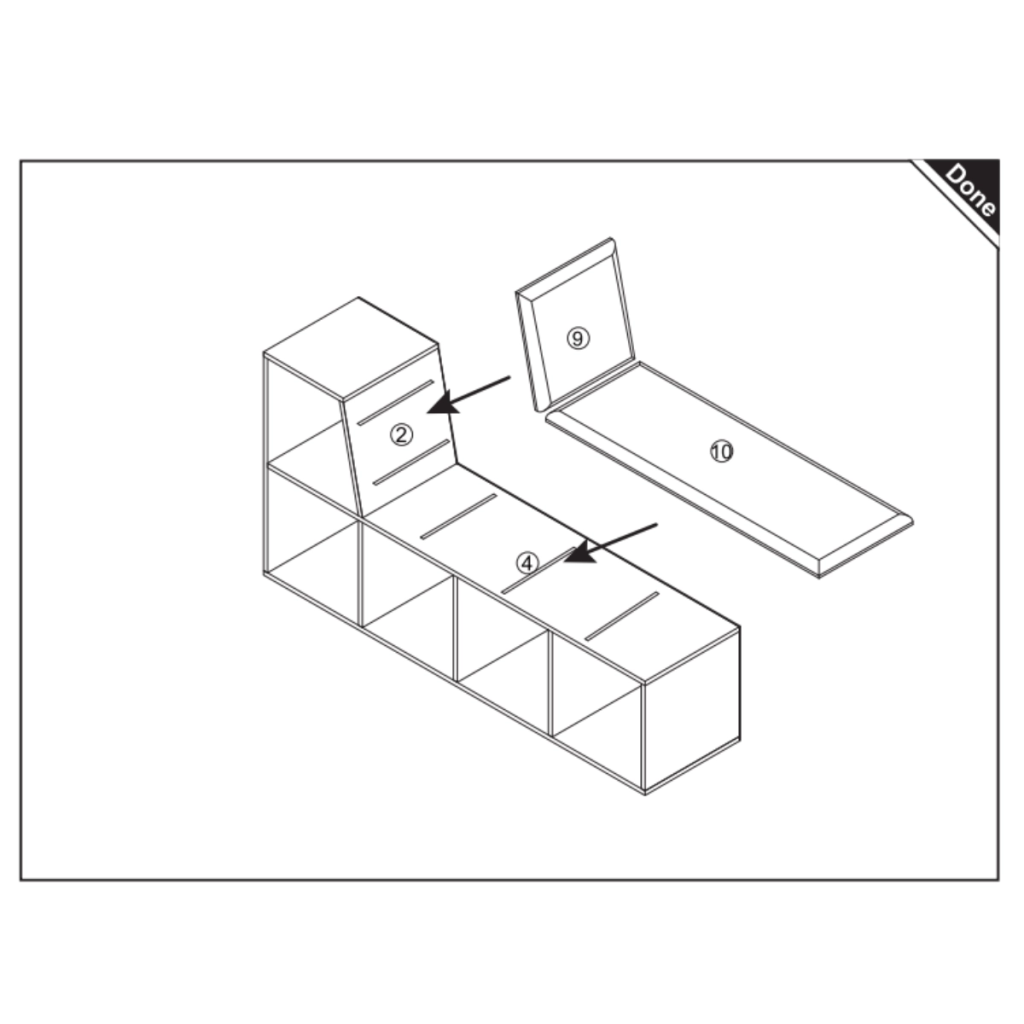

Step 8: Place Cushions

• Position the Large Cushion ⑩ on the bench area Panel ④.
• Place the Small Cushion ⑨ on the backrest Panel ②.

Care & Maintenance

• Wipe with a soft, damp cloth; avoid harsh cleaners.
• Do not exceed 5 kg per compartment or 120 kg on the bench.
• Keep away from direct sunlight and humidity.
• Re-tighten screws and bolts regularly.
• Remove cushions before cleaning; wash covers gently.

Ready to Use

Your HOMCOM Multi-Purpose 5-Cube Bookshelf (SKU: 836-536GY) is designed to provide both storage and comfort in a modern, space-saving design. With proper care and regular checks, it will serve you reliably for years.

You can also download the HOMCOM Multi-Purpose 5-Cube Bookshelf Manual(PDF).

FAQs

1. What should I do if a panel doesn’t align properly during assembly?

Check that all dowels and cam bolts are inserted straight and fully. Loosen nearby connections slightly, realign the panel, and then retighten once everything fits correctly.

2. The cam locks don’t seem to tighten, how can I fix this?

Ensure each cam bolt is fully inserted and facing the lock hole. Rotate the cam lock clockwise until it clicks firmly; if it still feels loose, check for debris in the hole or slightly adjust the bolt depth.

3. How can I prevent the bookshelf from wobbling after assembly?

Place it on a flat, level surface and confirm all screws are evenly tightened. If the floor is uneven, add small felt pads or shims under the legs for stability.

4. What if I lose a screw or hardware piece during assembly?

Each pack includes a few spare parts. If more are needed, note the hardware code from the manual (e.g., “D: Ø4 × 40 mm screw”) and contact Aosom support for replacements.

5. Can I move the bookshelf after assembly?

Yes, but lift it with two people instead of dragging to avoid frame stress. Remove the cushions first to prevent slipping or bending the structure.
