A custom dog gate is a simple way to section off areas in your home without using the usual plastic baby gates that often look out of place. With a few tools and some basic woodworking skills, you can build a strong and attractive wooden gate that matches your home’s style and holds up well to daily use.
This article walks through each stage of the build starting from the wood panel and ending with the final hardware installation so you can create a gate that looks clean, fits properly, and lasts.
Firstly Measure Door Size
Before you cut any wood, measure the width and height of the doorway where the gate will go. Every doorway is a bit different, so getting the right measurements now will help your gate fit properly later.
Important Tip: When you measure the width, remember that the wall beam size you’ll install on both sides will make the opening slightly smaller. Keep this in mind so the gate doesn’t end up too tight.
Recommended Measurements We Used in This Guide
To keep the process simple and consistent, this guide uses practical sample measurements that work for most indoor dog gates. You can adjust them as needed to match your own doorway.
- Final Gate Height: Approximately 36 inches for good coverage without looking oversized.
- Initial Board Length: Cut tongue-and-groove boards slightly longer, around 38 inches, so you can trim the panel perfectly square after glue-up.
- Gate Width: Cut the panel slightly wider at first, then trim it evenly from both sides until it fits comfortably inside your doorway.
- Floor Clearance: Leave around 2 inches beneath the gate to make sweeping and mopping easier.
- Wall Beams: Use 4×4 posts for both sides. Trim them on a table saw to remove rounded edges and fine-tune their thickness. Shave the beams gradually until the gate swings smoothly and the latch aligns properly.
- Latch Adjustment: The latch-side beam may need small thickness adjustments during installation for a clean, precise gap.

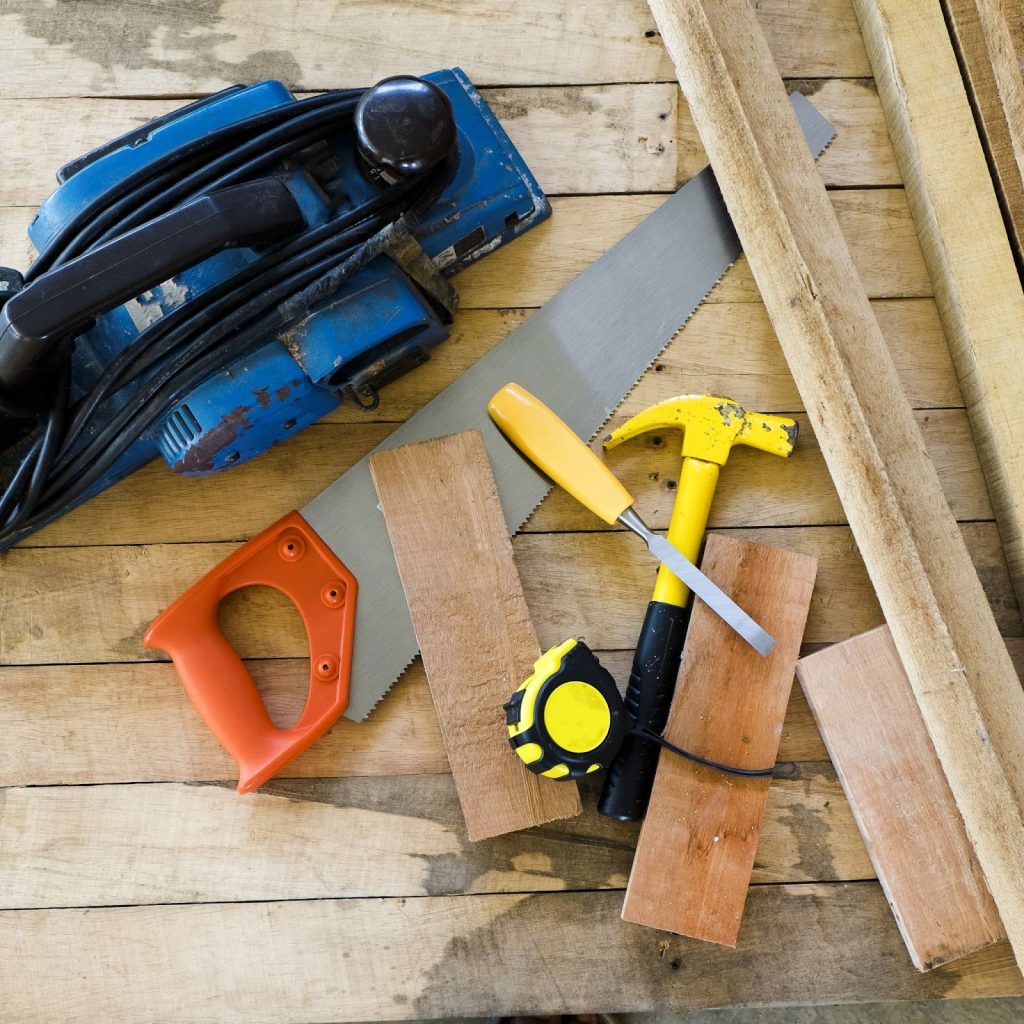

Step 1: Gather All Tools and Materials
Having everything ready before you begin makes the entire build easier and more organised. Basic woodworking tools are enough for this project, and most materials can be purchased from any home improvement store.
Tools and materials include:
- Circular saw
- Table saw
- Pipe clamps
- Brad nailer
- Drill
- Sandpaper in multiple grits
- Tongue-and-groove boards
- Trim boards
- Wood glue and filler
- Hinges and lag screws
- 4×4 beams
- Semi-gloss paint
- Hidden-style latch
- Painter’s tape
- Measuring tools
Step 2: Prepare & Cut the Tongue-and-Groove Boards
Start by cutting the tongue-and-groove boards a little taller than the height you want for the finished gate. Leaving extra length allows you to square everything perfectly later.
Work on a protected surface so glue and sawdust don’t damage the table. Keeping the boards arranged in order also helps the pattern look consistent once the panel is assembled.
Step 3: Glue the Boards Together and Clamp Them Flat
Apply glue into the grooves and press each board firmly into the next. Once all the boards are joined, lock the entire panel in place with pipe clamps. Adding weight across the top keeps the boards from lifting and helps the panel dry evenly. A flat, tight glue-up is important here because this becomes the main body of the gate.
- Make sure the front faces of the boards line up
- Remove any glue squeeze-out early
- Keep the clamps protected with tape to avoid glue sticking

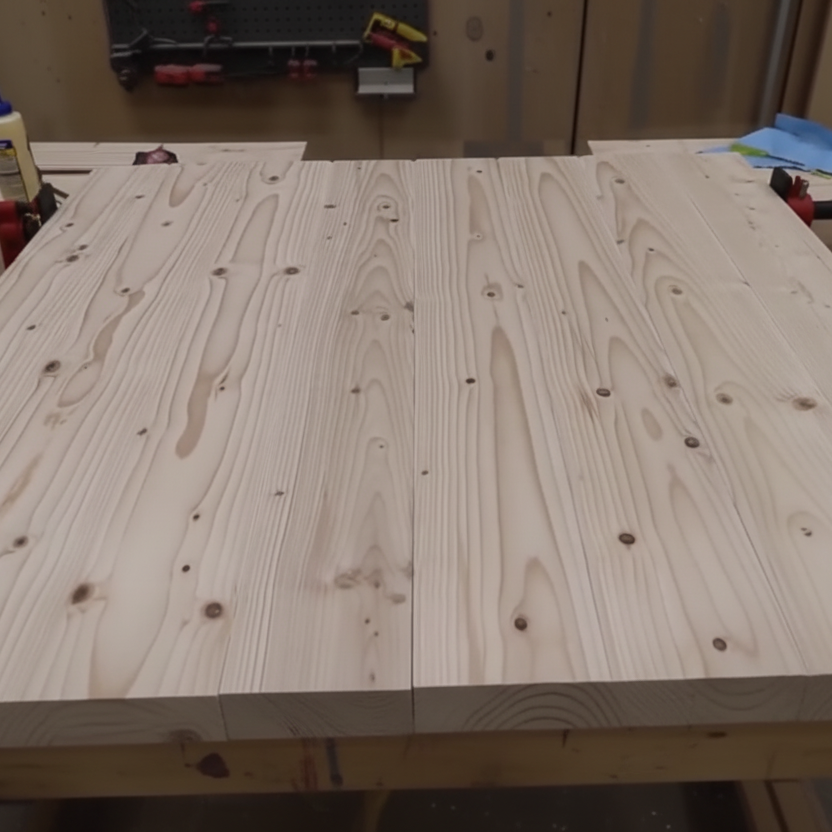

Step 4: Trim the Gate to Its Final Dimensions
When the glue is fully dry, mark straight, square lines at the top and bottom. A drywall square gives accurate reference points. Cut carefully with a circular saw, following your lines slowly to keep the edges straight. Trim the width next, adjusting from both sides so the final piece feels balanced and symmetrical.

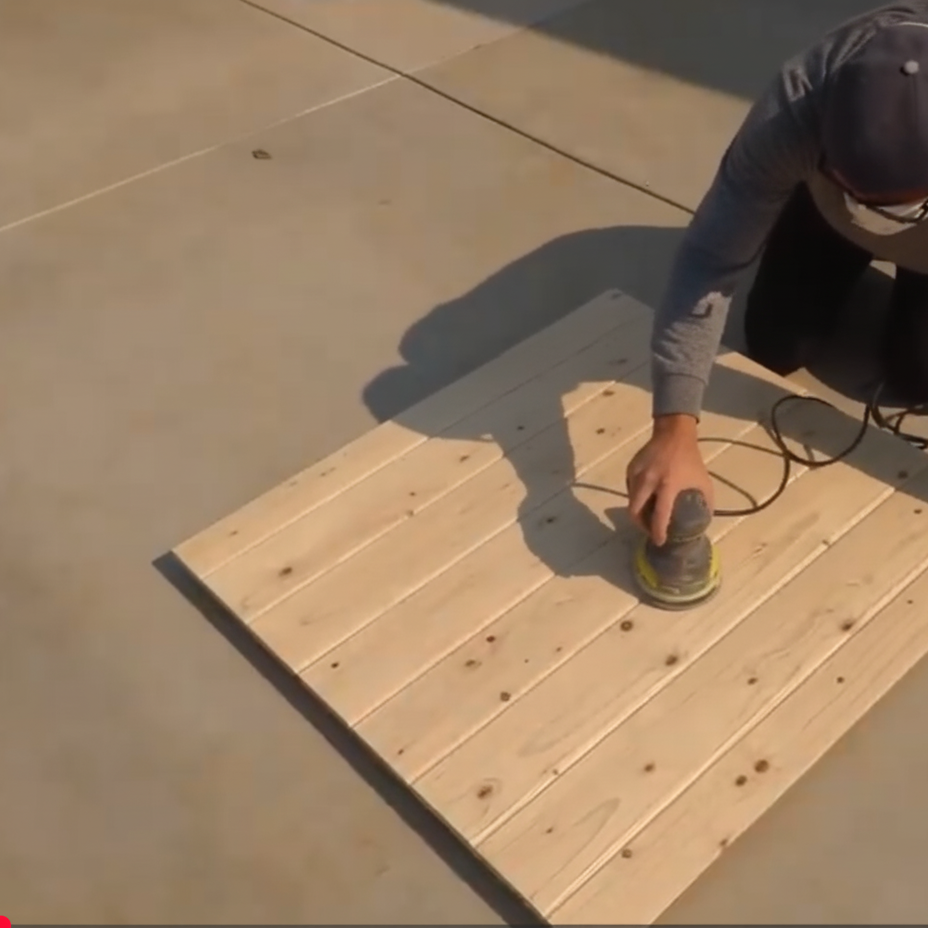

Step 5: Sand the Entire Gate Smooth
After cutting, sand the front and back thoroughly. Begin with a coarser grit to level uneven surfaces, then move up to a fine 220-grit for a smooth finish. Sanding removes sharp edges, flattens joints, and prepares the wood for paint.
- Smooth the seams where the boards meet
- Round the outer edges slightly
- Create a clean surface so paint adheres evenly

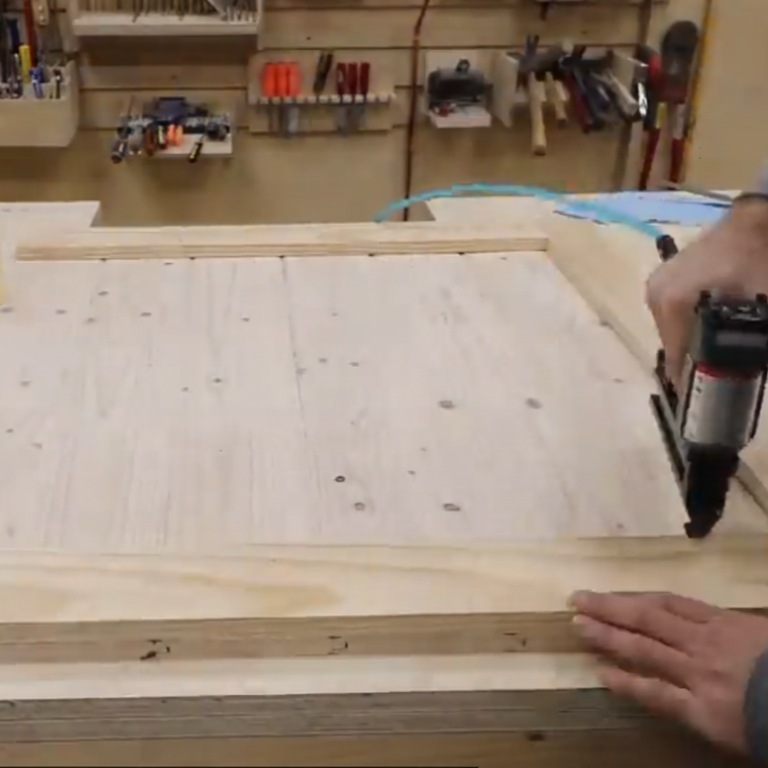

Step 6: Attach the Outer Trim Frame
Cut four trim boards for the top, bottom, and sides of the gate. These boards give the project a finished look and help reinforce the structure. Glue the trim in place and secure it with a brad nailer while keeping everything aligned along the edges.
High-quality straight boards work best here because they sit flat, stay tight, and prevent twisting or gaps later.

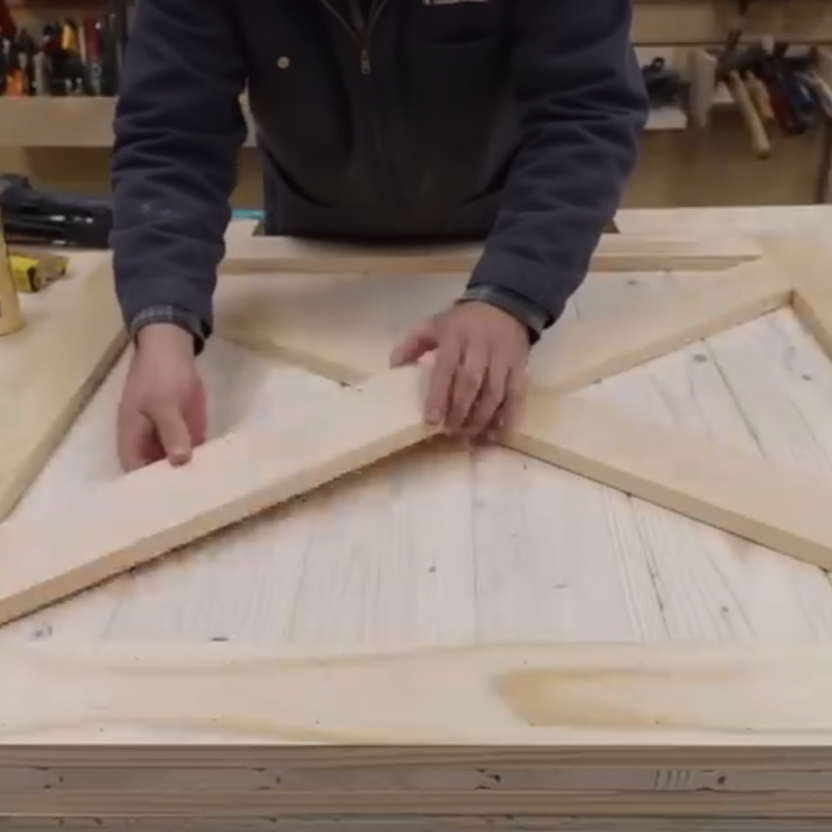

Step 7: Add the Decorative X-Shaped Trim
Lay the diagonal pieces on the gate to mark their exact angles. One long board runs corner-to-corner, and two shorter pieces complete the X-shape. Cutting these pieces in place ensures the angles fit cleanly at all connection points. Install them using glue and nails, repeating the same layout on both sides of the gate for strength and symmetry.
- Fit each angle tightly
- Keep the pattern centred
- Install the boards without forcing them out of alignment

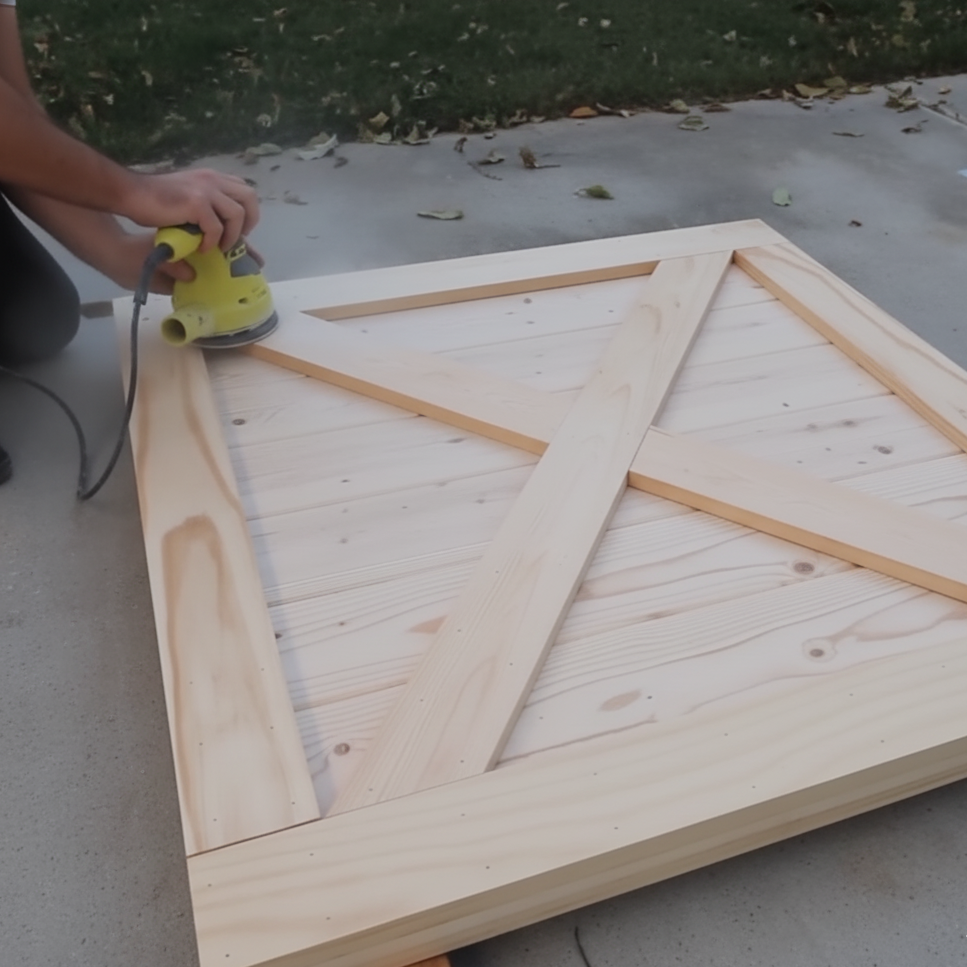

Step 8: Fill All Nail Holes and Sand for a Final Finish
Apply wood filler to nail holes, small gaps, and seams. When it dries, sand again to remove excess filler and smooth the surface. This final sanding stage gives the gate a seamless look and softens any sharp corners. A well-finished surface makes a big difference once paint is added.

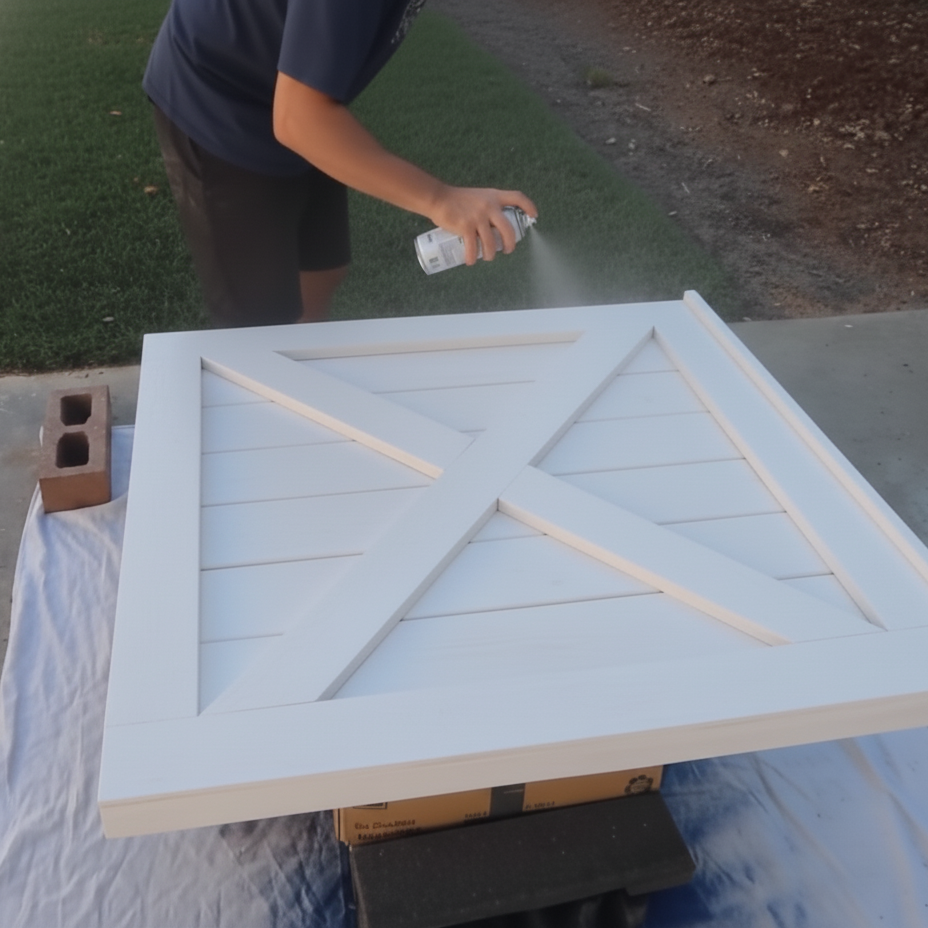

Step 9: Paint the Dog Gate
Use semi-gloss paint to give the gate a durable, easy-to-clean surface. Apply several thin coats on both sides, allowing each coat to dry fully before continuing. A dolly or elevated stand helps you flip the gate without touching wet paint.
- Light coats prevent drips
- Semi-gloss hides fingerprints and makes cleaning simple
- A uniform finish gives the gate a professional look
Step 10: Build and Paint the Wall Beams
Cut two 4×4 beams that will attach to the walls one for the hinges and one for the latch. Trim the beams on a table saw to remove rounded edges and adjust their thickness. Sand the surfaces smooth and paint them the same color as the gate so everything blends together.
These beams carry the weight of the gate, so they must be solid and mounted securely to wall studs.

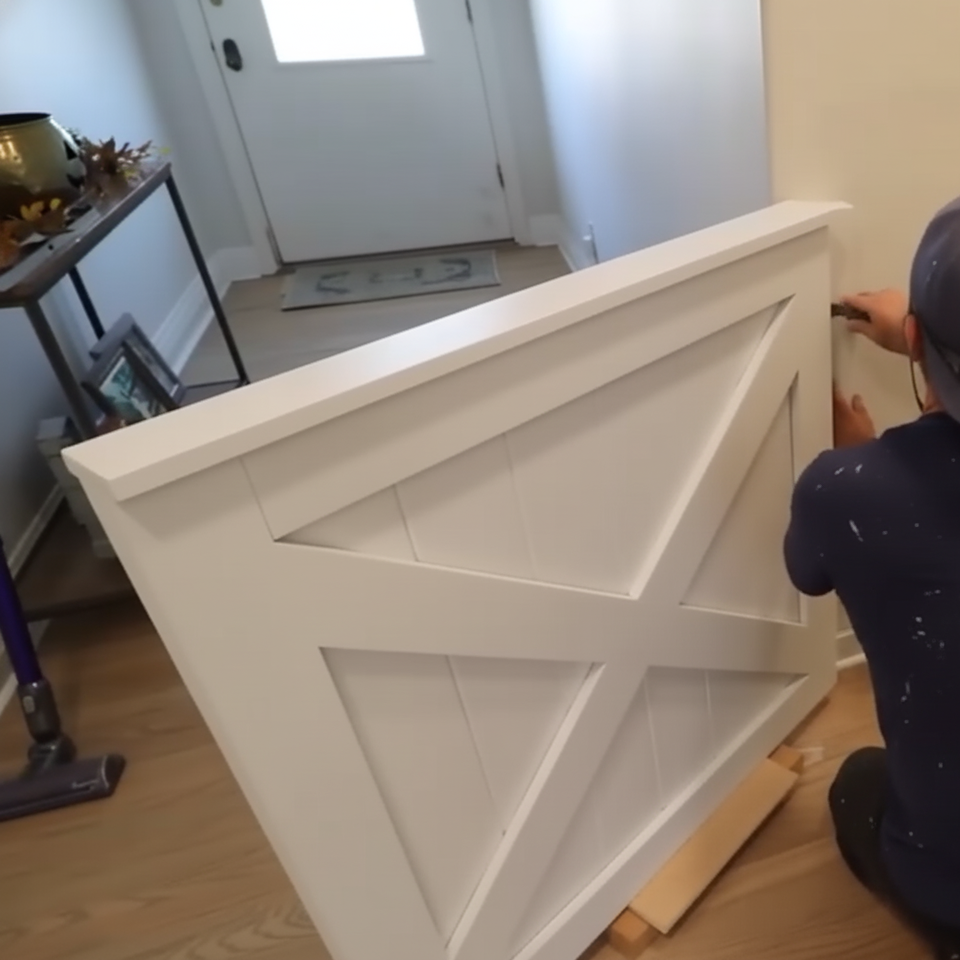

Step 11: Mount the Gate
Attach the hinges to the hinge-side beam before installing it on the wall. This simplifies alignment. Place the gate on blocks so it sits 2 inches above the floor, then secure the hinge beam to studs using lag screws.

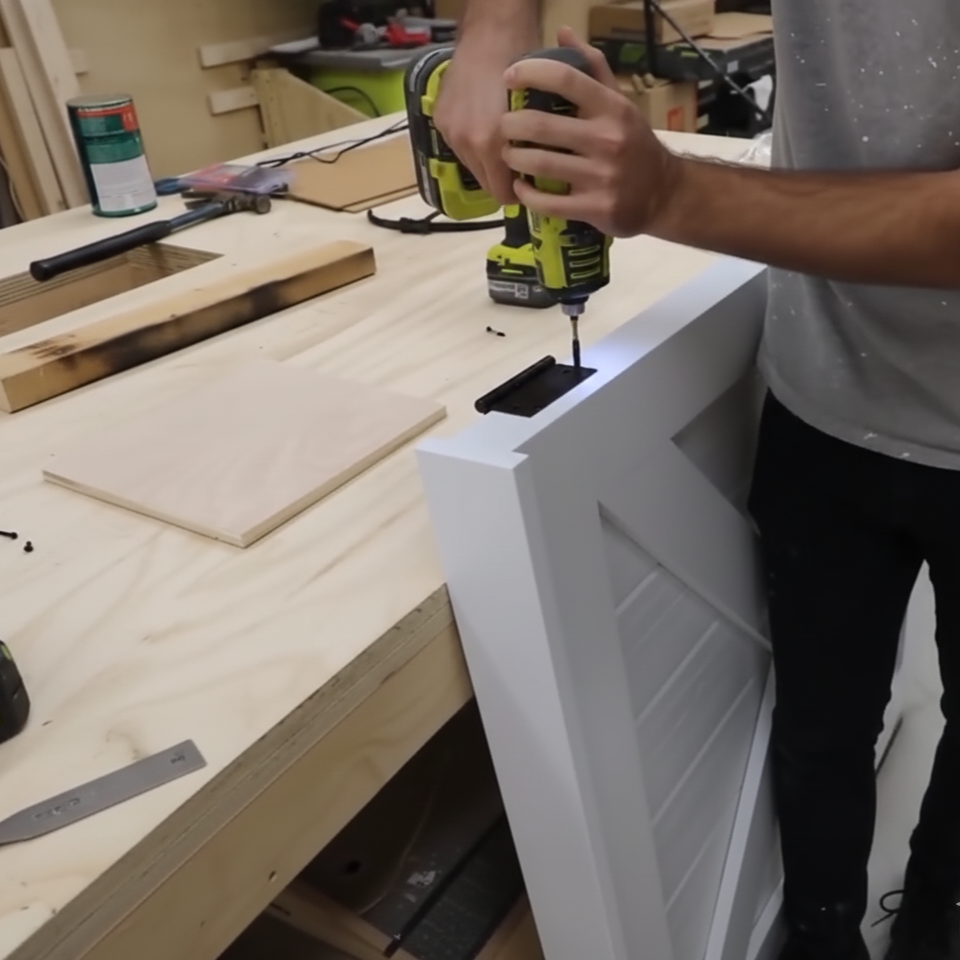

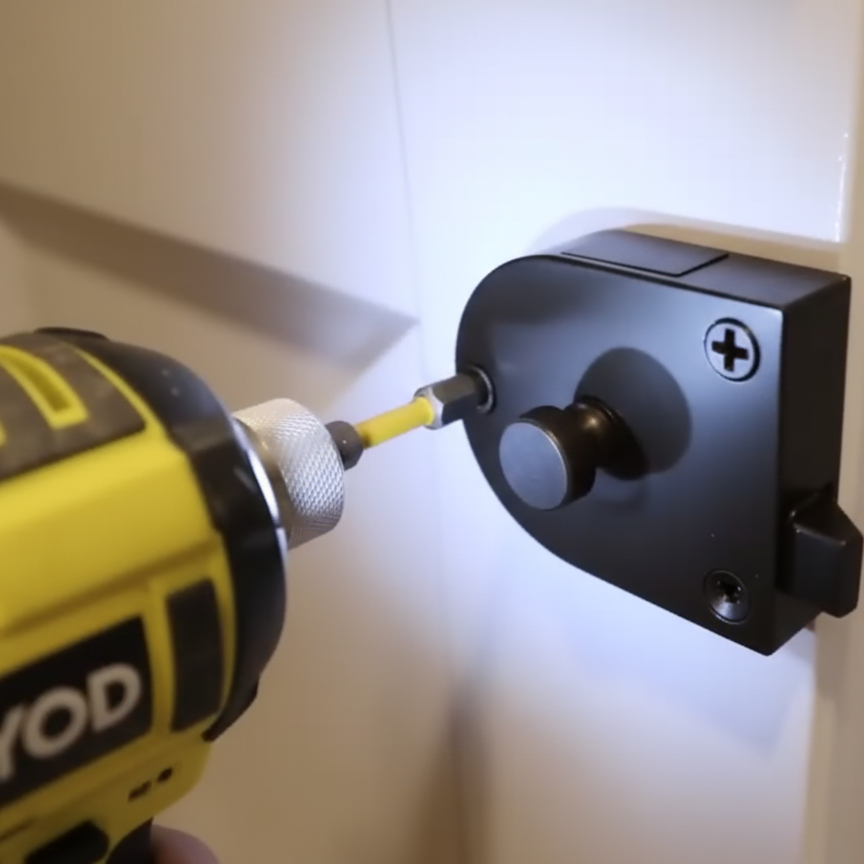

Install the Latch
Adjust and mount the latch-side beam so the gap between the door and wall fits the latch correctly. Hidden-button latches work well because they look clean and prevent pets from tampering with them.
- Make sure the gate swings freely
- Check the latch alignment while the gate is closed
- Tighten all hardware securely
Step 12: Add Top Caps and Final Touches
Cut top caps for each beam for a polished look and to serve as stops for the gate. One cap should prevent the door from swinging too far inward; the hinge-side cap needs extra clearance so the gate can open without catching. Glue the caps in place and let them cure completely.
If the gate closes loudly, a clear damper added under the cap works well to soften the sound. Once everything is dry, test the gate several times to make sure it moves smoothly and locks firmly.

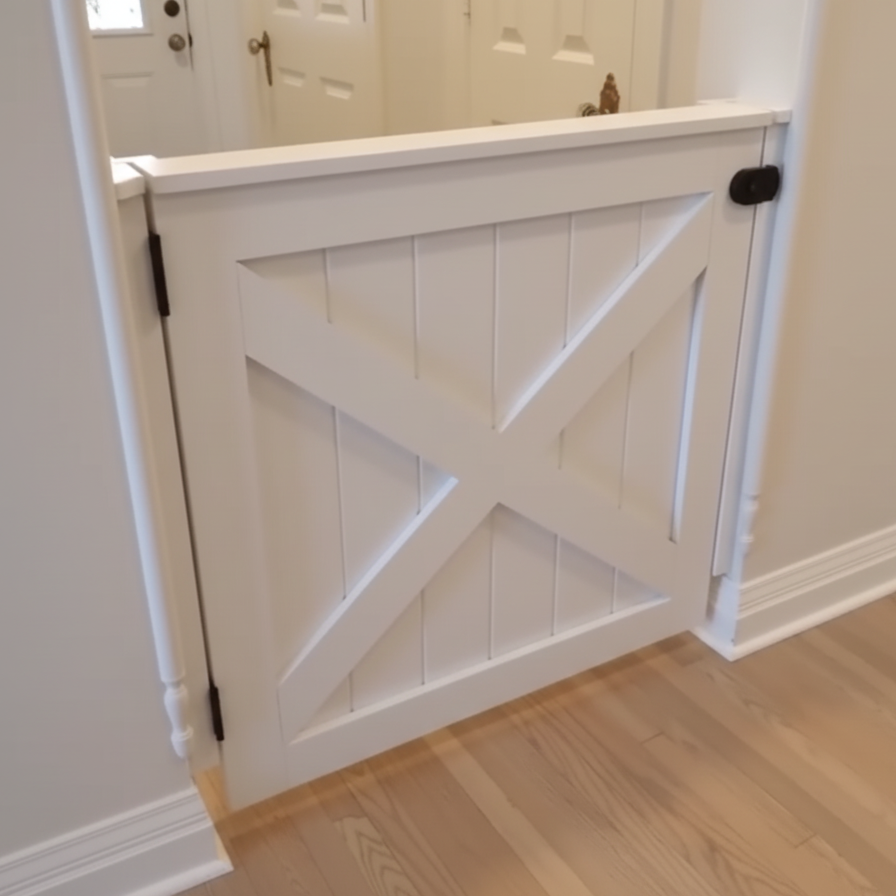

Gate Done & Dusted
Building your own dog gate turns a simple idea into a sturdy, good-looking barrier that actually fits your home. With solid materials, clean cuts, and the right hardware, you’ve created a reliable divider that blends in better than most store-bought Pet Gates. It’s practical, strong, and designed around your space making daily life easier for both you and your dog.
FAQs
1. What type of wood is best for building a dog gate?
For durability and ease of work, hardwoods like oak, maple, or pine are great choices. These woods provide strength and will last through daily use. Pine is the most affordable, but oak offers a higher-end look and durability.
2. How do I ensure the gate fits properly?
Accurate measurements are crucial for a proper fit. Make sure to leave extra length when cutting the boards, then trim to final size after the glue-up. This allows for precise adjustments and a seamless fit within the space.
3. How do I make my dog gate secure?
Install sturdy hinges and a hidden-style latch for security. Make sure the gate swings freely and fits snugly in the frame to prevent accidental openings. Also, anchor the gate securely into wall studs using lag screws.
