Outsunny 11 Gallon Patio Cooler Side Table, 3-in-1 with Height Adjustable Top Manual (SKU:84G-792V00GY)

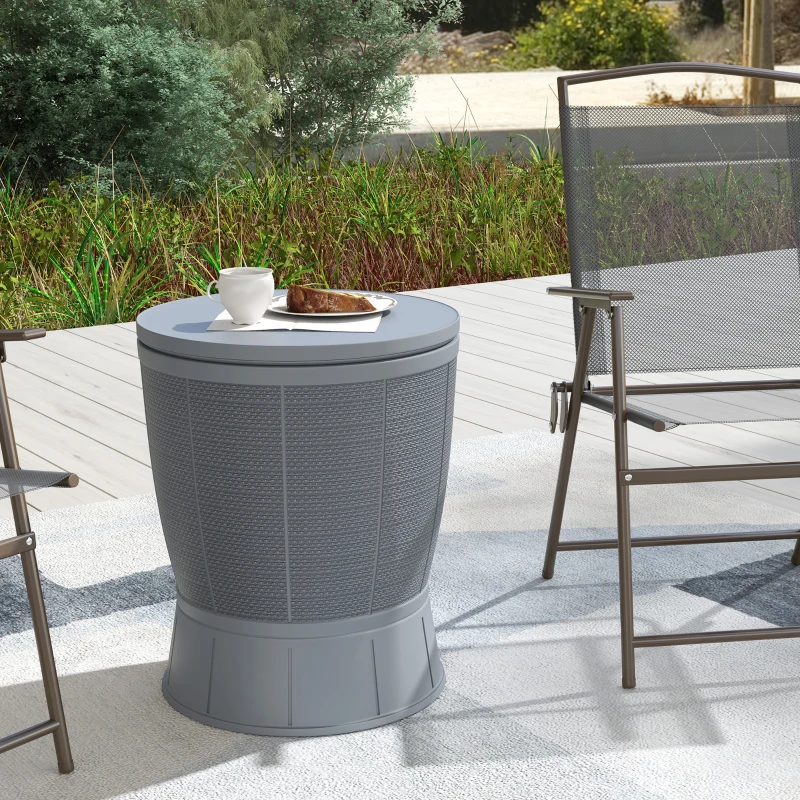

The Outsunny 11-Gallon Patio Cooler Side Table is a versatile 3-in-1 outdoor cool bar table designed for patios, gardens, and poolside gatherings. With its height-adjustable lift-top, built-in 11-gallon cooler compartment, and convenient drainage plug, this multifunctional table keeps drinks chilled while also serving as a stylish side table or cocktail bar. Its durable design makes it ideal for outdoor entertaining, offering both functionality and modern style in one compact unit.

Before You Begin

• Estimated Assembly Time: 15–20 minutes
• Recommended Personnel: 1 adult
• Assembly Surface: Assemble on a flat, soft surface to prevent scratching or denting the table body and lift-top mechanism.

Important Notes:

• Do not fully tighten any screws until all parts are connected to ensure proper alignment.
• Verify that all parts and hardware shown in the Parts List are included and undamaged before beginning.
• Keep screws away from children and pets.
• Review the diagrams closely, as the illustrations guide correct positioning and assembly steps.

Parts & Hardware

Label	Quantity	Name / Description
A	1	Main Table Body
E	1	Top Base
G	1	Central Connector Tube
C	4 (+1 spare)	M4×20 Screws

Assembly Instructions

Follow these steps carefully and proceed sequentially to assemble your Outsunny 11-Gallon Patio Cooler Side Table.

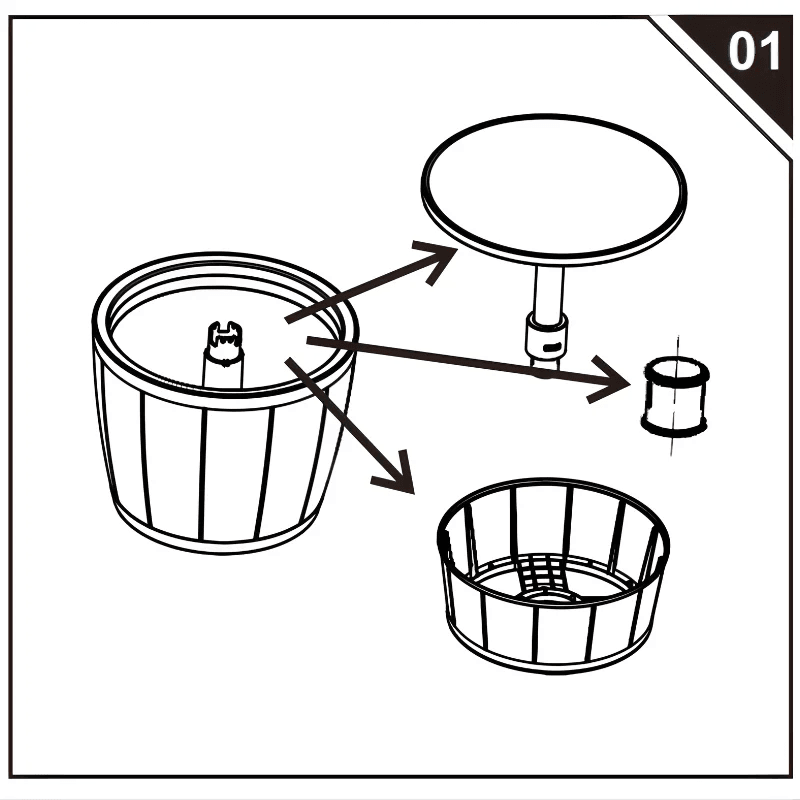

Step 1: Separate and Prepare All Main Components

Parts Needed:

• Main Table Body – A (x1)
• Top Base – E (x1)
• Central Connector Tube – G (x1)

Instructions:

1. Place the Main Table Body (A) on a flat, soft surface to prevent scratches.
2. Remove the internal components stored inside the body and set them aside.
3. Take out the Top Base (E) and place it next to the table body.
4. Locate the Central Connector Tube (G), which will be used in the following steps.
5. Ensure all parts are upright, fully separated, and ready for assembly.

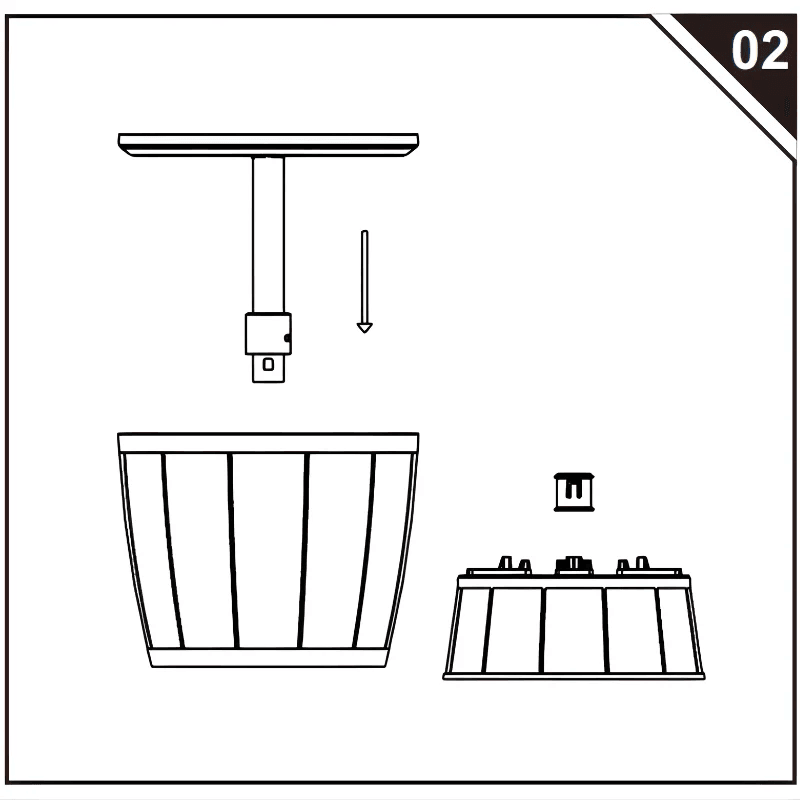

Step 2: Insert the Top Base Into the Main Table Body

Parts Needed:

• Main Table Body – A (x1)
• Top Base – E (x1)

Instructions:

1. Position the Main Table Body (A) upright on a flat, soft surface.
2. Hold the Top Base (E) directly above the center opening of the table body, keeping the connector tube aligned with the internal guide slot.
3. Lower the Top Base (E) straight down into the table body until it sits securely in place.
4. Ensure the connector is fully inserted and the top base sits evenly before proceeding to the next step.

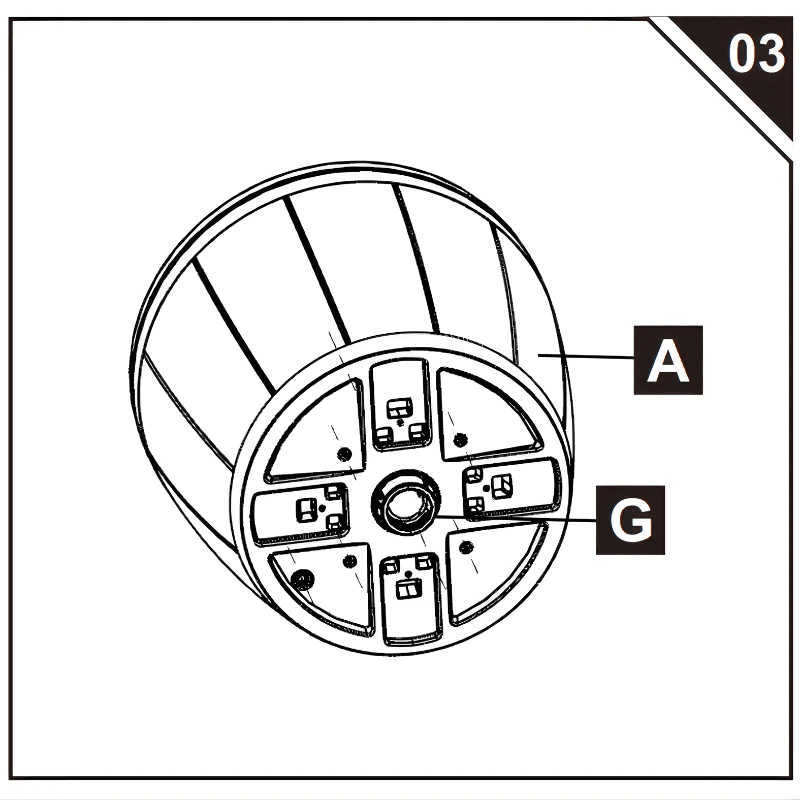

Step 3:  Insert the Central Connector Tube Into the Main Table Body

Parts Needed:

• Main Table Body – A (x1)
• Central Connector Tube – G (x1)

Instructions:

1. Turn the Main Table Body (A) upside down to access the bottom center opening.
2. Align the Central Connector Tube (G) with the circular housing located in the middle of the base.
3. Gently insert the tube straight into the opening until it sits firmly in place.
4. Ensure the connector tube is fully seated and positioned vertically before moving to the next step.

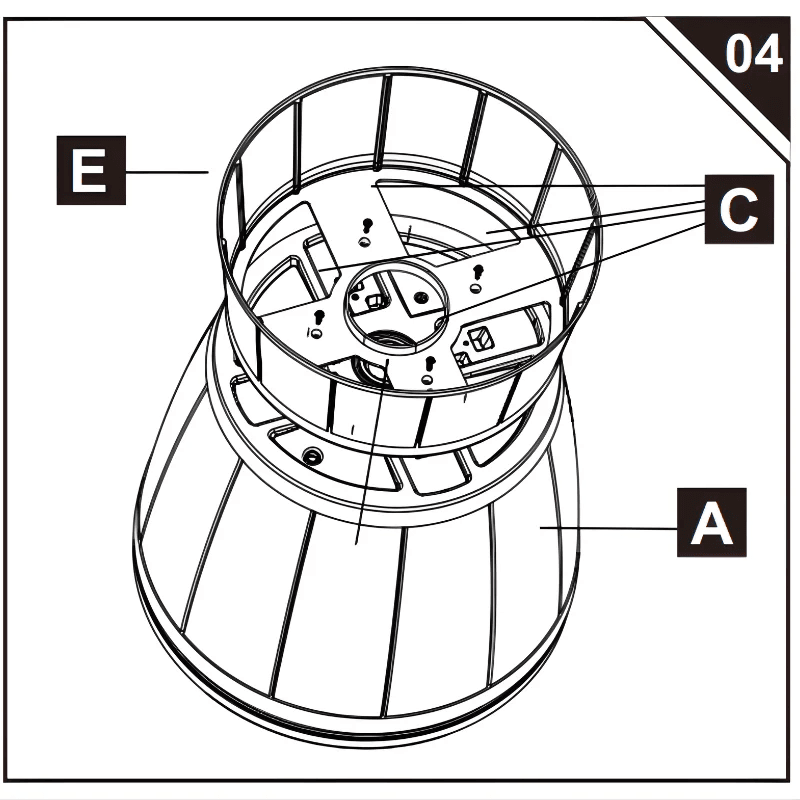

Step 4: Secure the Top Base to the Main Table Body

Parts & Hardware Needed:

• Top Base – E (x1)
• Main Table Body – A (x1)
• M4×20 Screws – C (x4)

Instructions:

1. Place the Top Base (E) onto the Main Table Body (A), aligning the screw holes on both components.
2. Ensure the Central Connector Tube (G) inserted in Step 3 is centered inside the opening of the top base.
3. Insert four M4×20 Screws (C) into the designated holes as shown in the diagram.
4. Tighten each screw evenly using a screwdriver.
5. Make sure the top base is firmly secured and sits flush with the table body before moving on.

Safety Precautions

• Assemble the unit on a flat, stable surface to ensure proper alignment.
• Keep children and pets away during assembly and when operating the lift-top.
• Do not overload the lift-top surface or the cooler compartment.
• Ensure the top is securely locked before placing items on it.
• Avoid leaning or sitting on the table; it is not designed to support body weight.
• Regularly check the drainage plug to ensure no leaks or blockages occur.

Care & Maintenance

• Cleaning: Wipe all surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners that may damage the finish.
• Cooler Compartment: Empty and rinse the cooler after each use. Use the drainage plug to remove excess water and allow the compartment to fully dry before storing.
• Maintenance: Periodically check all screws to make sure they remain tight. Outdoor temperature changes and movement may loosen hardware over time.
• Lift-Top & Connector: Open and close the lift-top gently. Inspect the Central Connector Tube for dirt or debris and clean if needed to maintain smooth operation.

Ready to Use!

Your Patio Cooler Side Table is now fully assembled and ready to enjoy. Use it as a stylish side table, a convenient drink cooler, or a functional outdoor bar for gatherings and everyday relaxation.

You can also download a copy of the Outsunny Patio Cooler Side Table Manual(PDF) for future reference. For replacement parts, technical help, or product assistance, you can contact Aosom Customer Service for support.

FAQs

1. How do I drain the water from the cooler compartment?

Use the built-in drainage plug located inside the cooler. Open the plug to release melted ice or excess water, and let the compartment fully air-dry before closing.

2. How much weight can the lift-top hold safely?

The lift-top is meant for lightweight items like drinks, snacks, and small décor. Avoid placing heavy objects to prevent strain on the lift mechanism.

3. What should I do if the table feels unstable after assembly?

Ensure all four M4×20 screws are fully tightened and the Top Base is seated correctly. Double-check that the Central Connector Tube is inserted straight and fully secured.
