How to Install a Towel Warmer Rack: Easy Step-by-Step Guide

A towel warmer brings instant comfort to your bathroom, no more damp, cold towels hanging on hooks. Whether you’re fitting an electric or hydronic model, wall-mounted or freestanding, installing one properly ensures safety, performance, and longevity.

This detailed guide walks you through the complete installation process, from wall preparation to electrical connection, using real installation principles that apply to most towel warmers available today. Every section focuses on practical, technical know-how, not generic advice, making it suitable for both first-time installers and professionals seeking accuracy.

Preparation Before Installation

Before starting, ensure your workspace, tools, and wall type are ready. Careful preparation prevents alignment issues and electrical faults later.

Tools and Materials Needed

You’ll need the following:

• Measuring tape and spirit level
• Power drill with appropriate bits (masonry or tile)
• Screwdriver set and Allen wrench (often provided)
• Stud finder and pencil for marking
• Wall anchors or toggle bolts
• Mounting brackets or spigots (included in most kits)
• Transformer (for 12V SELV systems, if required)
• Soft cloth and mild detergent for post-install cleanup

Tip: Double-check the parts list in your instruction manual before you begin to ensure all screws, anchors, and mounting plates are included.

Step 1: Plan the Location and Layout

The first and most crucial stage is positioning. The towel warmer’s location determines both its effectiveness and safety.

Key Planning Points

• Distance from Water Sources: Keep at least 24 inches (60 cm) between the warmer and your bath or shower.
• Power Source Access: The unit should be within reach of a wall outlet or junction box.
• Avoid Drafts: Don’t install under vents, near open windows, or in airflow paths that reduce heating efficiency.
• Wall Strength: Ensure the wall is solid (brick, tile, or wood reinforcement). Avoid mounting directly on drywall without backing.

Tip: Always follow your local electrical regulations and consult an electrician for hardwired units.

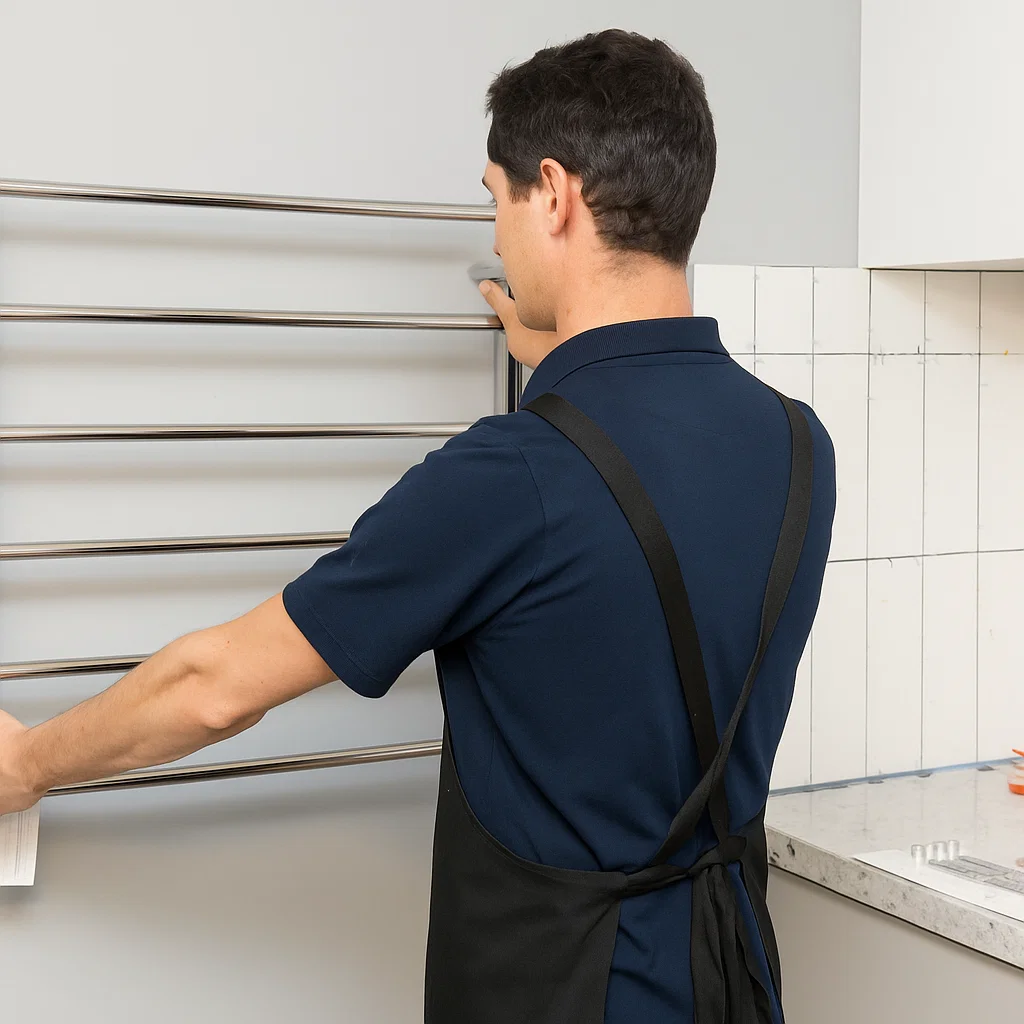

Step 2: Mark and Measure Mounting Points

A straight and level alignment ensures the towel warmer functions correctly and looks professional.

Start by unpacking the product and identifying all parts. Most towel warmers come with a mounting template that makes alignment simple.

Steps:

1. Hold the mounting template (or the unit itself) against the wall.
2. Use a level to confirm it’s perfectly horizontal.
3. Mark the positions for each leg or bracket.
4. If no template is provided, use your instruction diagram to measure between bracket centers.
5. Double-check spacing even small misalignments can cause uneven heating or drooping.

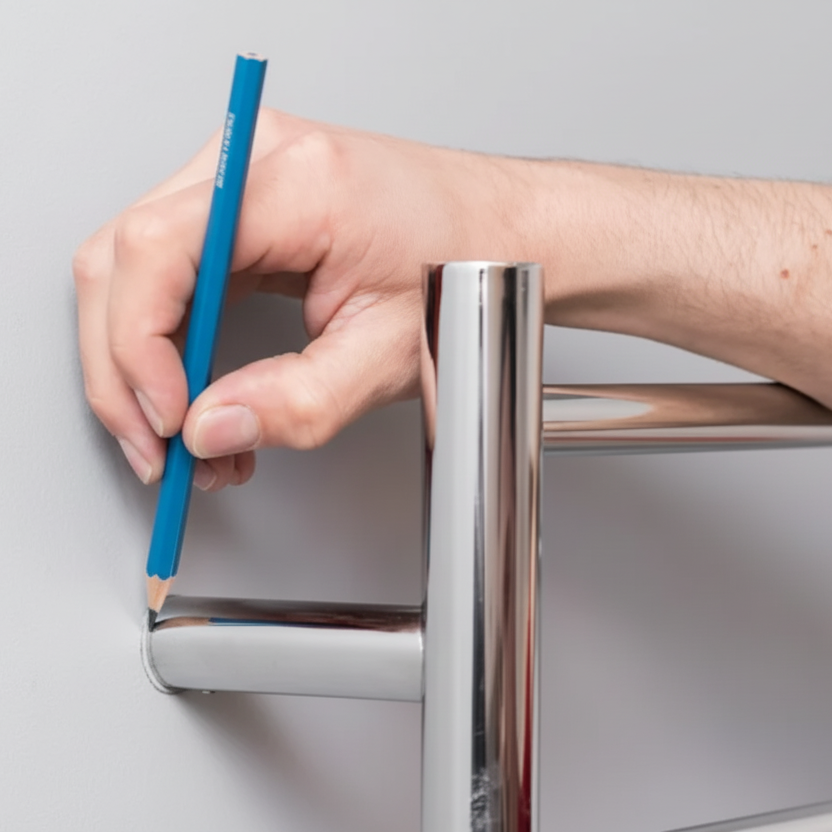

Trace the legs

Using a pencil, trace around the legs of your towel rail on the wall.

Installation Tip: For multi-bar units (e.g., 5-bar or 7-bar models), use a laser level or chalk line to align every bracket evenly across the wall.

Step 3: Prepare the Wall Surface

A stable surface is essential for supporting the towel warmer’s weight once it’s loaded with towels.

Surface Preparation Guidelines:

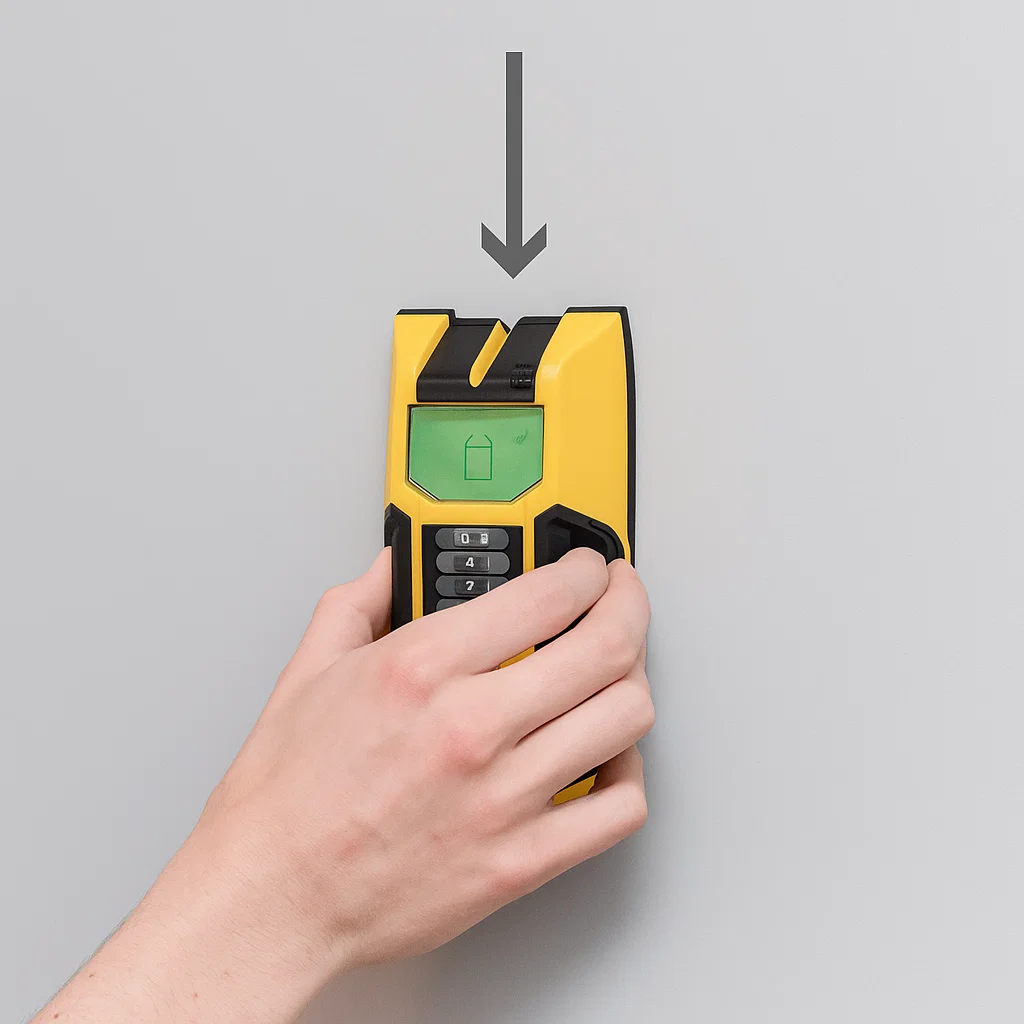

• Find Studs: Use a stud finder to locate the framing behind drywall.
• Check Wall Type:
  • Brick or concrete → Use masonry anchors.
  • Drywall → Use toggle bolts or fix into a reinforced plywood backing.
• Avoid Plasterboard Only: Fixing directly onto plasterboard can cause loosening over time.
• Cable Management: For hardwired units, plan a small cable chase behind tiles or through a cavity wall to conceal wiring.

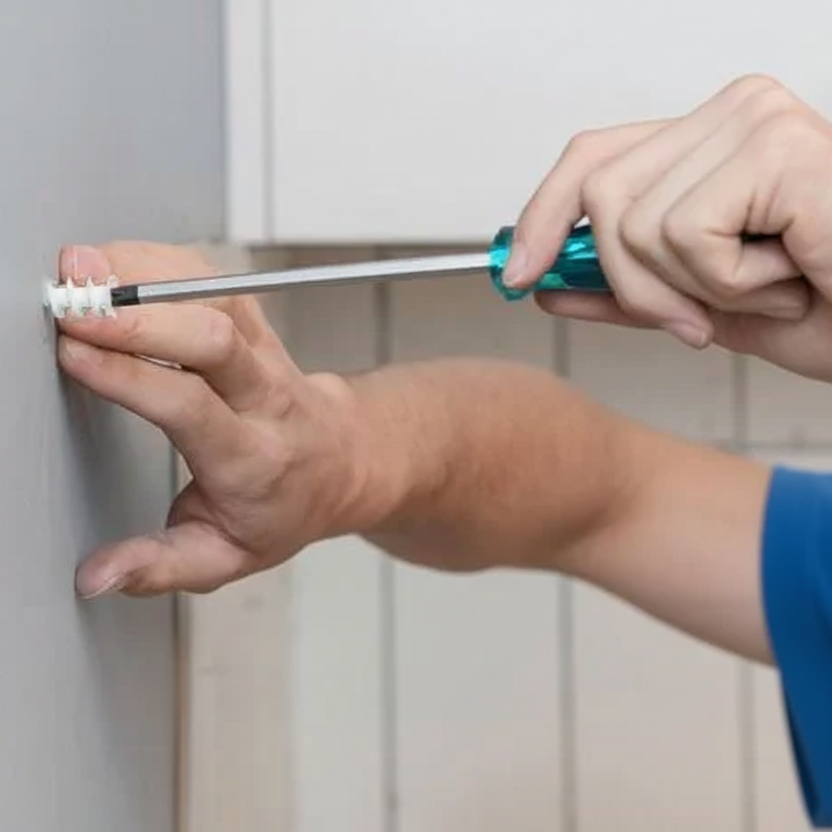

Step 4: Drill and Install Wall Anchors

Accurate drilling and proper anchor use guarantee a secure mount.

Drilling Tips:

• Mark all holes clearly before starting.
• Use a low drill speed on tiles to prevent cracks.
• Clean dust from the holes before inserting anchors.
• Select anchors suited to your wall type plastic for drywall, metal or expansion bolts for masonry.

Tip: Avoid overtightening, it may damage tiles or wall finishes.

Step 5: Fit the Mounting Brackets

This step sets the foundation for the towel warmer’s alignment and weight support.

Installation Notes:

• Align brackets with your previous markings.
• Check that the brackets are level horizontally and vertically.
• For tiled walls, total thickness (adhesive + tile + board) should not exceed 28mm, ensuring enough spigot protrusion.
• Secure each bracket firmly with screws or wall plugs.

Tip: If you’re installing multiple rails or stacked towel bars, consider using a mounting rail system for perfect leveling and built-in cable routing.

Step 6: Wire or Connect the Power Supply

Depending on the model, you’ll connect either by plug-in or hardwired method. Always disconnect power before handling wires.

For Plug-In Models:

• Route the cord neatly to a nearby GFCI-protected outlet.
• Use wall clips or channels to conceal and organize the cord.
• Keep the switch turned “on” if paired with a smart plug or timer.

For Hardwired or SELV Models:

• Run the cable through the wall cavity to the junction box.
• Connect a 12V transformer if specified by the manufacturer.
• For multiple towel bars, connect in parallel, not series, ensuring total load ≤ transformer capacity.
• All wiring must be performed by a licensed electrician.

Note: Install the transformer in an accessible area (e.g., vanity cabinet or ceiling void) for future servicing.

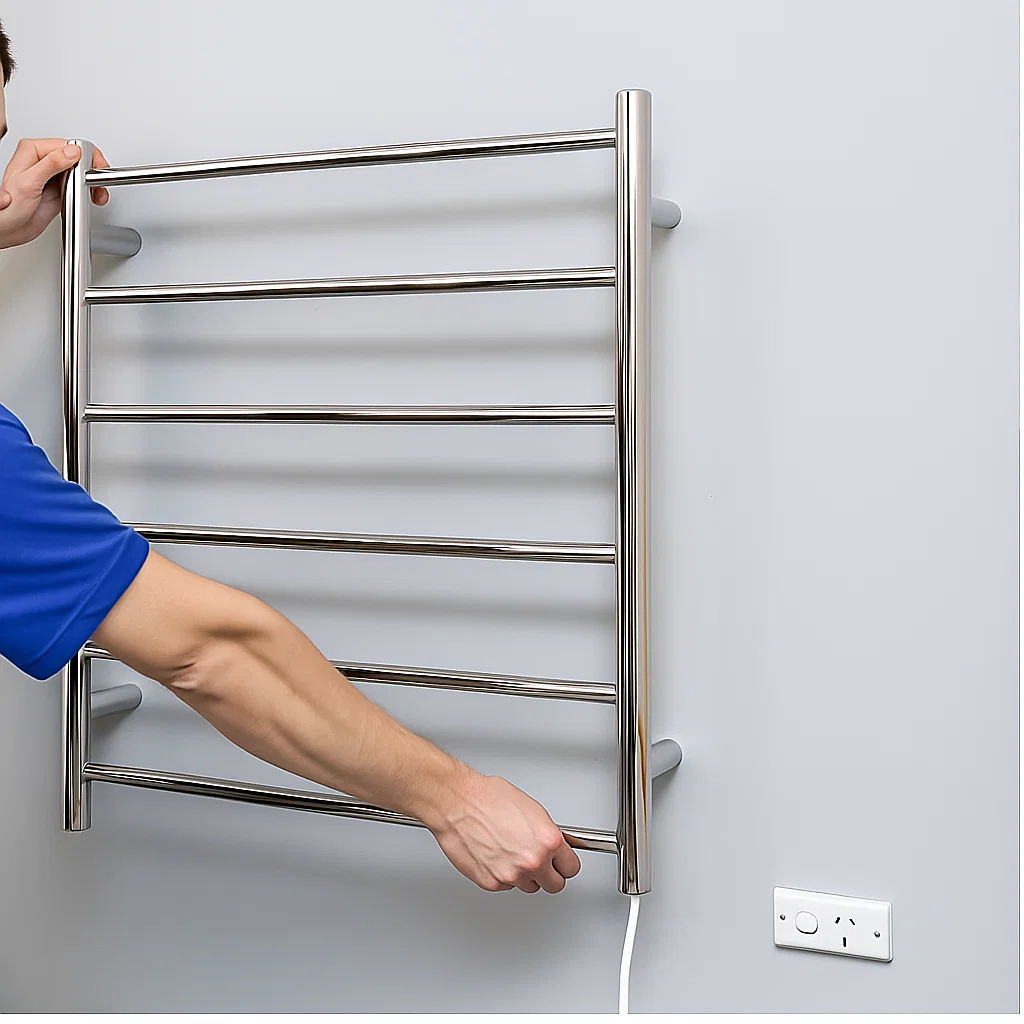

Step 7: Mount the Towel Warmer

With brackets secured and wiring complete, you can now attach the towel warmer to the wall.

Mounting Steps:

1. Slide each leg or rail over its corresponding wall bracket.
2. Ensure the bars are level and evenly spaced.
3. Tighten set screws with the provided Allen key.
4. Test stability by gently pressing each corner.
5. Plug in (if applicable) and ensure the cord isn’t under tension.

Pro Tip: Many premium towel warmers use anti-droop spigots or locking mounts to keep bars perfectly level over time.

Step 8: Test the Installation

Before finishing, run a brief operational test to confirm everything is functioning as intended.

What to Check:

• All bars warm evenly within 15–20 minutes.
• No loose mounts or rattling noises.
• Power indicator or thermostat functions correctly.
• For hydronic units, check for leaks and bleed air from valves.

Tip: If your model uses a timer or thermostat, verify that it cycles correctly before sealing or concealing wiring.

Step 9: Add Controls and Finishing Touches

Adding a control system improves energy efficiency and convenience. Most towel warmers support simple or advanced control options.

Control Type	Function	Best Use
Manual switch	Basic on/off	Simple bathroom upgrades
Programmable timer	Schedules heating times	Energy-conscious households
Smart thermostat	App or Wi-Fi control	Smart home setups
Dual control system	Syncs with underfloor heating	Premium installations

Tip: You can also add decorative wall caps, cord covers, or matching towel hooks for a clean, coordinated look.

Step 10: Maintenance and Aftercare

Proper upkeep ensures long-lasting performance and a spotless finish.

Cleaning and Care:

• Wipe the warmer weekly using a damp cloth and mild soap.
• Immediately dry and buff to prevent water spots.
• Avoid using bleach or abrasive cleaners.
• Tighten any loose screws every few months.
• For hydronic models, bleed air at least once a year to maintain full heat transfer.

Tip: Stainless steel and brushed finishes maintain their luster best when polished occasionally with microfiber.

Safety Reminders

• Always switch off the power supply before installation or repair.
• Use models rated for bathroom IP zones.
• Never mount directly above a bath or inside a shower area.
• Avoid covering the entire surface with thick towels for long durations.
• Seek professional help for all electrical connections.

When Everything’s Done | Time to Enjoy

Once installed and tested, your Towel Warmer is ready to add warmth and convenience to your daily routine. Hang your towels evenly, give them room to breathe, and let the heat do the work. It’s a small upgrade that transforms every shower into a spa-level experience.

FAQs

1. Why are some bars not heating evenly?

This usually occurs due to air pockets in hydronic models or uneven wiring in electric ones. Bleed the system or have an electrician check the terminals.

2. Can I install a towel warmer on the plasterboard?

Yes, but only if reinforced with a solid timber backing or plywood. Avoid fixing directly onto plain drywall

3. Can I connect multiple towel rails together?

Yes, in parallel wiring up to the transformer’s rated load. Check your manufacturer’s maximum wattage and circuit limits before proceeding.
