The HOMCOM 820-161V01 Electric Fireplace is designed to create a cozy ambiance with realistic flame effects and adjustable heating functions. To ensure safe use and optimal performance, it’s important to carefully follow the instructions provided. This guide covers safety precautions, installation, operation, remote control functions, maintenance, and troubleshooting.

Getting Started with the HOMCOM Electric Fireplace

Unboxing and What’s Included

When you first open the package, ensure that all required parts are present. Missing items can cause delays in assembly and may affect performance.

Part Identification

Each piece is labeled with a code to make the assembly process easier. Match each part with the descriptions below before starting.

Code	Description	Qty
1	Top Panel	1
2	Front Up Panel	1
3	Front Base Panel	1
4	Back Base Panel	1
5	Left Side Panel	1
6	Right Side Panel	1
7	Left Front Panel	1
8	Right Front Panel	1
9	Left Trim Panel	1
10	Right Trim Panel	1
11	Left Foot Panel	1
12	Right Foot Panel	1
13	Case Panel	1

Hardware List

The following hardware is included in the package. Spare pieces are provided for convenience.

Code	Description	Qty (+Spare)
A	Bolt	12 +1
B	Plastic Connector	6 +1
C	Metal Dowel	10 +1
D	Metal Cam	10 +1
E	Wood Dowel	26 +1
F	Screw	19 +1
G	Metal Connector	2
H	Plastic Cap	10
I	Fall Prevention Hardware	2
J	8×20 Wooden Tenon	6
K	N4 Spanner (Hex Key)	1

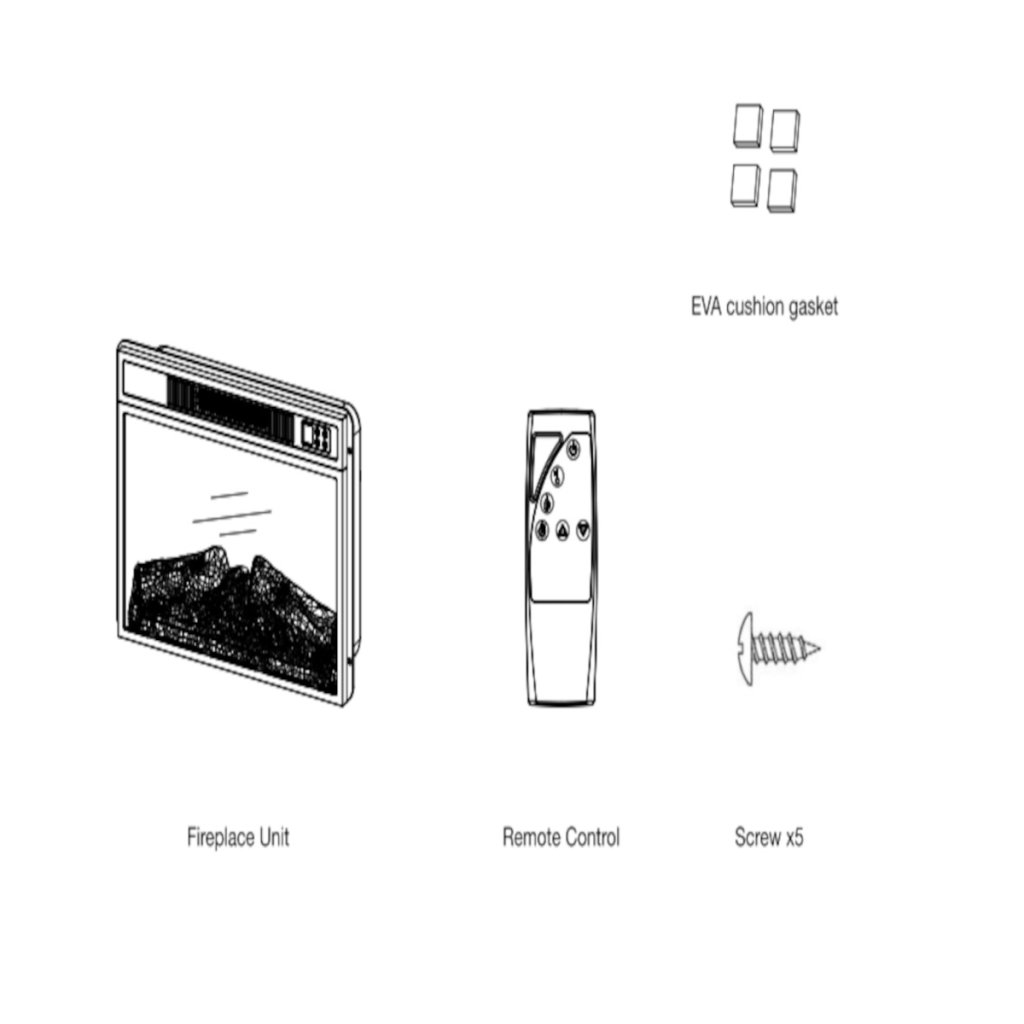

Package Contents

• Main fireplace insert
• EVA sealing strip
• Remote control
• Screws ×5

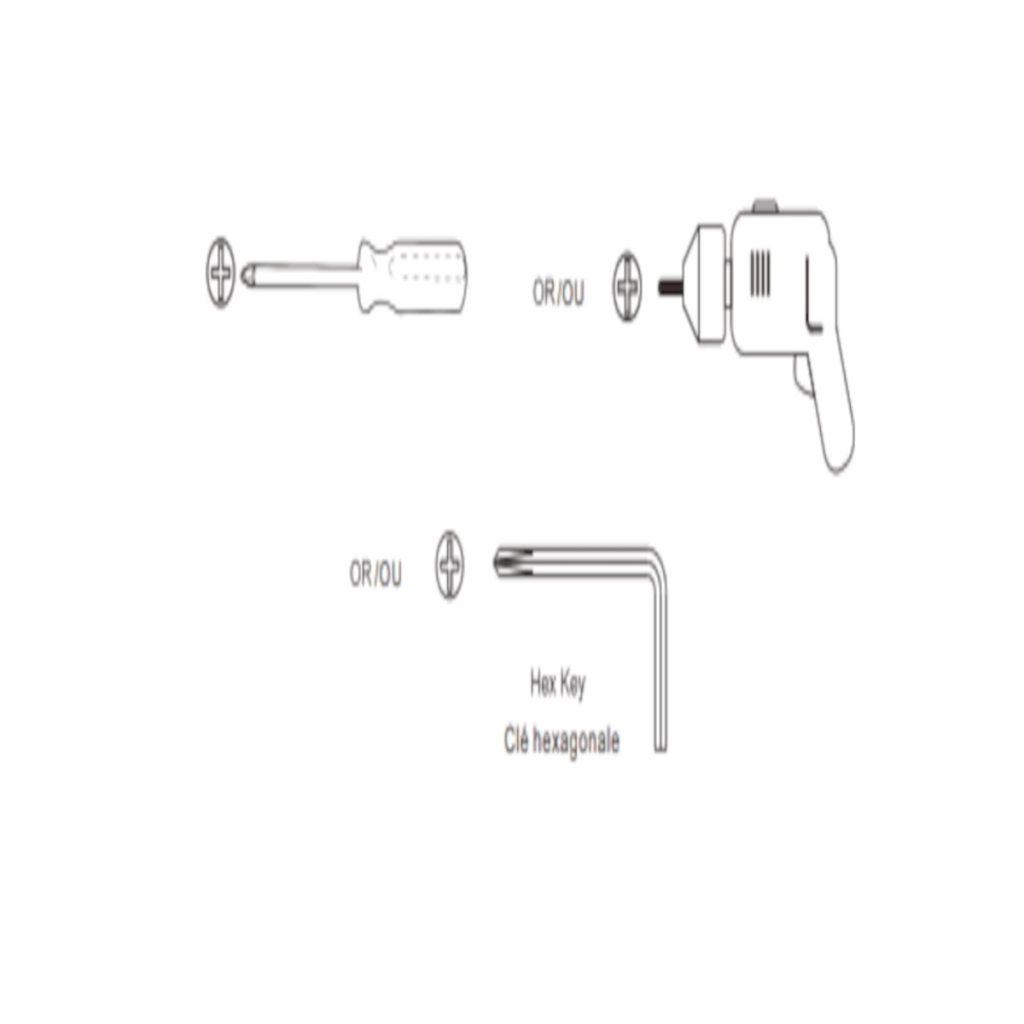

Tools required for Electric Fireplace Installation

• Hand drill
• Hex key (included in the package)

How to Assemble and Install the Fireplace

Assembly is the most important part of setup. There are 12 steps with diagrams. Below is a detailed, step-by-step explanation.

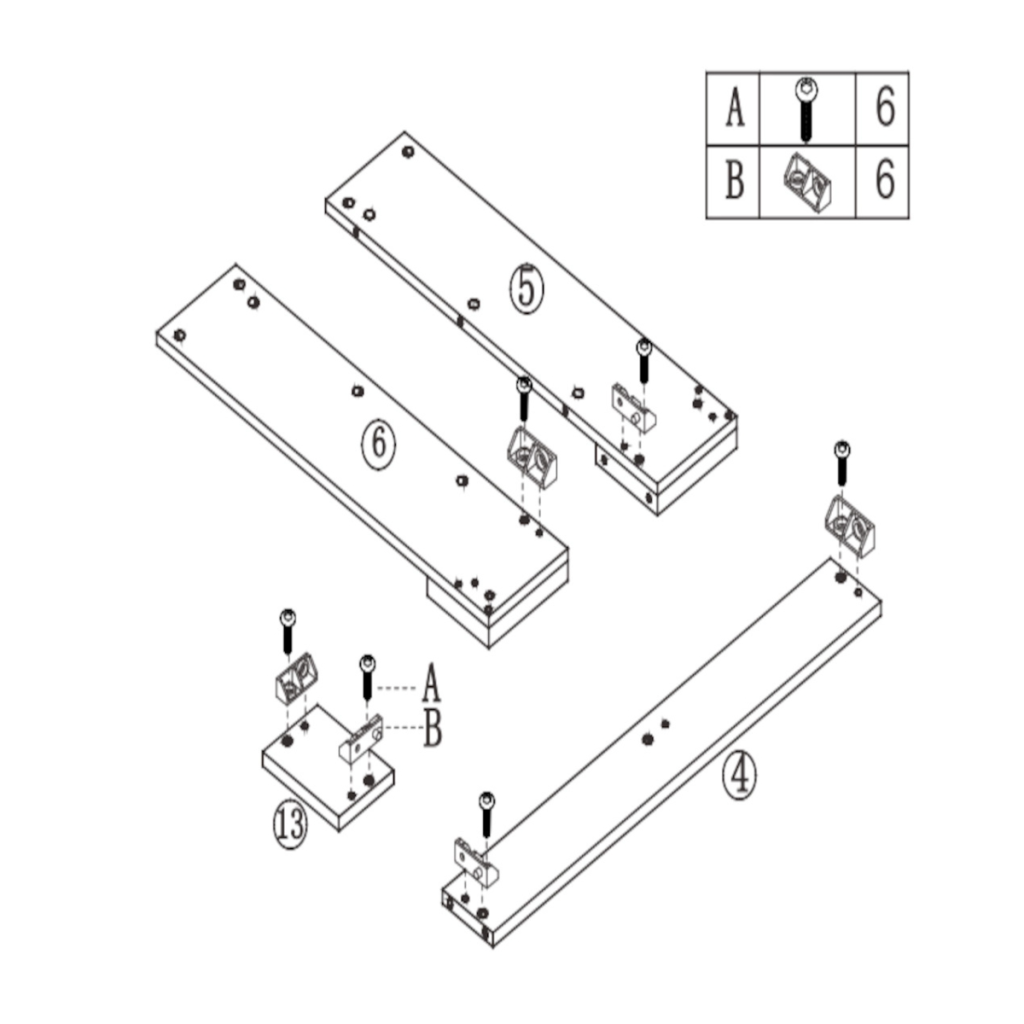

Step 1: Assemble the Base Panels with Connectors

• Take panels ④, ⑤, ⑥, and ⑬.
• Insert metal connectors (B) into the marked holes on each panel.
• Secure the connectors by fastening them with bolts (A).
• Use 6 bolts (A) and 6 connectors (B) in total across all four panels.

Make sure each connector is positioned so the opening faces outward, allowing the next panels to lock properly during later steps.

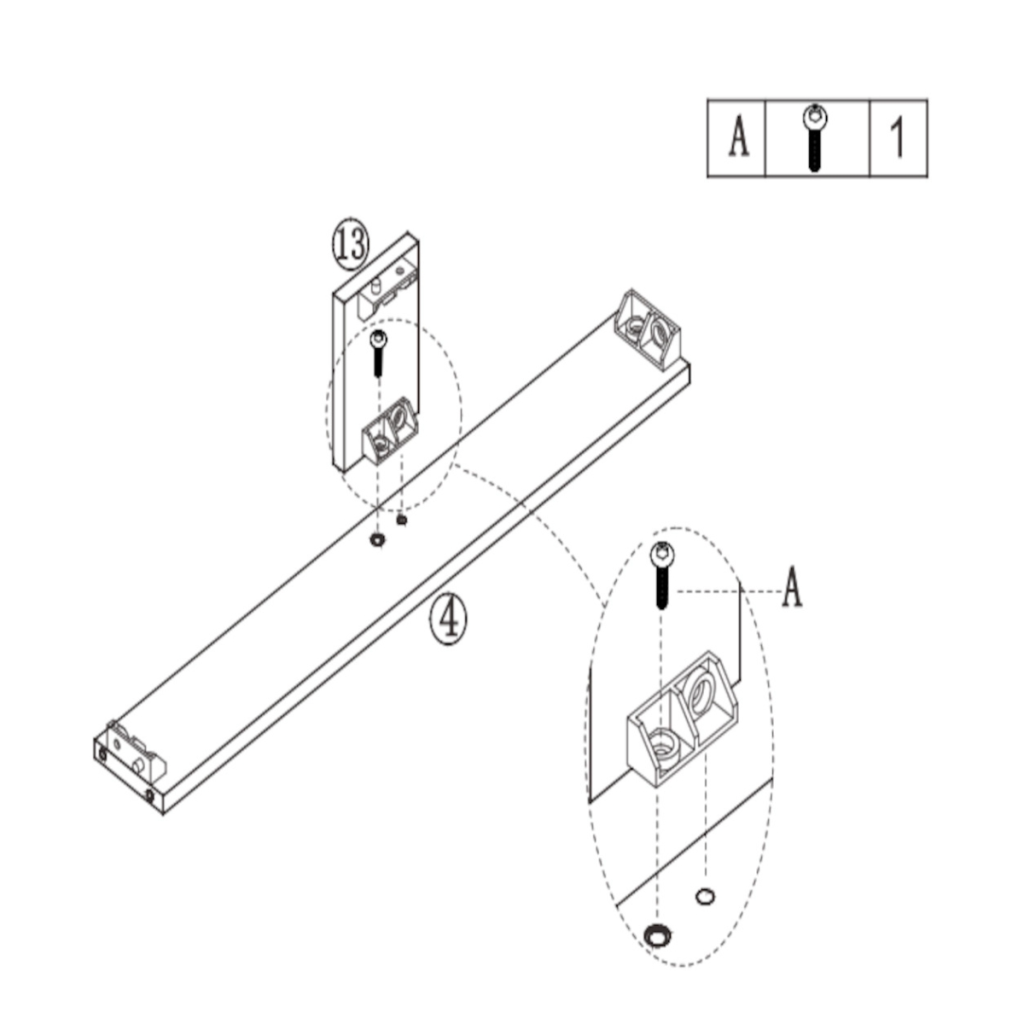

Step 2: Connect Panel ⑬ to Panel ④

• Take Panel ④ (long base piece) and Panel ⑬ (short vertical piece).
• Place one connector block into the pre-drilled hole on Panel ④.
• Secure the connector with 1 bolt (A).
• Attach Panel ⑬ vertically to Panel ④ by aligning the dowel holes with the connector block.
• Tighten the bolt firmly so the small Panel ⑬ is fixed upright onto Panel ④.

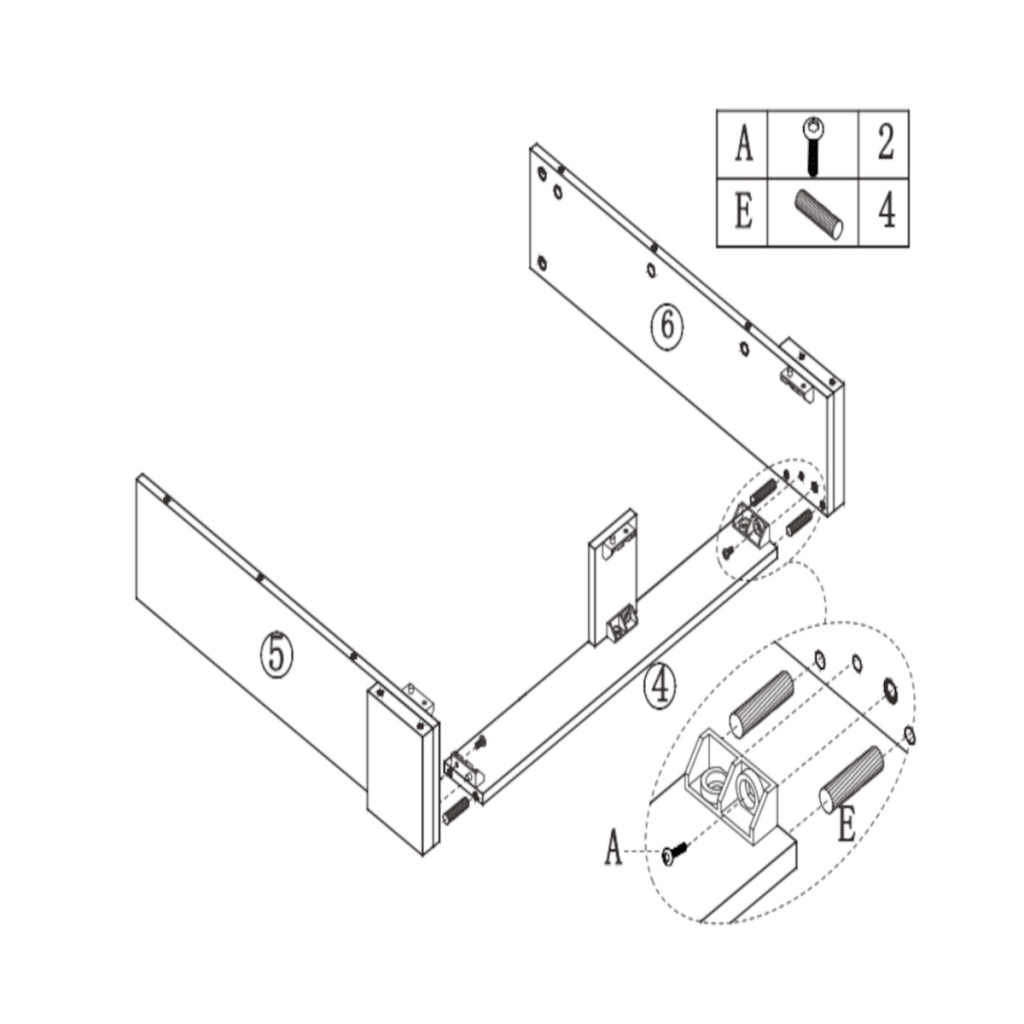

Step 3: Attach Panels ⑤ and ⑥ to Panel ④

• Take Panel ⑤ (left) and Panel ⑥ (right).
• Insert 4 wooden dowels (E) into the pre-drilled holes at the ends of Panel ④.
• Position Panels ⑤ and ⑥ upright at both ends of Panel ④.
• Align the dowels into the corresponding holes on Panels ⑤ and ⑥.
• Secure each connection by tightening with 2 bolts (A) into the connector blocks.

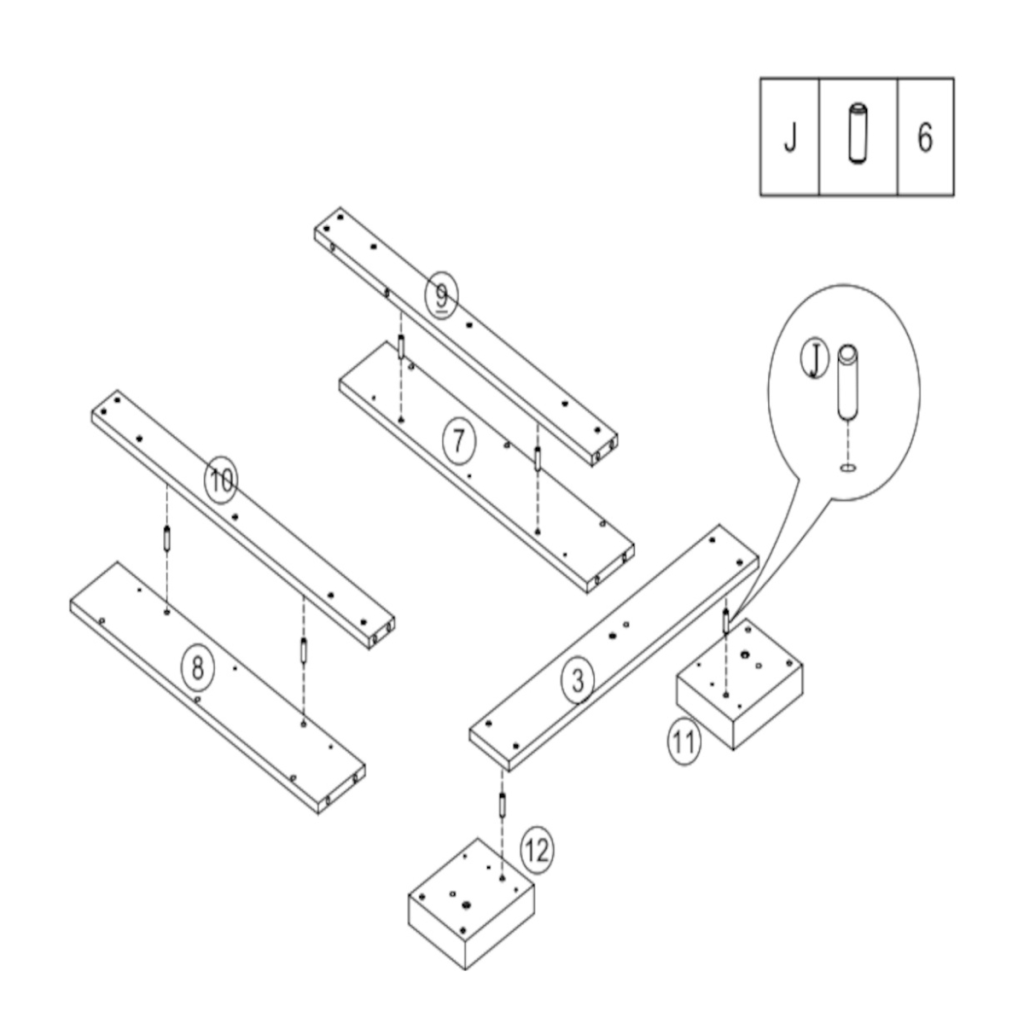

Step 4: Insert Dowels (J) into Panels ③, ⑧, ⑨, ⑩, ⑪, and ⑫

• Take Panel ③, Panel ⑧, Panel ⑨, Panel ⑩, Panel ⑪, and Panel ⑫.
• Insert wooden dowels (J) into the pre-drilled holes on each panel as shown in the diagram.
• Use a total of 6 dowels (J) in this step.
• Make sure the dowels are fully pressed into the holes so the panels will align correctly in later steps.

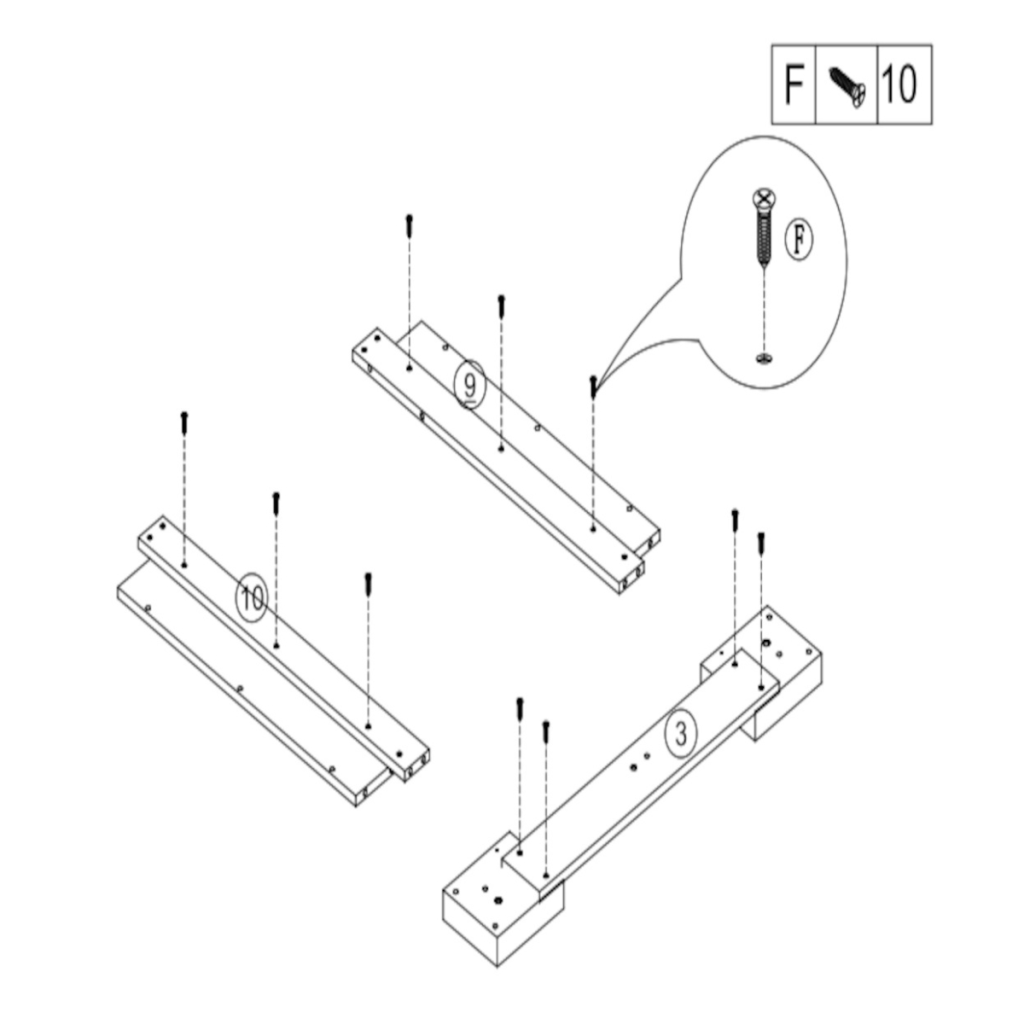

Step 5: Secure Panels ⑨, ⑩, and ③ with Screws (F)

• Take Panel ⑨, Panel ⑩, and Panel ③ (with Panels ⑪ and ⑫ already attached in the previous step).
• Use screws (F) to secure the panels in place.
• Insert the screws into the pre-drilled holes as shown in the diagram.
• A total of 10 screws (F) are required for this step.
• Tighten all screws firmly to make sure the panels are fixed securely.

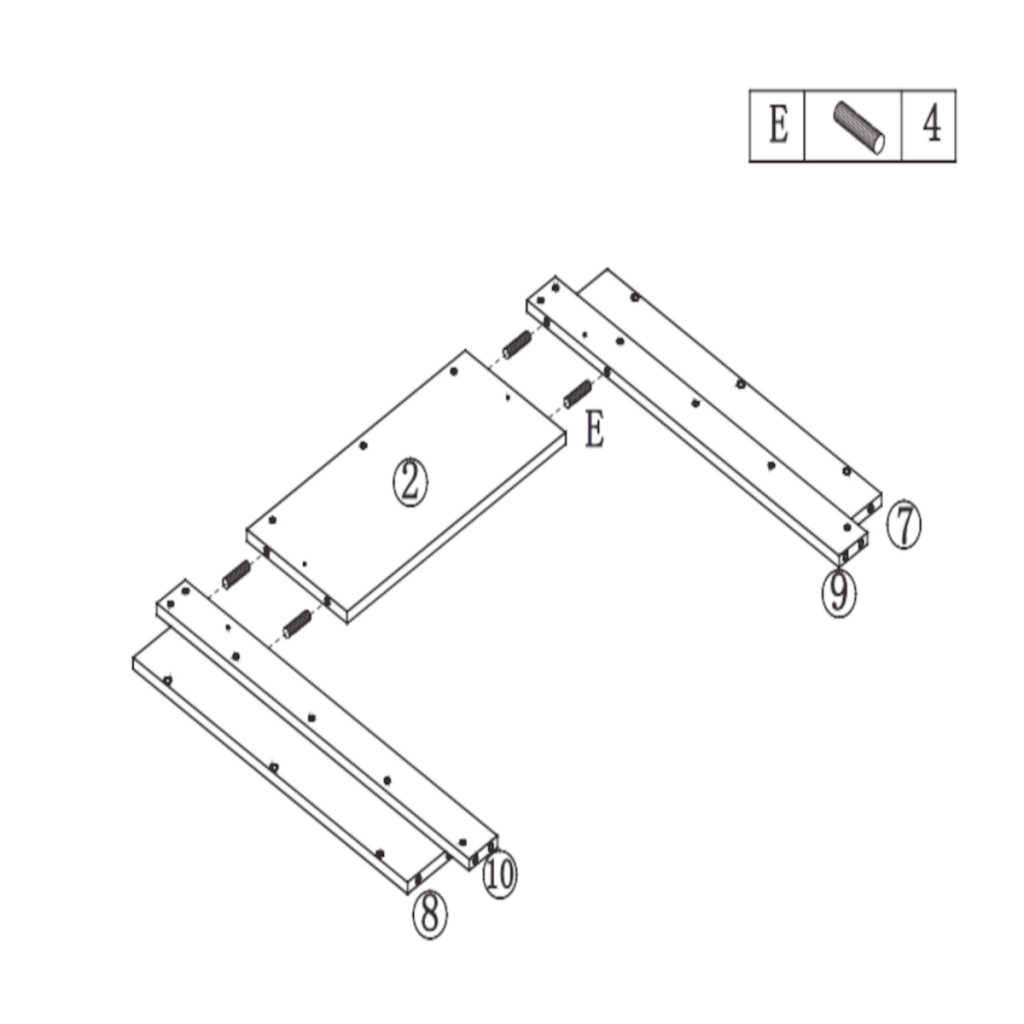

Step 6: Connect Panel ② with Panels ⑦, ⑧, ⑨, and ⑩

• Insert 4 wooden dowels (E) into the side edges of Panel ②.
• Align the dowels with the holes in Panels ⑦ and ⑨ on one side.
• Align the dowels with the holes in Panels ⑧ and ⑩ on the other side.
• Push the panels together so Panel ② fits securely between them.

Step 7: Attach Panels ⑦, ⑧, ⑨, ⑩, ⑪, and ⑫

• Insert 8 wooden dowels (E) into the side holes of Panels ③, ⑧, ⑨, ⑩, ⑪, and ⑫.
• Place Panel ② (installed in the previous step) in the center structure.
• Connect Panel ⑦ vertically above Panel ⑨ by aligning the dowels.
• Connect Panel ⑩ vertically above Panel ⑧ in the same way.
• At the base, align Panel ③ with Panels ⑪ and ⑫, inserting dowels to hold them together.
• Insert 6 metal pins (C) into the designated holes on Panels ⑦, ⑨, and ② as shown.

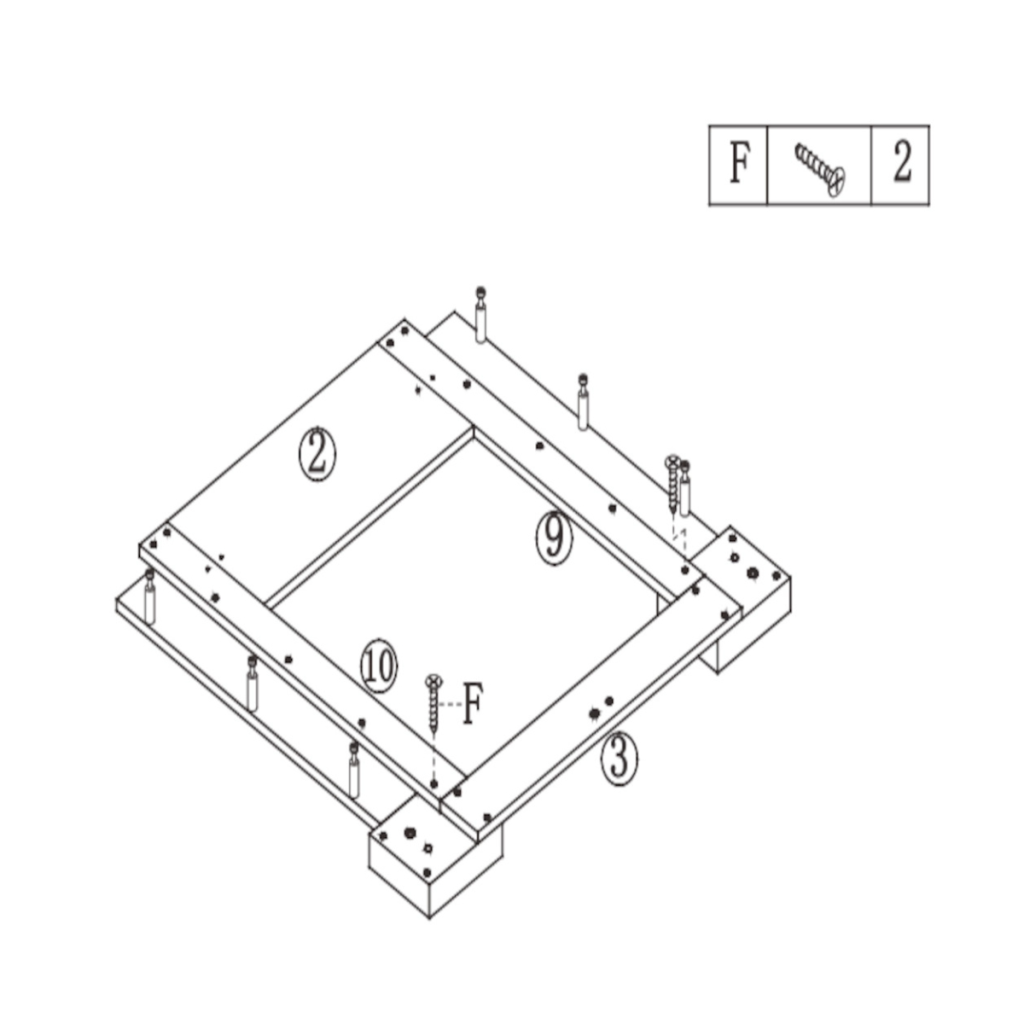

Step 8: Secure Panels ⑨ and ⑩ to Panel ③

• Take 2 screws (F).
• Insert one screw into the pre-drilled hole where Panel ⑨ meets Panel ③.
• Insert the second screw into the pre-drilled hole where Panel ⑩ meets Panel ③.
• Tighten both screws securely to lock Panels ⑨ and ⑩ into position on the base frame.

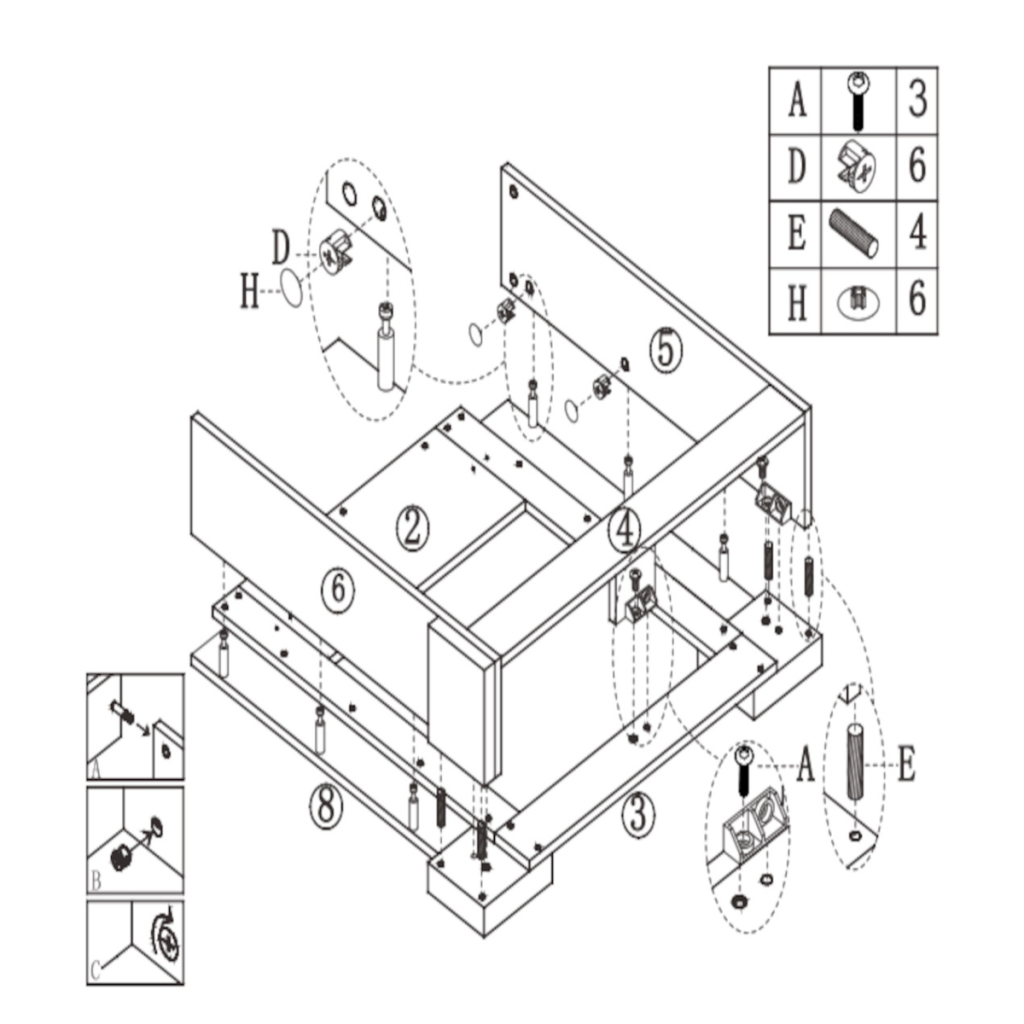

Step 9: Install Side Panels ⑤ and ⑥ with Connectors

• Insert 4 wooden dowels (E) into the side holes of Panels ③ and ④.
• Position Panel ⑤ on the right side and Panel ⑥ on the left side, aligning with the dowels.
• Use 3 bolts (A) with connector blocks to secure the lower connections between Panels ③, ④, ⑤, and ⑥.
• At the top connections of Panels ⑤ and ⑥, insert 6 cam locks (D) into the pre-drilled holes.
• Place 6 cam lock covers (H) over the cam locks for a clean finish.
• Tighten the cam locks (D) to lock the structure securely.

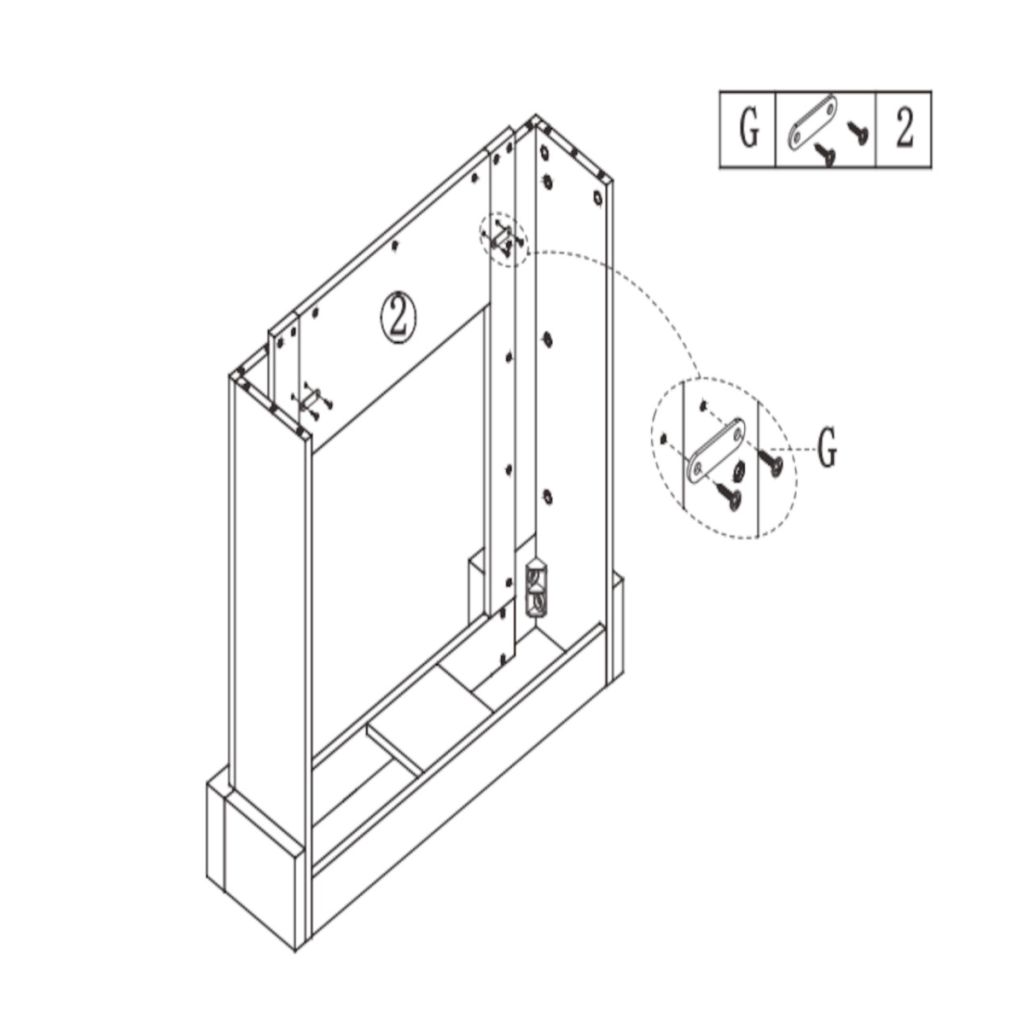

Step 10: Fix Metal Brackets (G) to Side Panels

• Take 2 metal brackets (G).
• Position each bracket on the inner upper sides of the cabinet frame (on the vertical panels).
• Align the brackets with the pre-drilled holes shown in the diagram.
• Secure each bracket using screws provided with the bracket (already attached in the illustration).
• Tighten firmly so the brackets hold the frame stable.

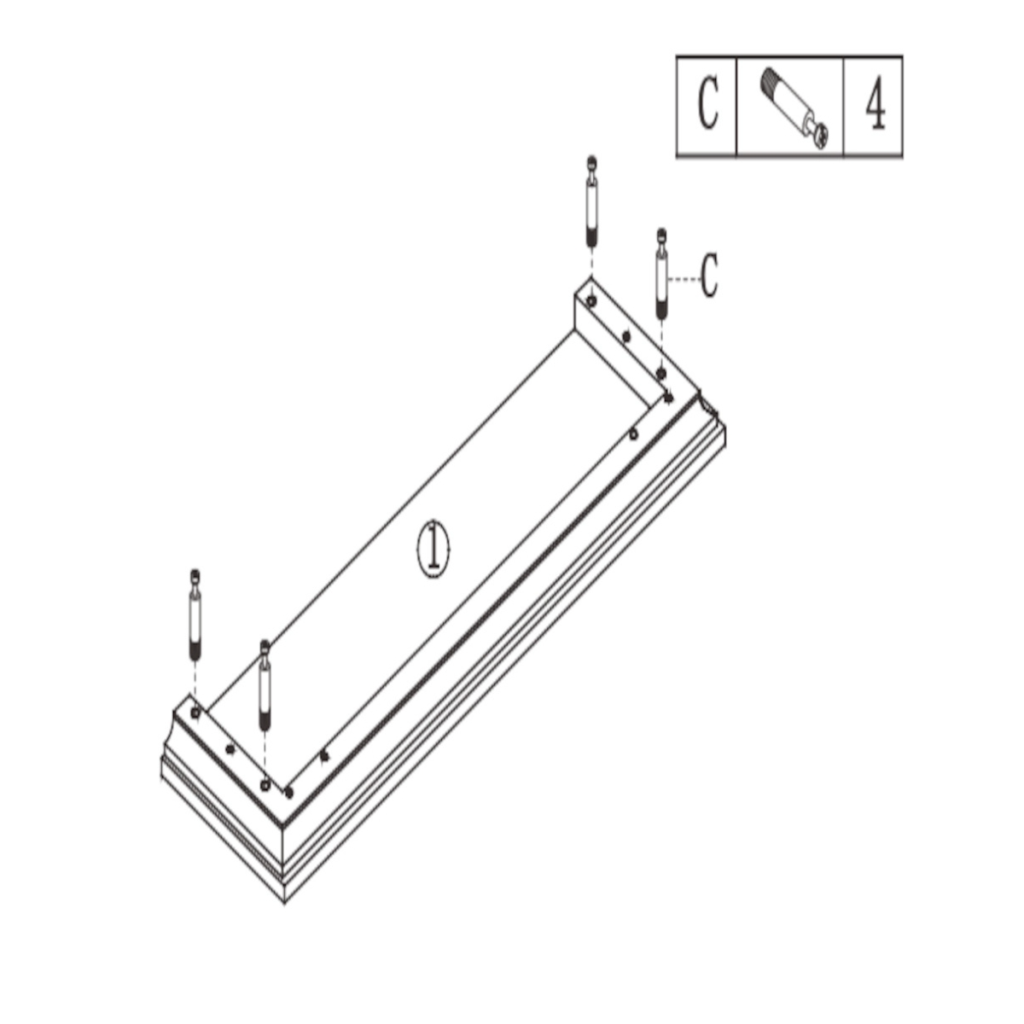

Step 11: Insert Pins (C) into Top Panel ①

• Take Panel ① (the top panel).
• Locate the 4 pre-drilled holes along the inner edge of the panel.
• Insert 4 metal pins (C) into these holes.
• Tighten the pins securely so they are fixed in place.

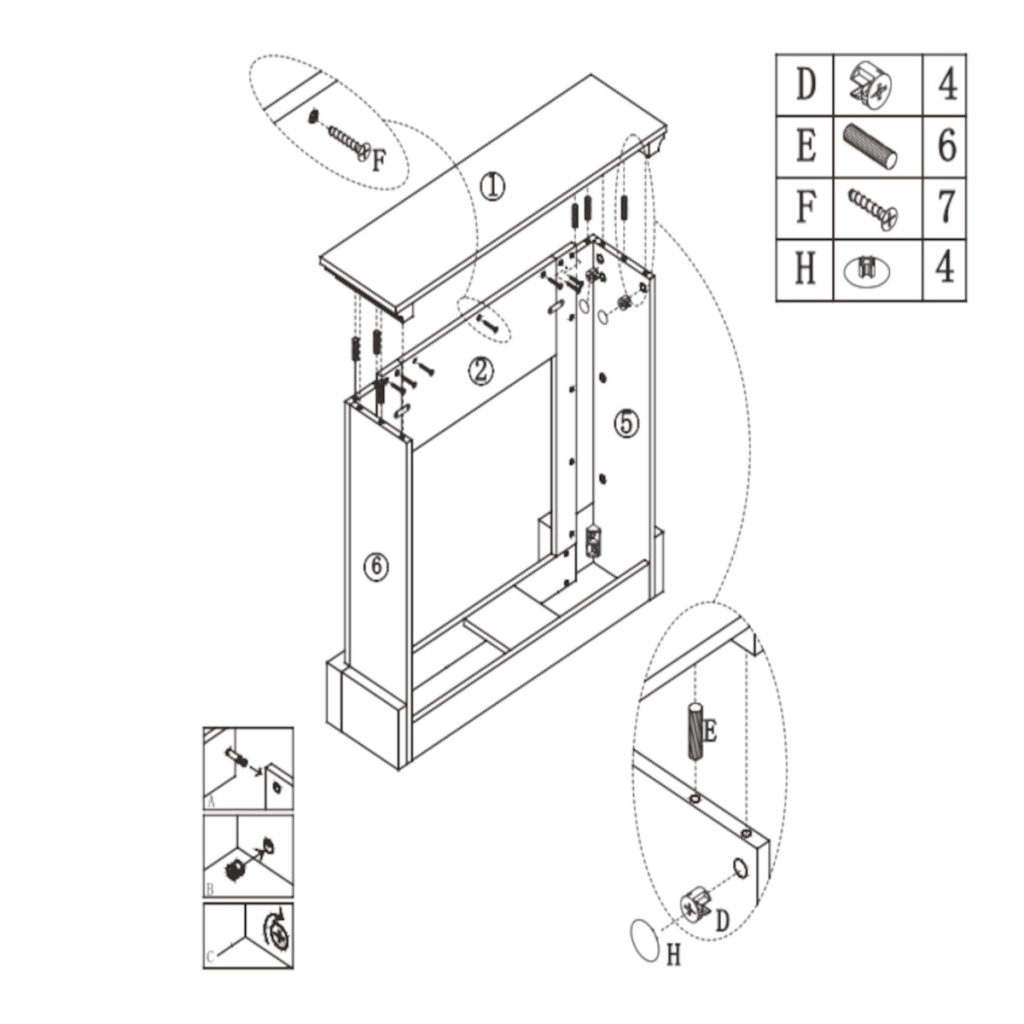

Step 12: Attach Top Panel ① to the Frame

• Place Panel ① (top panel, prepared in Step 11) on top of the assembled frame.
• Insert 6 wooden dowels (E) into the pre-drilled holes at the top edges of Panels ⑤ and ⑥.
• Lower Panel ① onto the dowels, aligning it with the side panels.
• Insert 4 cam locks (D) into the holes underneath Panel ①.
• Tighten the cam locks to secure the connection.
• Cover the cam locks with 4 plastic covers (H).
• Fix the top panel additionally with 7 screws (F) into the pre-drilled holes for extra stability.

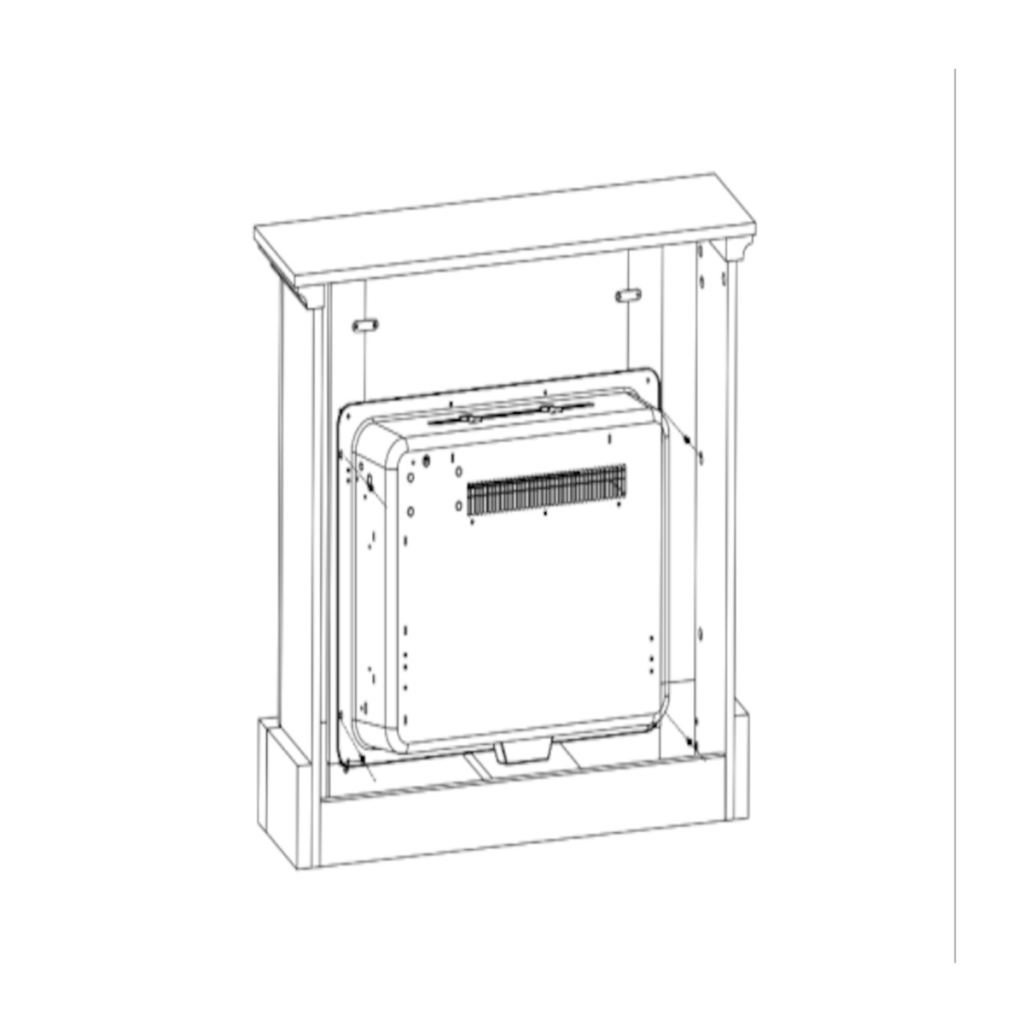

Installing the Fireplace Insert

• After completing the cabinet assembly (Steps 1–12), carefully lift the fireplace insert.
• Slide the insert from the back of the cabinet into the opening.
• Make sure the insert is centered within the frame.
• Align the side holes of the insert with the pre-drilled screw holes in the cabinet.
• Secure the insert by tightening screws on both sides, as shown in the diagram.

Important: Do not attempt to install the insert from the front, it will not fit properly.

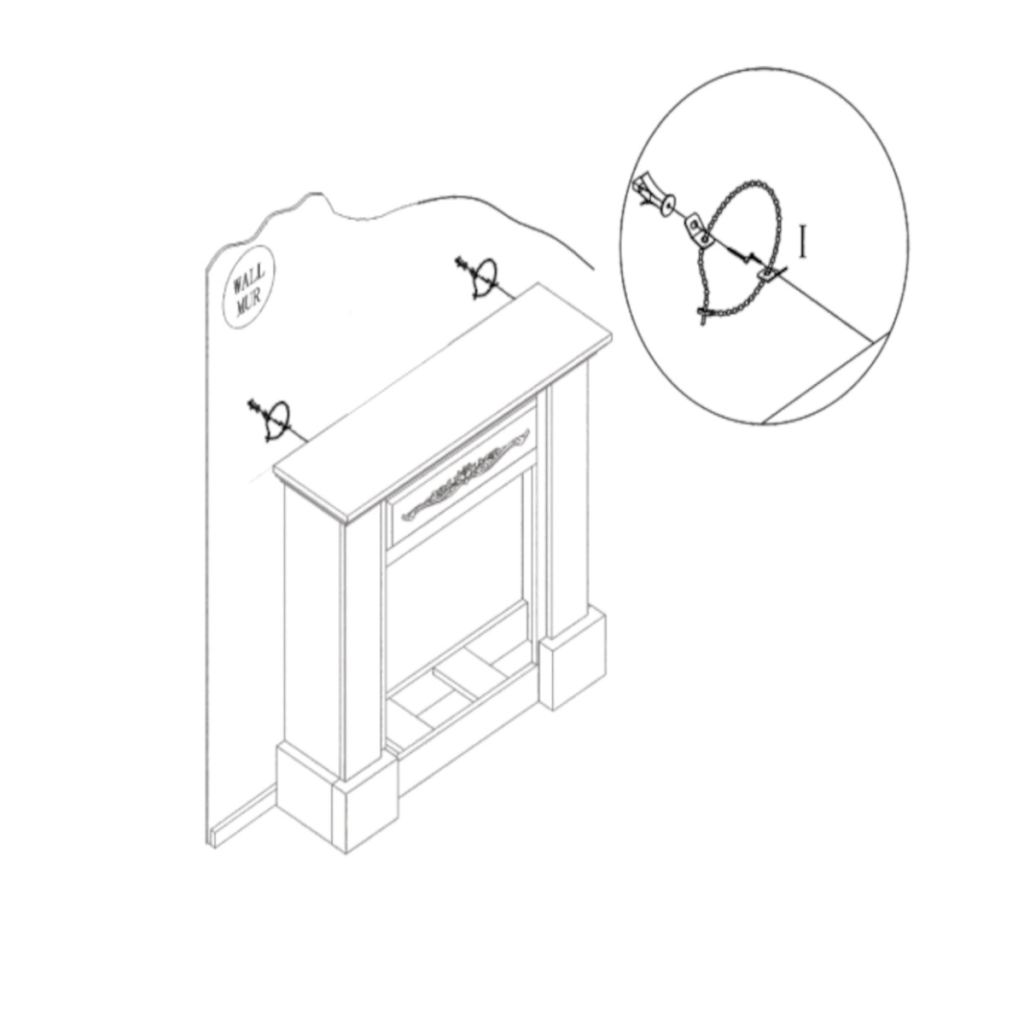

Anti-Tip Device

Attach the included anti-tip device to the wall and connect it to the cabinet. This prevents tipping accidents, especially if children or pets are present.

Understanding Safety Precautions and Grounding

General Safety Warnings

Several critical safety notes should be followed during setup:

• For indoor use only, not in bathrooms or damp areas.
• Keep combustibles such as bedding, curtains, and furniture 3 ft (0.9 m) away.
• Always plug directly into a grounded outlet. Do not use extension cords.
• Do not cover heater vents or place decorations over the outlet.
• Use caution with children and pets. The heater surface gets hot.
• The unit has an overheat limiter that shuts it down if unsafe conditions arise.
• Do not insert objects into the vent openings.
• The heater contains no user-serviceable parts. Contact support if issues occur.

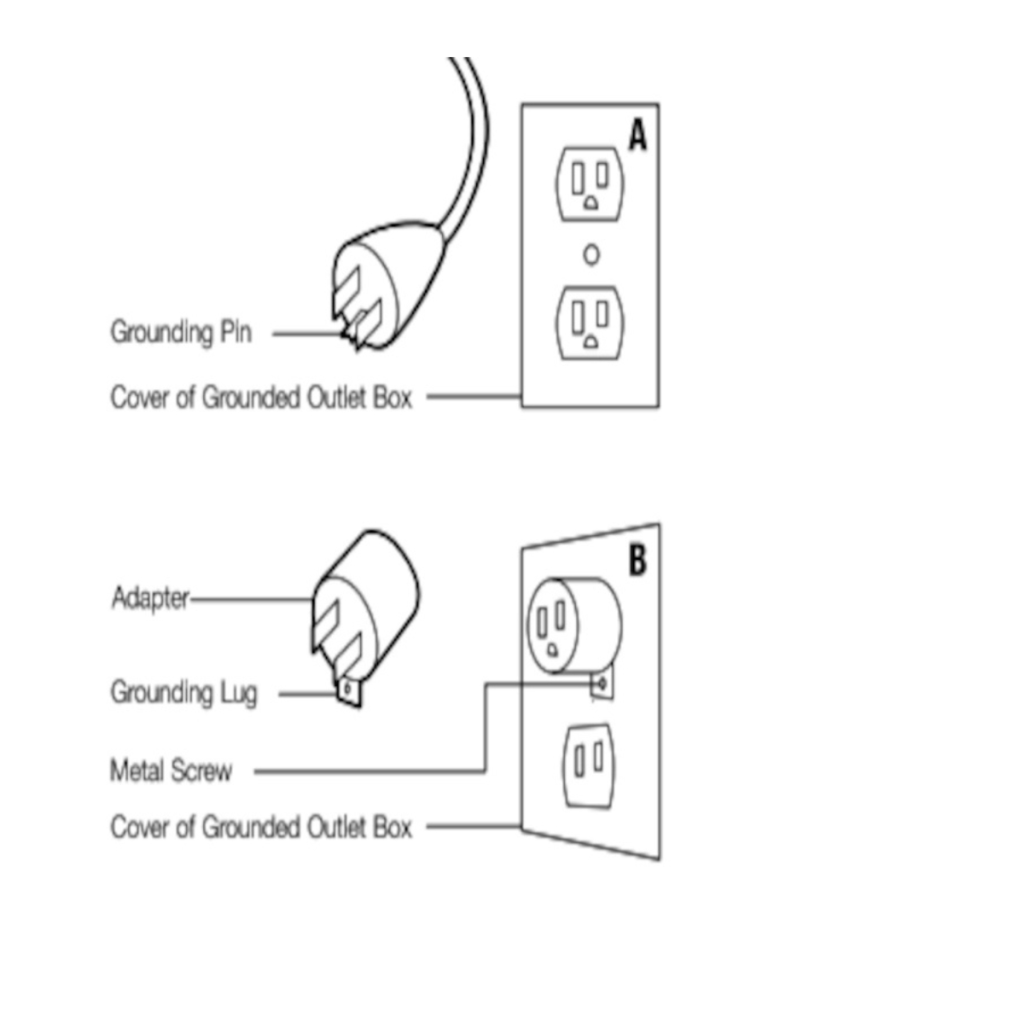

Grounding Instructions

• HOMCOM Electric Fireplace comes with a grounded plug for use with 120V outlets.
• If using a two-slot outlet, you may use an adapter with a grounding tab, but it must be connected to a permanent ground.
• Do not cut or modify the plug. If it doesn’t fit, have a qualified electrician install the proper outlet.

Warning: Improper grounding may result in electric shock.

Operating the Control Panel and Features

The control panel is located at the top right of the unit.

Display and LED Indicators

• Display screen shows flame level, timer, and temperature.
• Red light = heating in Fahrenheit.
• Green light = heating in Celsius.
• Blue light = timer active.

Timer Function

• Options: 30 min → 1 hr → 2 hr → 3 hr → 4 hr → 5 hr → 6 hr → Off.
• Timer controls both flame and heat functions.

Heating Control

• Hold heating button for 5 seconds to adjust.

• Fahrenheit: 22 levels (62°F – 82°F + ON).
• Celsius: 12 levels (17°C – 27°C + ON).
• Unit resumes previous settings after power-off.

Flame Control

• L3 = High flame, bright logs
• L2 = Medium flame
• L1 = Low flame
• Off = Flames and logs off
• Default: Flames reset to high (L3) when powered on.

Power Button

• One press = ON
• Second press = OFF

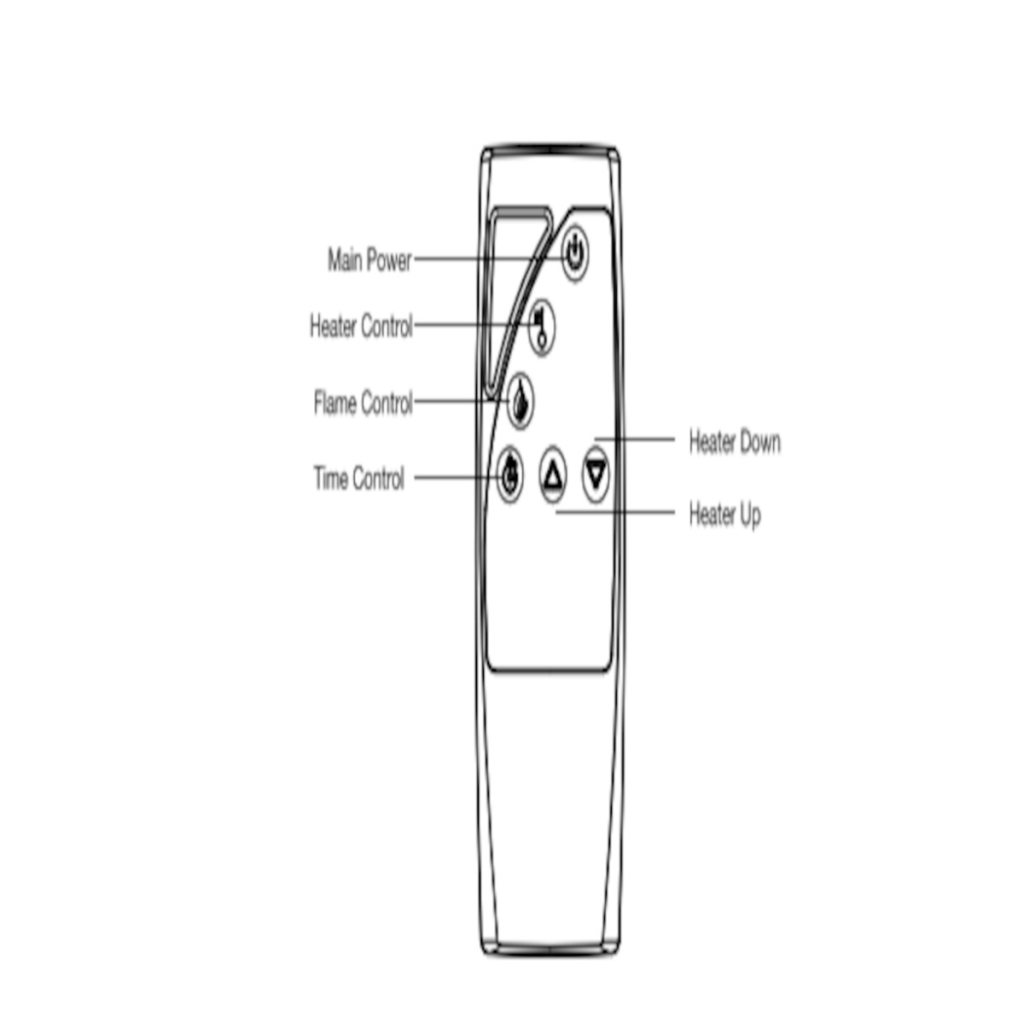

Using the Remote Control

The remote mirrors the control panel with functions for:

• Power
• Heating (Low/High)
• Flame brightness
• Timer

Note: The remote cannot switch between °F and °C.

Battery Instructions

• Requires 2 × AAA batteries (included).
• Insert correctly with polarity.
• Replace all at once.
• Remove if unused for long periods.

Battery Warnings:

• Do not ingest batteries.
• Never recharge non-rechargeable batteries.
• Always recycle used batteries.

Regular Maintenance and Cleaning

To keep the fireplace in excellent condition:

• Always unplug before cleaning.
• Do not use it if submerged in water.
• Dust vents with a vacuum brush.
• Clean exterior with a soft, damp cloth.
• Use mild soap and a non-abrasive cloth on glass.
• Never use powders, solvents, or abrasive cleaners.
• Motors are pre-lubricated, no oiling needed.
• Do not operate with cracked or broken glass.
• If the cabinet is damaged, consult a professional for repair.

Troubleshooting Common Issues

A clear troubleshooting table is provided to help identify and resolve common problems quickly:

Problem	Solution
Unit does not power on	Ensure it’s plugged into a grounded 120V outlet. Press panel power.
Flame effect missing	Check if flame rod detached from motor inside rear panel.
No heat output	Set temperature higher than room temperature.
Heater not working	Switch OFF, unplug for 5 minutes, then restart.
Error Code E3	Reset by unplugging for 5 minutes, reconnect, restart.
Remote not working	Replace AAA batteries, remove plastic tab, move closer.

Enjoying Your Fireplace

By carefully following the setup steps, observing safety precautions, and using the built-in features correctly, you can enjoy the HOMCOM 820-161V01 Electric Fireplace with confidence. With proper care and maintenance, it will provide reliable warmth, realistic ambiance, and long-lasting comfort to your living space.

Download HOMCOM 820-161V01 Electric Fireplace Manual PDF

FAQs

1. Can I leave the electric fireplace running overnight?

It’s not recommended to leave the unit running unattended for long periods, including overnight. Always turn it off and unplug when not in use for maximum safety.

2. Does the fireplace make any noise while operating?

Yes, a faint motor sound may be heard from the flame and heater functions. This is normal and not a sign of malfunction.

3. How often should I check the anti-tip device?

Inspect the anti-tip strap or bracket every few months to make sure it’s firmly secured to the wall and cabinet. Tighten screws if needed.

4. Can the fireplace be used without heat?

Yes. The flame effect can run independently without turning on the heater, allowing you to enjoy the ambiance year-round.

5. What should I do if the glass becomes cloudy or scratched?

Clean the glass with mild soap and a non-abrasive cloth. If scratches are deep or the glass is cracked, stop using the fireplace and contact customer support for replacement.
