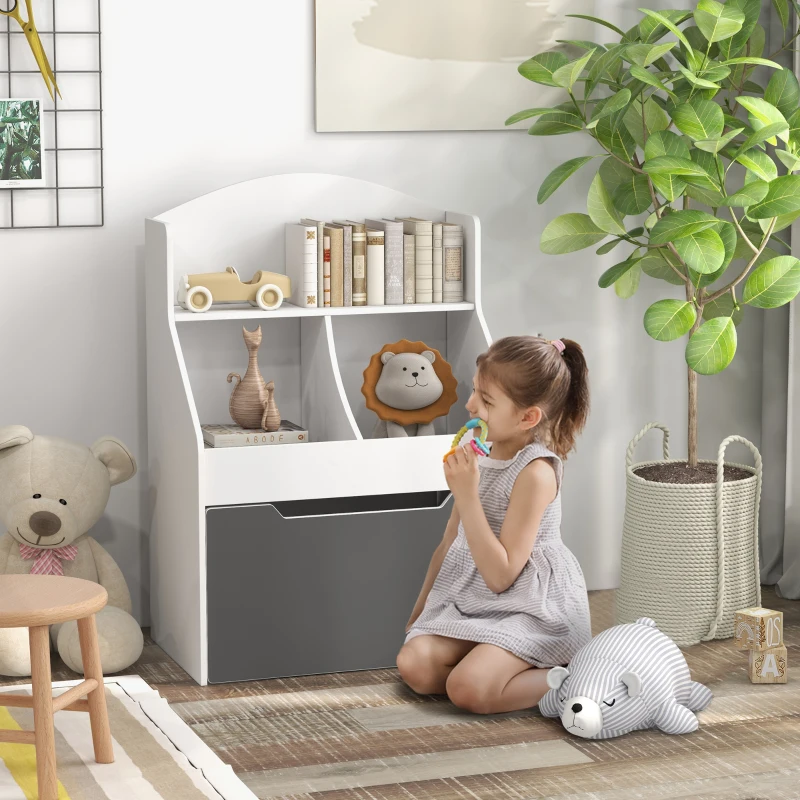

The Qaba 3-Tier Kids Bookcase with Drawer offers a smart, child-friendly way to organize books, toys, and art supplies. With two open shelves and a smooth-rolling drawer, it blends style, safety, and practicality for any nursery or playroom. Its sturdy MDF frame, rounded edges, and anti-tip design make it safe and durable for kids aged 3–8 years.
Warning
- This product is suitable for children aged 3 years and above.
- Always use under adult supervision. Children must not climb or stand on the unit to prevent accidents.
- Store in a cool, dry place, away from heat sources, fire, and direct sunlight.
- Do not place the bookcase on wet, uneven, or sloped surfaces, and avoid exposure to water.
- Keep plastic bags and small accessories away from children after unpacking to prevent suffocation or choking hazards.
- Ensure all parts are installed and connected firmly before use.
- Adults only should assemble the product. Keep children away during assembly and take care to avoid pinching fingers.

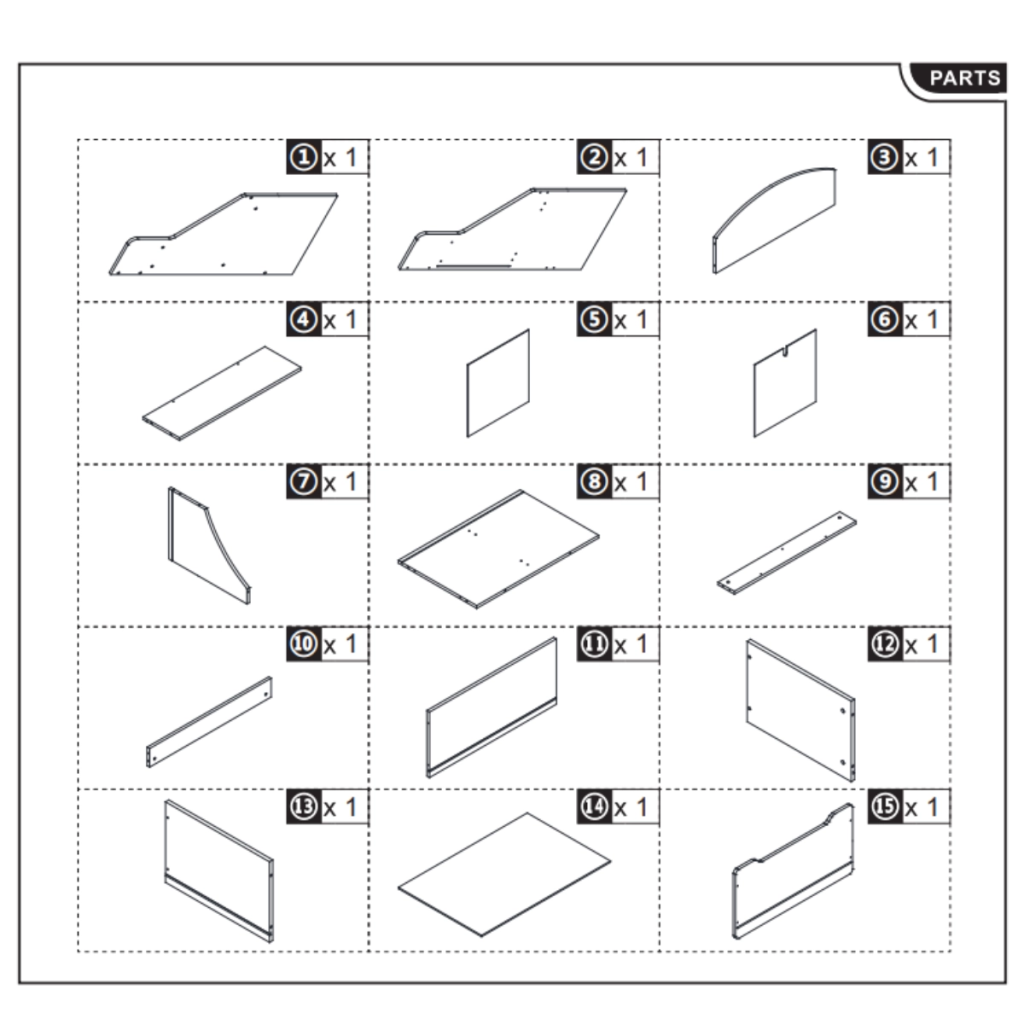

Parts List

No. | Description | Qty |
① | Left Side Panel | 1 |
② | Right Side Panel | 1 |
③ | Curved Top Front Board | 1 |
④ | Top Shelf Panel | 1 |
⑤ | Small Divider Panel | 1 |
⑥ | Drawer Back Panel (with notch) | 1 |
⑦ | Side Decorative Support Panel | 1 |
⑧ | Bottom Base Panel | 1 |
⑨ | Front Support Rail | 1 |
⑩ | Back Support Rail | 1 |
⑪ | Drawer Front Panel | 1 |
⑫ | Drawer Left Side Panel | 1 |
⑬ | Drawer Right Side Panel | 1 |
⑭ | Drawer Bottom Board | 1 |
⑮ | Drawer Back Panel | 1 |

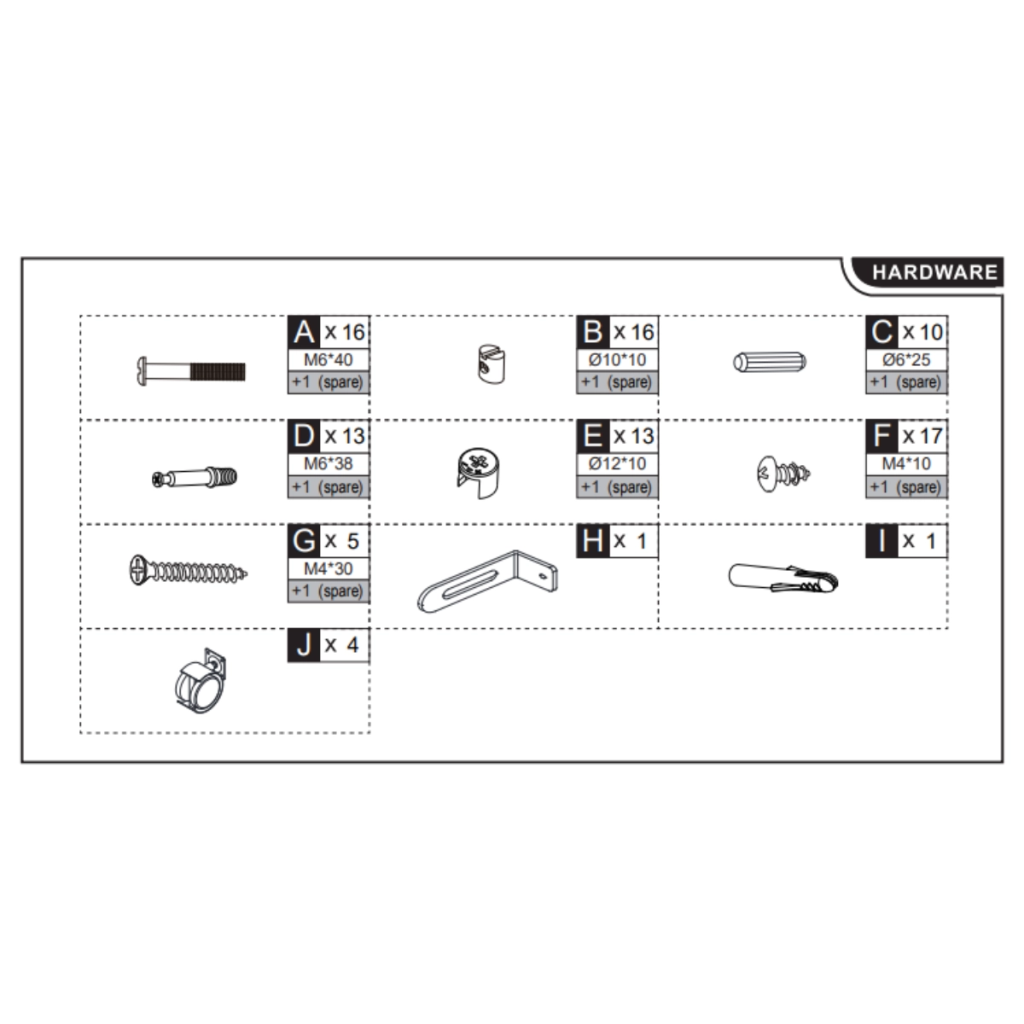

Hardware List

Label | Description | Qty | Spare |
A | M6 × 40 mm Bolt | 16 | +1 |
B | Ø10 × 10 mm Dowel | 16 | +1 |
C | Ø6 × 25 mm Dowel | 10 | +1 |
D | M6 × 38 mm Bolt | 13 | +1 |
E | Ø12 × 10 mm Dowel | 13 | +1 |
F | M4 × 10 mm Screw | 17 | +1 |
G | M4 × 30 mm Screw | 5 | +1 |
H | Wall Bracket (Anti-Tip) | 1 | – |
I | Anti-Tip Strap | 1 | – |
J | Wheel Assembly | 4 | – |
Assembly Instructions
Follow the steps below carefully to assemble your Qaba 3-Tier Kids Bookcase with Drawer. Before starting, make sure all parts and hardware are present and identified.

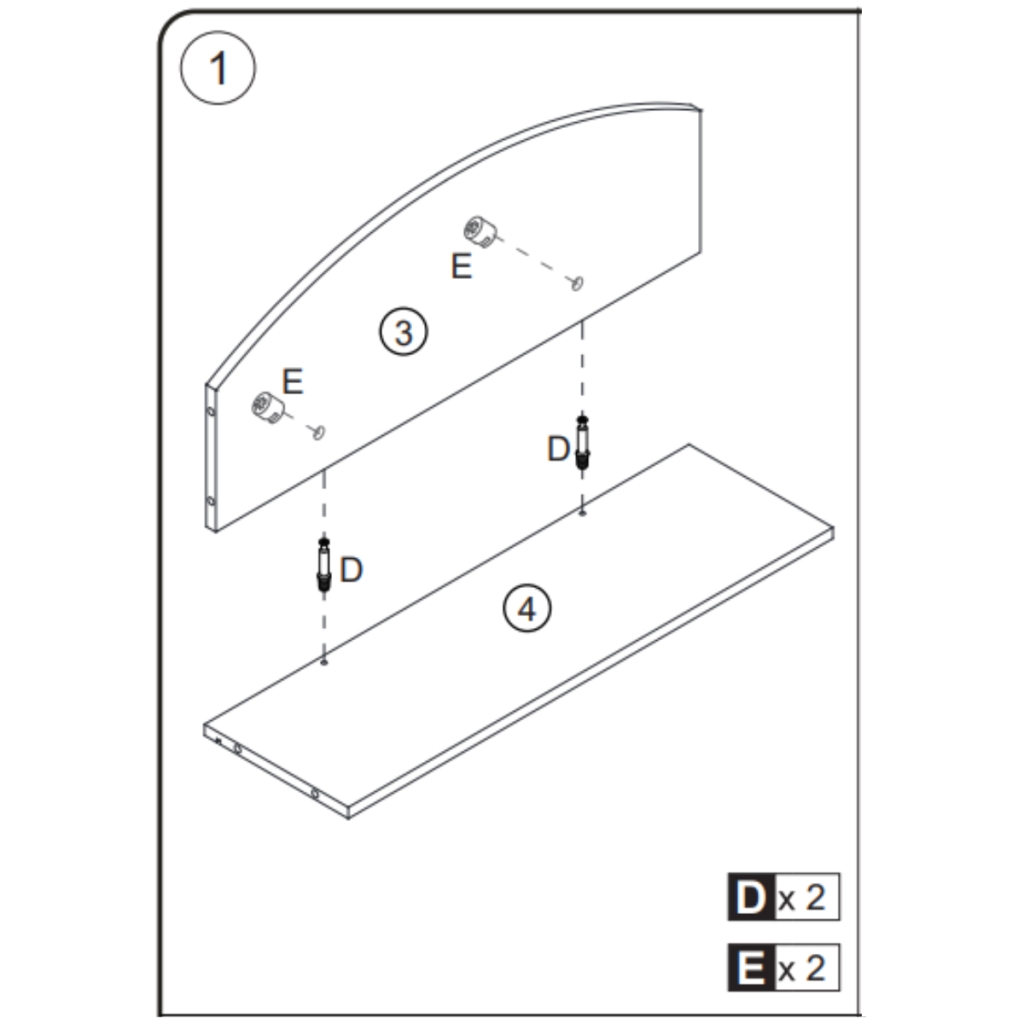

Step 1: Attach the Curved Front Panel

Parts Required:
- ③ Curved Top Front Board × 1
- ④ Top Shelf Panel × 1
Hardware Used:
- D × 2 (M6×38 Bolts)
- E × 2 (Ø12×10 Dowels)
Instructions:
- Attach the curved top front board ③ to the top shelf panel ④.
- Insert two M6 × 38 bolts (D) into the pre-drilled holes on panel ④.
- Secure them into the connectors on panel ③ using Ø12 × 10 dowels (E).
- Make sure both panels align evenly and the edges fit flush before tightening.

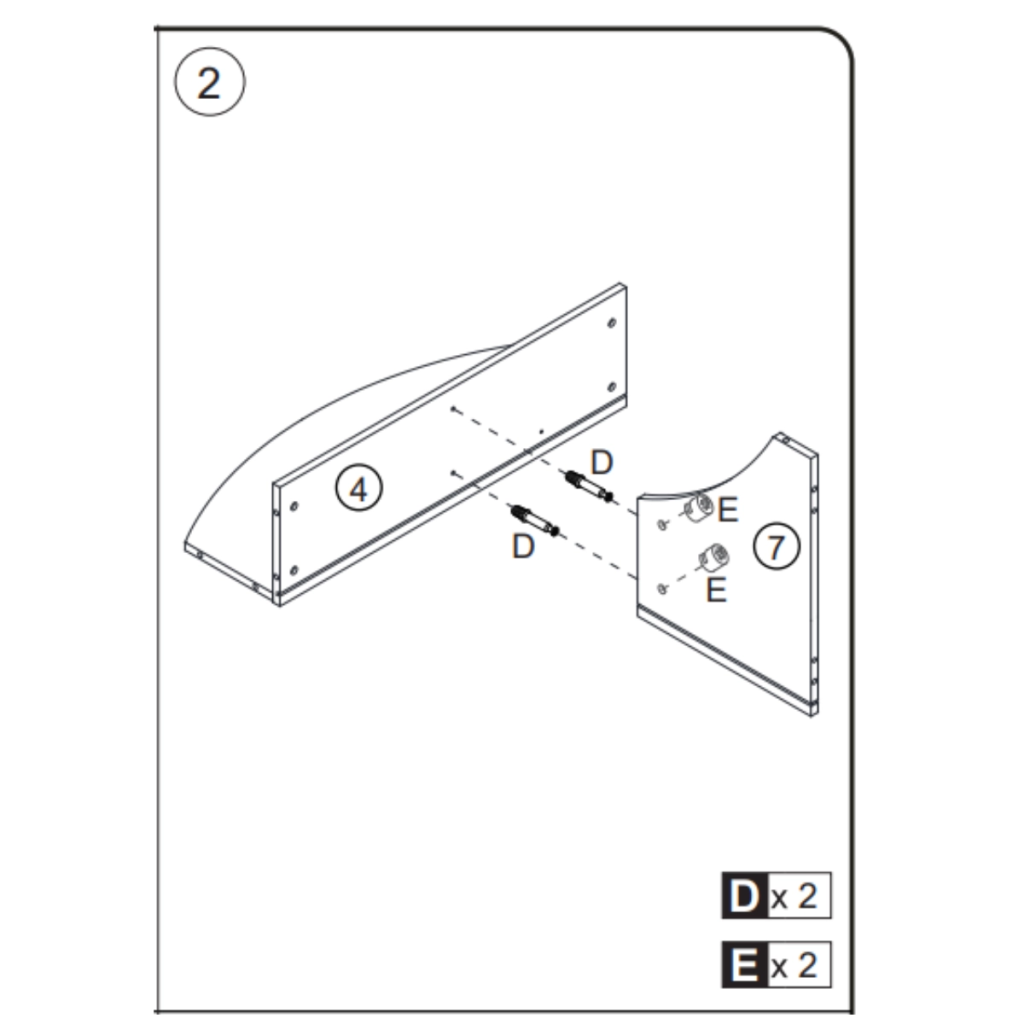

Step 2: Connect the Side Decorative Support Panel

Parts Required:
- ④ Top Shelf Panel × 1
- ⑦ Side Decorative Support Panel × 1
Hardware Used:
- D × 2 (M6 × 38 Bolts)
- E × 2 (Ø12 × 10 Dowels)
Instructions:
- Attach the side decorative support panel ⑦ to the top shelf panel ④.
- Insert two M6 × 38 bolts (D) into the pre-drilled holes on panel ④.
- Secure them into panel ⑦ using Ø12 × 10 dowels (E).
- Align both panels evenly, keeping the curved edge facing upward, and tighten securely.

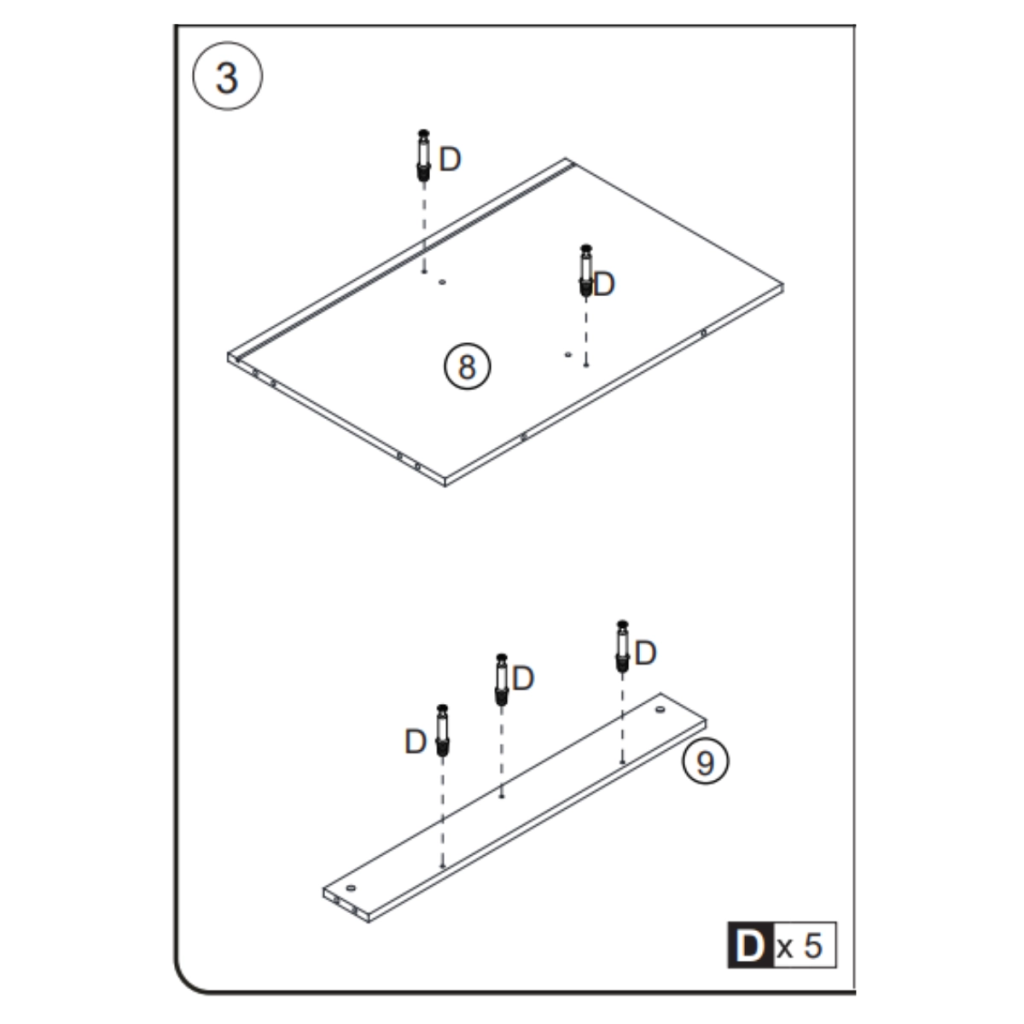

Step 3: Prepare the Bottom Panels

Parts Required:
- ⑧ Bottom Base Panel × 1
- ⑨ Front Support Rail × 1
Hardware Used:
- D × 5 (M6 × 38 Bolts)
Instructions:
- Insert M6 × 38 bolts (D) into the pre-drilled holes of both the bottom base panel (⑧) and the front support rail (⑨).
- Make sure all bolts are fully inserted but do not tighten completely yet.
- Set both pieces aside for later connection with the side panels.

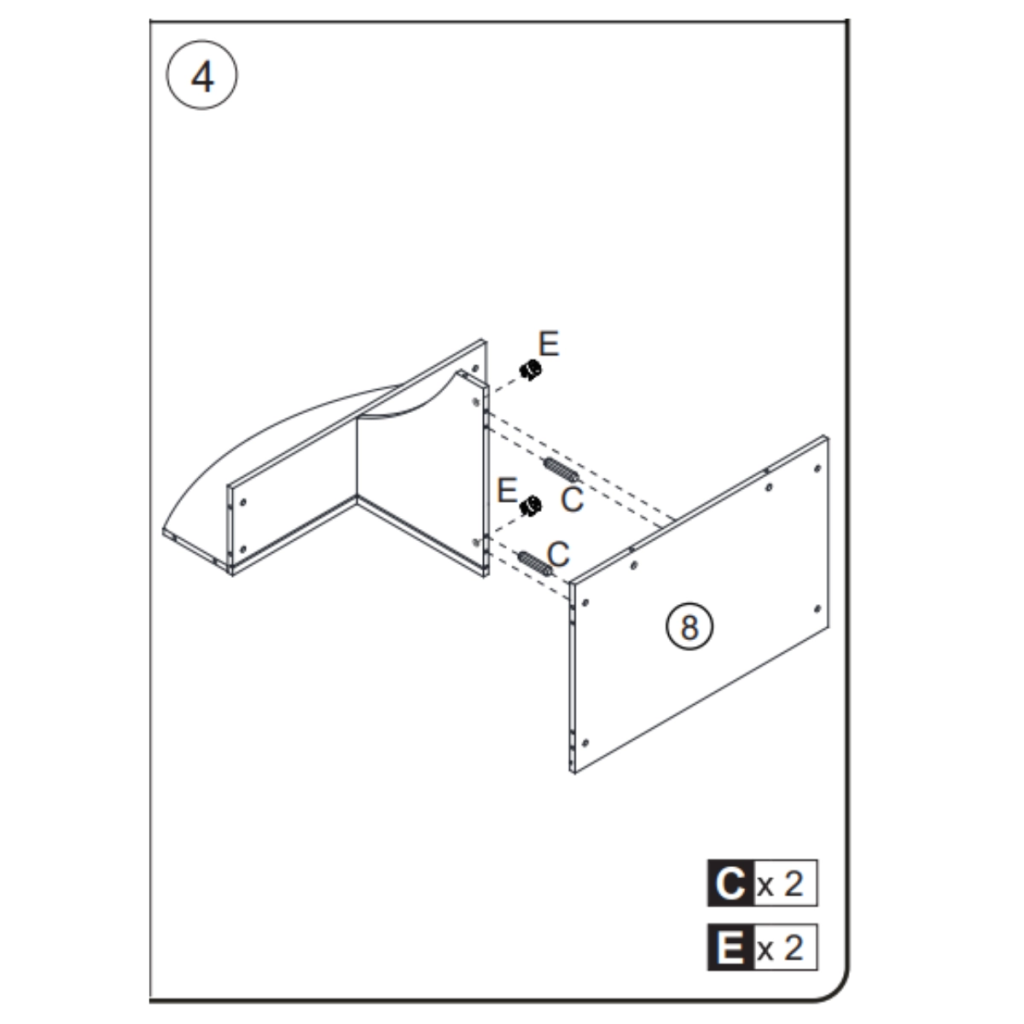

Step 4: Attach the Bottom Base Panel

Parts Required:
- ⑧ Bottom Base Panel × 1
- ④ Top Shelf Assembly (from Step 2)
Hardware Used:
- C × 2 (Ø6 × 25 Dowels)
- E × 2 (Ø12 × 10 Dowels)
Instructions:
- Align the bottom base panel ⑧ with the assembled top shelf section ④.
- Insert two Ø6 × 25 dowels (C) into the pre-drilled holes of panel ⑧, then secure them using Ø12 × 10 dowels (E) from the shelf side.
- Ensure the connection is tight and that all panels align correctly before moving to the next step.

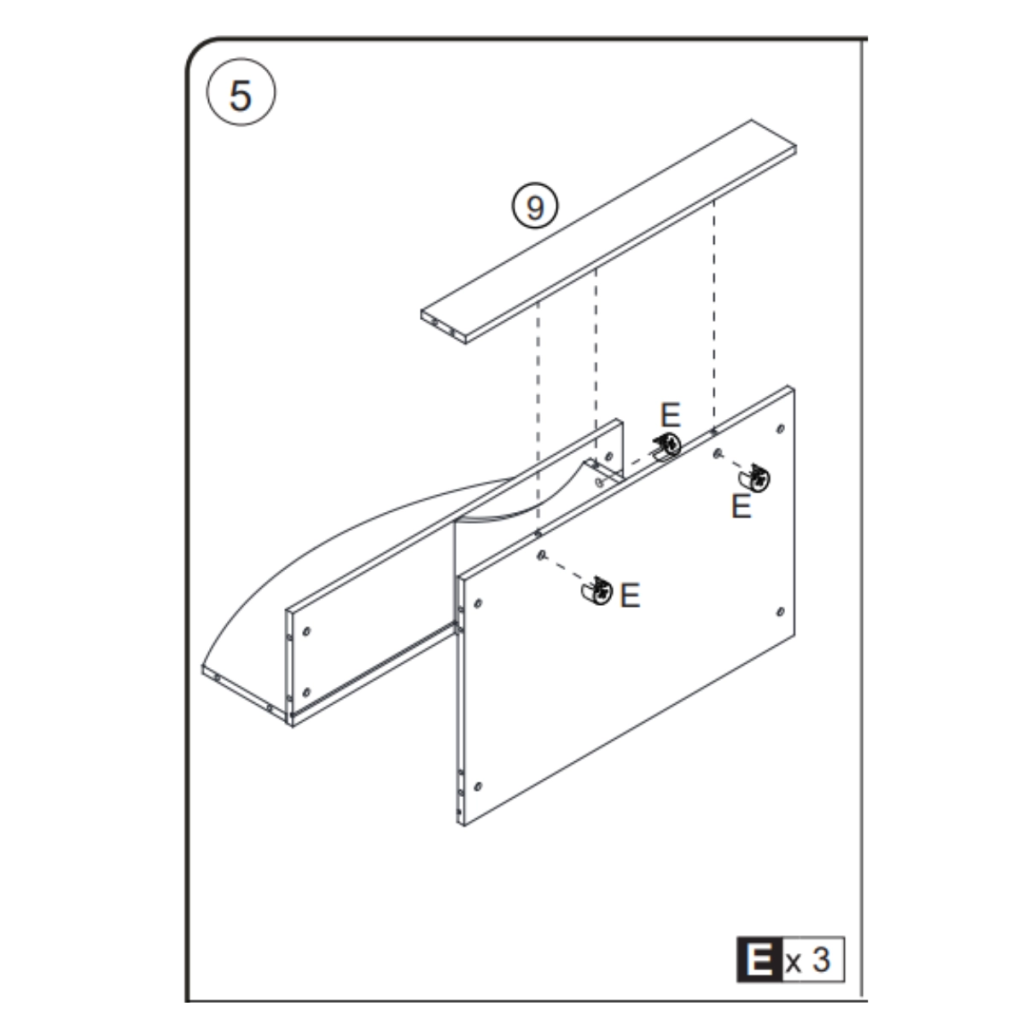

Step 5: Install the Front Support Rail

Parts Required:
- ⑨ Front Support Rail × 1
- Assembly from Step 4
Hardware Used:
- E × 3 (Ø12 × 10 Dowels)
Instructions:
- Position the front support rail ⑨ along the upper edge of the bottom base panel ⑧, aligning it with the pre-drilled holes.
- Insert three Ø12 × 10 dowels (E) through the support rail and into the connecting holes on panel ⑧.
- Ensure all dowels are securely tightened and that the front rail sits flush against the edge before proceeding to the next step.

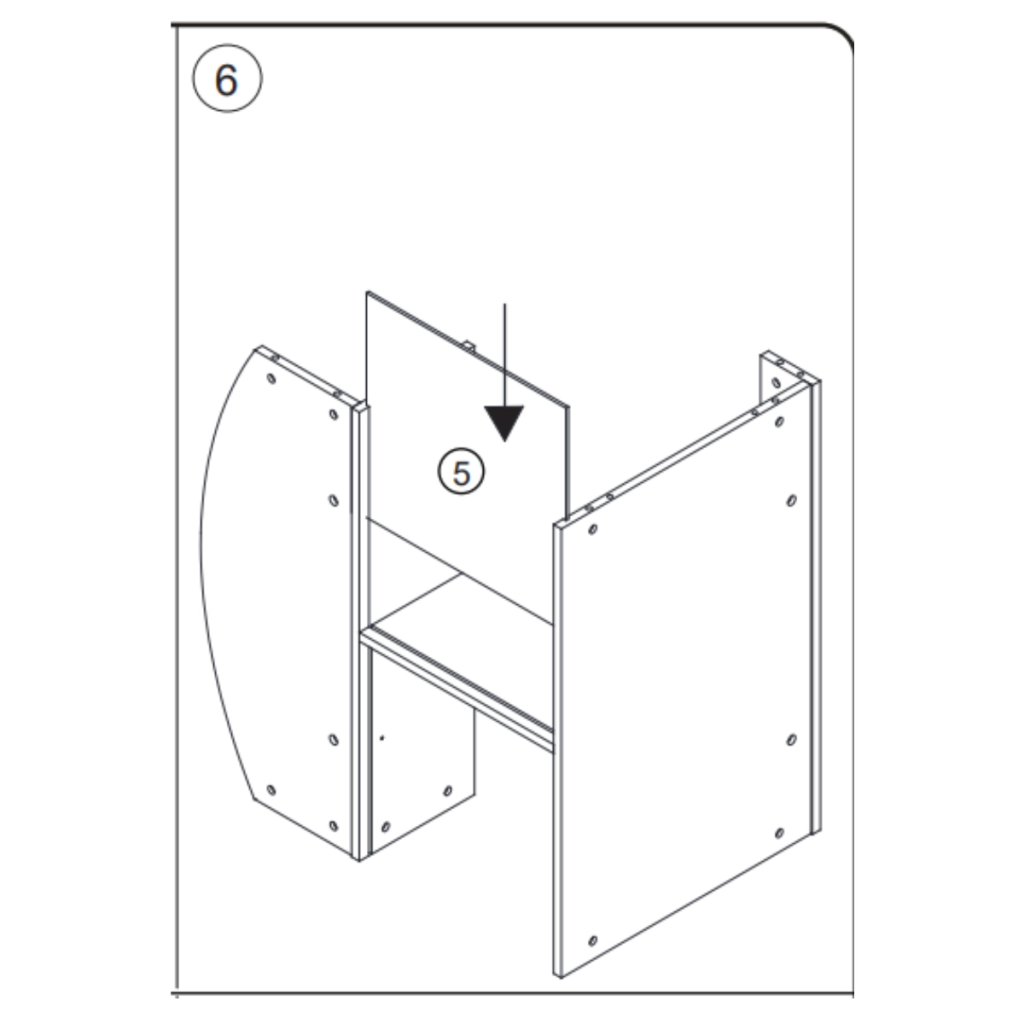

Step 6: Insert the Divider Panel

Parts Required:
- ⑤ Divider Panel × 1
- Assembly from Step 5
Instructions:
- Insert the divider panel ⑤ vertically between the two side structures.
- Align it carefully with the grooves and pre-drilled slots inside the frame.
- Ensure the panel fits snugly and stands straight to form two equal compartments for stability.

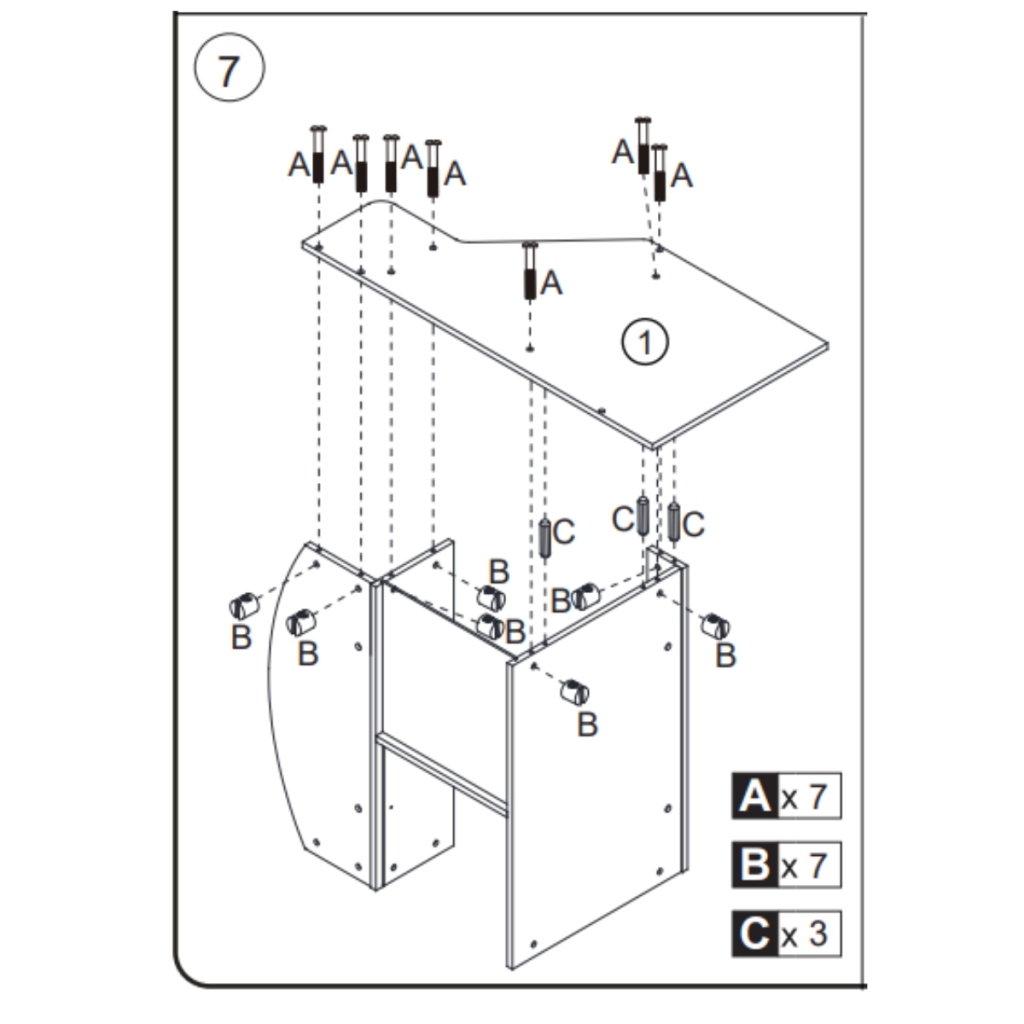

Step 7: Install the Left Side Panel

Parts Required:
- ① Left Side Panel × 1
- Assembly from Step 6
Hardware Used:
- A × 7 (M6 × 40 Bolts)
- B × 7 (Ø10 × 10 Dowels)
- C × 3 (Ø6 × 25 Dowels)
Instructions:
- Attach the left side panel ① to the assembled frame from Step 6.
- Insert Ø10 × 10 dowels (B) and Ø6 × 25 dowels (C) into the pre-drilled holes on the frame.
- Align and fasten the panel using M6 × 40 bolts (A) through the top and sides.
- Tighten all bolts evenly, ensuring the structure is flush and stable.

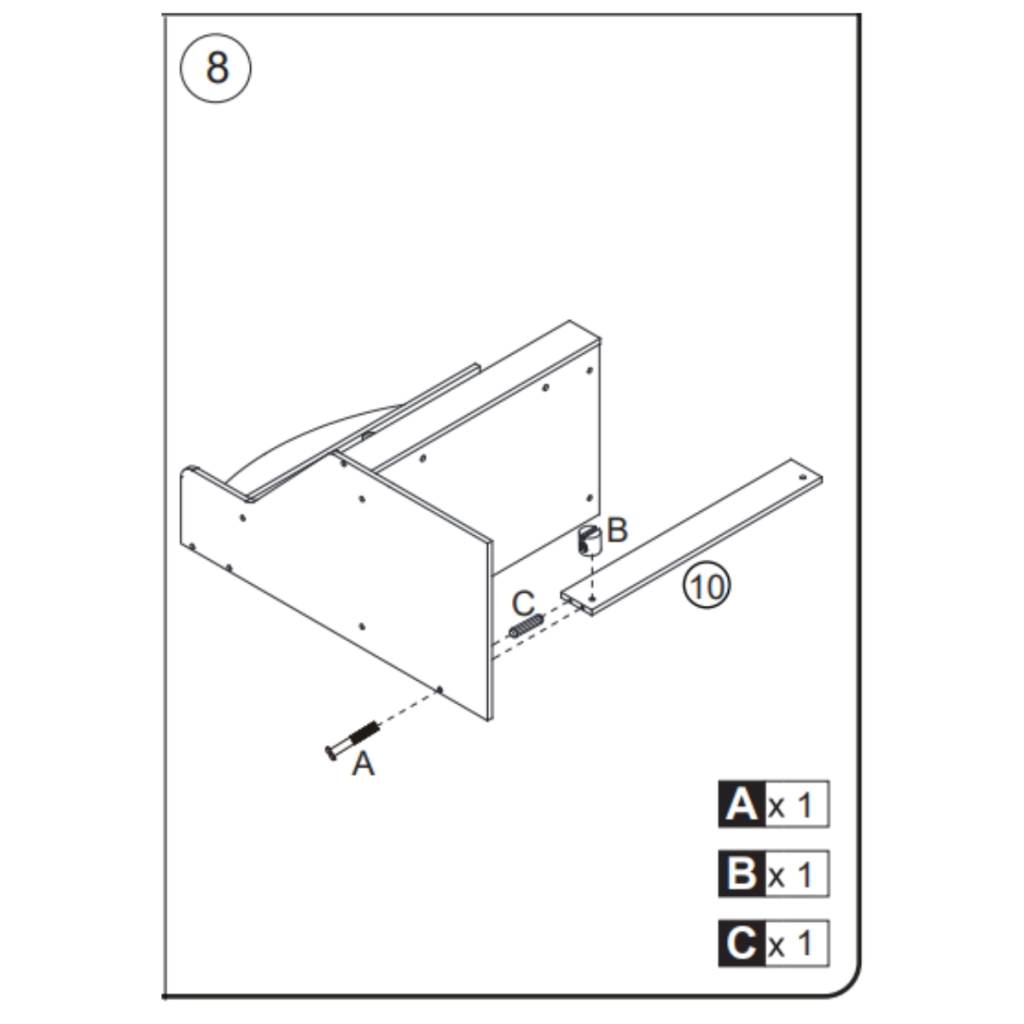

Step 8: Attach the Back Support Rail

Parts Required:
- ⑩ Back Support Rail × 1
- Assembly from Step 7
Hardware Used:
- A × 1 (M6 × 40 Bolt)
- B × 1 (Ø10 × 10 Dowel)
- C × 1 (Ø6 × 25 Dowel)
Instructions:
- Align the back support rail ⑩ with the pre-drilled holes at the rear of the frame.
- Insert one Ø10 × 10 dowel (B) and one Ø6 × 25 dowel (C) into the side panel, then secure the rail in place using one M6 × 40 bolt (A).
- Ensure the back rail is level and fully tightened for structural stability.

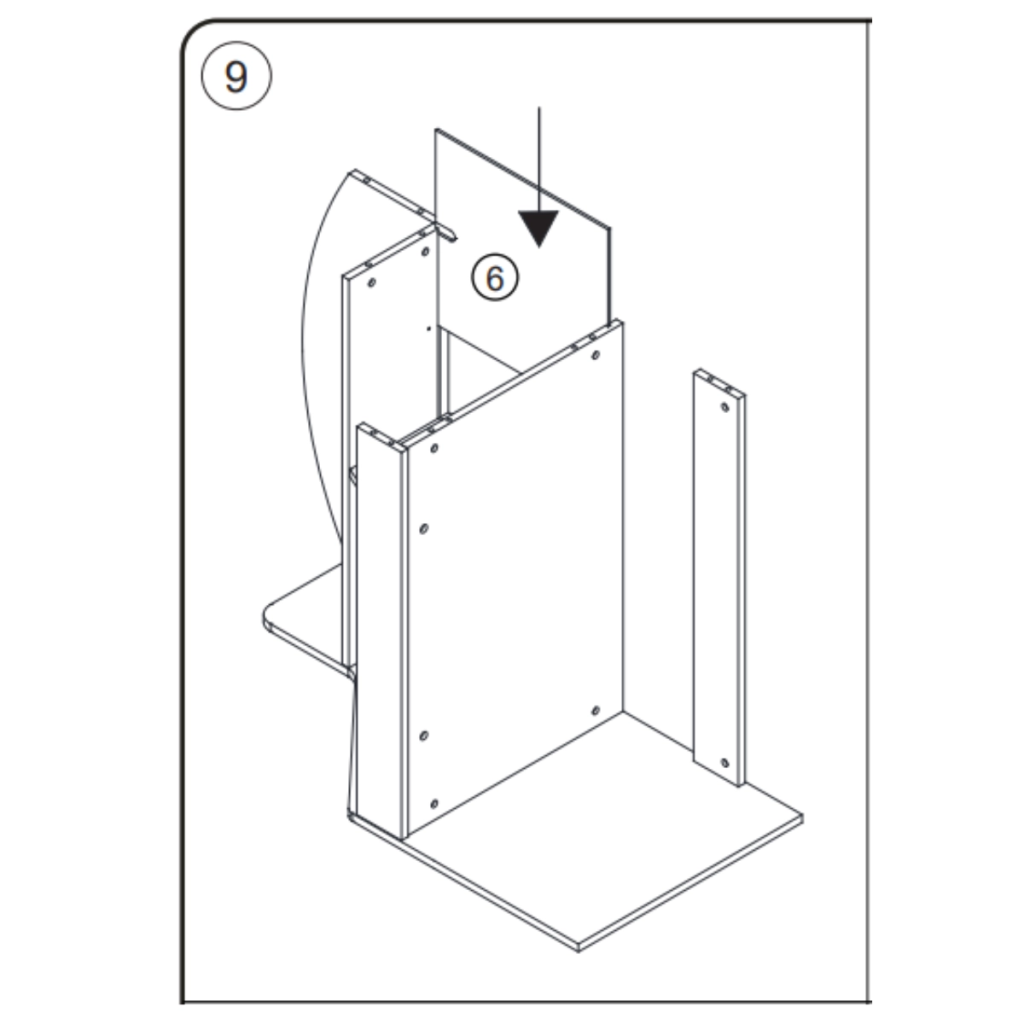

Step 9: Insert the Drawer Back Panel

Parts Required:
- ⑥ Drawer Back Panel × 1
- Assembly from Step 8
Instructions:
- Slide the drawer back panel ⑥ vertically into the designated slot behind the divider.
- Make sure it fits firmly into place and aligns with the grooves on both sides of the structure.
- This panel forms the rear wall of the drawer compartment, helping maintain proper alignment for smooth drawer operation.

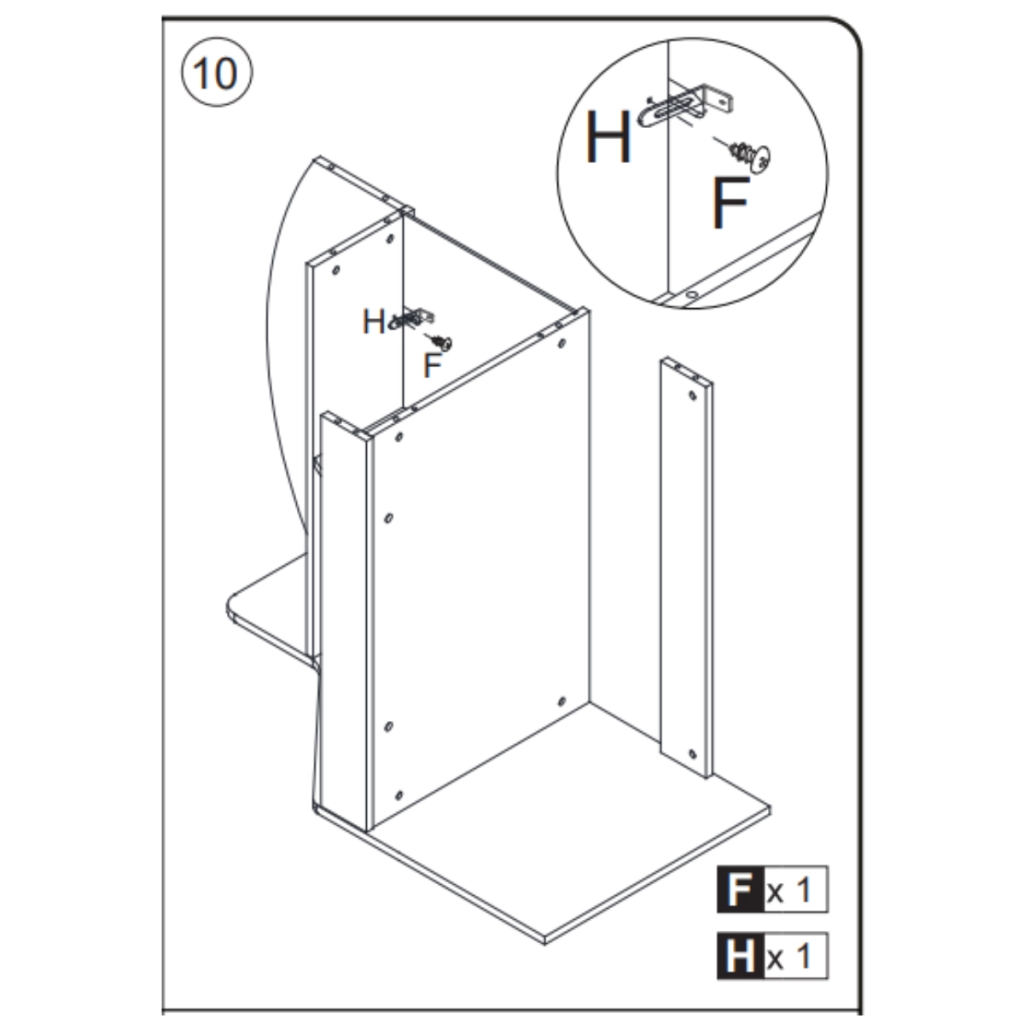

Step 10: Install the Anti-Tip Bracket

Parts Required:
- H Wall Bracket × 1
- Assembly from Step 9
Hardware Used:
- F × 1 (M4 × 10 Screw)
Instructions:
- Attach the anti-tip wall bracket (H) to the upper back section of the unit using one M4 × 10 screw (F).
- Make sure the bracket is tightly fixed to the panel.
- This bracket will later secure the bookcase to the wall for added safety and tip prevention.

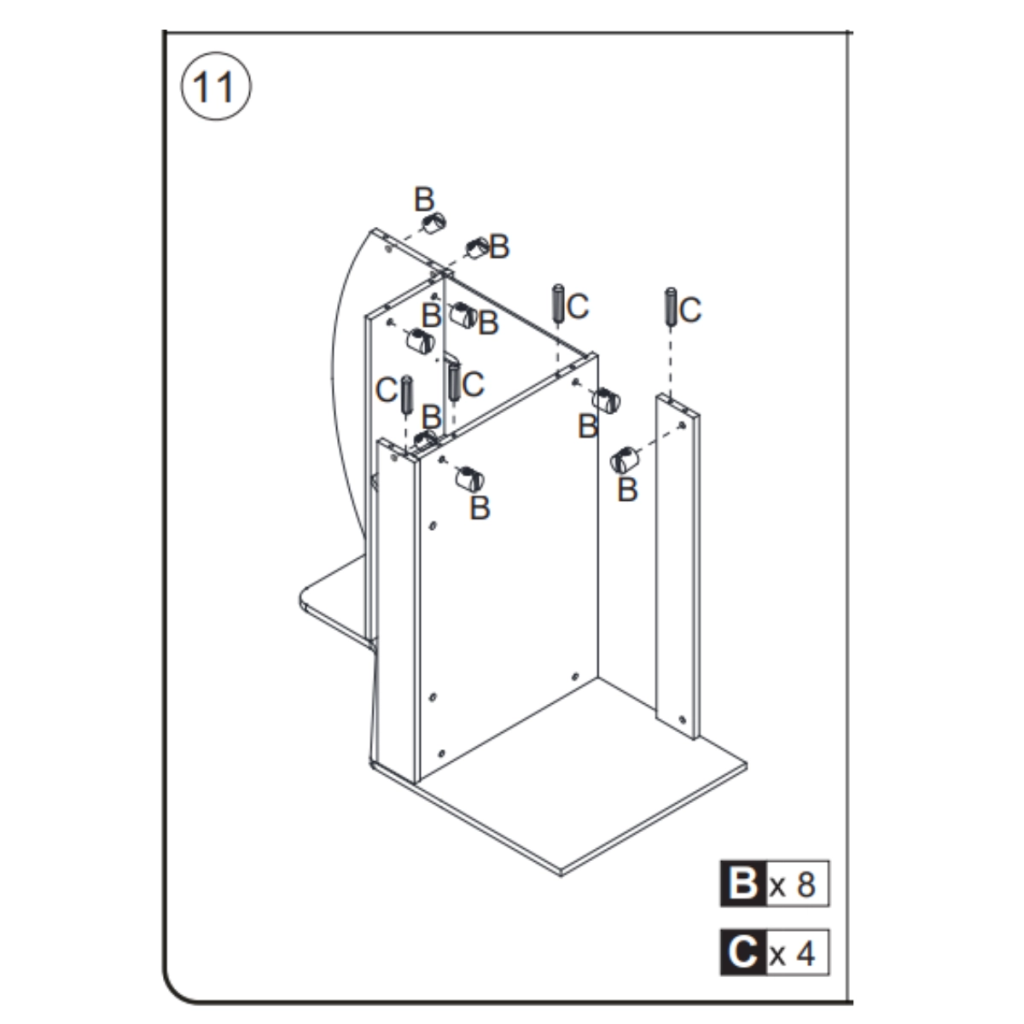

Step 11: Prepare for Right Side Panel Installation

Parts Required:
- Assembly from Step 10
Hardware Used:
- B × 8 (Ø10 × 10 Dowels)
- C × 4 (Ø6 × 25 Dowels)
Instructions:
- Insert Ø10 × 10 dowels (B) and Ø6 × 25 dowels (C) into the pre-drilled holes on the right side of the frame.
- Push each dowel in fully and ensure they are evenly aligned for a tight fit.
- These fittings will be used to connect the right side panel in Step 12.

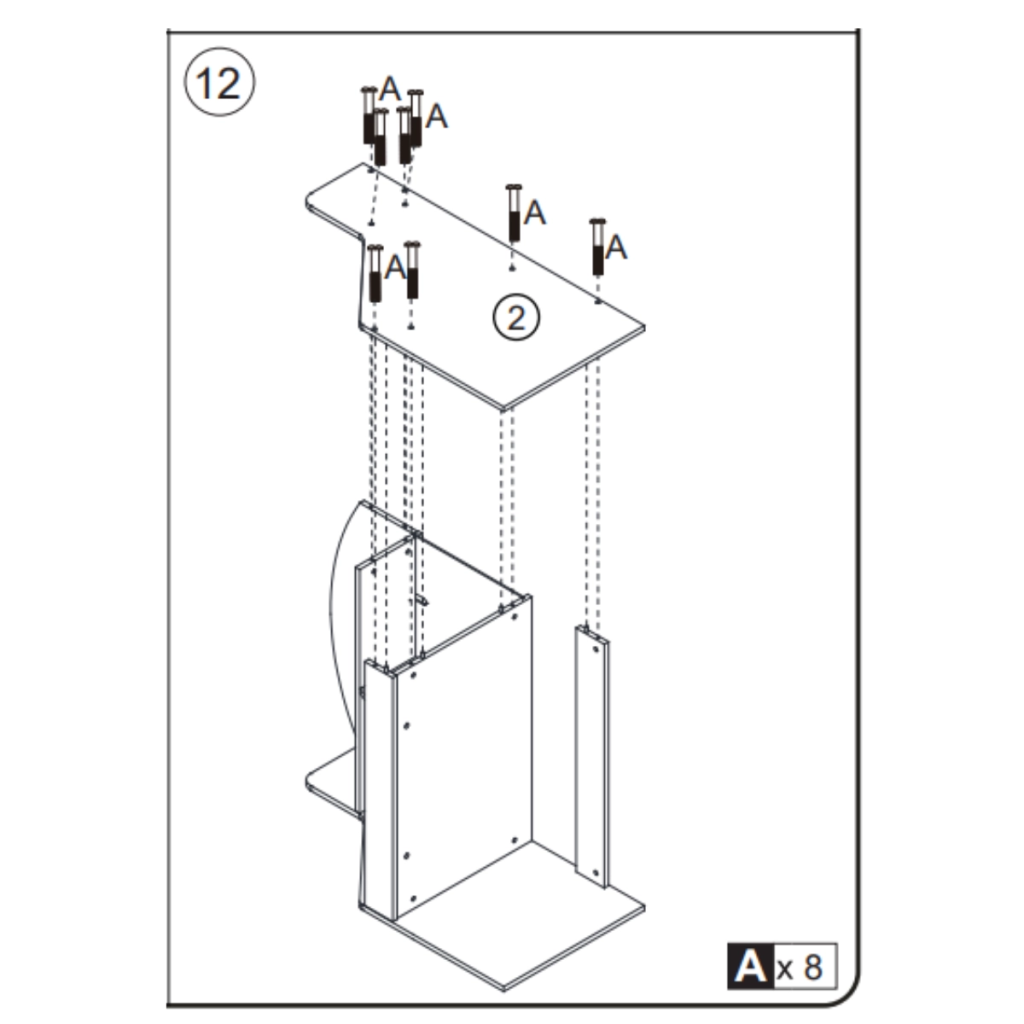

Step 12: Install the Right Side Panel

Parts Required:
- ② Right Side Panel × 1
- Assembly from Step 11
Hardware Used:
- A × 8 (M6 × 40 Bolts)
Instructions:
- Align the right side panel (②) with the dowels and pre-drilled holes on the main assembly.
- Insert eight M6 × 40 bolts (A) into the designated holes, ensuring each bolt connects securely with the dowels.
- Tighten all bolts evenly and confirm the structure is stable, straight, and flush on all sides.

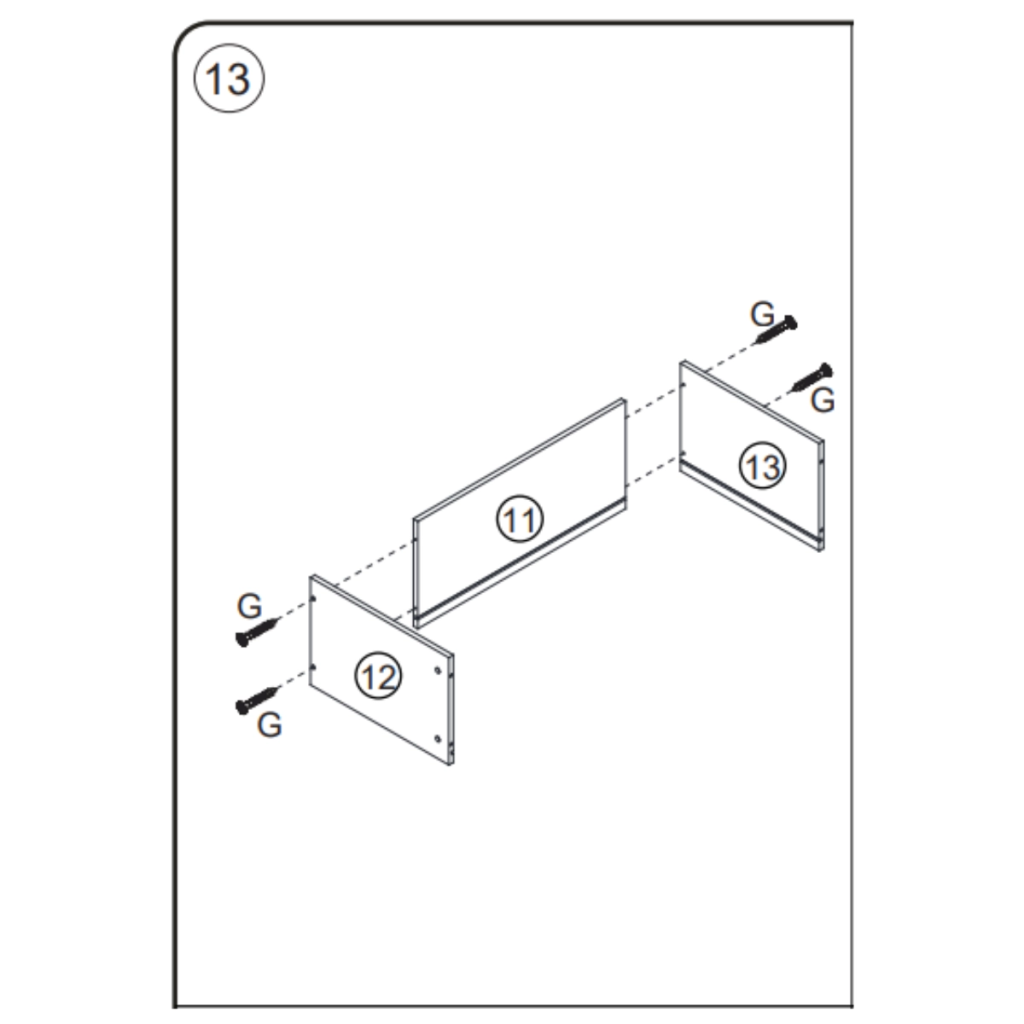

Step 13: Assemble the Drawer Frame

Parts Required:
- ⑪ Drawer Front Panel × 1
- ⑫ Drawer Left Side Panel × 1
- ⑬ Drawer Right Side Panel × 1
Hardware Used:
- G × 4 (M4 × 30 Screws)
Instructions:
- Attach the drawer front panel (⑪) to the left (⑫) and right (⑬) side panels.
- Use M4 × 30 screws (G) to secure all connections.
- Make sure smooth surfaces face outward and edges align evenly.
- Tighten all screws securely to form a sturdy drawer frame.

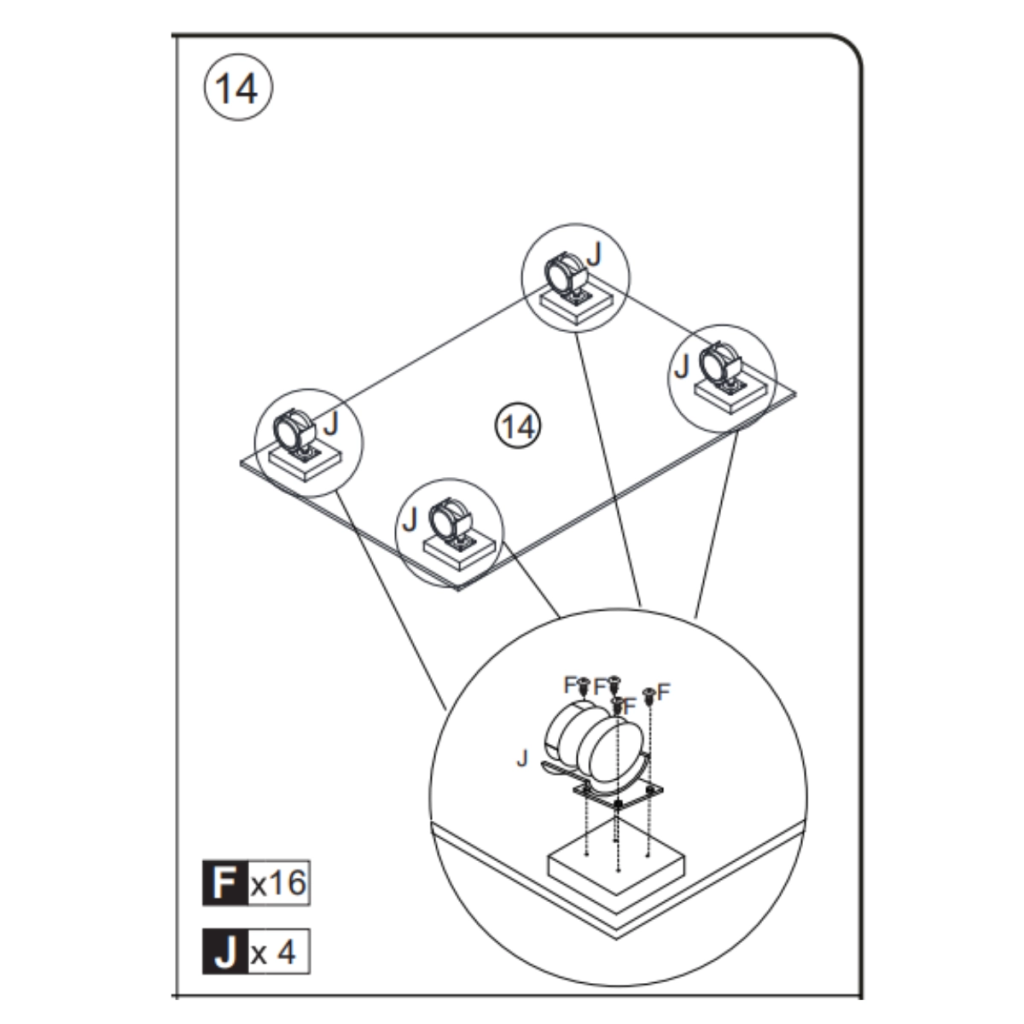

Step 14: Attach the Wheels to the Drawer Base

Parts Required:
- ⑭ Drawer Bottom Board × 1
Hardware Used:
- F × 16 (M4 × 10 Screws)
- J × 4 (Wheel Assemblies)
Instructions:
- Place the drawer bottom board ⑭ upside down on a soft surface.
- Position the four wheel assemblies (J) near each corner as shown.
- Fasten each wheel with four M4 × 10 screws (F).
- Tighten all screws firmly and check that each wheel rotates smoothly.

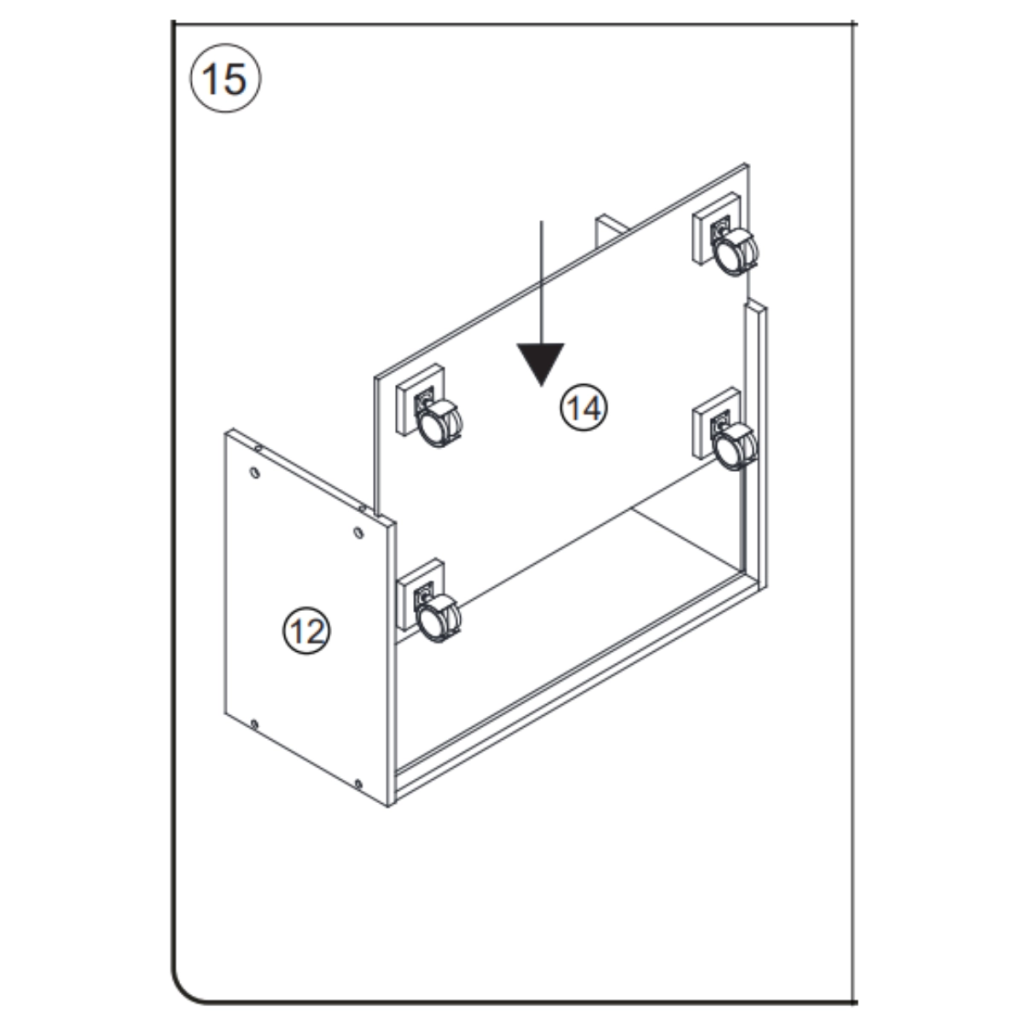

Step 15: Install the Drawer Bottom

Parts Required:
- ⑭ Drawer Bottom Board (with wheels attached) × 1
- Assembly from Step 13
Instructions:
- Insert the drawer bottom board ⑭ into the drawer frame assembled in Step 13.
- Align the panel edges with the grooves on the left ⑫ and right ⑬ side panels.
- Slide the board fully in until it rests firmly at the base.
- Check that all four wheels are aligned correctly and roll smoothly.

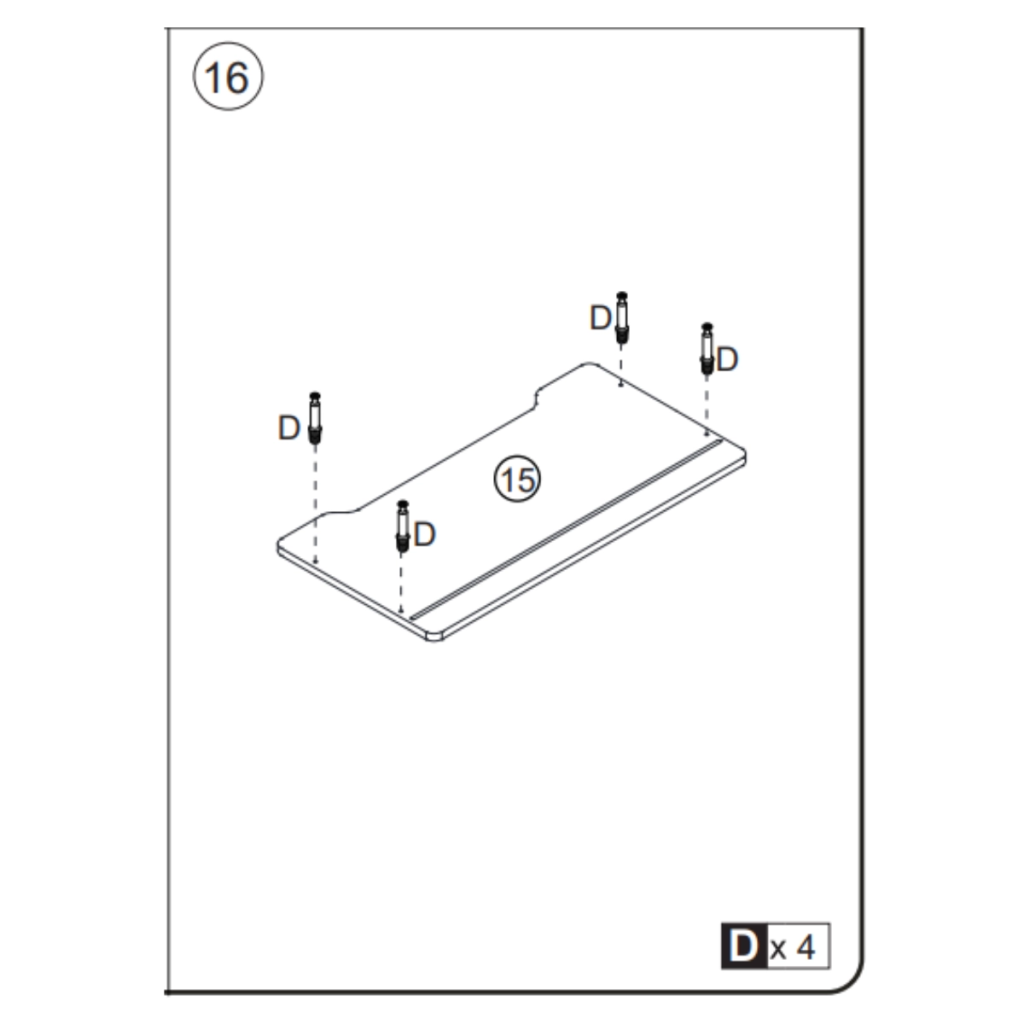

Step 16: Prepare the Drawer Back Panel

Parts Required:
- ⑮ Drawer Back Panel × 1
Hardware Used:
- D × 4 (M6 × 38 Bolts)
Instructions:
- Insert four M6 × 38 bolts (D) into the pre-drilled holes on the drawer back panel (⑮).
- Keep each bolt straight and tighten securely without over-tightening.
- Set this prepared panel aside for attachment in the next step.

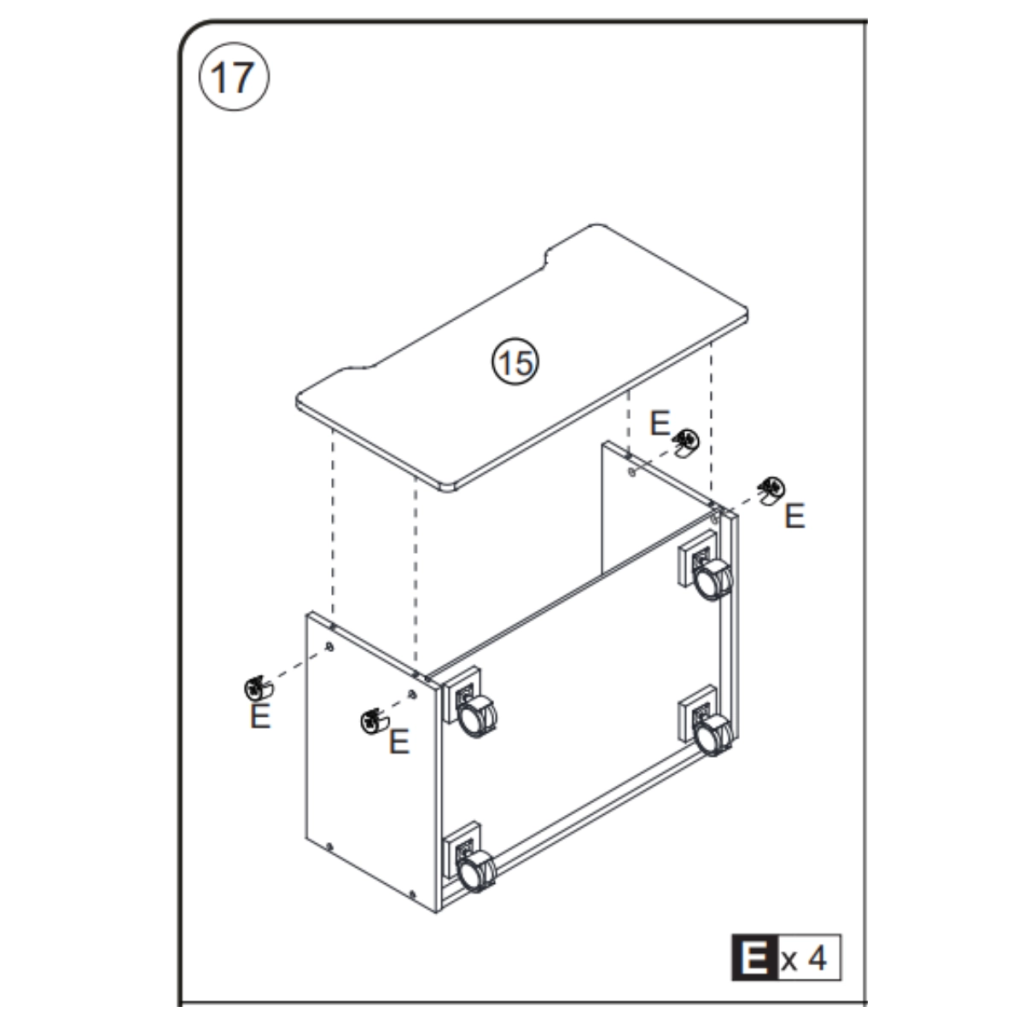

Step 17: Attach the Drawer Back Panel

Parts Required:
- ⑮ Drawer Back Panel × 1
- Assembly from Step 15
Hardware Used:
- E × 4 (Ø12 × 10 Dowels)
Instructions:
- Align the drawer back panel (⑮) with the rear edges of the drawer sides (⑫, ⑬) and drawer bottom (⑭).
- Insert four Ø12 × 10 dowels (E) into the pre-drilled holes.
- Tighten all dowels evenly and ensure the drawer frame is square with flush edges.

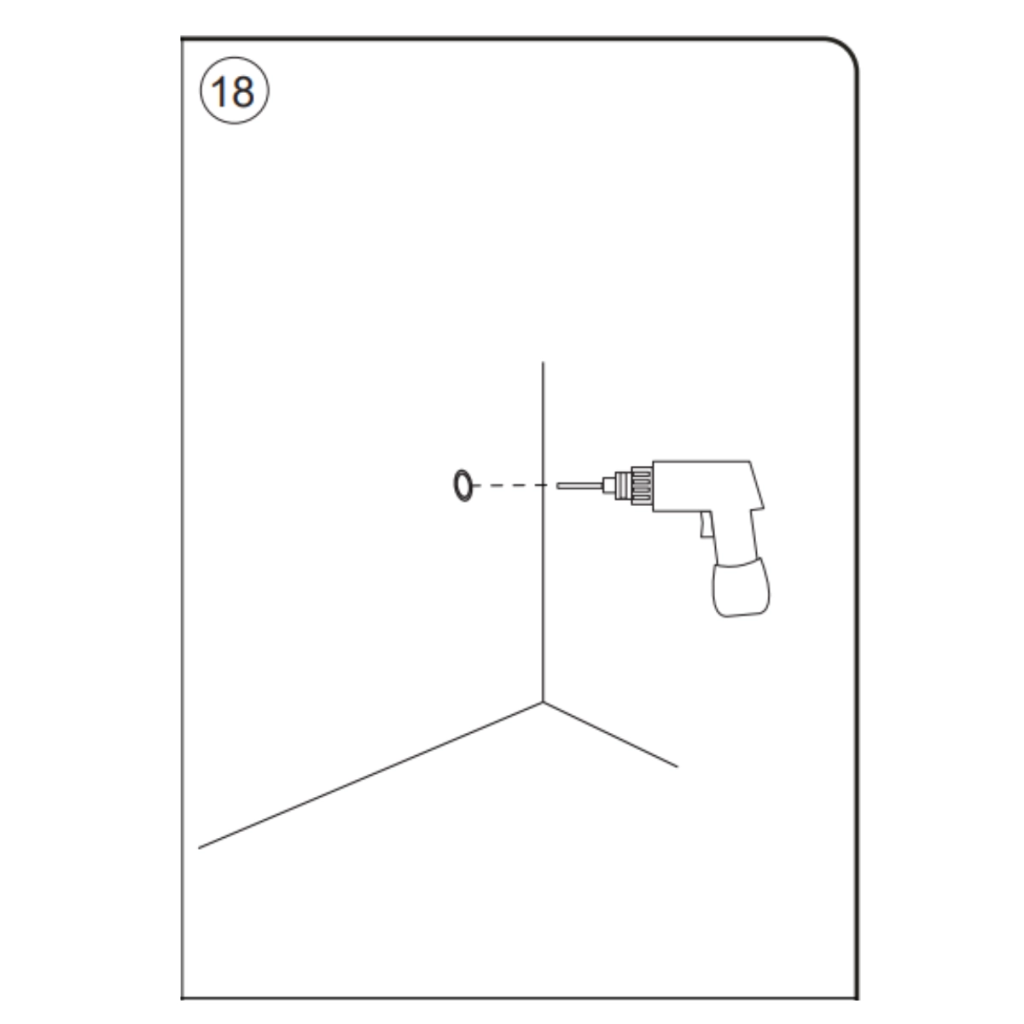

Step 18: Prepare Wall Mounting Point

Instructions:
- Choose a suitable spot on the wall behind where the bookcase will stand.
- Using a power drill, make a small pilot hole at the correct height for the anti-tip bracket (installed in Step 10).
- Ensure the hole is straight and drilled into a solid surface or wall stud for secure anchoring.
- This step prepares for attaching the anti-tip strap to keep the unit stable and prevent tipping.

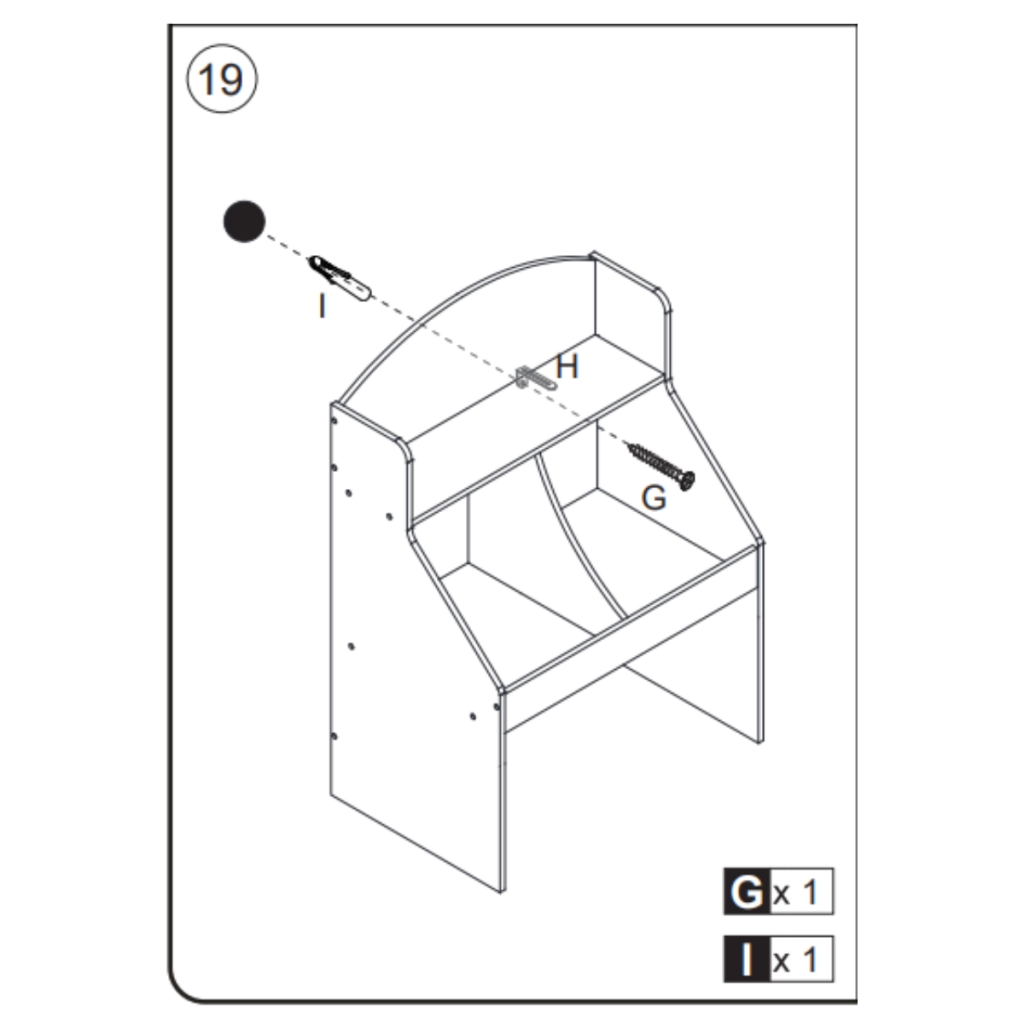

Step 19: Secure the Bookcase to the Wall

Parts Required:
- Assembly from Step 18
Hardware Used:
- G × 1 (M4 × 30 Screw)
- I × 1 (Anti-Tip Strap)
Instructions:
- Insert the anti-tip strap (I) into the pilot hole prepared in Step 18.
- Fix the strap to the wall using one M4 × 30 screw (G).
- Attach the opposite end of the strap to the anti-tip bracket (H) on the back of the bookcase.
- Pull the strap tight and check that it is firmly secured to prevent tipping or movement.

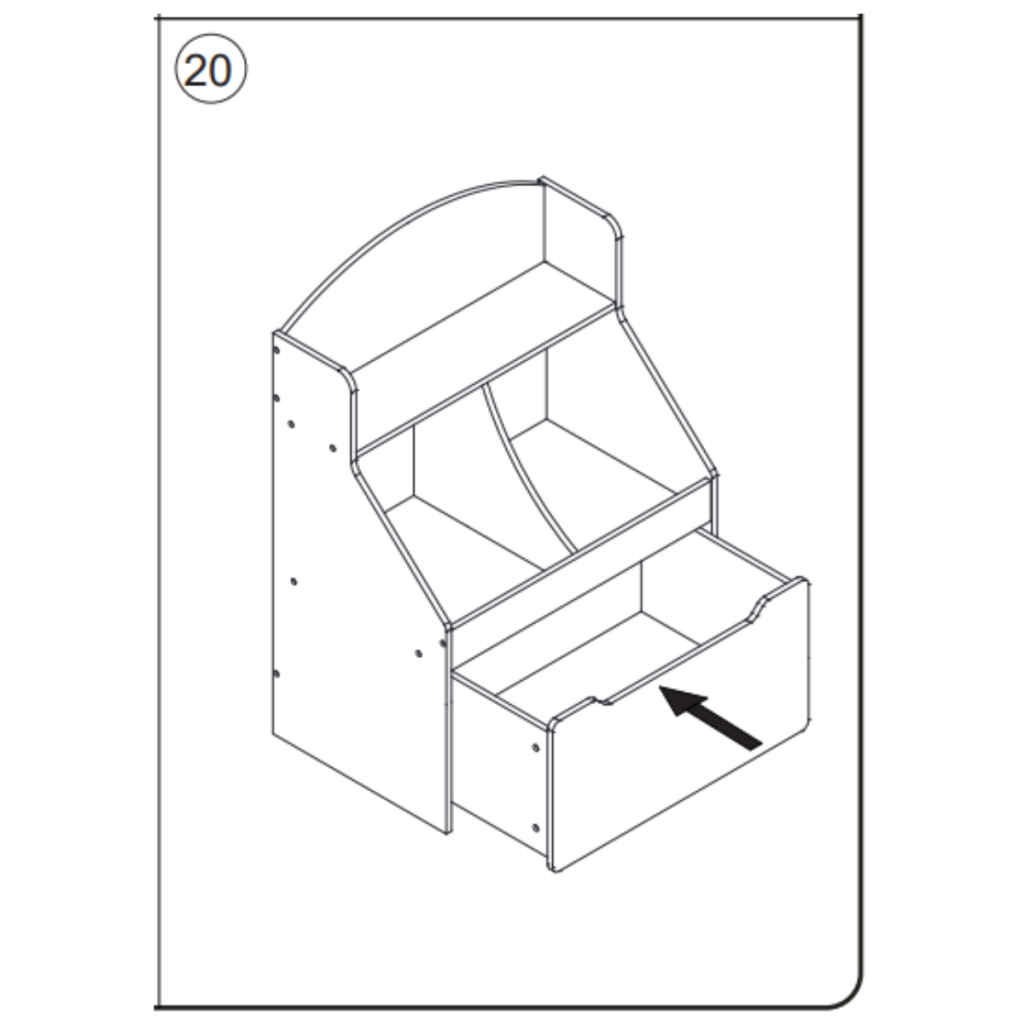

Step 20: Insert the Drawer

Parts Required:
- Completed Drawer Assembly (from Step 17)
- Main Bookcase Frame (from Step 19)
Instructions:
- Carefully slide the completed drawer into the lower compartment of the bookcase.
- Make sure all four wheels align properly and roll smoothly along the base.
- Push the drawer fully inward until it sits flush with the front edge.
- Check that the unit is stable and all connections are tight before use.
Assembly Complete
Your Qaba 3-Tier Kids Bookcase with Drawer (SKU: 311-071V80WT) is now ready to use!
Maintenance Tips
- Please wipe the surface regularly with half dry rag, when necessary, please use gentle soapy cleanser. Don’t clean it with a strong cleanser.
- Be sure to keep the product away from sharp objects to prevent scratches or damage.
- Please put the product in a cool and dry place and cover it with clean cloth or blanket (do not use plastic) if it is not used for a long time.
User Guide
Download the Qaba 3-Tier Kids Bookcase with Drawer Manual – SKU: 311-071V80WT PDF for your reference.
FAQs
1. Why does the drawer not slide smoothly?
If the drawer doesn’t move easily, check that all wheels are properly installed and tightened. Make sure the floor surface is even and free from obstructions. Lightly lubricate the wheel joints if they feel stiff or squeaky to restore smooth movement.
2. What should I do if the bookcase feels unstable after assembly?
Ensure all screws, bolts, and dowels are fully tightened and that each panel is securely in place. Place the bookcase on a flat, stable surface for proper balance. For extra stability, always attach the anti-tip strap to the wall as instructed.
3. How can I fix misaligned panels or gaps between joints?
If any panels appear uneven or slightly separated, loosen the nearby screws slightly, realign the pieces, and retighten them evenly. Avoid overtightening one side at a time to maintain proper balance. Also, check that dowels are inserted cleanly without debris inside the holes.
4. What if I’m missing a screw or hardware piece?
Refer to the hardware list in your manual to identify the missing part number. Contact Aosom customer service and provide your product SKU (311-071V80WT). They will assist you by sending the correct replacement parts for safe assembly completion.
5. How do I clean tough stains without damaging the surface?
Use a soft cloth with mild soap and warm water to gently remove stains. Avoid strong chemical cleaners, alcohol-based solutions, or rough pads, as these can damage the painted finish. Always dry the surface thoroughly to prevent moisture from affecting the wood.
