A clothes dryer is one of the most commonly used household appliances, yet most people don’t fully understand how it works. While the goal is simple, to dry your laundry, the technology behind it is far more intricate.

Whether you’re trying to troubleshoot an issue, purchase a new unit, or simply understand what happens during each cycle, this in-depth guide will walk you through the full process of how a cloth dryer works, broken down step by step.

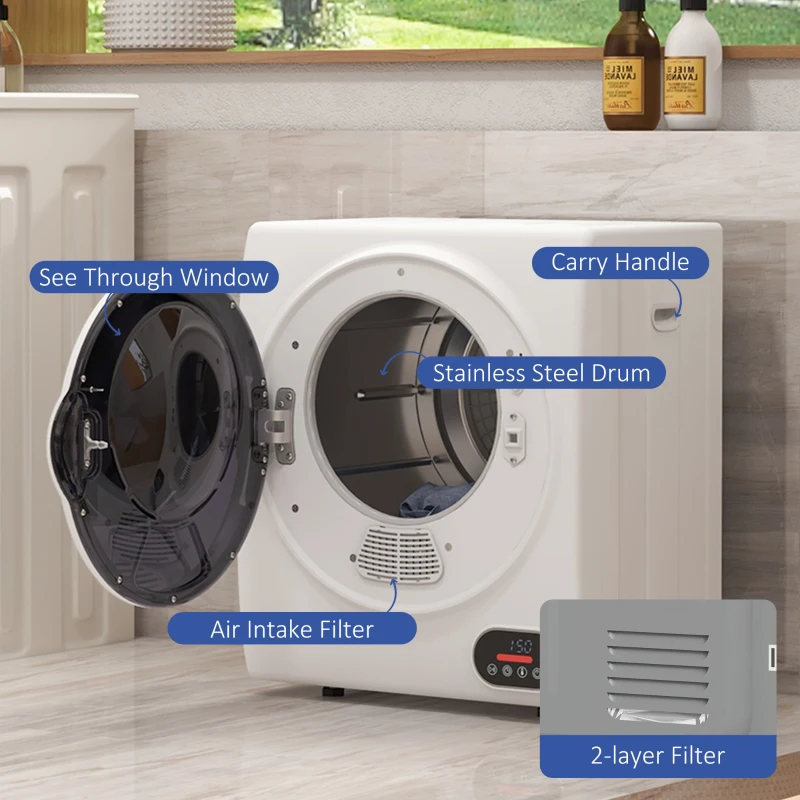

1. What Happens Inside a Dryer: The Drying Process Explained

At its core, a clothes dryer removes moisture from fabric using a combination of heat, airflow, and motion. Once you load wet laundry and start the cycle, the machine goes to work heating the air, circulating it through the spinning drum, and venting or collecting the moisture that evaporates from the clothes.

Here’s what happens in simple terms:

Step	Action
Heating	Air is warmed by electric or gas heat source
Tumbling	Clothes are spun inside the drum
Circulation	Hot air passes over wet clothes
Evaporation	Water turns to vapour and leaves the fabric
Exhaust/Collection	Moisture is vented or condensed

Helpful Tip: Always leave space in the drum, overloading can reduce airflow and leave clothes damp.

2. How Moisture Is Removed from Clothes in a Dryer

Moisture doesn’t just vanish, it’s transformed. When heated air moves through the drum, it absorbs the moisture in the fabric. The drum rotates, helping to expose all clothing evenly. The warm air picks up the moisture, and that humid air is either pushed out through a vent or captured through a condenser system, depending on your dryer type.

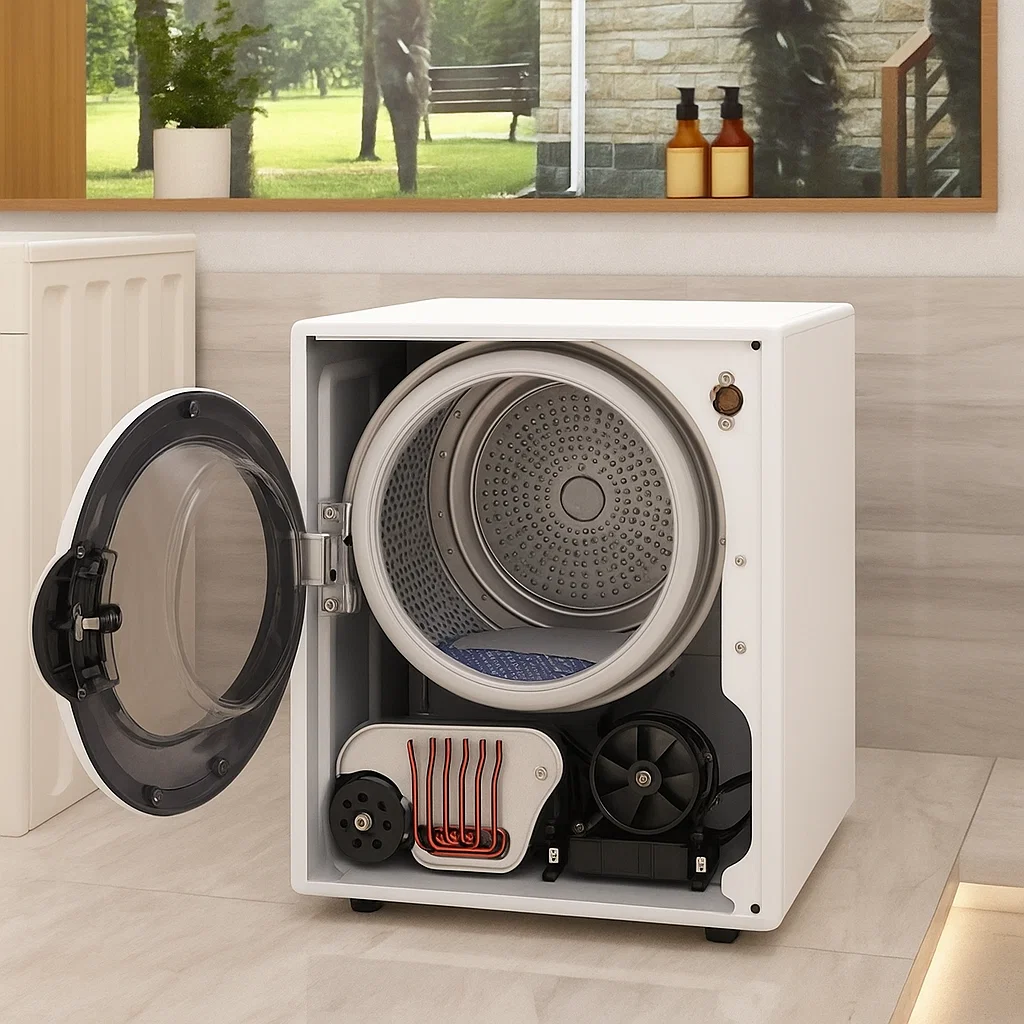

3. Key Components That Make a Dryer Work

Let’s break down the essential parts inside a dryer and what each one does:

Component	Purpose
Drum	Holds and tumbles the clothes
Drive Motor	Rotates the drum and powers the fan
Heating Element	Heats the air (electric coil or gas burner)
Blower Fan	Circulates the heated air throughout the drum
Thermostat/Fuse	Controls and limits temperature to prevent overheating
Moisture Sensors	Detect when clothes are dry and stop the cycle

Helpful Tip: If your dryer stops mid-cycle or overheats, it may be due to a faulty thermostat or fuse.

4. How Electric and Gas Dryers Generate Heat

Dryers can be powered by either electricity or gas, but both follow a similar concept: they heat air and push it through wet laundry. Here’s how each works:

Electric Dryers:

• Use electric resistance coils to generate heat.
• The coils heat up when electric current passes through them.
• Air is drawn over these coils and then blown into the drum.

Gas Dryers:

• Use a gas burner and igniter to produce heat.
• The gas valve opens and ignites a flame.
• A heat exchanger warms the air that’s blown into the drum.

Feature	Electric Dryer	Gas Dryer
Heat Source	Electric heating coil	Gas burner + igniter
Operating Cost	Usually higher	Lower if natural gas is available
Installation	Easier (only needs outlet)	Needs gas hookup & venting

Helpful Tip: If you’re in an area with lower gas prices, gas dryers are often more energy-efficient over time.

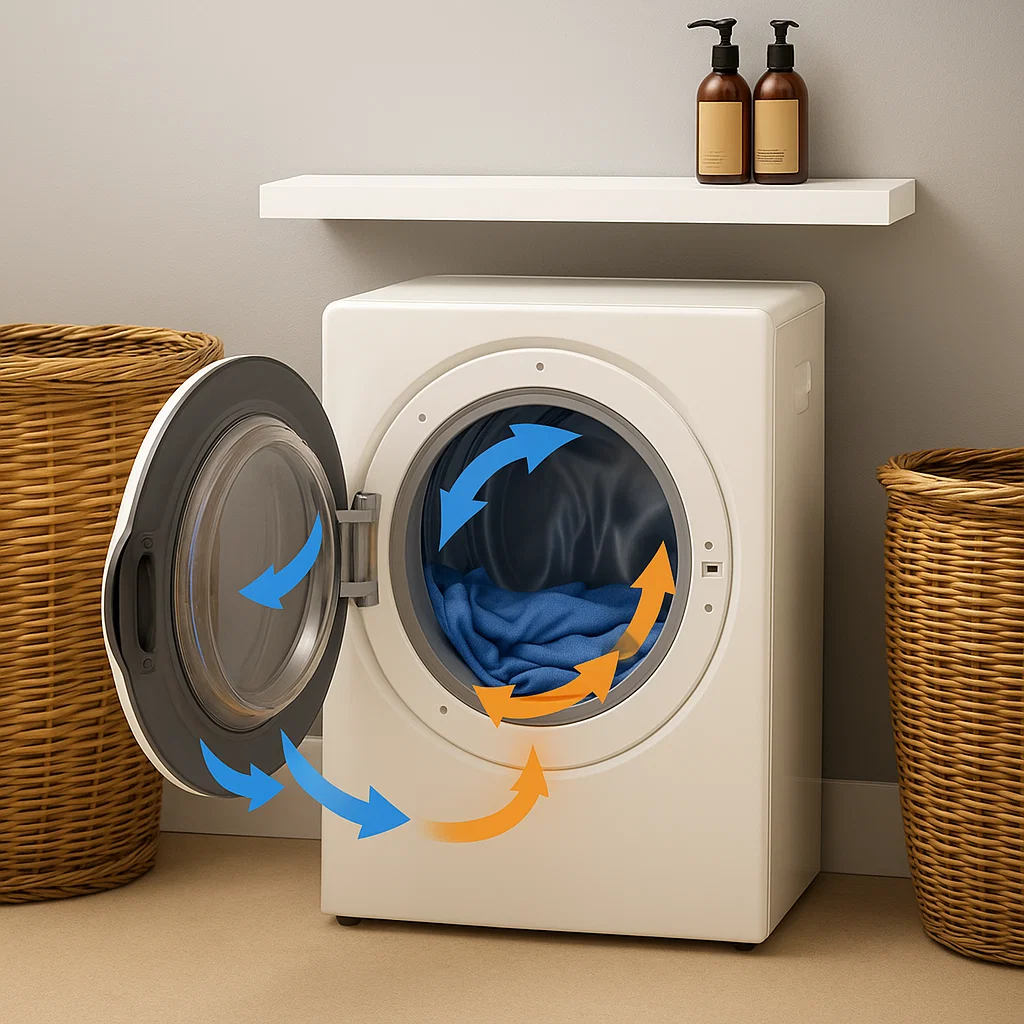

5. Air Circulation and Ventilation: The Role of Airflow in Drying

Airflow is a critical part of drying. Without good airflow, heat can build up and moisture won’t be effectively removed. The blower fan draws in air, sends it through the heating element, and then pushes that warm air into the drum. After it moves through the damp laundry, the air, now full of water vapour, is vented out or sent to a condenser.

This cycle repeats constantly, creating a steady stream of warm, dry air while removing moist air.

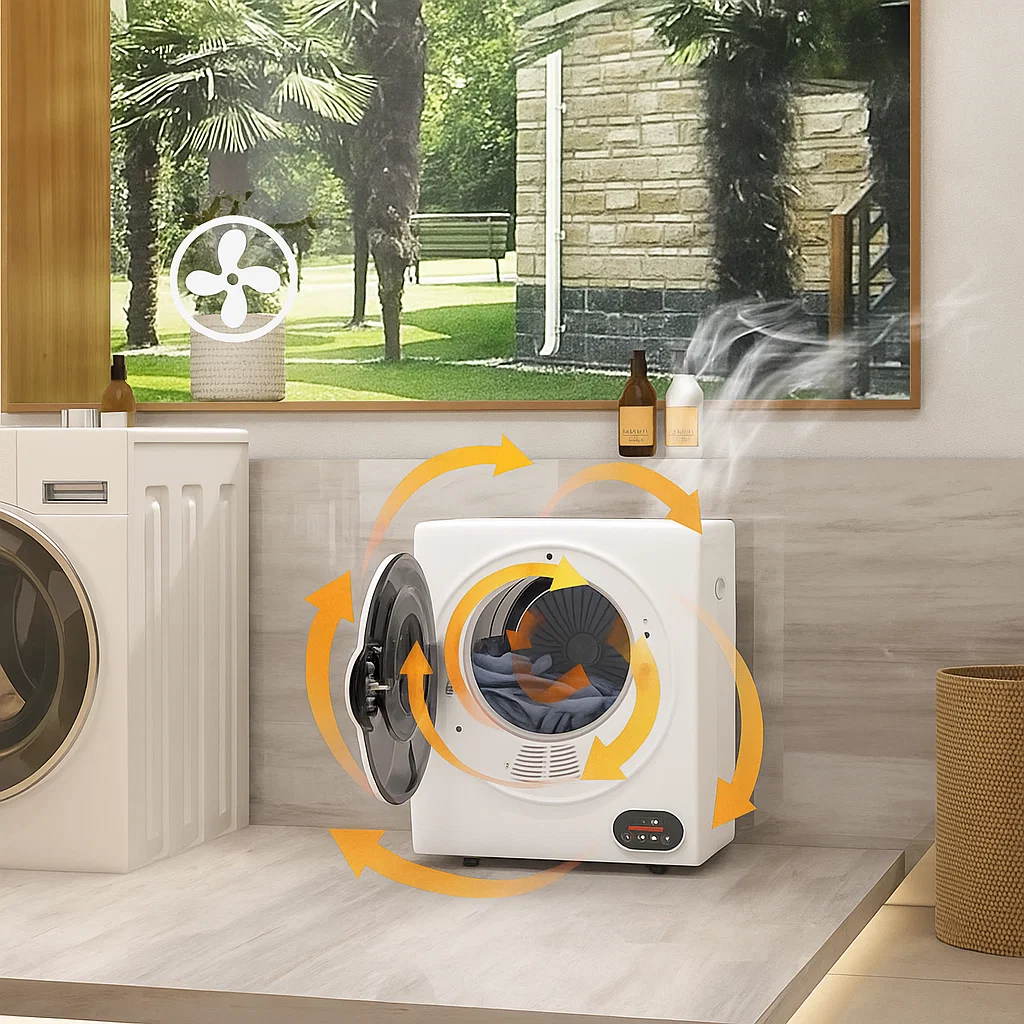

6. How Moisture Leaves the Dryer: Exhaust, Drainage, or Collection

How the dryer deals with moisture depends on the type of machine you have. Here’s how different systems work:

Dryer Type	Moisture Handling Method
Vented	Moist air is expelled outdoors through a vent pipe
Condenser	Moist air is cooled; water is collected in a tank
Heat Pump	Moisture is condensed and reused for efficiency

Helpful Tip: Always empty the condenser tank in non-vented models after each cycle to keep performance high.

7. Sensor Drying vs Timed Drying: What’s the Difference?

Most modern dryers come with both sensor and timed drying options.

• Sensor Drying: Built-in sensors detect moisture levels and end the cycle when clothes are dry.
• Timed Drying: You manually set a drying time, regardless of actual moisture levels.

Feature	Sensor Drying	Timed Drying
Efficiency	More energy-efficient	Less efficient
Convenience	Automatic shutoff	Manual timing required
Risk of Overdrying	Low	Higher

Helpful Tip: Use sensor drying for mixed loads and timed drying only when specific time is needed (e.g. fluffing).

8. Step-by-Step Breakdown of the Dryer Cycle

Here’s what typically happens during a full dryer cycle:

1. Start-Up: Power is activated; motor starts the drum rotation and fan.
2. Heating and Tumbling: Air is heated and circulated; drum rotates clothes.
3. Moisture Detection: Sensors monitor dampness levels.
4. Cool-Down Phase: Heat turns off, but tumbling continues with cooler air.
5. Cycle Completion: Once moisture is gone, the dryer stops.

This sequence ensures that clothes aren’t over-dried or damaged by prolonged heat exposure.

9. Types of Clothes Dryers and How Each One Works

Each dryer type operates with unique internal mechanics:

Dryer Type	How It Works
Vented	Uses heat and vents humid air outside the home
Condenser	Converts vapour to water and stores it in a tank
Heat Pump	Extracts moisture and reuses warm air for high-efficiency drying

Helpful Tip: Heat pump dryers take a bit longer to dry but use much less energy, making them ideal for long-term savings.

10. How Power and Electronics Control Dryer Function

Dryers today are controlled by electronic panels and sensors. The control board sends power signals in a sequence:

1. Power to the motor to rotate the drum.
2. Activation of the heating system.
3. Blower fan starts airflow.
4. Sensors monitor moisture and temperature.
5. Cool-down and shut-off mechanisms engage.

This sequence ensures safety and performance are maintained throughout the drying cycle.

11. Common Dryer Issues Related to How It Works

Understanding the inner workings helps you spot common problems:

Issue	Possible Cause
Clothes not drying	Clogged vent, weak heat, overloaded drum
Dryer not heating	Failed heating element, broken fuse or thermostat
Noisy operation	Worn drum rollers, faulty motor belt
Cycle stops early	Sensor issue, power interruption

Helpful Tip: Clean your lint filter after every load, blocked filters are the most common cause of poor performance.

Knowing how a cloth dryer works not only helps you get the most out of each drying cycle, it also empowers you to troubleshoot issues, choose the right model, and maintain your appliance for long-term performance. From understanding how heat, airflow, and motion interact to exploring the differences between vented, condenser, and heat pump models, you now have a complete picture of what goes on inside the drum.

Whether you’re shopping for new Dryer Machines or simply looking to improve how you use your current one, this knowledge helps you dry more efficiently, extend the life of your clothing, and reduce energy waste.

FAQs

1. Where does the moisture go in a clothes dryer?

As a dryer heats air and passes it through clothes, the air absorbs moisture. This moisture is then expelled outside through the exhaust duct.

2. Can I dry rubber-backed rugs or mats in a dryer?

Generally, no. High heat can damage rubber and release fumes. Check the label and air-dry these items whenever possible.

3. What should I do if the dryer drum doesn’t spin?

Check if the belt is broken or if the door switch has failed. If the motor runs but the drum doesn’t move, call a technician for repair.
