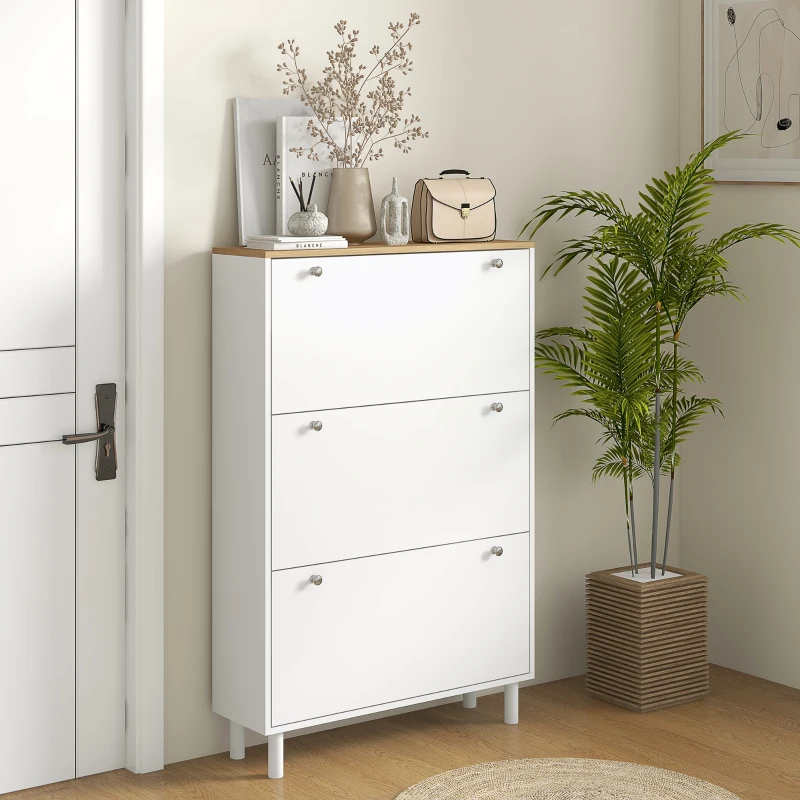

The HOMCOM Shoe Storage Cabinet (SKU: 837-403V80WT) features 3 flip drawers with adjustable shelves, providing storage for up to 24 pairs of shoes. Its slim design saves floor space while keeping footwear neatly organized, and the modern white finish complements a wide range of home interiors. Ideal for entryways, hallways, or bedrooms, this cabinet offers both practicality and style in one compact unit.

Safety Information

• Use this cabinet indoors only.
• Assemble on a stable, level surface.
• Two people are recommended for assembly.
• Keep hardware and packaging out of reach of children.
• Do not exceed the weight capacity of the shelves.
• Keep away from heat sources and open flames.
• Do not alter the product or replace parts with non-approved components.
• Improper assembly may result in damage or instability.

What’s Included in the Box

Before assembly, check that all parts are present. Lay them on a smooth surface to avoid scratches.

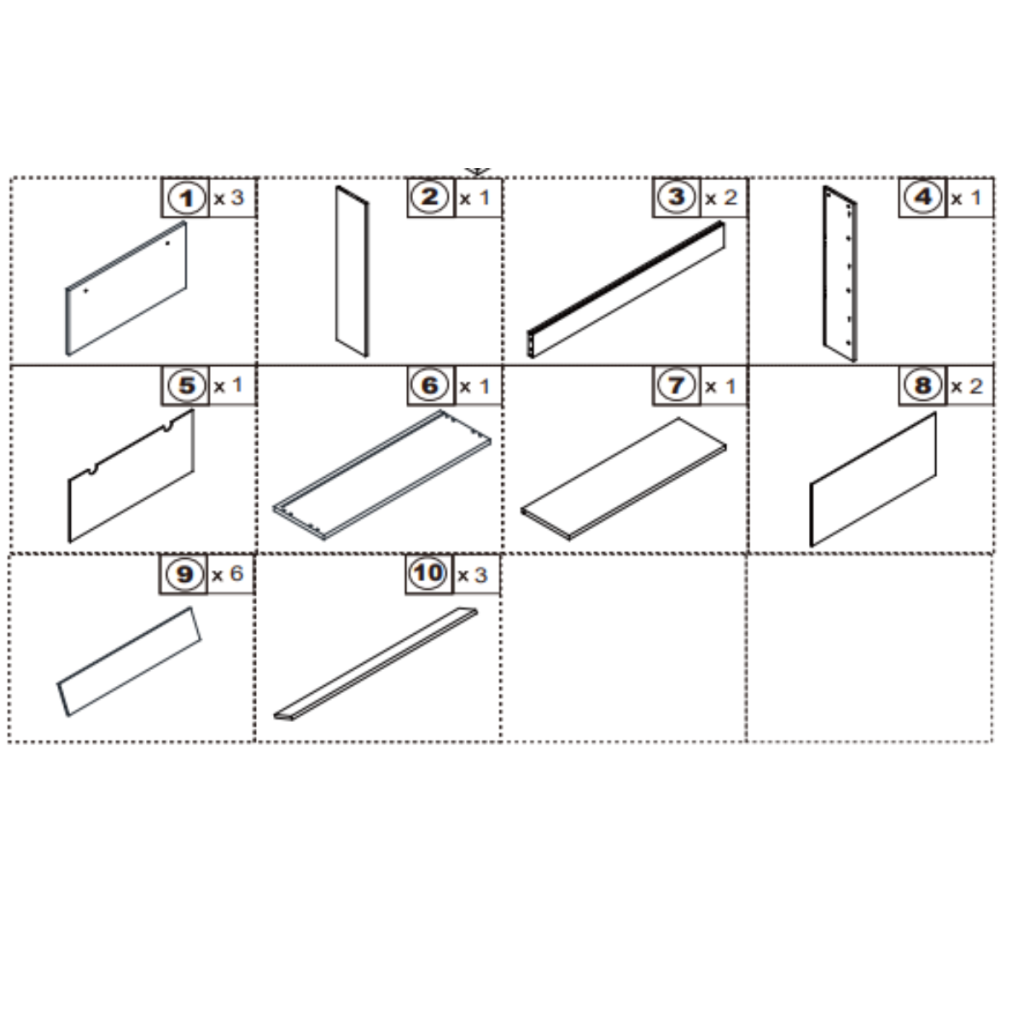

Panels and Boards

• ① × 3 – Large panels
• ② × 1 – Side panel (tall)
• ③ × 2 – Support panels
• ④ × 1 – Side panel with pre-drilled holes
• ⑤ × 1 – Upper panel with cut-out detail
• ⑥ × 1 – Bottom panel
• ⑦ × 1 – Shelf panel
• ⑧ × 2 – Medium panels
• ⑨ × 6 – Divider boards
• ⑩ × 3 – Narrow strips

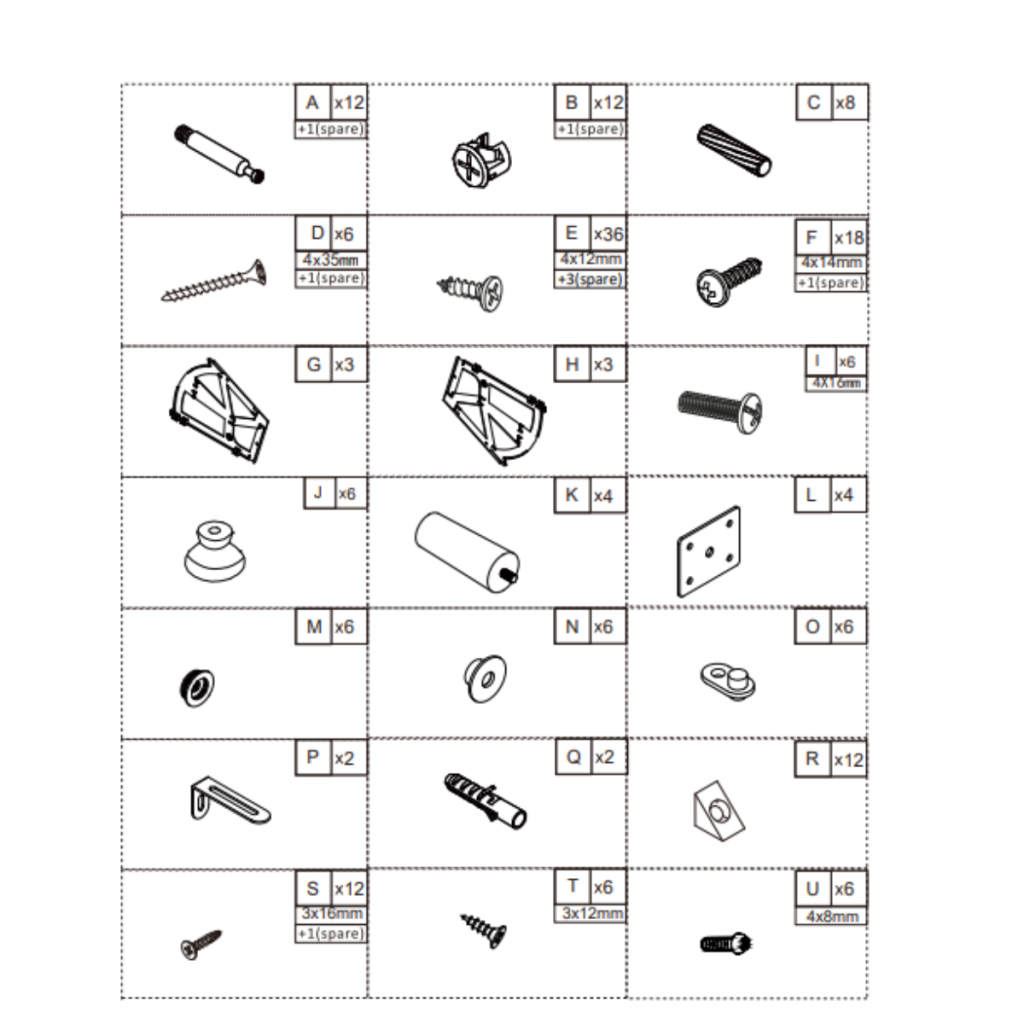

Hardware Pack List

• A × 12 (+1 spare) – Cam bolts
• B × 12 (+1 spare) – Cam locks
• C × 8 – Wooden dowels
• D × 6 (4×35mm, +1 spare) – Long screws
• E × 36 (4×12mm, +3 spares) – Small screws
• F × 18 (4×14mm, +1 spare) – Medium screws
• G × 3 – Angle fittings
• H × 3 – Plastic brackets
• I × 6 (4×16mm) – Screws
• J × 6 – Plastic feet
• K × 4 – Cylindrical spacers
• L × 4 – Metal plates
• M × 6 – Plastic bushings
• N × 6 – Round fittings
• O × 6 – Hinge plates
• P × 2 – Metal brackets
• Q × 2 – Expansion fittings
• R × 12 – Cam covers
• S × 12 (3×15mm, +1 spare) – Short screws
• T × 6 (3×12mm) – Screws
• U × 6 (4×8mm) – Screws

Assembly Instructions

Follow the listed steps in sequence when assembling the HOMCOM Shoe Storage Cabinet to complete the setup accurately.

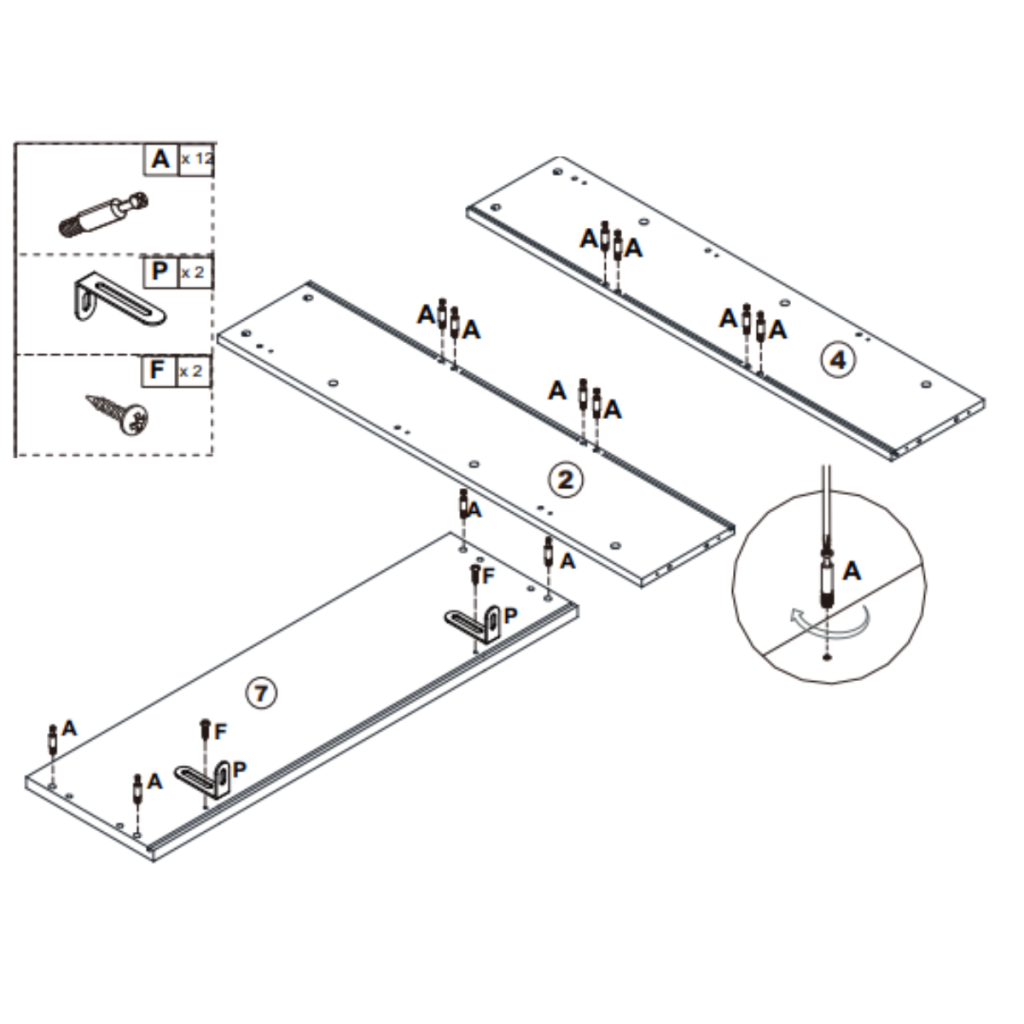

Step 1: Prepare Panels

• Use panels ②, ④, and ⑦.
• Insert cam bolts (A) into the pre-drilled holes.
• Make sure each bolt sits flush with the surface.
• On panel ⑦, secure 2 × brackets (P) with 2 × screws (F).
• Confirm brackets are aligned and firmly fixed.

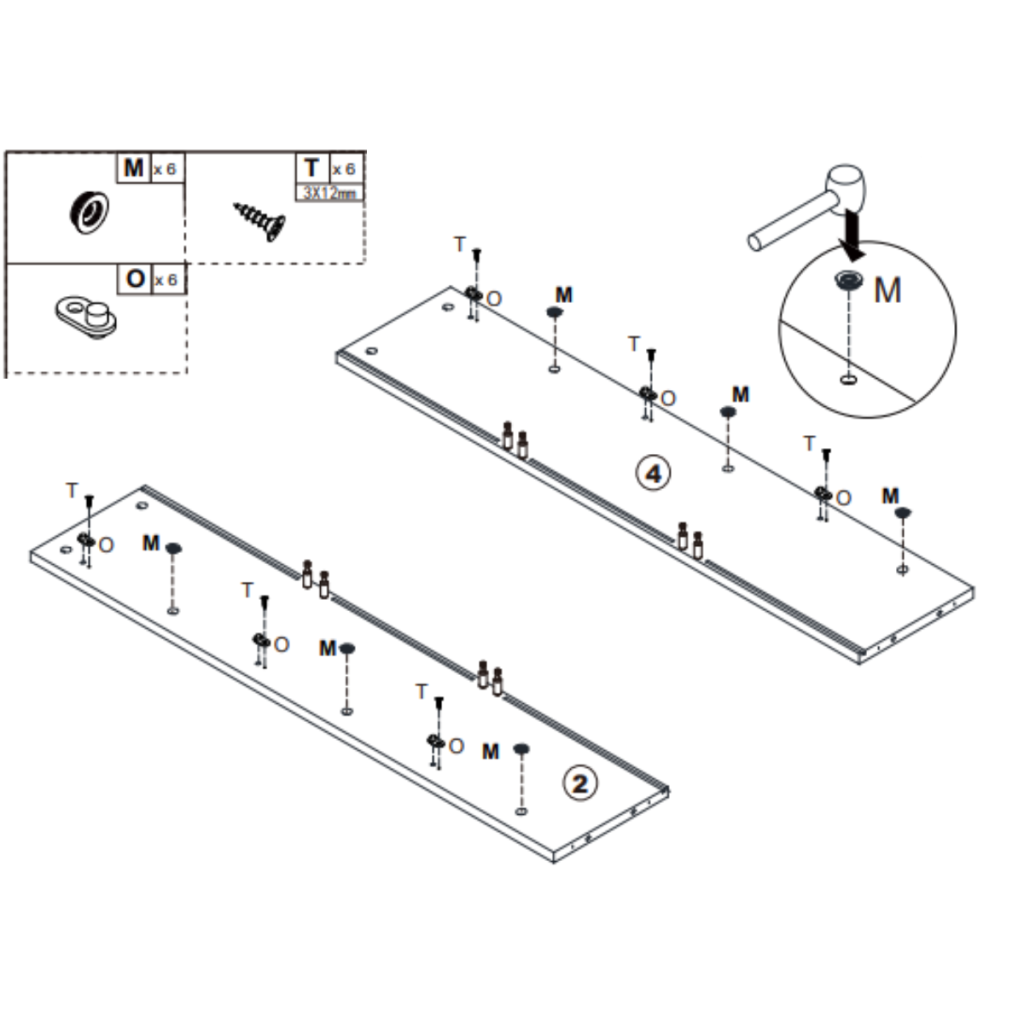

Step 2: Fit Hinge Plates

• Take panels ② and ④.
• Push plastic bushings (M) into the marked holes.
• Position hinge plates (O) on top of the bushings.
• Fix each plate with 1 × screw (T).
• Ensure all plates are tight and even.

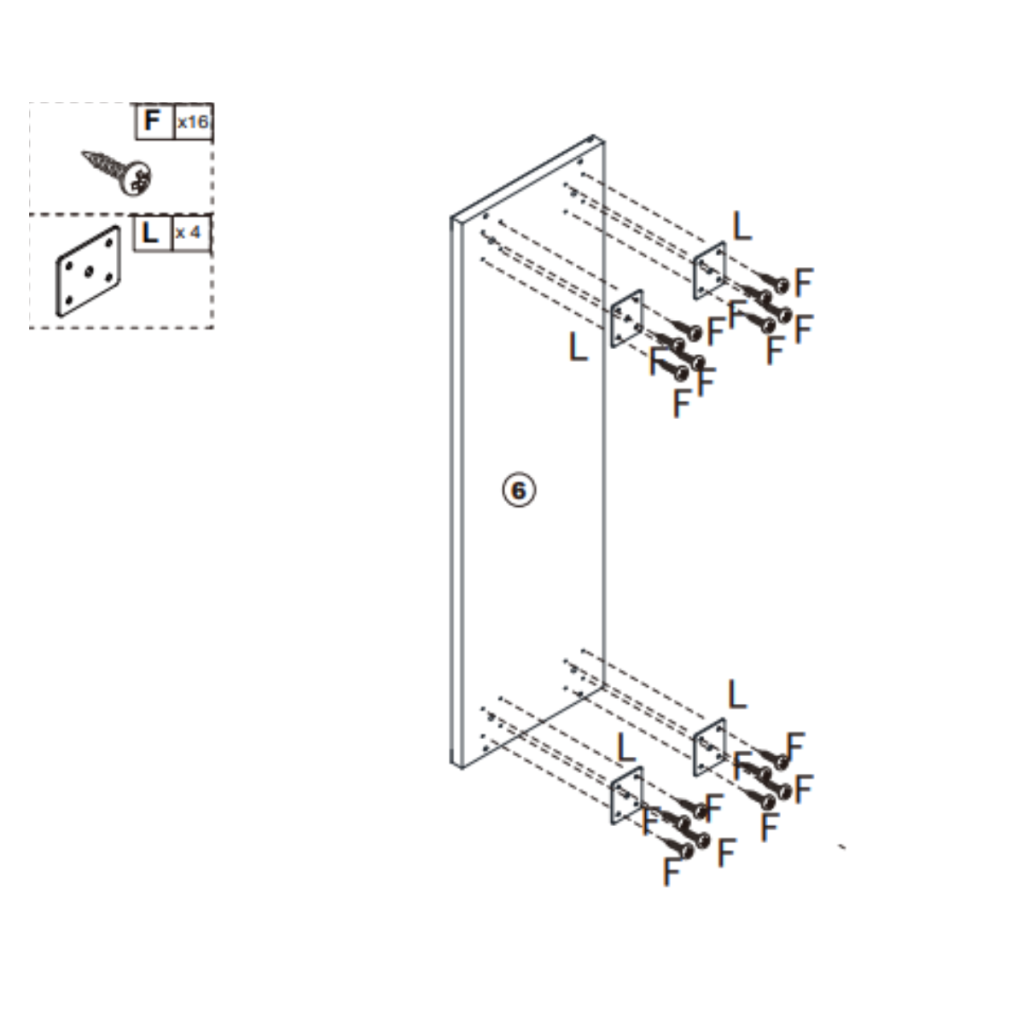

Step 3: Attach Metal Plates

• Place panel ⑥ flat.
• Position 4 × metal plates (L) on the marked spots.
• Fix each plate with 4 × screws (F) (16 screws total).
• Tighten all screws firmly, but do not overtighten.
• Check that plates are level and aligned.

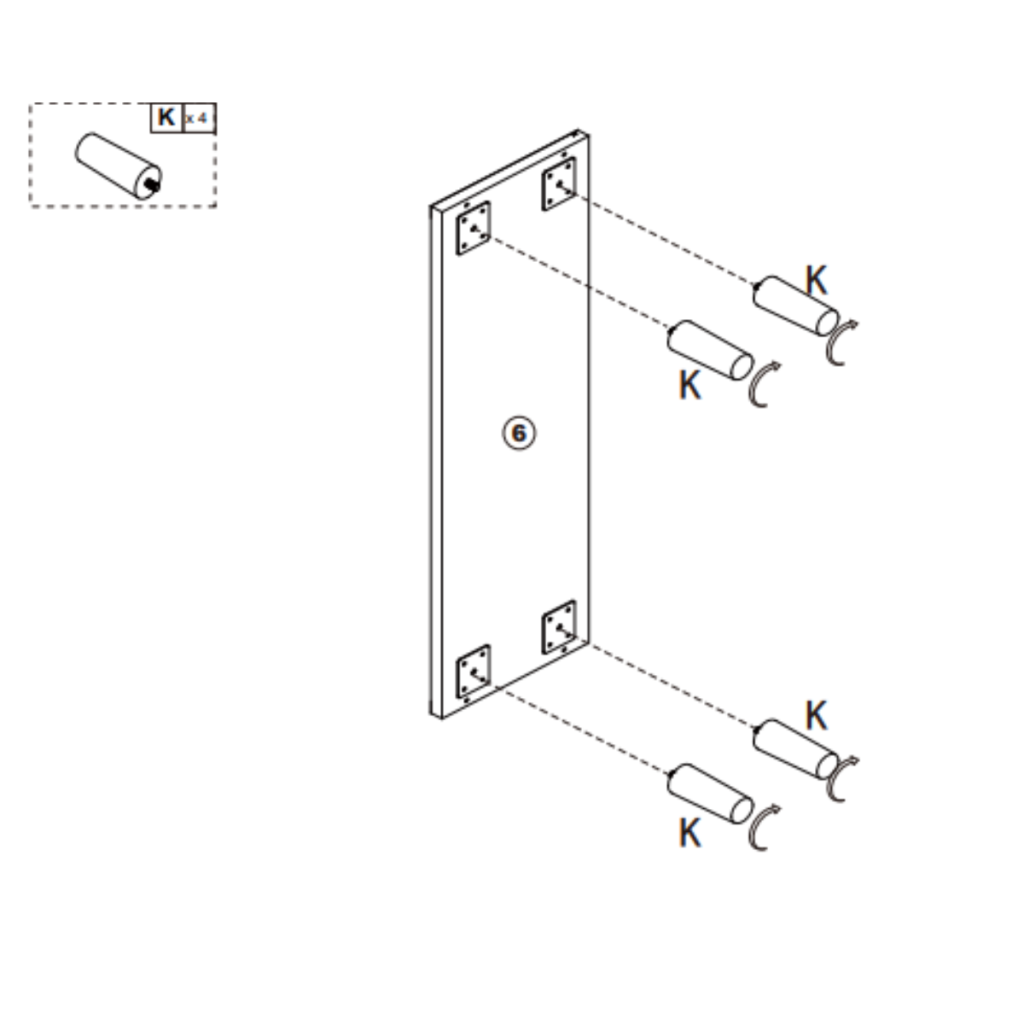

Step 4: Insert Cylindrical Spacers

• Take panel ⑥.
• Locate the four metal plates (L) fixed in Step 3.
• Insert 4 × cylindrical spacers (K) into the holes of each metal plate.
• Push the spacers fully in so they sit securely.
• Check that all four spacers are even and aligned.

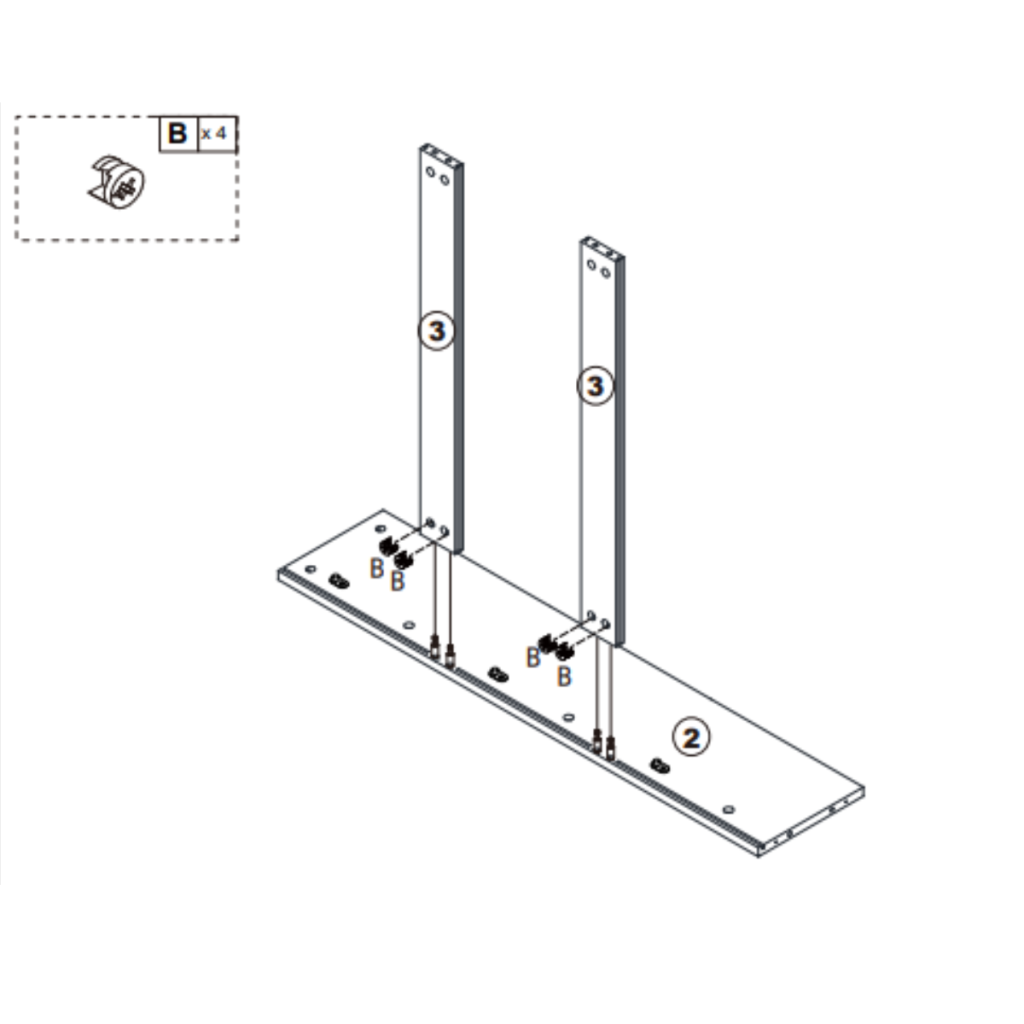

Step 5: Attach Support Panels

• Take panel ② and place it flat.
• Position the two support panels ③ vertically on the marked slots of panel ②.
• Insert 4 × cam locks (B) into the pre-drilled holes to secure the connections.
• Turn each cam lock clockwise to tighten.
• Ensure both support panels are standing straight and firmly fixed.

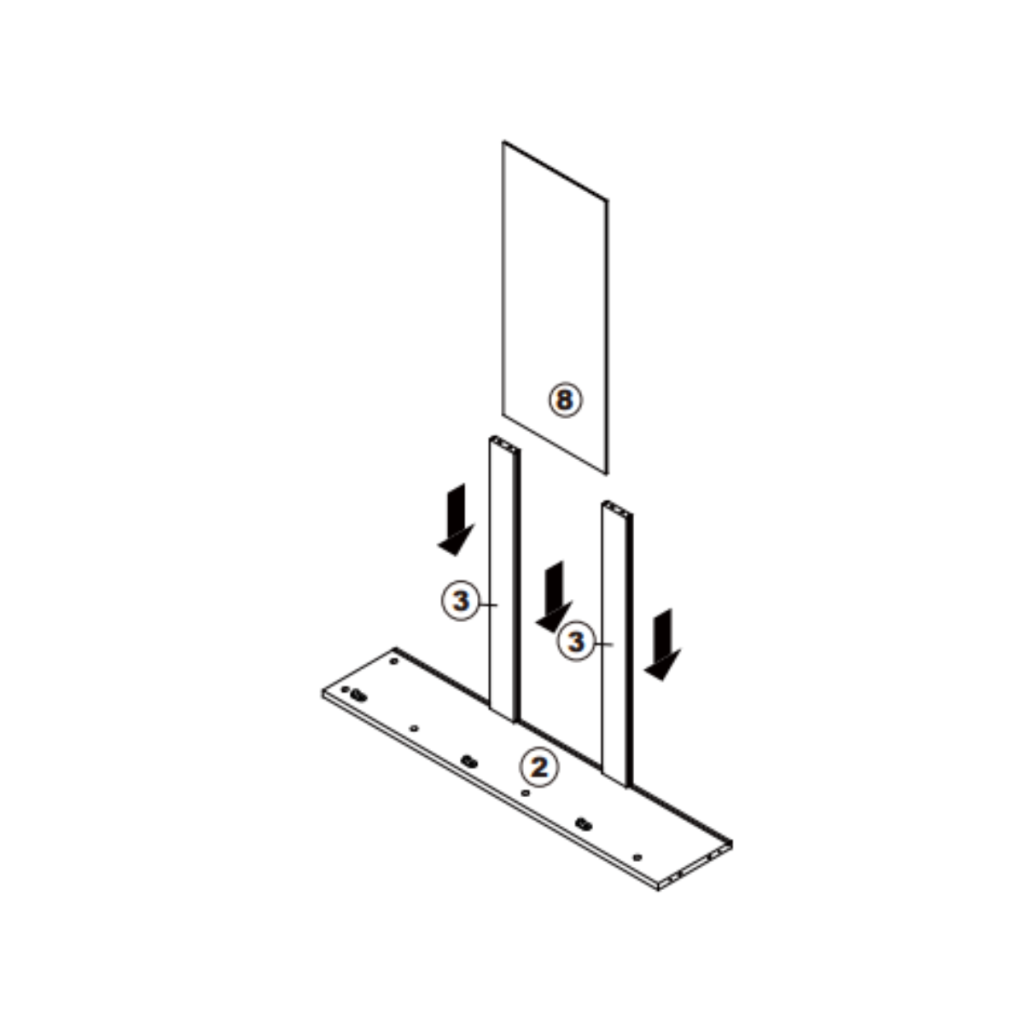

Step 6: Install Side Panel

• Take panel ② with the two support panels ③ attached.
• Align panel ⑧ with the top edges of the two support panels.
• Slide panel ⑧ down into position between the supports.
• Make sure the panel fits fully into the slots and sits evenly.
• Check that all sides are flush and stable.

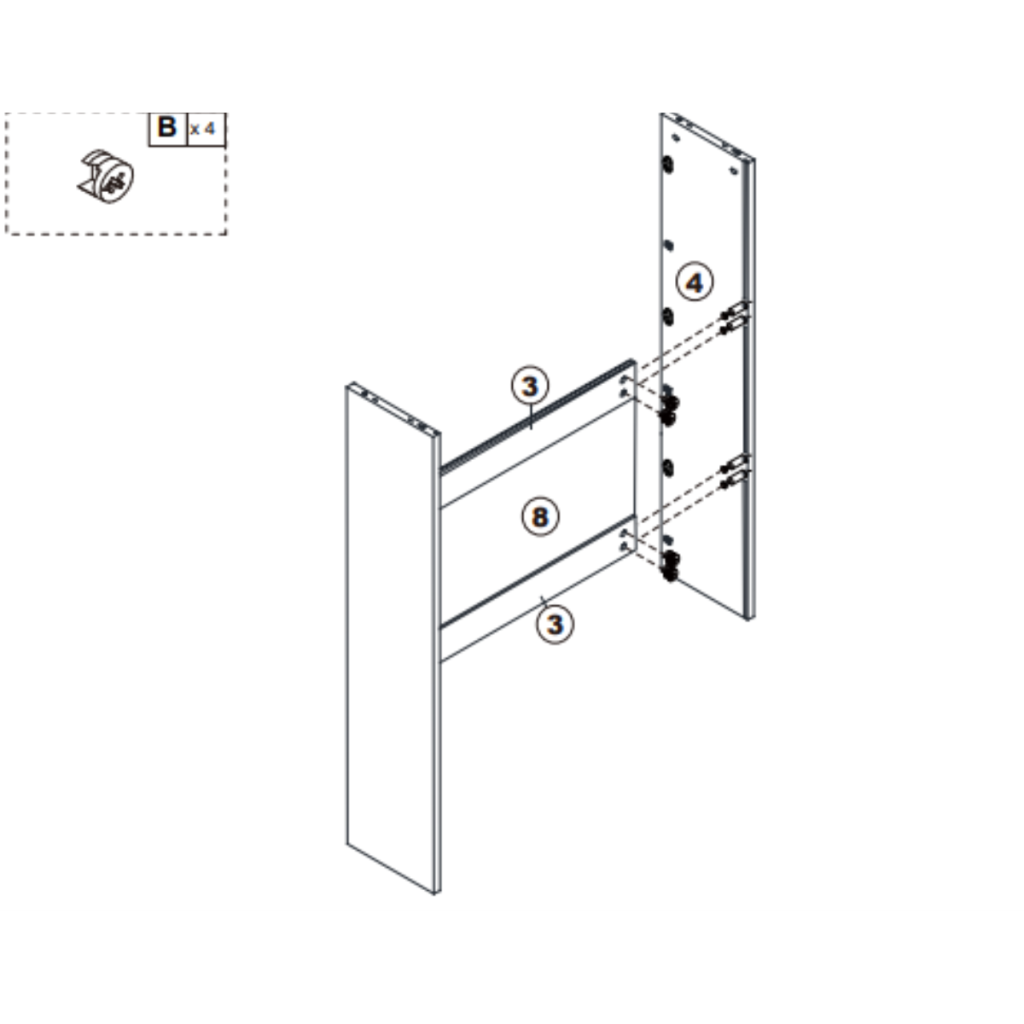

Step 7: Secure Side Panel

• Take the assembled frame with panels ②, ③, and ⑧.
• Position panel ④ vertically against the open side.
• Align the pre-drilled holes on panel ④ with the ends of panels ③ and ⑧.
• Insert 4 × cam locks (B) into the holes.
• Turn the cam locks clockwise to secure the connection firmly.
• Check that panel ④ is straight and the frame is stable.

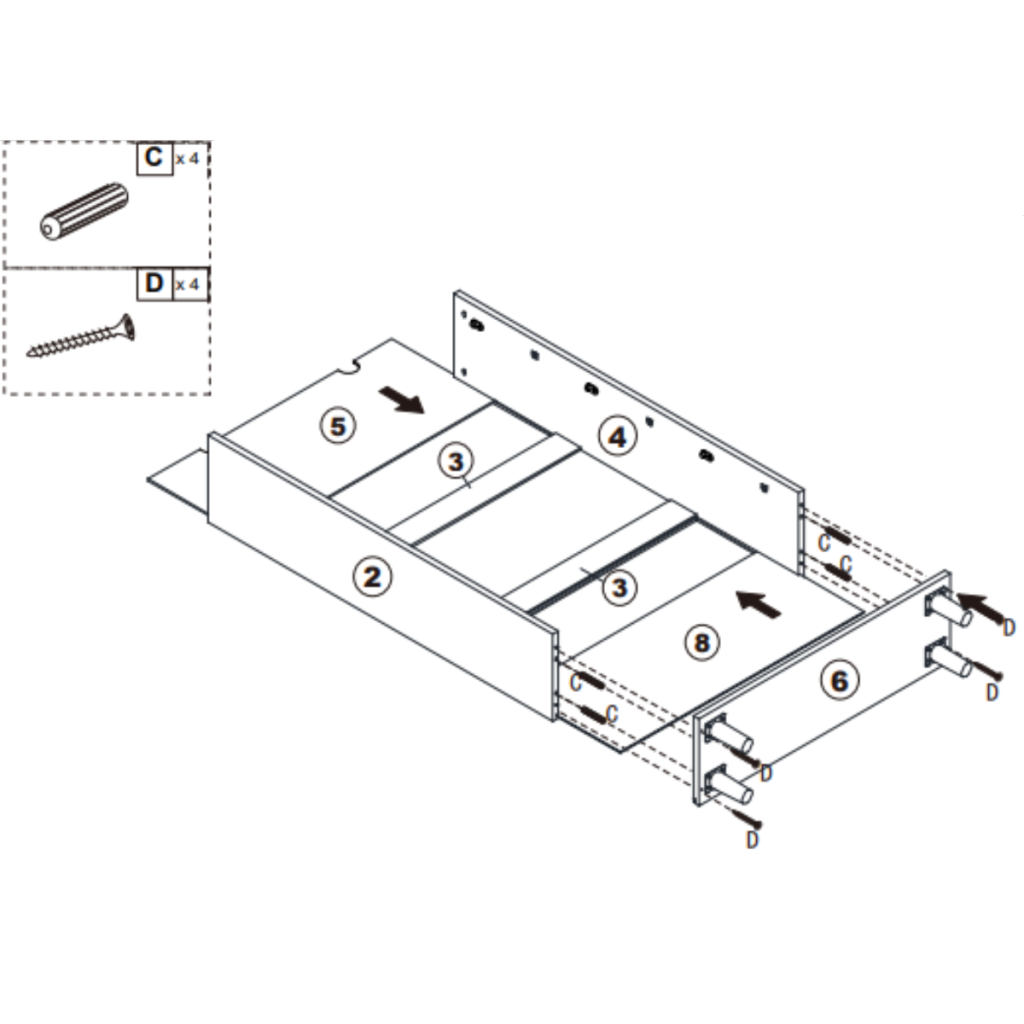

Step 8: Install Back Panel and Secure

• Take the assembled frame with panels ②, ③, ④, ⑥, and ⑧.
• Insert 4 × wooden dowels (C) into the side edges of panel ⑥.
• Position panel ⑤ across the back of the frame, fitting it into place between the side panels.
• Slide panel ⑥ forward so the dowels (C) connect securely with panel ② and panel ④.
• Fix panel ⑥ using 4 × screws (D) at the marked positions.
• Ensure the cabinet frame is square and all joints are tight.

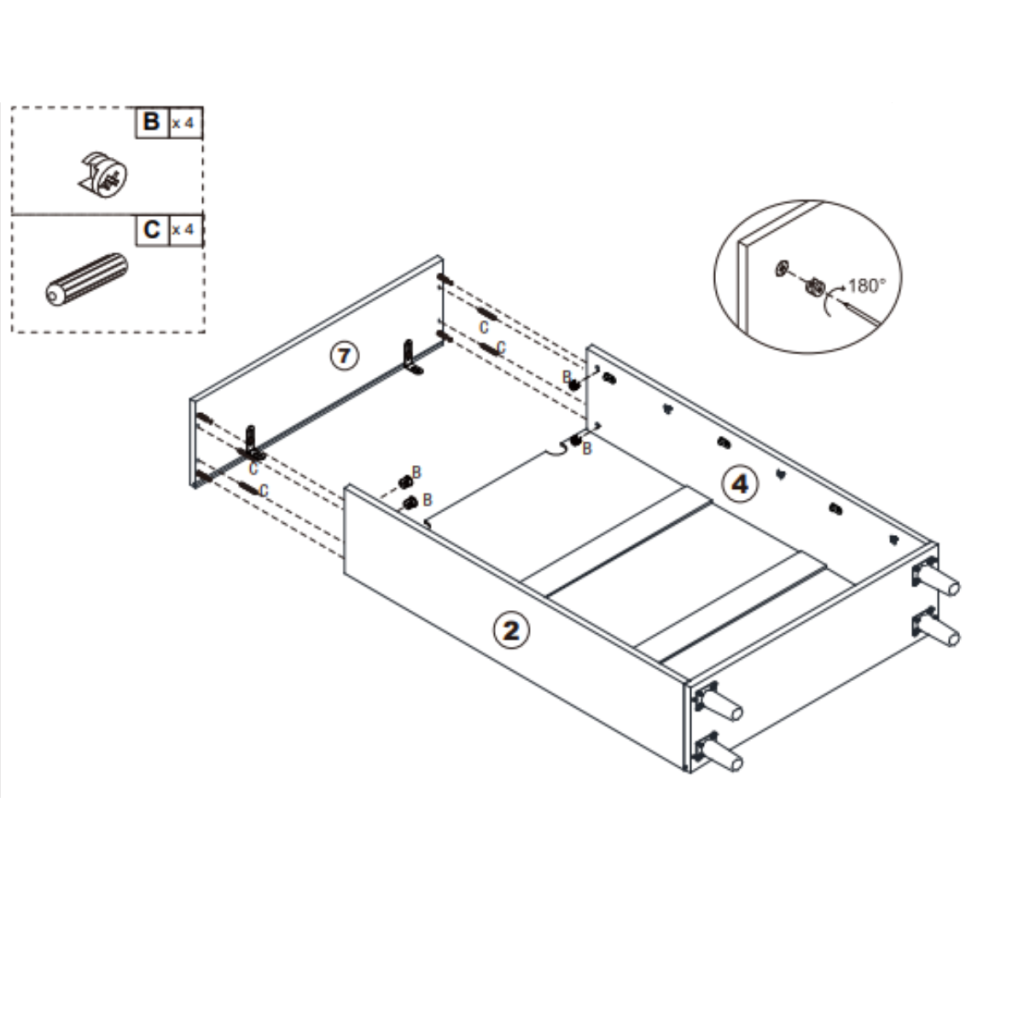

Step 9: Install Shelf Panel

• Insert 4 × wooden dowels (C) into the side holes of panel ⑦.
• Position panel ⑦ between side panels ② and ④, aligning the dowels with the pre-drilled holes.
• Insert 4 × cam locks (B) into the pre-drilled holes in panels ② and ④.
• Turn each cam lock clockwise until it tightens and locks onto the dowels.
• Make sure panel ⑦ is secured firmly and sits level.

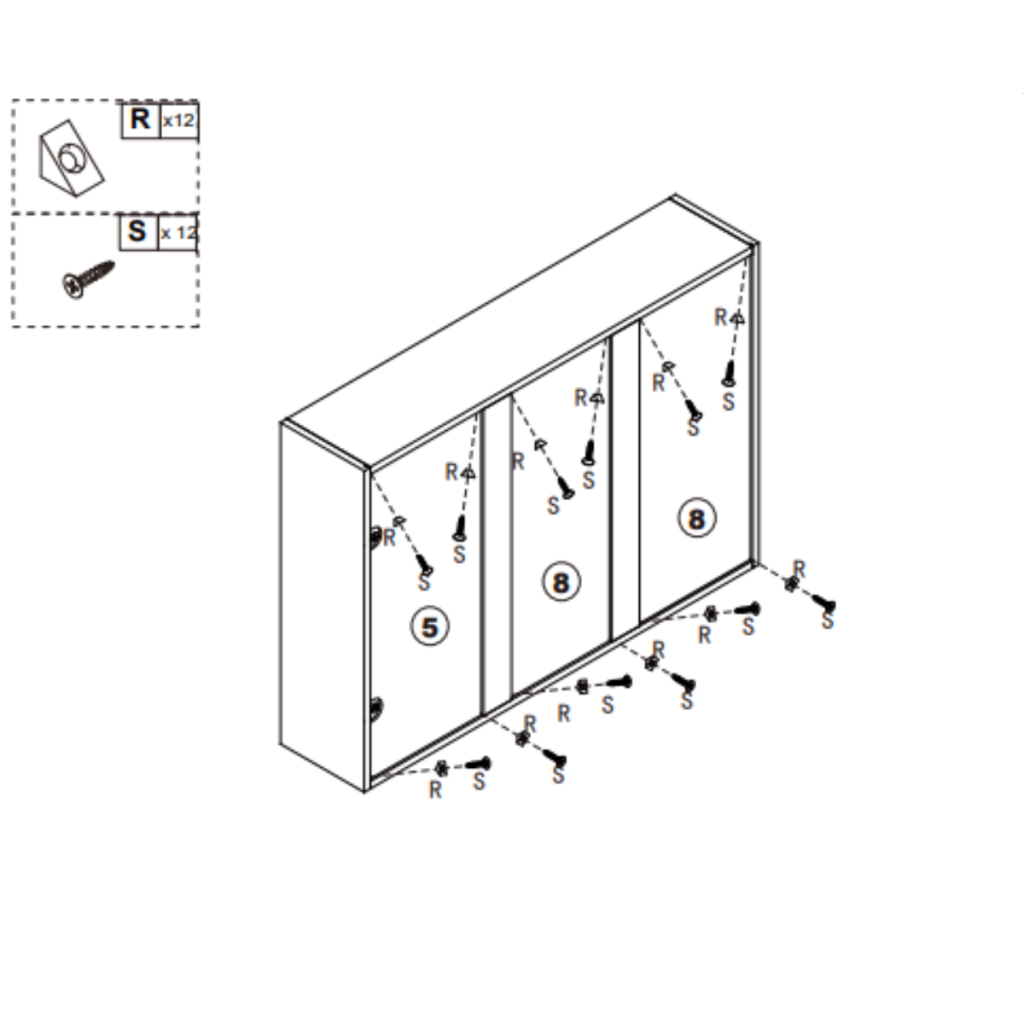

Step 10: Secure Divider Panels

• Take panels ⑤ and ⑧.
• Position the panels vertically inside the cabinet frame as shown.
• Align each panel with the pre-drilled holes on the top and bottom panels.
• Attach 12 × brackets (R) along the edges of the divider panels.
• Fix each bracket with 1 × screw (S) (12 screws total).
• Check that all divider panels are straight and firmly secured.

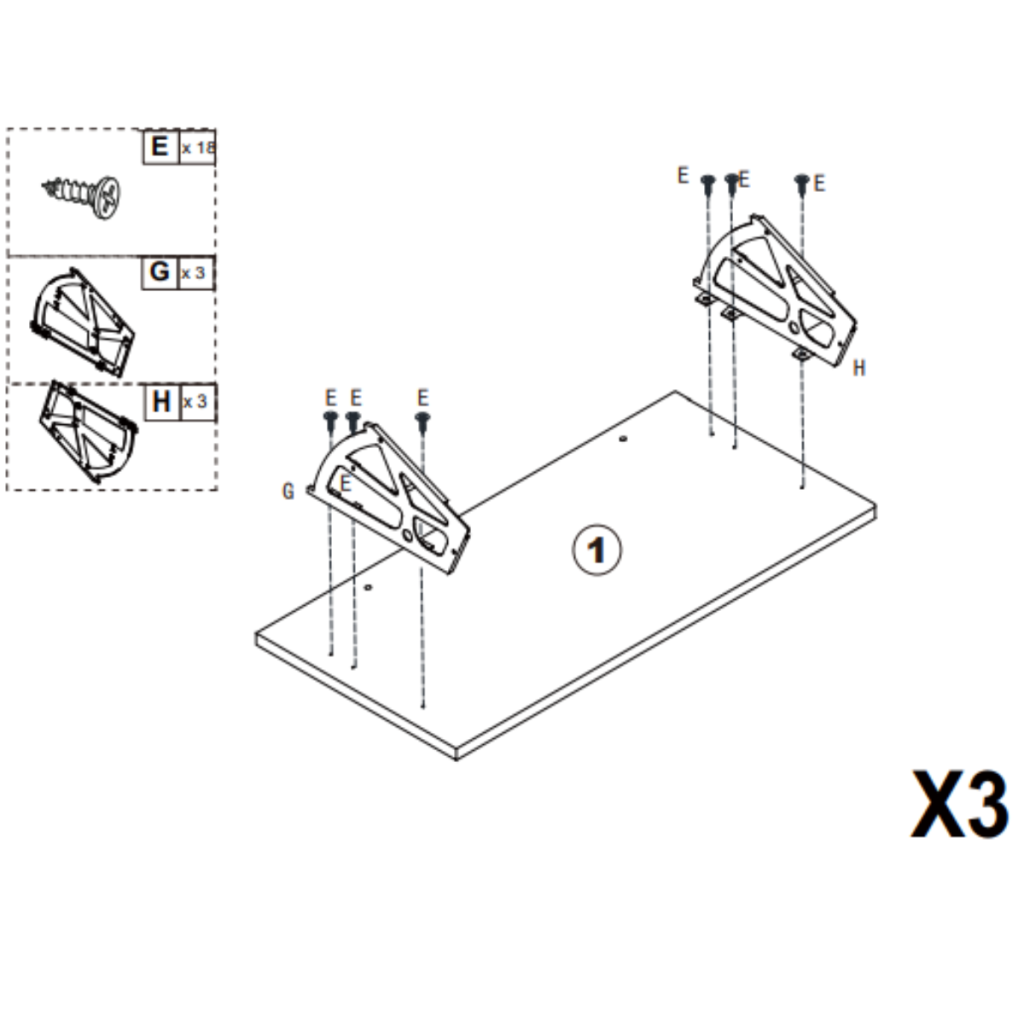

Step 11: Prepare Door Panels

• Take panel ①.
• Attach 1 × bracket (G) and 1 × bracket (H) to the marked positions.
• Fix each bracket using 6 × screws (E) (3 screws per bracket).
• Repeat the same process for the remaining 2 door panels (①).
• In total, you will use 18 × screws (E), 3 × brackets (G), and 3 × brackets (H).
• Ensure all brackets are firmly attached and aligned.

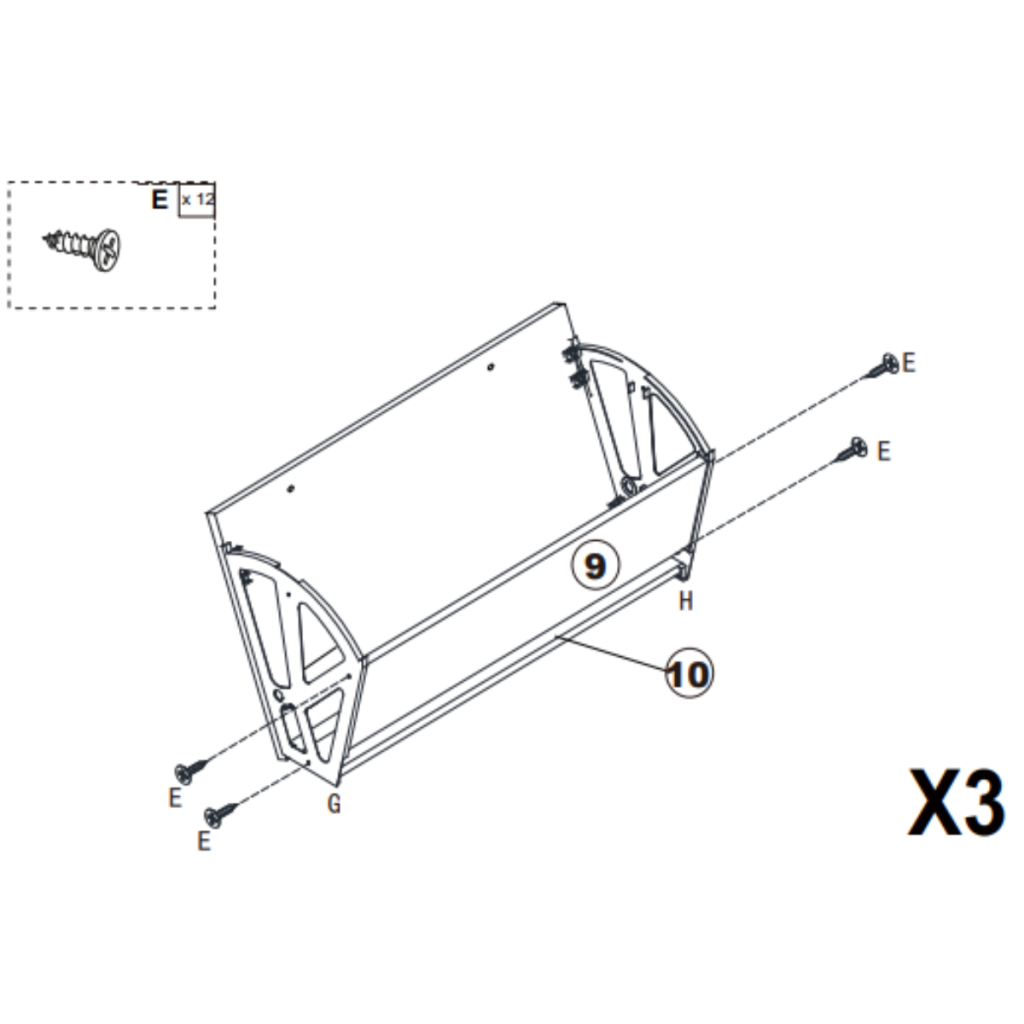

Step 12: Assemble Door Frames

• Take one prepared door panel ① with brackets (from Step 11).
• Attach panel ⑨ and panel ⑩ between the brackets G and H.
• Secure the panels using 12 × screws (E) (4 screws per side).
• Repeat this process for the remaining 2 door assemblies.
• Ensure all connections are tight and the door frames are square.

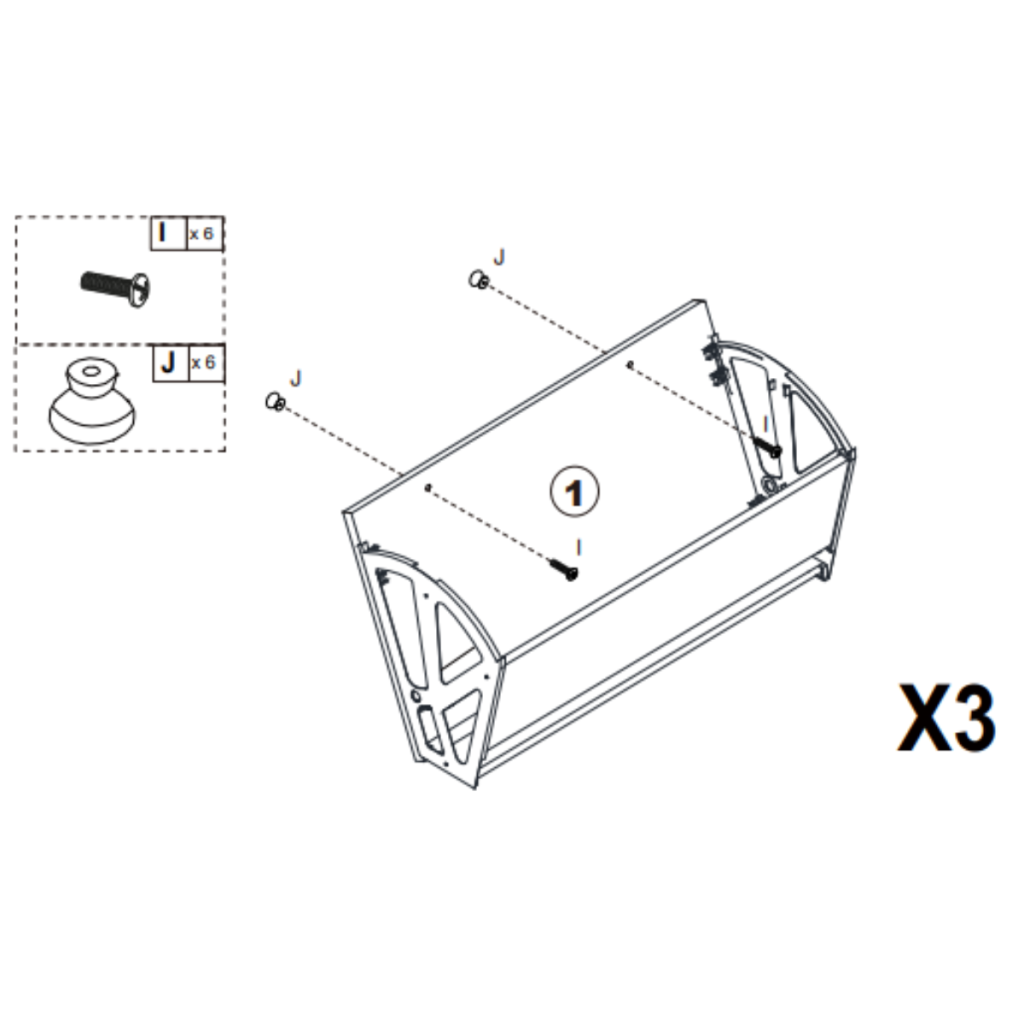

Step 13: Attach Feet to Door Panels

• Take each assembled door unit from Step 12.
• Insert 2 × screws (I) into the pre-drilled holes at the bottom of the door panel ①.
• Attach 2 × plastic feet (J) to the screws.
• Repeat this process for all 3 door units (total 6 screws and 6 feet).
• Make sure the feet are firmly fixed and evenly aligned.

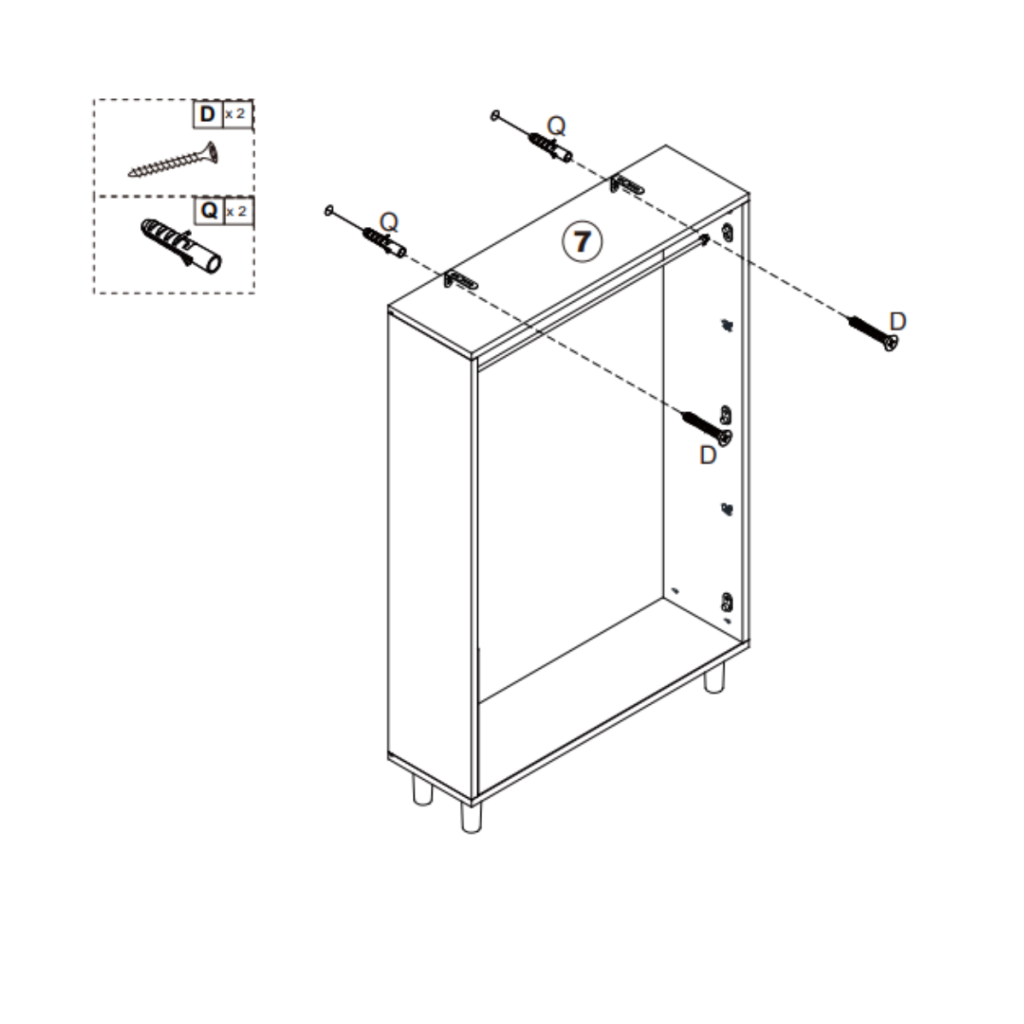

Step 14: Install Expansion Fittings

• Take the cabinet frame with all panels assembled.
• Insert 2 × expansion fittings (Q) into the top of panel ⑦.
• Secure the fittings with 2 × screws (D) in the pre-drilled holes.
• Make sure both fittings are tightened evenly.
• Check that the cabinet is stable and square.

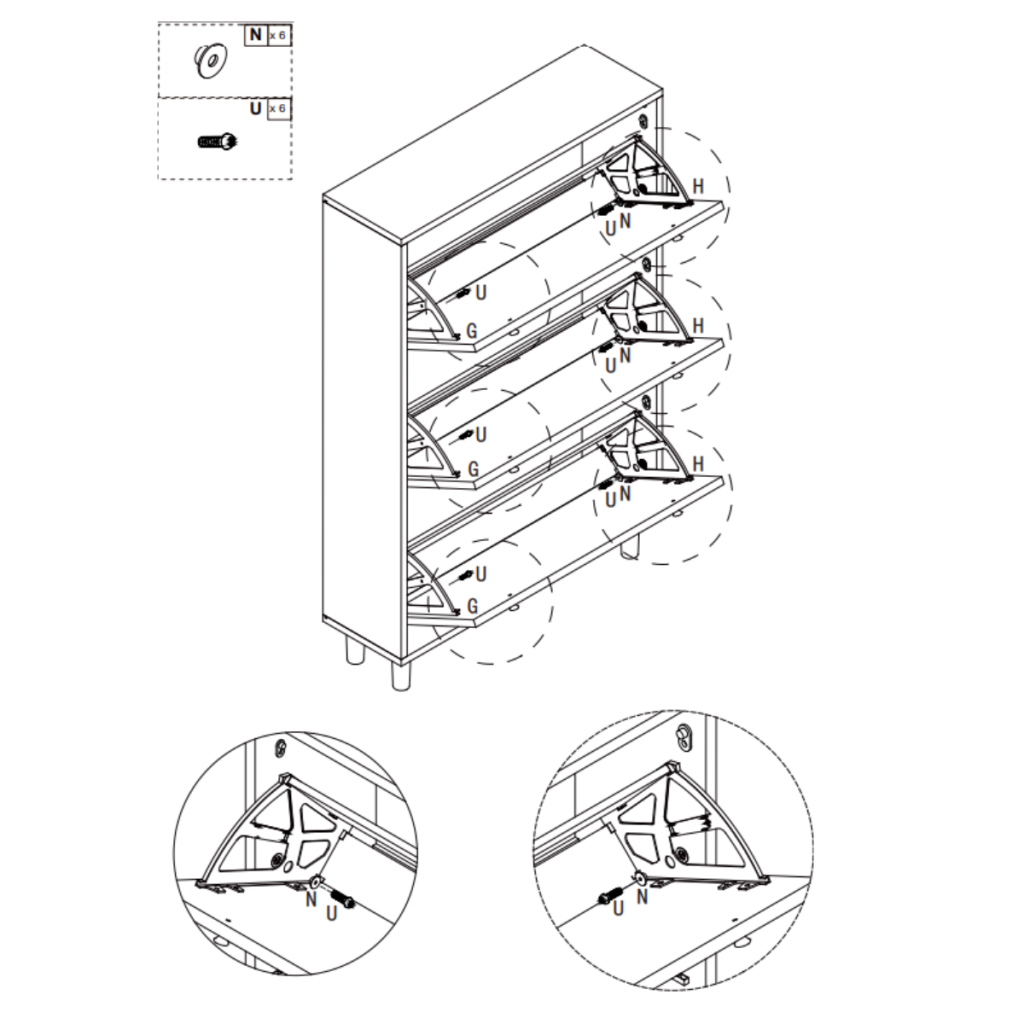

Step 15: Install Door Units

• Take the 3 assembled door units from Steps 11–13.
• Position each door unit into the front openings of the cabinet.
• Align the brackets G and H with the pre-drilled holes inside the cabinet frame.
• Secure each bracket using 6 × screws (U) and 6 × fittings (N) (2 per door).
• Tighten screws firmly so doors can open and close smoothly.
• Check that all 3 doors swing freely and align evenly with the cabinet frame.

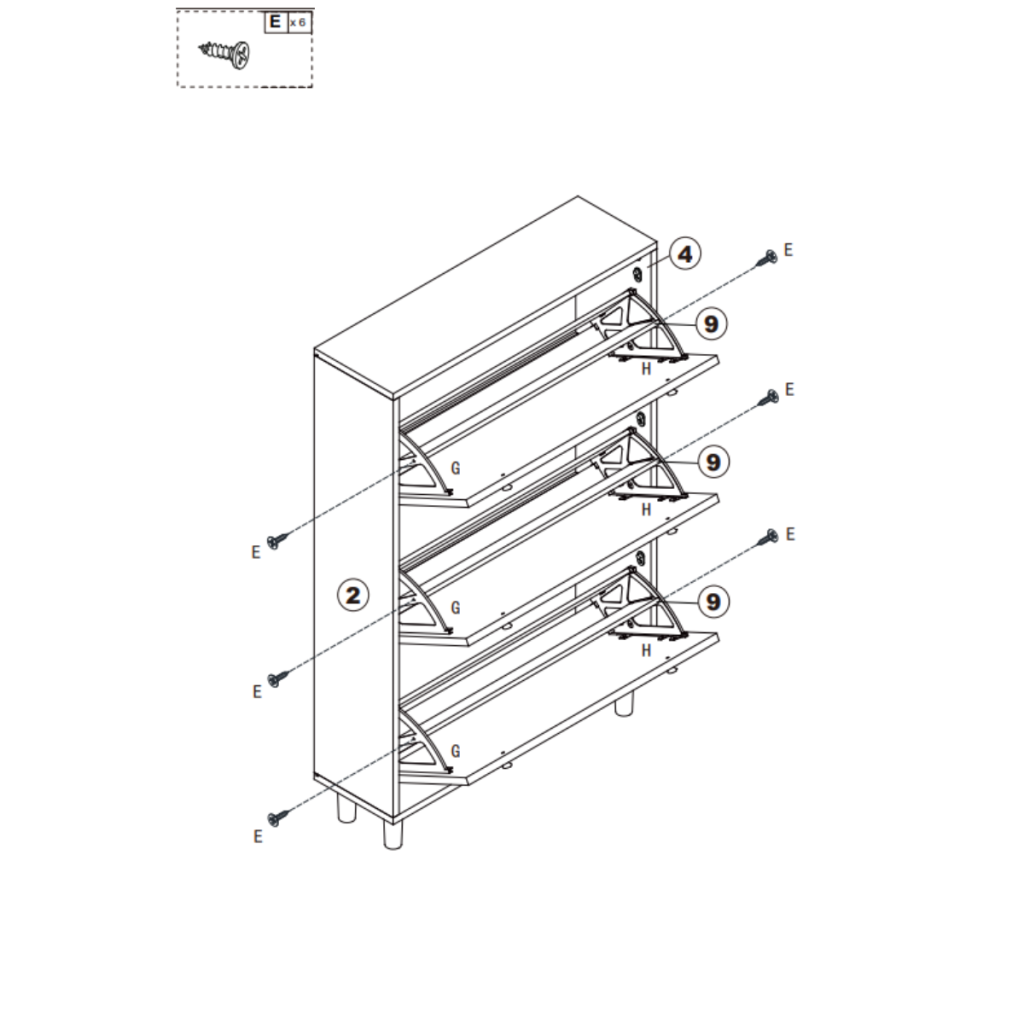

Step 16: Final Securing

• Insert 6 × screws (E) into the side panels ② and ④, fixing them through the brackets G and H on each door unit.
• Tighten the screws to ensure the doors are firmly held in place.
• Check that all 3 doors open and close smoothly.
• Make final adjustments so the cabinet stands straight and level.
• Your shoe cabinet assembly is now complete.

Care and Maintenance

• Clean the cabinet regularly with a soft, dry cloth.
• For marks or dirt, use a slightly damp cloth and wipe gently.
• Do not use strong detergents, polish, or abrasive cleaners as they may damage the surface.
• Check and tighten screws and fittings periodically to keep the cabinet stable.
• Place the cabinet in a dry, well-ventilated area to avoid moisture damage or warping.

When to Seek Assistance

• If any panel or part is cracked, damaged, or missing.
• If the cabinet does not stand evenly after proper assembly.
• If the doors do not open or close smoothly, even after adjusting the hinges.
• If the structure feels unstable after completing all steps.

Ready for Use

Your HOMCOM Shoe Storage Cabinet (SKU: 837-403V80WT) is now fully assembled and ready to use. With proper care and regular maintenance, it will provide long-lasting organization and style for your home. Enjoy the convenience of neatly stored shoes and the clean, modern look this cabinet brings to your entryway.

Download the HOMCOM 837-403V80WT Shoe Storage Cabinet Manual PDF.

FAQs

1. How many shoes can each flip drawer hold?

Each flip drawer can hold around 6–8 pairs of standard shoes, depending on size and style. The total capacity is up to 24 pairs.

2. Can I adjust or remove the shelves inside the flip drawers?

Yes, the shelves are adjustable. They can be repositioned or removed to fit larger shoes like sneakers or ankle boots.

3. What should I do if a drawer does not close properly?

Check that the hinges and brackets are tightened evenly. Loosen slightly, realign the drawer, and retighten until it closes smoothly.

4. Can this cabinet be used without the feet installed?

Yes, it can sit directly on the floor, but using the included feet is recommended. The feet help keep the cabinet stable and protect the bottom panel from wear.
