HOMCOM Dresser for Bedroom with 9 Drawers Assembly Manual – SKU: 831-402

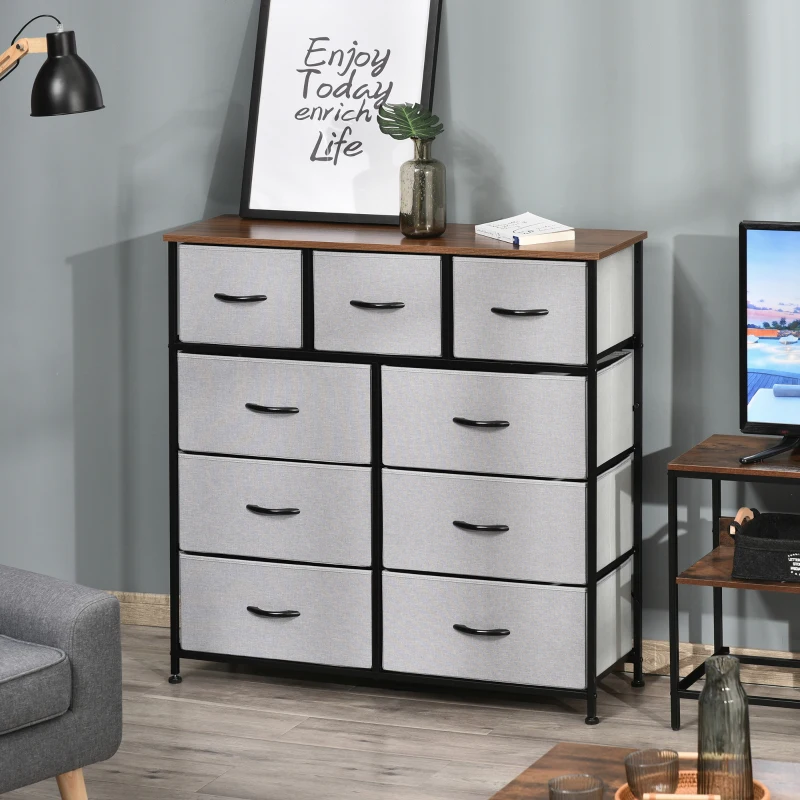

The HOMCOM Dresser (SKU: 831-402) is a practical and stylish storage solution for bedrooms, closets, or dressing areas. Featuring 4 tiers and 9 fabric drawers, it keeps clothing, accessories, and household items neatly organised while offering easy access and durable construction.

Before You Begin

Estimated Assembly Time: 45–60 minutes
Recommended Personnel: 1–2 adults
Assembly Surface: Flat, soft surface to prevent scratches or damage to panels and fabric.

Important Notes:

• Check that all parts and hardware are included and undamaged.
• Keep small components away from children and pets.
• Do not fully tighten bolts until all parts are connected to allow proper alignment.

Parts & Hardware

Parts List

Label	Quantity	Description / Name
1	1	Top Panel
2	1	Left Side Panel
3	2	Drawer Side Panels
4	1	Right Side Panel
5	1	Back Panel
6	2	Middle Divider Panels
7	2	Horizontal Support Rails
8	2	Crossbars / Stabiliser Rods
9	3	Bottom Drawer Panels
10	6	Drawer Front Panels
11	3	Bottom Shelf Panels
12	6	Drawer Back Panels

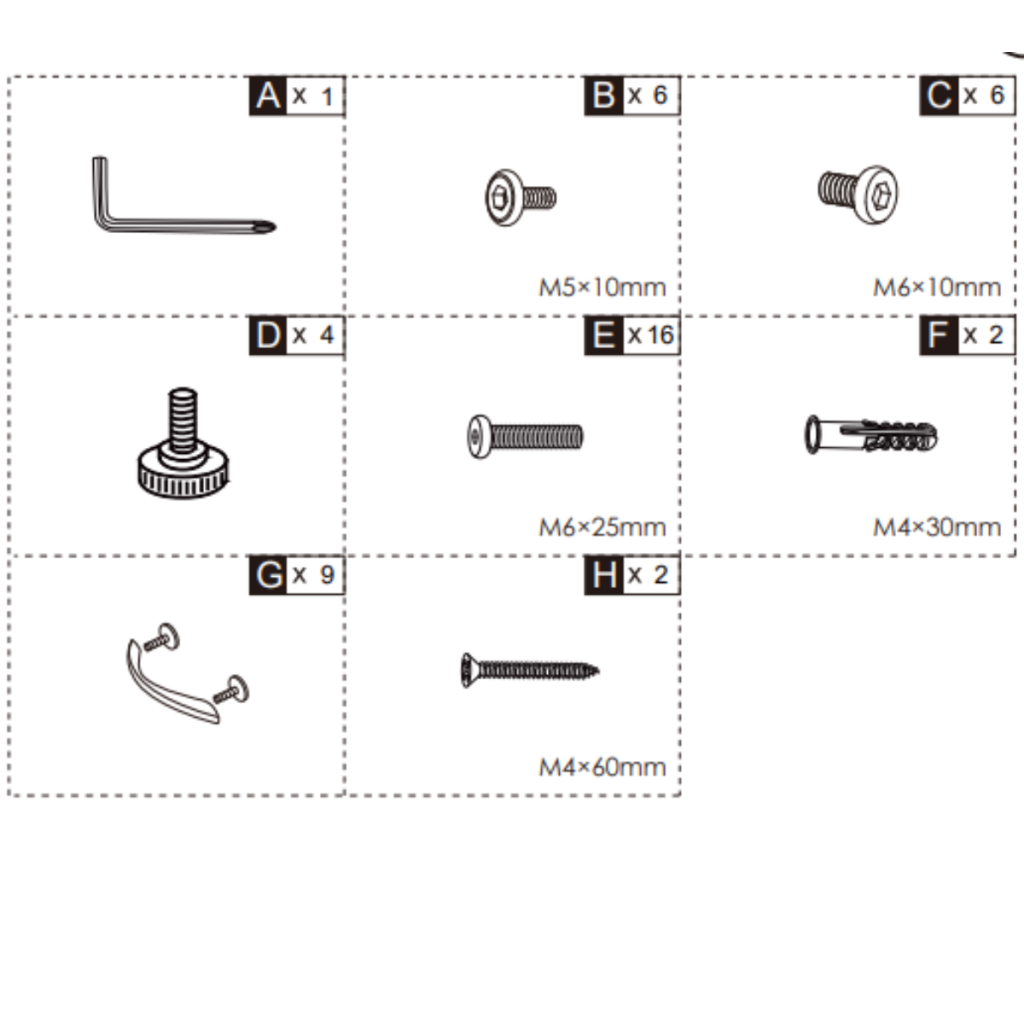

Hardware List

Label	Quantity	Description / Name
A	1	Allen Key
B	6	M5×10mm Screws
C	6	M6×10mm Screws
D	4	Adjustable Feet Knobs
E	16	M6×25mm Screws
F	2	Wall Anchors / Plastic Plugs
G	9	Drawer Handles
H	2	M4×60mm Screws

Assembly Instructions

Follow these steps carefully and proceed sequentially to assemble your HOMCOM Dresser Dresser (SKU: 831-402).

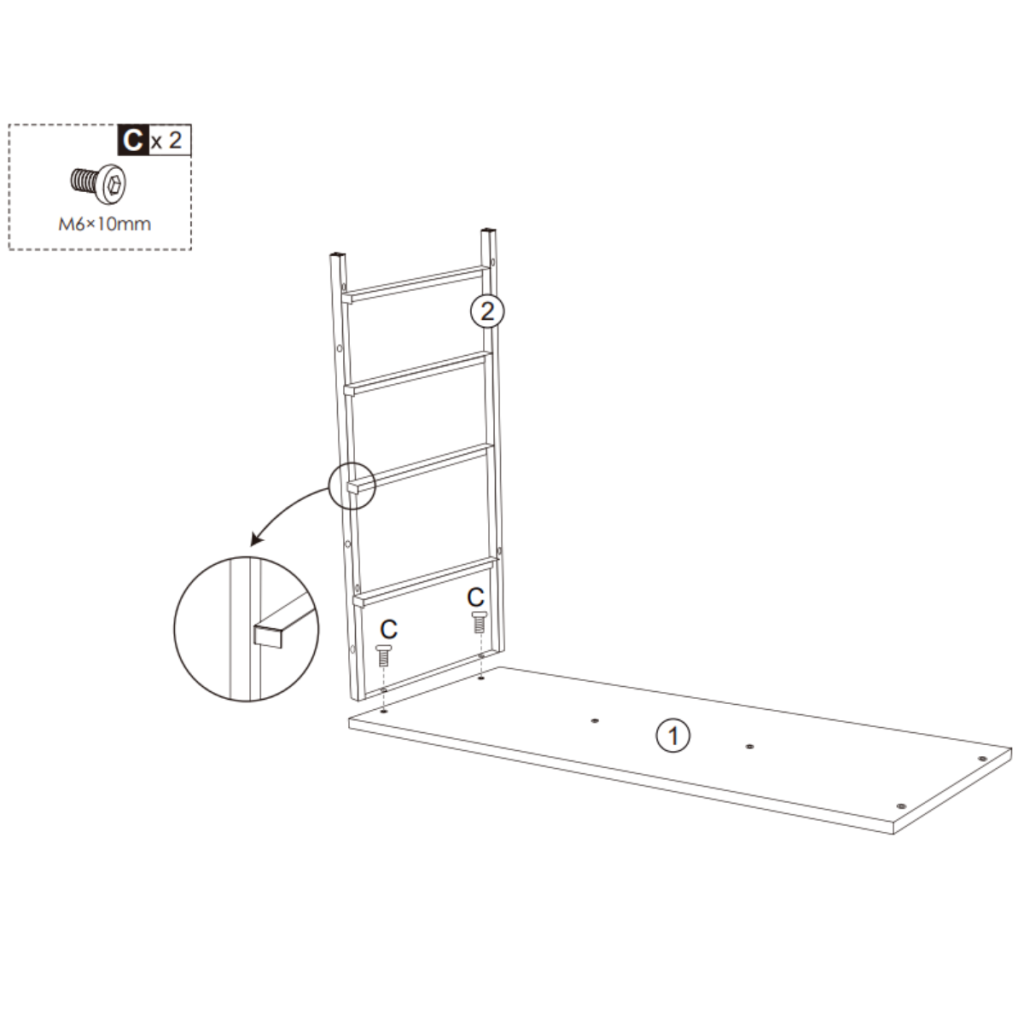

Step 1: Attach the Left Side Panel to the Base

Parts & Hardware Needed:

• Base Panel – 1
• Left Side Panel – 2
• M6×10mm Screws – C (x2)

Instructions:

1. Place the base panel (1) flat on a clean, soft surface to prevent scratches.
2. Align the left side panel (2) vertically with the pre-drilled holes at the edge of the base panel.
3. Insert two M6×10mm screws (C) through the holes at the bottom of the left side panel into the base panel.
4. Use a screwdriver or Allen key to tighten the screws. Do not overtighten, screws should be snug but allow slight adjustment for next steps.

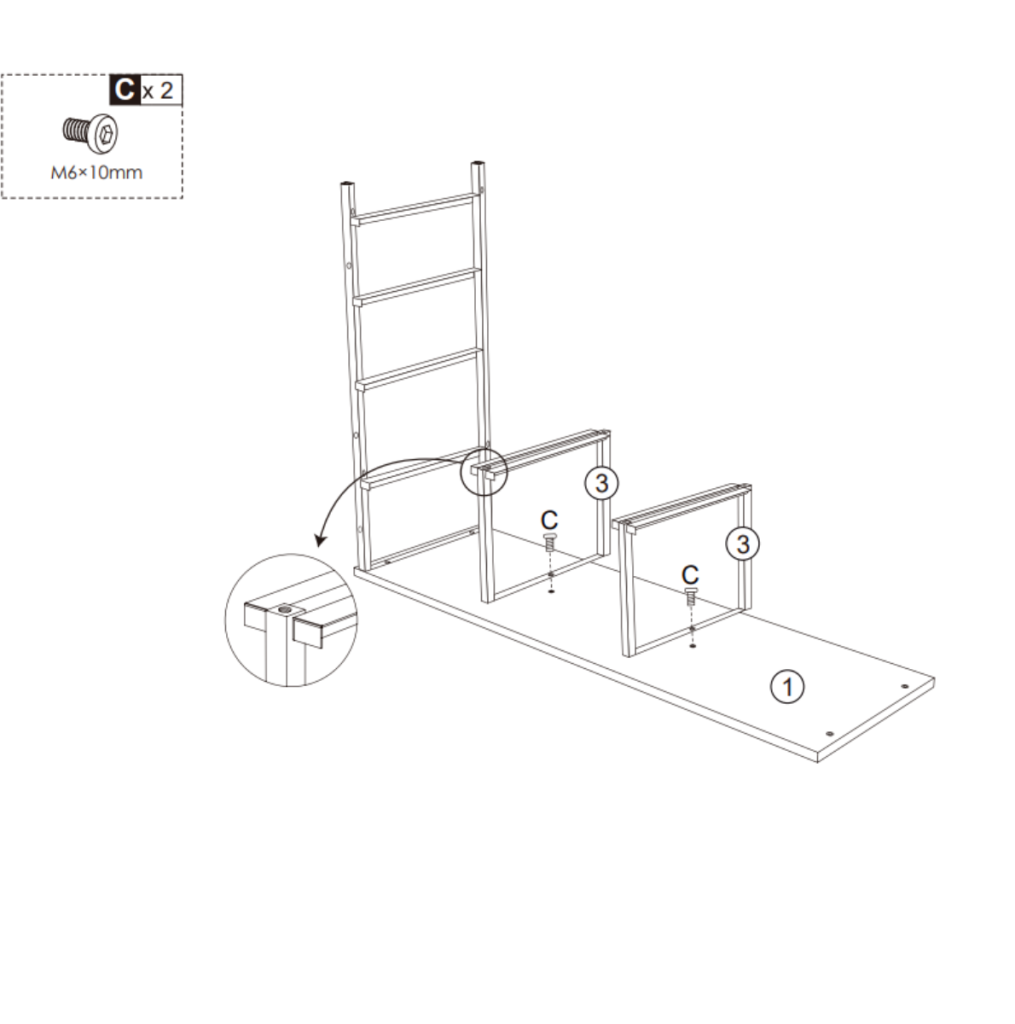

Step 2: Attach the Drawer Frames to the Base

Parts & Hardware Needed:

• Base Panel – 1
• Left Side Panel – 2 (already attached from Step 1)
• Drawer Frames – 3 (x2)
• M6×10mm Screws – C (x4)

Instructions:

1. Place the base panel (1) flat on your assembly surface. Ensure the left side panel (2) from Step 1 is upright and aligned.
2. Position the two drawer frames (3) vertically on the base panel according to the pre-drilled holes, as shown in the diagram.
3. Insert two M6×10mm screws (C) through each drawer frame into the base panel (total 4 screws).
4. Use a screwdriver or Allen key to tighten screws lightly, leaving room for minor adjustments.

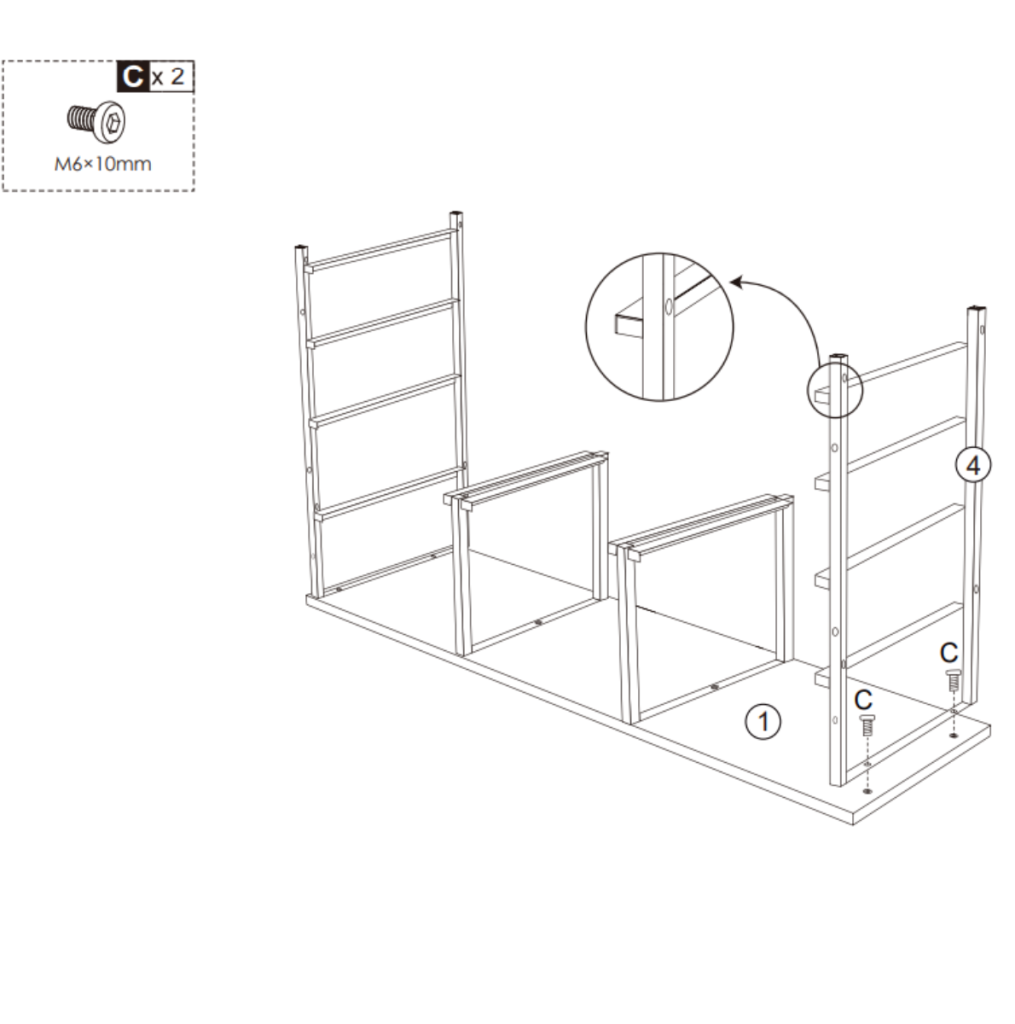

Step 3: Attach the Right Side Panel

Parts & Hardware Needed:

• Right Side Panel – 4
• Base Panel – 1 (already assembled)
• Drawer Frames – 3 (already attached)
• M6×10mm Screws – C (x2)

Instructions:

1. Position the base panel (1) on your assembly surface with the drawer frames standing upright and aligned.
2. Place the right side panel (4) vertically on the open side of the base panel, matching the pre-drilled holes as shown in the diagram.
3. Insert two M6×10mm screws (C) through the bottom of the right side panel into the base panel.
4. Tighten the screws using a screwdriver or Allen key, keeping them snug to allow minor adjustments in later steps.

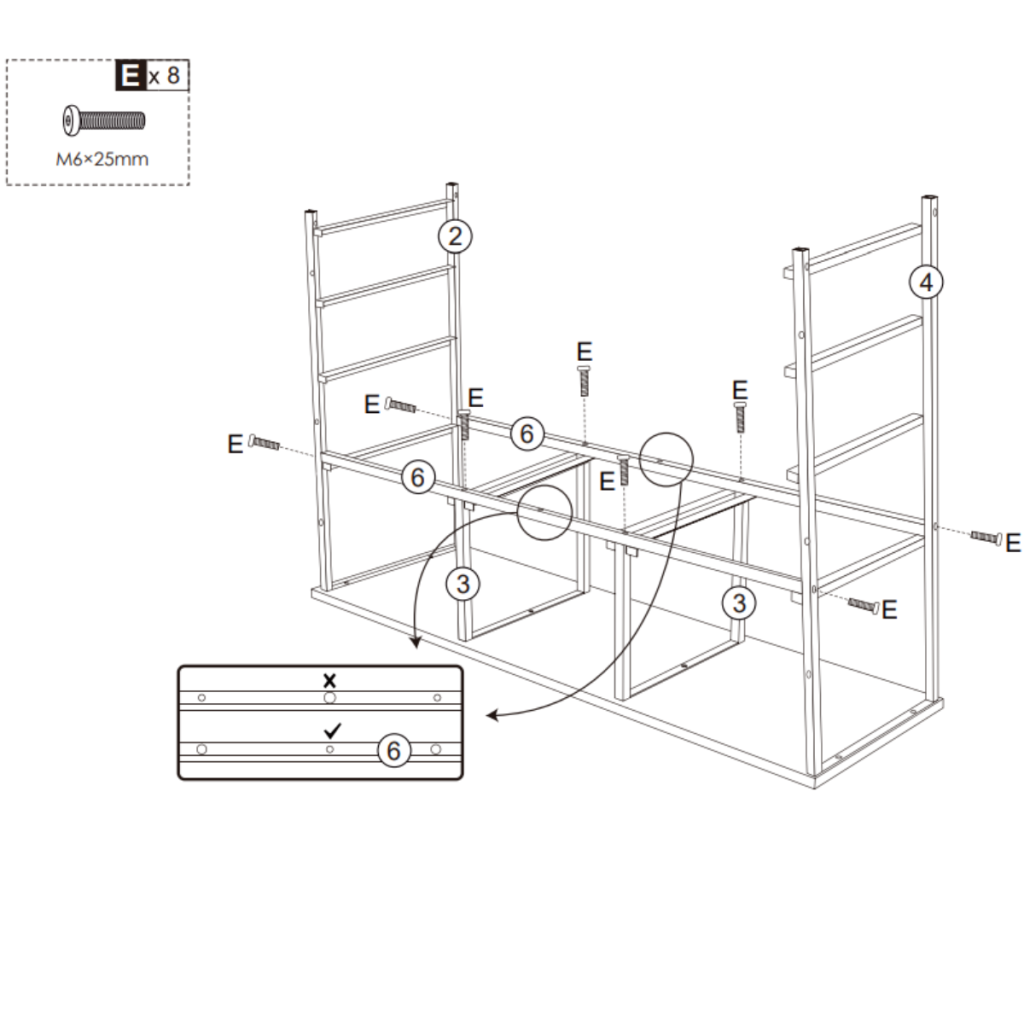

Step 4: Attach the Support Bars to the Frame

Parts & Hardware Needed:

• Support Bars – 6 (x2)
• Left Side Panel – 2 (already attached)
• Right Side Panel – 4 (already attached)
• Drawer Frames – 3 (already attached)
• M6×25mm Screws – E (x8)

Instructions:

1. Position both support bars (6) across the tops of the drawer frames (3), aligning them with the pre drilled holes on each side panel and frame.
2. Ensure the correct orientation of the support bars by matching the screw hole pattern as shown in the diagram.
3. Insert M6×25mm screws (E) through the support bars into the side panels and drawer frames at each connection point.
4. Tighten all screws lightly with a screwdriver or Allen key, keeping slight flexibility for alignment in the next steps.

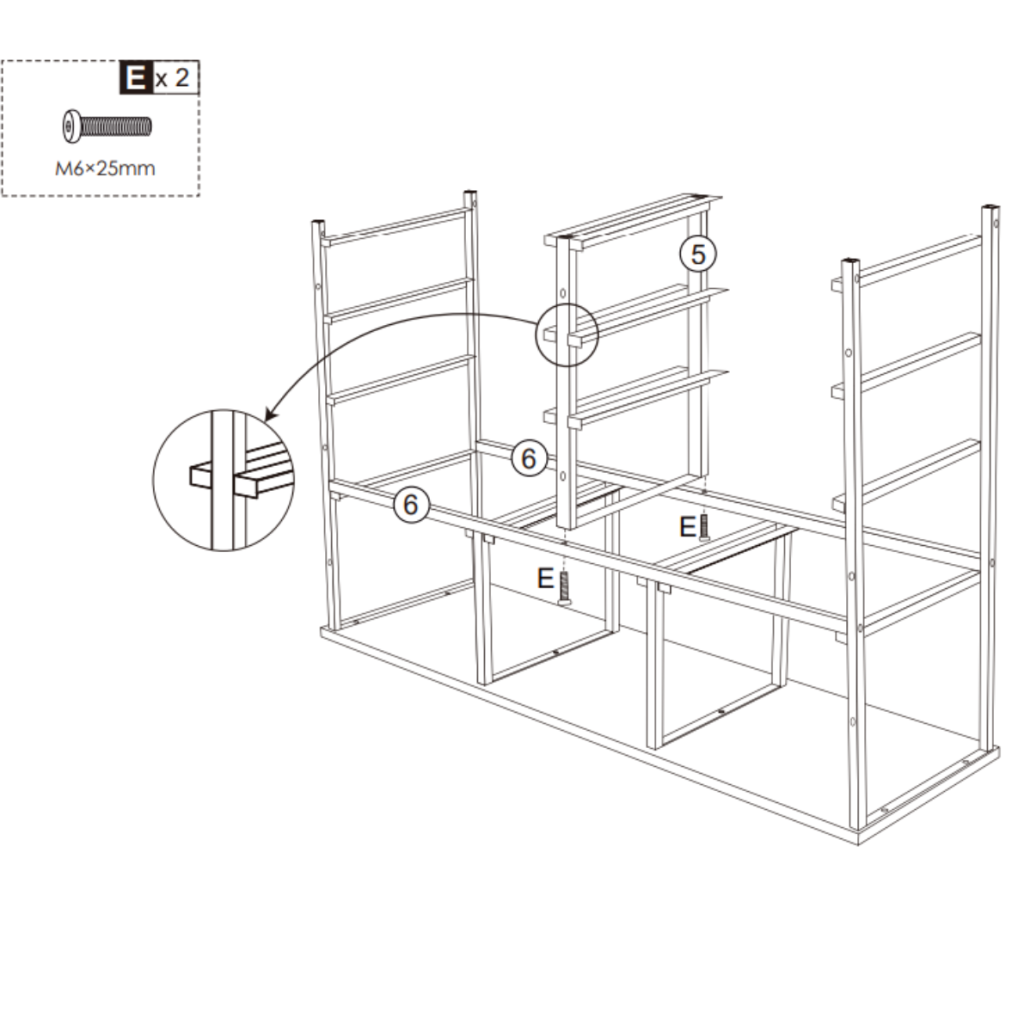

Step 5: Install the Center Shelf Panel

Parts & Hardware Needed:

• Center Shelf Panel – 5
• Support Bars – 6 (already attached)
• M6×25mm Screws – E (x2)

Instructions:

1. Position the center shelf panel (5) between the two side structures, aligning it with the support bars (6) on both ends.
2. Make sure the shelf sits correctly in the inset grooves, as shown in the close up diagram.
3. Insert one M6×25mm screw (E) into each side to secure the shelf panel to the support bars.
4. Tighten the screws lightly with a screwdriver or Allen key, keeping alignment flexible for later steps.

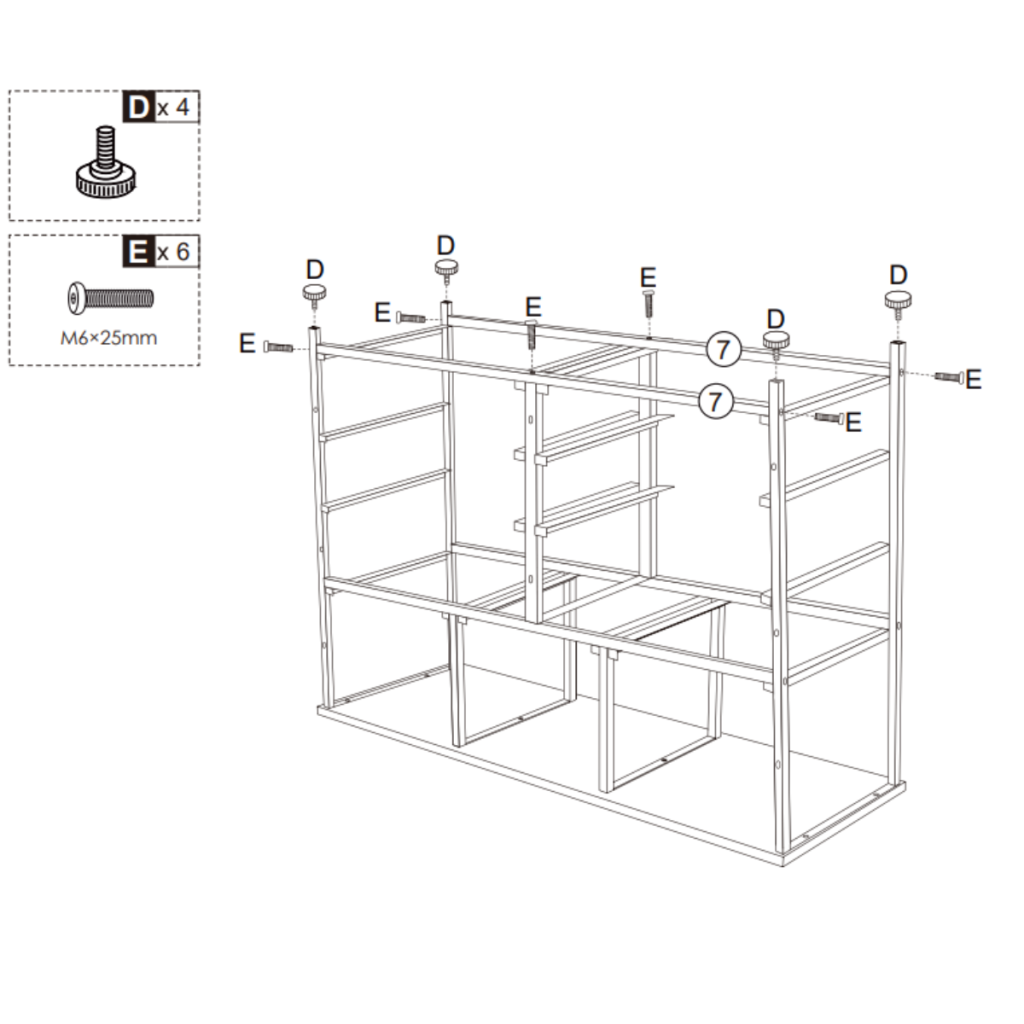

Step 6: Attach the Top Bars and Secure with Screws

Parts & Hardware Needed:

• Top Bars – 7 (x2)
• M6×25mm Screws – E (x6)
• Knob Screws – D (x4)

Instructions:

1. Position both top bars (7) across the upper frame, aligning each bar with the pre drilled holes on the side panels.
2. Insert M6×25mm screws (E) into the side connection points to secure the top bars in place.
3. Attach the four knob screws (D) on the top ends of each vertical side panel, as shown in the diagram.
4. Tighten all screws evenly using a screwdriver or Allen key to stabilize the upper frame.

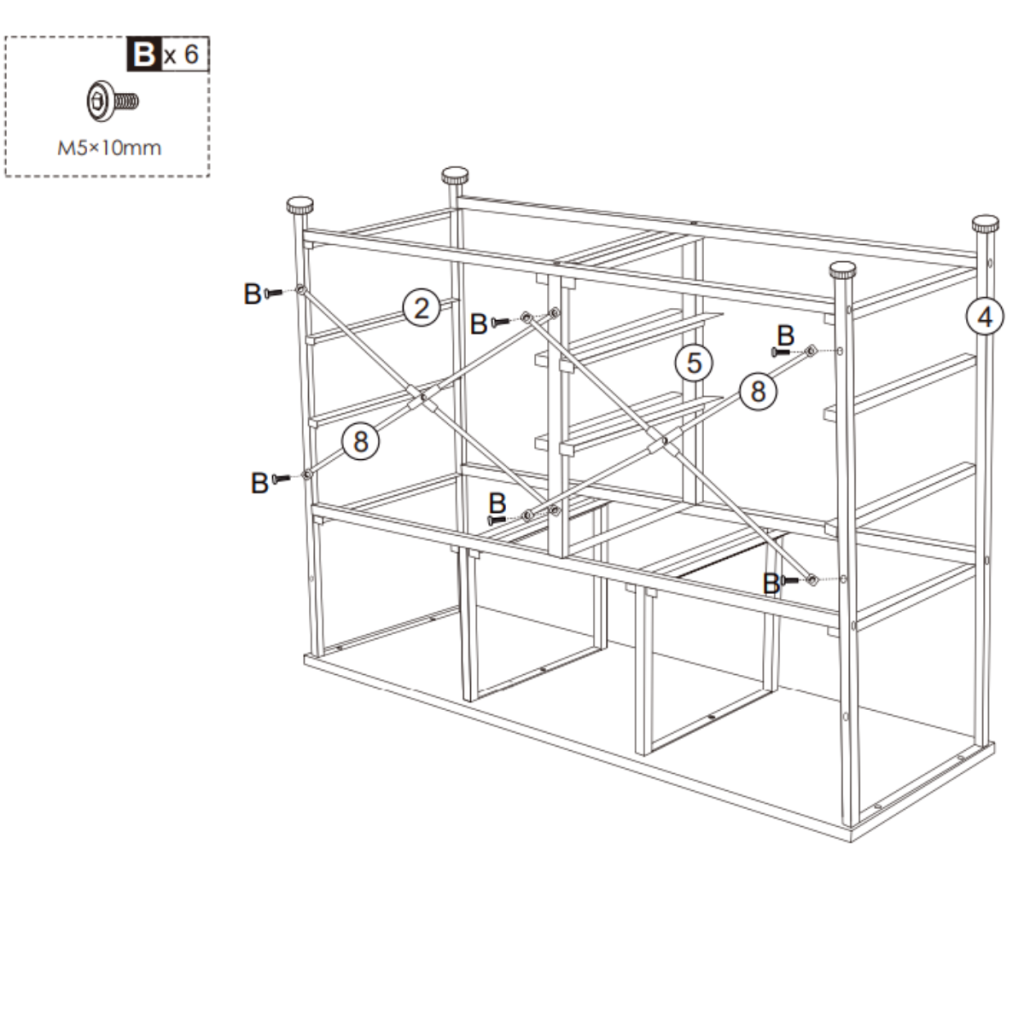

Step 7: Install the Back Cross Bars

Parts & Hardware Needed:

• Back Cross Bars – 8 (x2)
• Left Side Panel – 2
• Right Side Panel – 4
• Center Shelf Panel – 5
• M5×10mm Screws – B (x6)

Instructions:

1. Position both back cross bars (8) in an X shape across the rear of the frame, matching the ends of each bar with the screw holes on panels 2, 4, and 5.
2. Align the holes at each connection point to ensure the cross bars sit flat and form a stable X pattern.
3. Insert M5×10mm screws (B) into all six marked positions to secure the cross bars to the frame.
4. Tighten each screw with a screwdriver, ensuring the cross bars provide firm structural support.

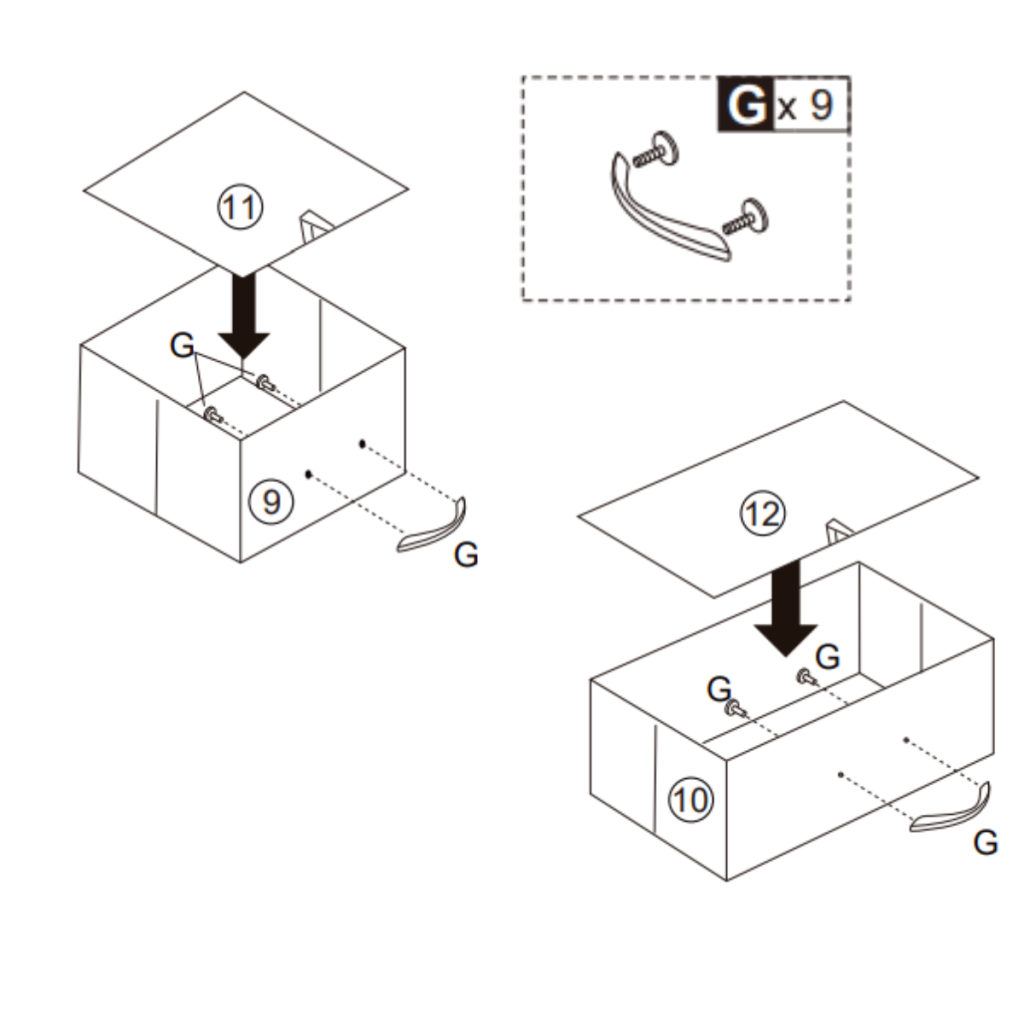

Step 8: Assemble the Drawers and Attach the Handles

Parts & Hardware Needed:

• Drawer Box Panels – 9 and 10
• Drawer Bottom Panels – 11 and 12
• Drawer Handles – G (x9)

Instructions:

1. Place drawer bottom panel 11 onto drawer box panel 9, inserting it fully into the internal grooves.
2. Align the screw holes on the front of the drawer box with the handle G and insert the screws through the inside panel to secure the handle.
3. Repeat the same process for drawer box panel 10 and bottom panel 12, attaching the remaining handles G.
4. Confirm each handle is firmly tightened and each bottom panel sits flush inside the drawer grooves.

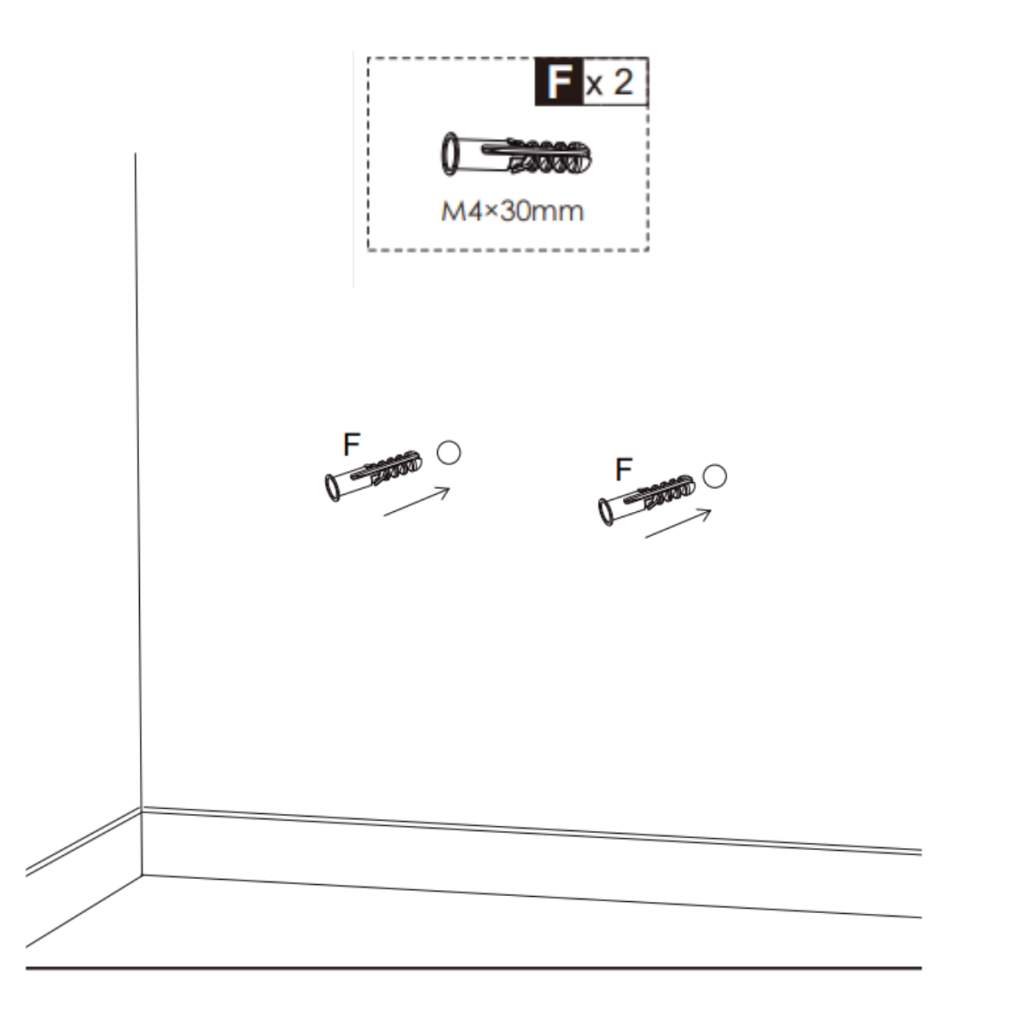

Step 9: Install the Wall Anchors

Parts & Hardware Needed:

• M4×30mm Wall Anchors – F (x2)

Instructions:

1. Identify the installation area on the wall where the dresser will be secured.

2. Drill holes into the wall at the marked positions, matching the size needed for the M4×30mm wall anchors.
3. Insert both wall anchors (F) into the drilled holes, tapping gently if needed to ensure they sit flush.
4. Prepare for the final attachment step by keeping the anchors aligned and ready for the safety strap connection.

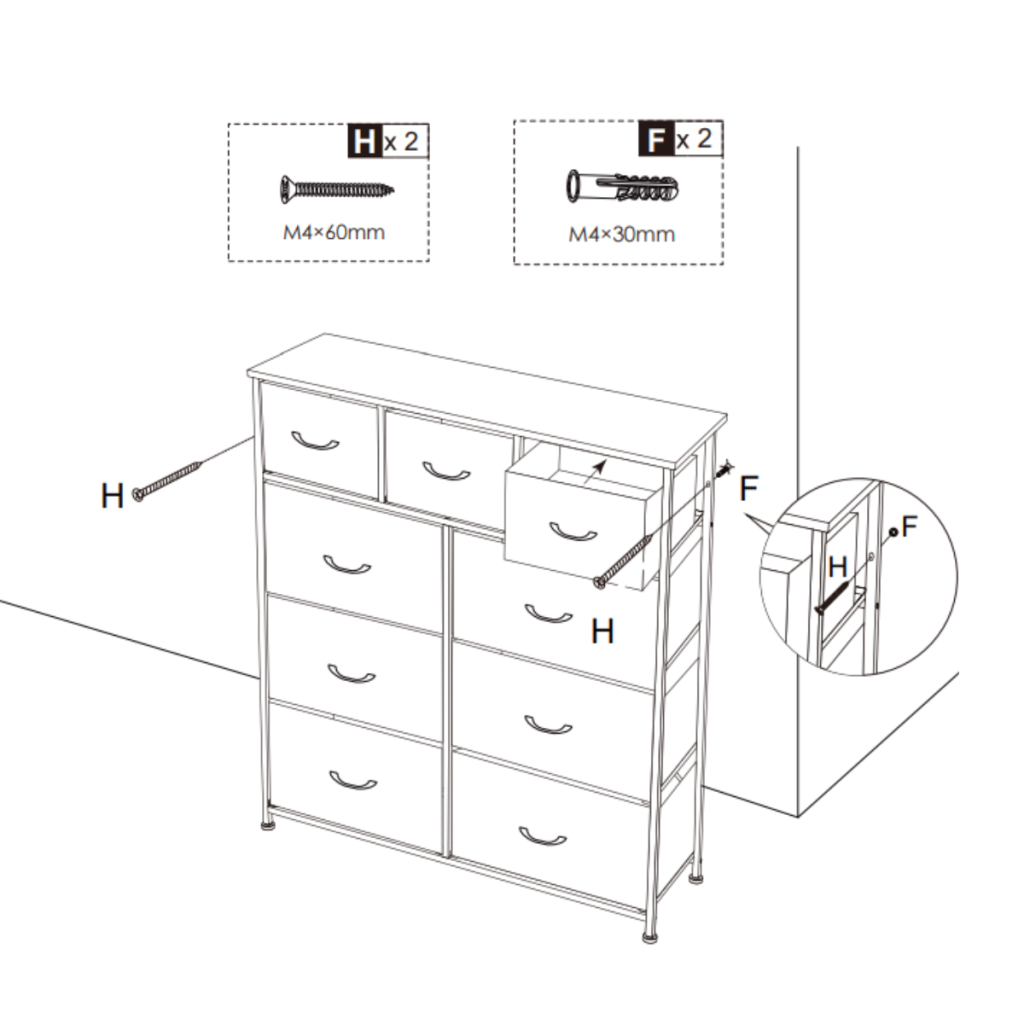

Step 10: Secure the Dresser to the Wall

Parts & Hardware Needed:

• Safety Strap Screws – H (M4×60mm) (x2)
• Wall Anchors – F (M4×30mm) (x2)

Instructions:

1. Move the dresser into its final position, ensuring it aligns with the installed wall anchors (F).
2. Locate the safety straps on the back of the dresser and align them with the wall anchors.
3. Insert the M4×60mm screws (H) through each safety strap and into the wall anchors (F).
4. Tighten both screws securely to ensure the dresser is firmly anchored to the wall for stability and safety.
5. Reinsert all drawers into the dresser frame to complete the assembly.

Care & Maintenance

• Cleaning: Wipe with a damp cloth; avoid harsh chemicals.
• Fabric Drawers: Remove and wash covers separately if needed.
• Maintenance: Periodically check and retighten screws to maintain stability

Safety Precautions

• Assemble on a flat and stable surface.
• Keep children away during assembly.
• Do not overload drawers; follow weight capacity limits.
• Ensure all screws are secure before using the dresser.

Ready to Use!

Your HOMCOM 4-Tier Dresser with 9 Fabric Drawers (SKU: 831-402) is now fully assembled and ready for use.

You can also download a copy of the HOMCOM Dresser (SKU: 831-402) Manual PDF for future reference.

For technical support, replacement parts, or product questions,contact Aosom LLC’s Customer Service and get friendly assistance.

FAQs

1. My drawers don’t slide smoothly,how can I fix this?

Ensure each drawer panel is fully seated in the grooves with no gaps. Check that the support bars and frames are aligned, not leaning inward. Lightly rub a dry bar of soap on the drawer edges to improve glide.

2. What do I do if screw holes aren’t lining up correctly?

Loosen surrounding screws to allow the panels to shift into alignment. Check that each part is facing the correct direction, misorientation is common. Assemble on a perfectly flat surface to prevent panel twisting.

3. How can I safely assemble the dresser alone if no helper is available?

Assemble the frame lying flat to prevent side panels from tipping. Use books, boxes, or cushions to support vertical panels during steps 1–3. Lift the dresser upright only after the top bars and crossbars are installed.
