The HOMCOM 5-Tier Corner Bookcase (SKU: 836-172BK) combines a modern look with practical storage. Designed with six shelves and a bottom cabinet, it fits neatly into corners while offering ample space for books and décor. Built with durable engineered wood and a black laminated finish, this freestanding unit is ideal for the living room, study, or office.
Important Safety Instructions
- Read completely before beginning assembly.
- Keep instructions for future reference.
- Assemble on a flat, stable, and dry surface.
- Two adults are recommended for safe assembly.
- Keep all small parts, hardware, and packaging away from children and pets.
- Use only the provided parts and hardware, do not substitute.
- Do not over-tighten screws during initial assembly; adjust once all parts are aligned.
- Check that all panels and fittings are correctly positioned before final tightening.
Parts List
| Part No. | Description | Qty |
| ① | Top Panel (Curved) | 1 |
| ② | Bottom Panel (Curved) | 1 |
| ③ | Middle Panel (Curved) | 1 |
| ④ | Left Side Panel (Upper) | 1 |
| ⑤ | Right Side Panel (Upper) | 1 |
| ⑥ | Left Side Panel (Lower) | 1 |
| ⑦ | Right Side Panel (Lower) | 1 |
| ⑧ | Shelf Panel (Curved) | 1 |
| ⑨ | Shelf Panel (Curved) | 1 |
| ⑩ | Small Shelf (Rectangular) | 1 |
| ⑪ | Small Shelf (Square) | 1 |
| ⑫ | Back Panel (Cabinet) | 1 |
| ⑬ | Door Panel (Cabinet) | 1 |
Hardware List
| Code | Description | Specification | Qty |
| A | Cam Lock + Dowel | – | 6 |
| B | Screw | M5 × 40 mm | 35 |
| C | Cover Sticker | Ø15 mm | 35 |
| D | Shelf Support Peg | – | 5 |
| E | Wooden Dowel | – | 2 |
| F | Handle + Screw | M4 × 18 mm | 1 |
| G | Small Screw | M3 × 14 mm | 4 |
| H1 | Magnetic Door Catch | – | 1 |
| H2 | Metal Plate | – | 1 |
| I | Anti-Tip Strap | M20 | 6 |
| J | L-Bracket with Screws | – | 2 |
Step-by-Step Assembly Instructions
Follow the steps below to assemble your HOMCOM 5-Tier Corner Bookcase quickly and safely.

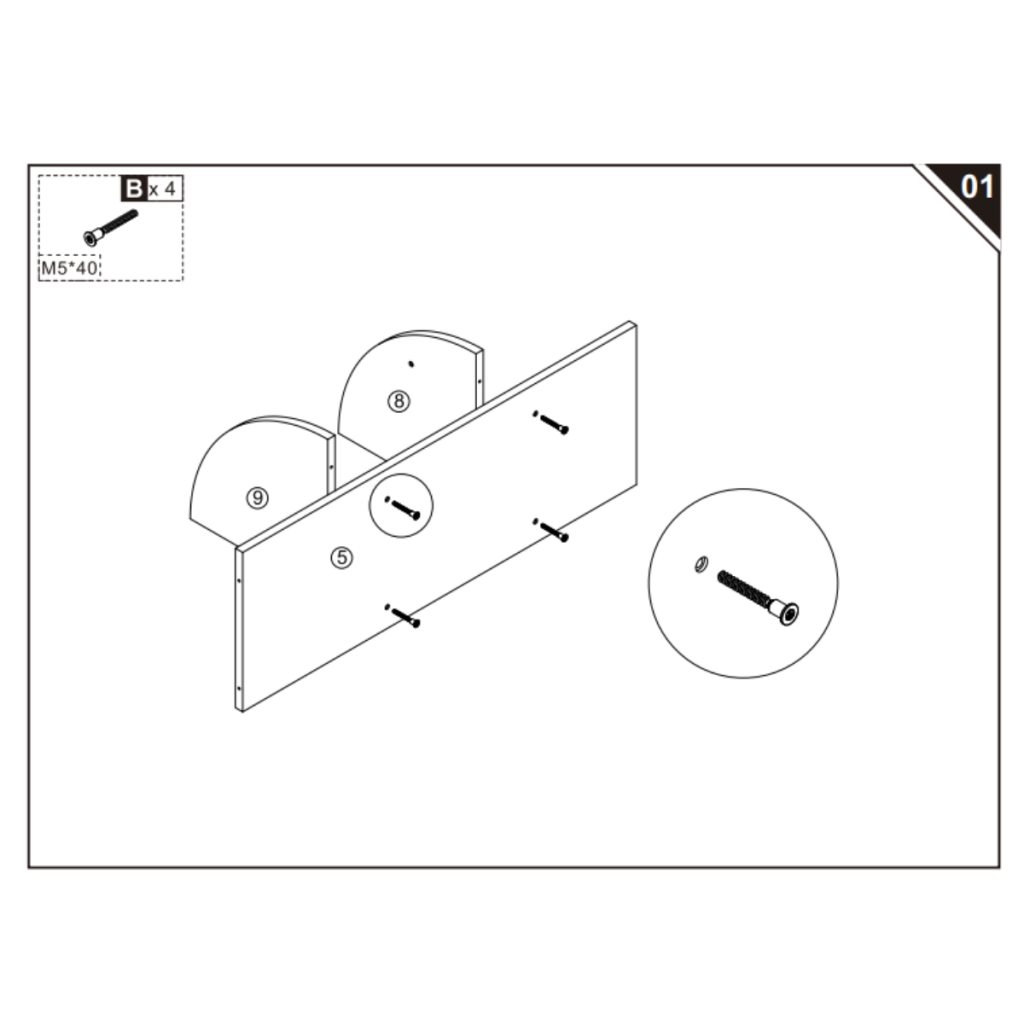

Step 1: Attach Shelves to Right Side Panel
- Take Right Side Panel ⑤.
- Attach Shelf Panel ⑧ and Shelf Panel ⑨ to the panel.
- Fix them in place using 4 × Screws B [M5 × 40 mm].
Step 2: Attach Upper Left Side Panel
- Take Left Side Panel ④.
- Align it with Shelf Panel ⑧, Shelf Panel ⑨, and Right Side Panel ⑤.
- Secure using 7 × Screws B [M5 × 40 mm].
Step 3: Install Top and Middle Panels
- Take Top Panel ① and Middle Panel ③.
- Position them at both ends of the structure.
- Secure all connections using 12 × Screws B [M5 × 40 mm].
Step 4: Fix Small Shelf to Side Panel
- Take Side Panel ⑦.
- Attach Small Shelf ⑩ to the panel.
- Secure using 1 × Screw B [M5 × 40 mm].
Step 5: Attach Magnetic Catch
- Take Panel ⑫.
- Fix Magnetic Catch H1 onto the panel.
- Secure using 2 × Screws G [M3 × 14 mm].
Step 6: Connect Panels
- Take Side Panel ⑦ and Back Panel ⑫.
- Align them together and fix in place.
- Secure using 2 × Screws B [M5 × 40 mm].
Step 7: Attach Lower Left Side Panel
- Take Left Side Panel ⑥.
- Join it with Back Panel ⑫ and Side Panel ⑦.
- Secure using 3 × Screws B [M5 × 40 mm].

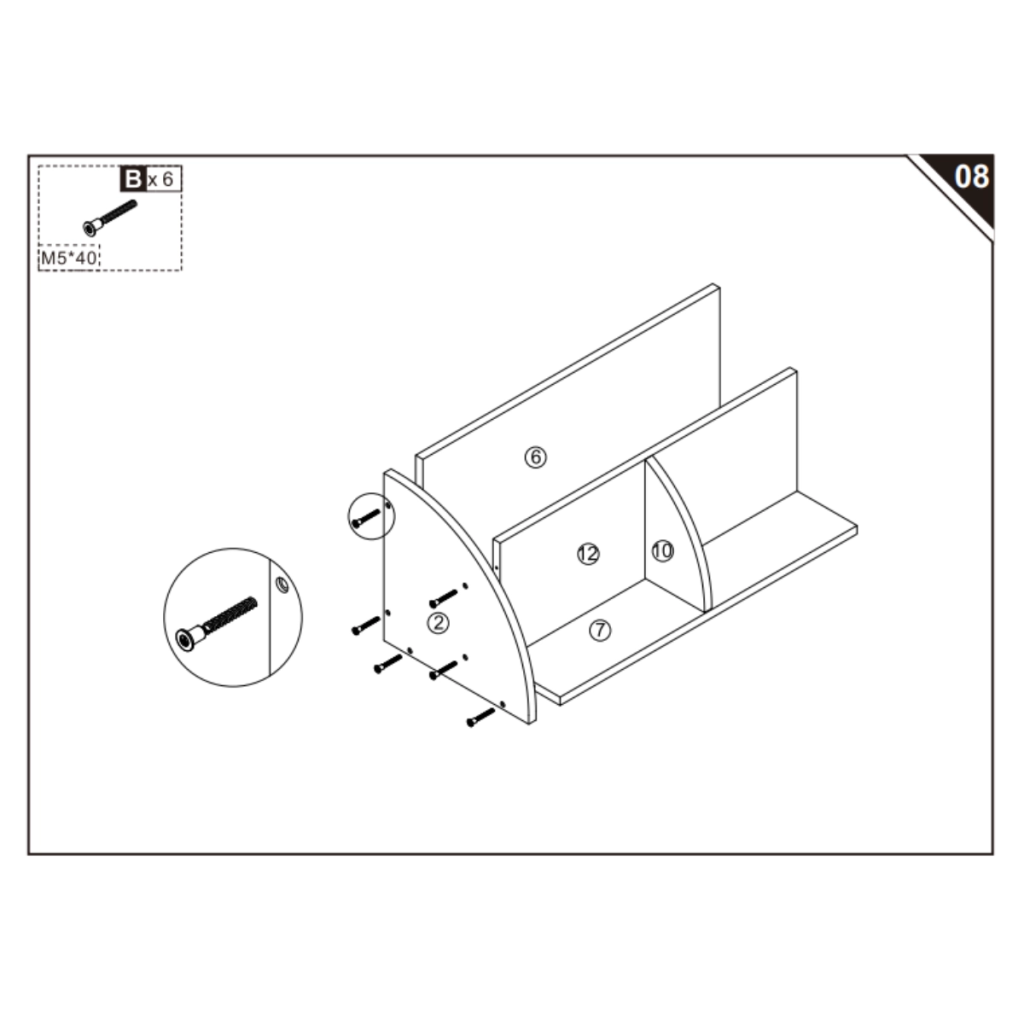

Step 8: Attach Bottom Panel
- Take Bottom Panel ②.
- Align it with Side Panel ⑥, Side Panel ⑦, and Back Panel ⑫.
- Secure using 6 × Screws B [M5 × 40 mm].
Step 9: Connect Upper and Lower Sections
- Take the assembled upper section (from Step 3) and align it with the lower cabinet section.
- Insert 6 × Cam Locks A into the designated holes.
- Lock them securely by turning with a screwdriver as shown.
Step 10: Insert Shelf Support Pegs
- Take 5 × Shelf Support Pegs D.
- Insert them into the pre-drilled holes inside the unit as shown.
- Make sure each peg is fully pressed in and level.

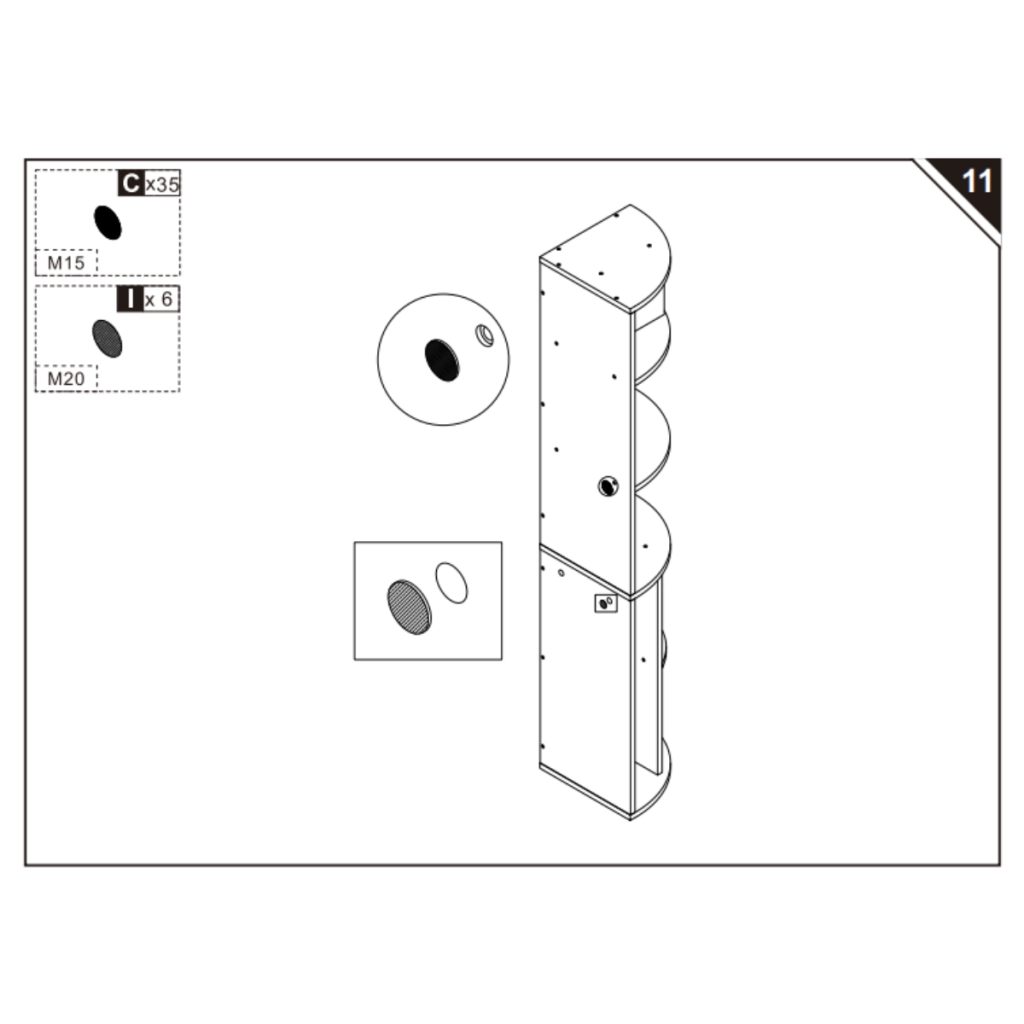

Step 11: Apply Stickers and Anti-Tip Straps
- Take 35 × Stickers C (Ø15 mm).
- Cover all visible screw holes with stickers.
- Take 6 × Anti-Tip Straps I (M20) and attach them to the rear of the cabinet for safety.
Step 12: Prepare the Door Panel
- Take Door Panel ⑬.
- Insert 2 × Dowels E into the top and bottom holes.
- Attach Handle F with its screw.
- Fix Metal Plate H2 using 2 × Screws G [M3 × 14 mm].
Step 13: Install the Door
- Take Door Panel ⑬ (prepared in Step 12).
- Align the dowels with the holes in the cabinet.
- Press the door into position so the magnetic catch aligns properly.
Step 14: Install Anti-Tip Brackets
- Take 2 × Brackets J with screws.
- Fix the brackets to the top panel of the bookcase.
- Use Anti-Tip Straps I with the brackets and secure them into the wall for stability and safety.
Care & Maintenance
- Clean surfaces with a soft, dry or slightly damp cloth.
- Avoid moisture, heat, and prolonged direct sunlight.
- Maximum weight: 22 lbs per shelf, 132 lbs overall.
- Inspect and tighten screws and anti-tip hardware every 2–3 months.
- Empty shelves before moving, lift with two adults instead of dragging.
Customer Support
If parts are missing or damaged, please Contact Aosom customer service with SKU 836-172 for assistance.
Assembly Complete
Your HOMCOM 5-Tier Corner Bookcase (SKU: 836-172BK) is now ready for use.
User Guide
Download the HOMCOM 5-Tier Corner Bookcase Manual(PDF).
FAQs
1. Can the bookcase be assembled by one person?
It is strongly recommended to have two adults for assembly. One person may struggle to hold panels upright while attaching, which can cause misalignment or damage.
2. How can I prevent scratches on the floor?
Attach felt pads under the base or place the bookcase on a rug. This prevents marks and helps the unit stay stable when moved slightly.
3. What if the magnetic catch no longer holds the door?
Check if the metal plate is aligned with the catch. Adjust or retighten screws, and if the magnet has weakened, replace it with a similar size catch.
4. Can I take the bookcase apart for moving?
Yes, it can be disassembled by reversing the steps. Keep hardware in labeled bags and reassemble carefully to avoid stripped screws or damage.
5. How do I clean stubborn marks on the finish?
Wipe gently with a damp cloth and mild soap if necessary. Do not use abrasive pads or harsh chemicals, as they may scratch or fade the laminated surface.
