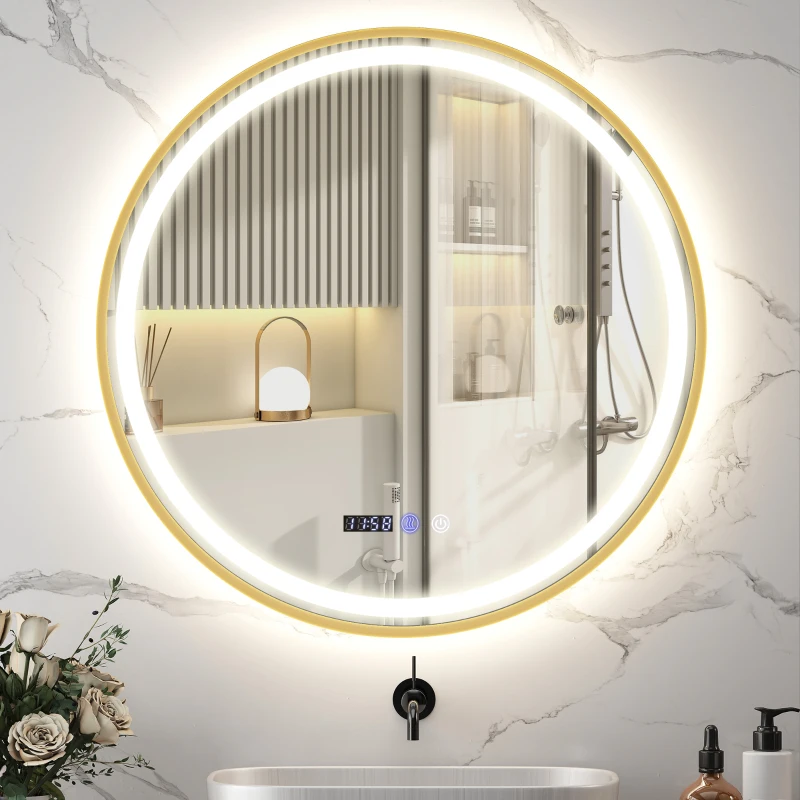

The HOMCOM 28″ Round Bathroom Mirror with LED Lights, with Anti-Fog Pad, Time and Temp Display, Gold (834-811V81) is designed to be both stylish and practical.

To get the most out of this mirror, it’s important to follow correct installation steps, understand its features, and perform regular care. This guide explains everything from safe installation and wiring to operating the lighting, using the anti-fog heater, adjusting brightness, and setting the time and temperature display.

WARNING AND SAFETY INSTRUCTIONS

Before installing or using the mirror, keep these important safety rules in mind:

• Turn off the power: Always disconnect power at the main circuit breaker before starting installation or maintenance.
• Follow wiring regulations: All electrical connections must comply with current IEE wiring standards. If unsure, hire a licensed electrician.
• Indoor use only: These mirrors are designed strictly for bathrooms or indoor spaces. Do not use outdoors or near moisture-exposed, hazardous areas.
• Keep away from fabrics: Position the mirror away from curtains, towels, or anything flammable. Never cover the mirror.
• Check before drilling: Ensure no hidden wires or water pipes are behind the wall where you plan to install.
• Wear safety gear: Use protective glasses and gloves, especially when drilling into tiles.
• Do not disassemble: The LED source is built-in and non-replaceable. Trying to open the unit may damage the diodes and risk eye injury.

Unboxing Your Mirror: What’s Inside the Box

When unboxing, make sure the following items are present:

• 1 × LED lighted mirror
• 2 × Screws for wall mounting
• 2 × Type A plastic wall anchors
• 1 × Installation manual
• 2 × Protective gloves

Additional tools you may need:

• Drill with suitable bit (masonry/tile)
• Screwdriver
• Measuring tape and pencil
• Safety goggles

Having everything prepared ensures smooth and safe installation.

How to Install Your Mirror Step by Step

When installing the HOMCOM Round Bathroom Mirror with LED Lights and Anti-Fog Pad ensure you measure wall spacing and prepare anchors before wiring.

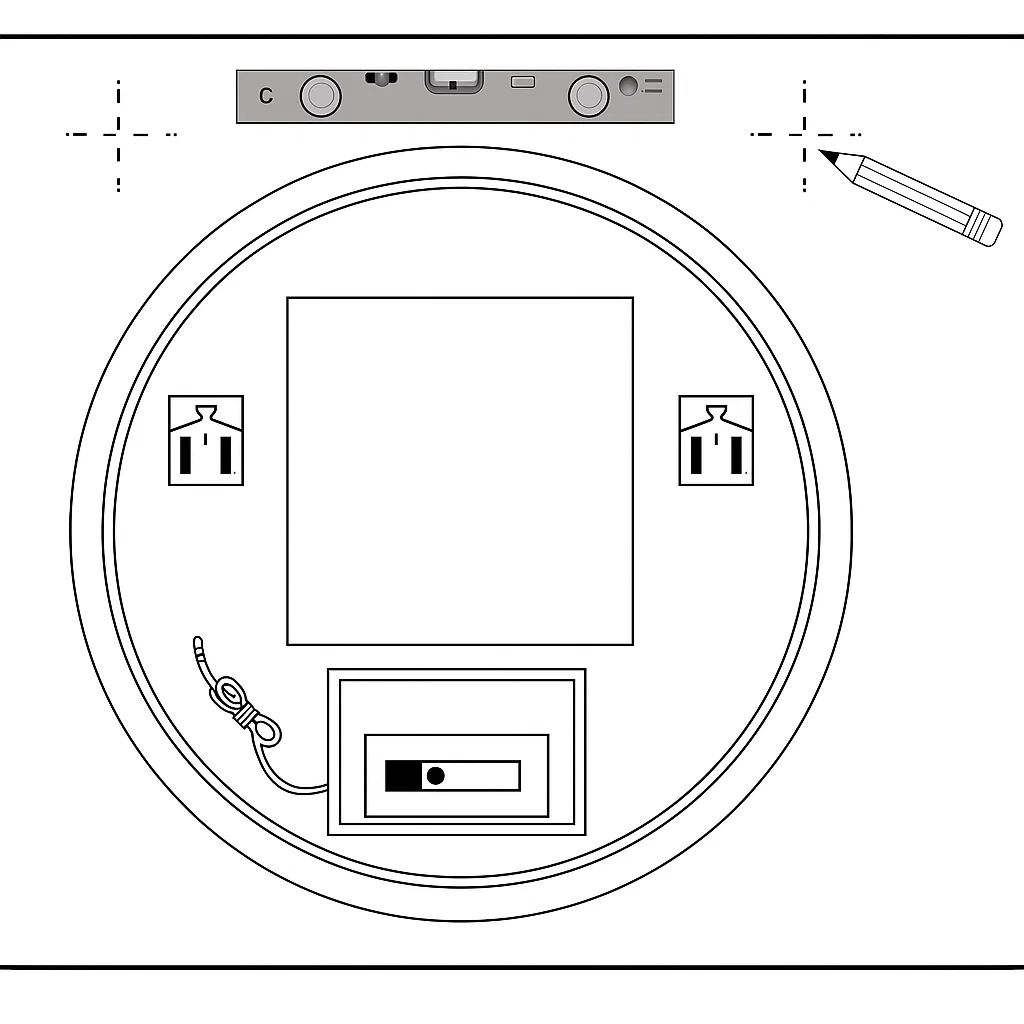

Step 1: Measure and Mark the Wall

• Measure the distance between the mirror’s hanging holes.
• Mark the exact positions on your wall using a pencil. Accuracy here ensures your mirror hangs level.

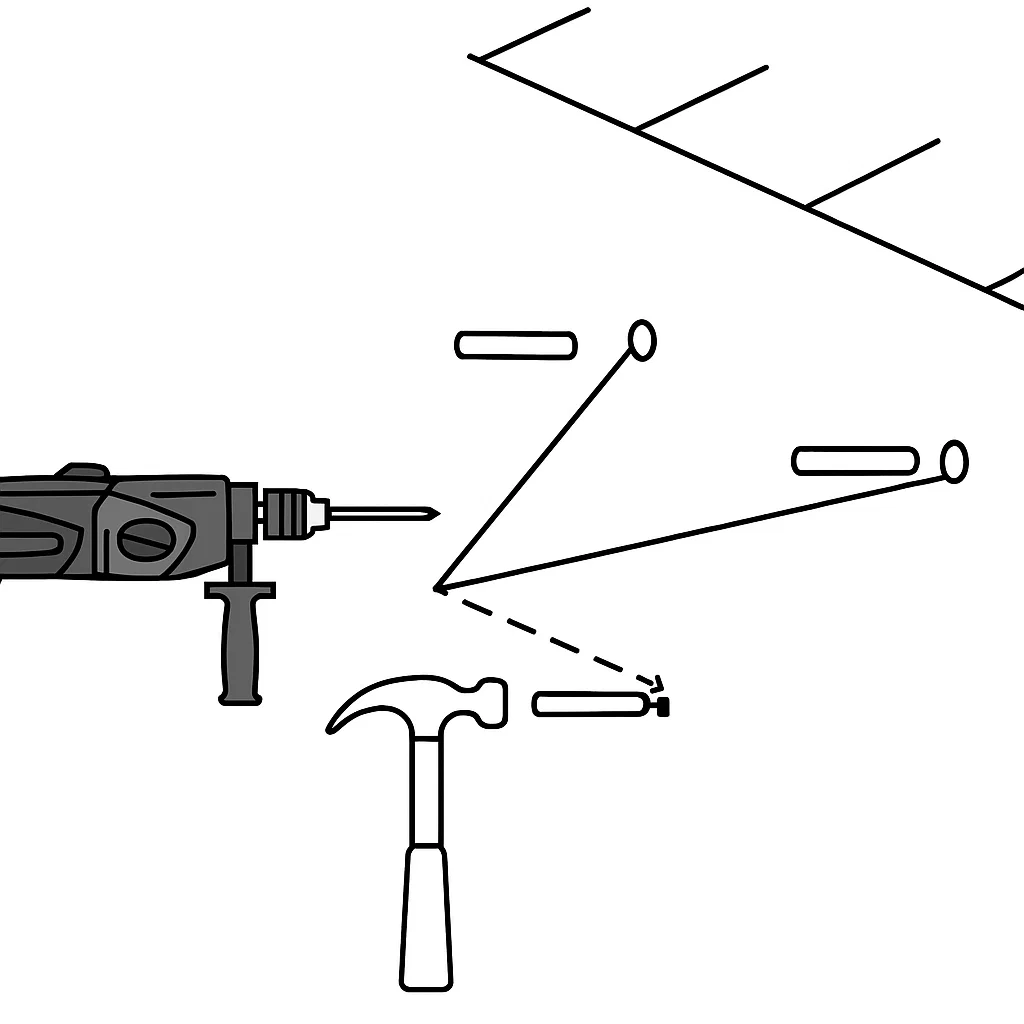

Step 2: Drill Holes and Insert Anchors

• Drill holes at your marked spots.
• Insert the plastic wall anchors firmly into the holes for stability.

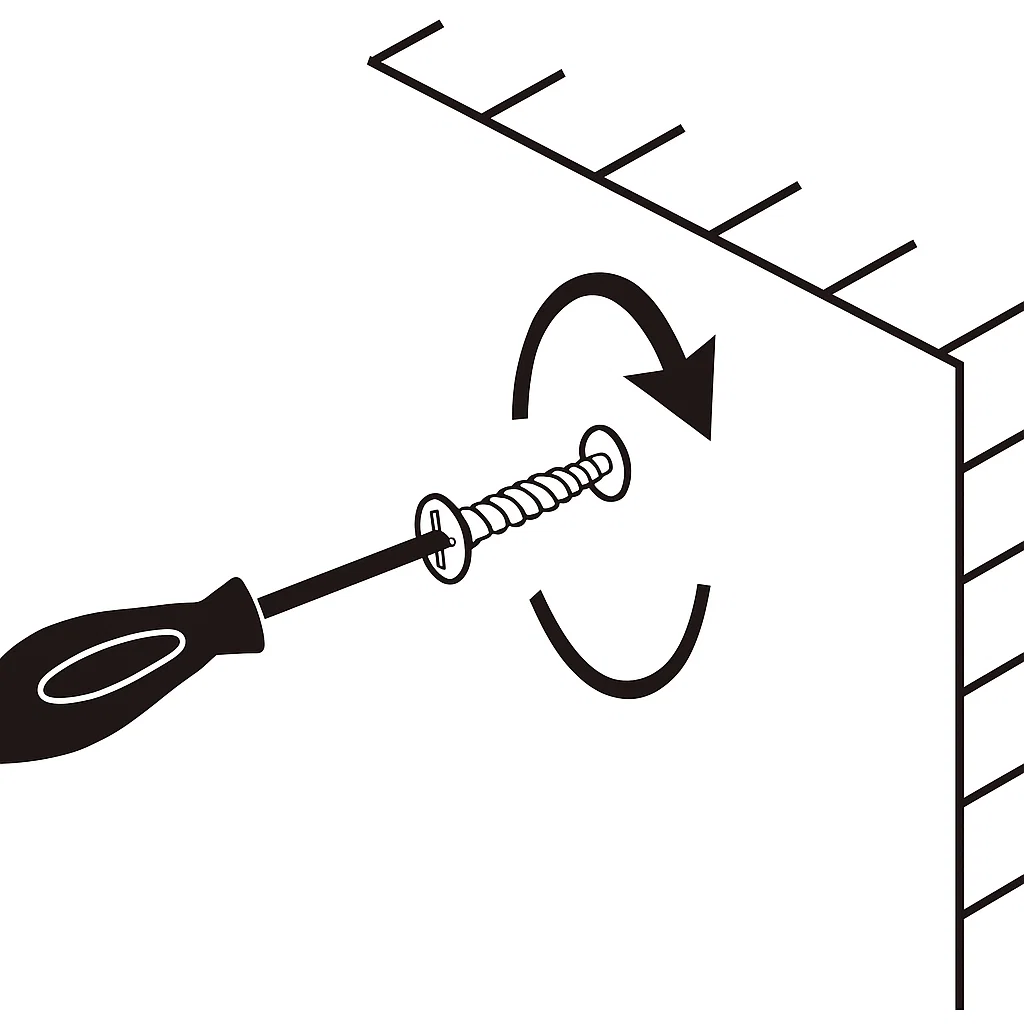

Step 3: Install Screws

• Drive screws into the anchors, leaving about 3/8 inch protruding from the wall.
• Ensure screws are firmly set and aligned.

Step 4: Electrical Connection

The mirror is designed with flexibility for both plug-in and hardwired setups.

• Option 1 – Plug connection: Use the pre-attached plug for simple installation.
• Option 2 – Hardwire to wall switch: Cut off the plug and connect wires as follows:
  • Live wire: Black
  • Ground wire: Green
  • Neutral wire: White

ATTENTION: PLEASE CUT OFF THE MAIN POWER SUPPLY BEFORE WIRING!

Step 5: Hang the Mirror

• Carefully align the mirror’s hanging holes with the screws.
• Gently lower the mirror until it sits securely on the screws.

At this stage, reconnect power at the breaker. Your mirror is now ready for use.

How to Use the HOMCOM 28″ Round LED Bathroom Mirror Features

Your HOMCOM LED Mirror offers more than simple reflection. Here’s how to use each feature correctly:

1. On/Off and Dimming

• When powered, the On/Off button glows blue.
• Short press: Turns mirror lights on/off.
• Long press: Dims or brightens gradually. Release when desired brightness is reached.

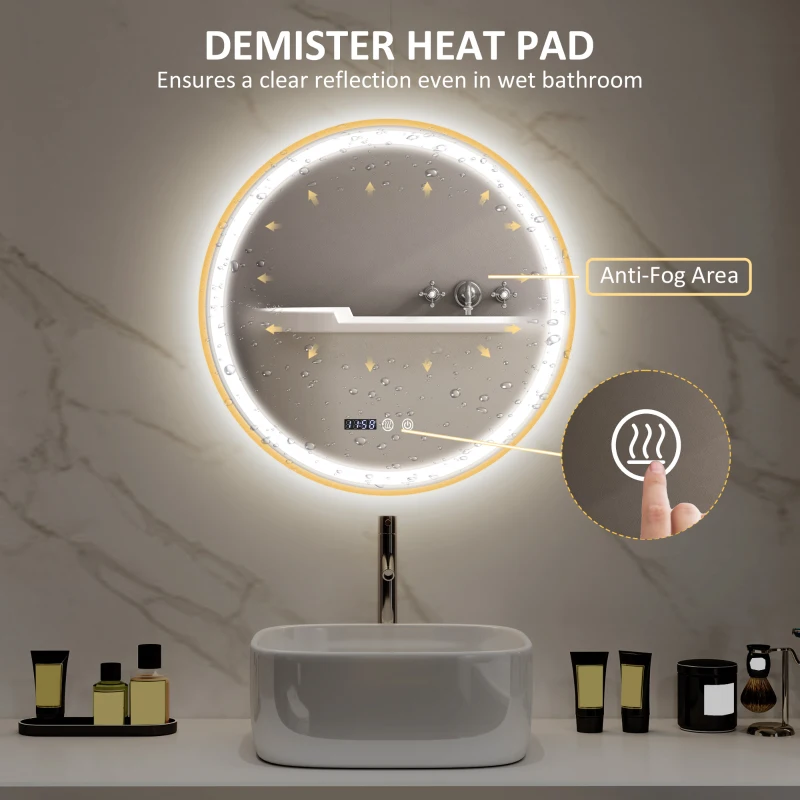

2. Anti-Fog Function

• Press the Defog button to activate. The mirror warms up, preventing condensation.
• Press again to turn off.
• Safety auto-shutoff: The anti-fog function will stop automatically after 60 minutes to prevent overheating.

3. Time and Temperature Display

The display cycles automatically between time (15 seconds) and temperature (5 seconds). You can also set the clock manually:

• Set minutes: Hold the defog button for 3 seconds until minutes flash. Adjust with On/Defog buttons.
• Set hours: Hold the defog button again for 3 seconds until hours flash. Adjust as above.
• When correct, stop pressing buttons. The display will confirm after ~3 seconds.

Regular Maintenance and Cleaning

To ensure long life and safe use:

• Turn off before cleaning. Always disconnect power first.
• Wipe gently: Use a soft, dry cloth. Do not use sprays, detergents, or abrasives.
• Avoid moisture: Prevent water from entering the lamp or wiring.
• Regular checks: Inspect cords and screws regularly. Stop using it if you notice damage.

Troubleshooting Common Issues

Even with proper installation, small issues can arise. Here are quick fixes:

Problem	Possible Cause	Solution
Mirror won’t light	Power not connected	Check plug, breaker, or wiring
Light flickers	Loose screw or wiring	Tighten connections, call electrician if needed
Defog not working	Function not activated/auto stop	Press button again Note: Auto-shutoff after 60 min
Display wrong time	Clock not set	Reset using defog + On/Off buttons
Brightness stuck	Button not held long enough	Hold On/Off until brightness adjusts

When to Call a Pro

• You’re not comfortable with hard-wiring or your bathroom circuit specifics.
• Persistent flicker or warmth near the wiring compartment.
• Any damage (cracked glass, nicked cord, loose transformer).

A licensed electrician ensures code-compliant, safe operation.

Safety Reminders Recap

• Indoor use only, never installed in outdoor or damp areas.
• Do not cover the mirror or obstruct ventilation.
• Never modify or disassemble the unit.
• Consult professionals for wiring or if damage occurs.

Wrap-Up

Installed and used correctly, your HOMCOM 28″ Round LED Bathroom Mirror adds bright, dimmable light, a no-fog surface after showers, and a handy time/temperature readout without the headaches. Follow the steps above, keep up with light maintenance, and you’ll enjoy a reliable, modern mirror for years.

Download the User Guide

For more detailed technical instructions and diagrams, you can also download the HOMCOM LED Mirror User Manual (PDF) and keep it for reference.

FAQs

1. Why won’t my HOMCOM LED mirror turn on?

Make sure the mirror is plugged in and the circuit breaker is switched on. Check that all wiring connections are secure and undamaged. If it still doesn’t work, inspect the wires or call a licensed electrician.

2. How do I fix flickering lights on the mirror?

Tighten screws and ensure all electrical connections are stable. Replace any loose anchors or plugs if needed for stability. If flickering continues, stop using the mirror and consult an electrician.

3. My mirror’s anti-fog function isn’t working, what should I do?

Press the defog button to activate and wait a few seconds for the mirror to warm up. Remember that the function automatically shuts off after 60 minutes. If it still doesn’t work, try unplugging briefly or check the power connection.

4. How can I adjust the time or temperature display?

Hold the defog button for 3 seconds until the digits start flashing. Use the On/Off or Defog buttons to set the hours and minutes. Release the button and wait a few seconds for the display to confirm the new settings.

5. What’s the safest way to clean my LED mirror?

Always turn off the power and disconnect the mirror before cleaning. Wipe gently with a soft, dry cloth without using sprays or abrasives. Regularly check cords and screws to prevent damage and maintain safety.
