Shade sails are an affordable and stylish way to create shaded outdoor spaces. With proper planning and execution, you can build a durable, functional shade sail at home. This detailed guide walks you through each step of the process logically and practically, from measurements to installation and tensioning.

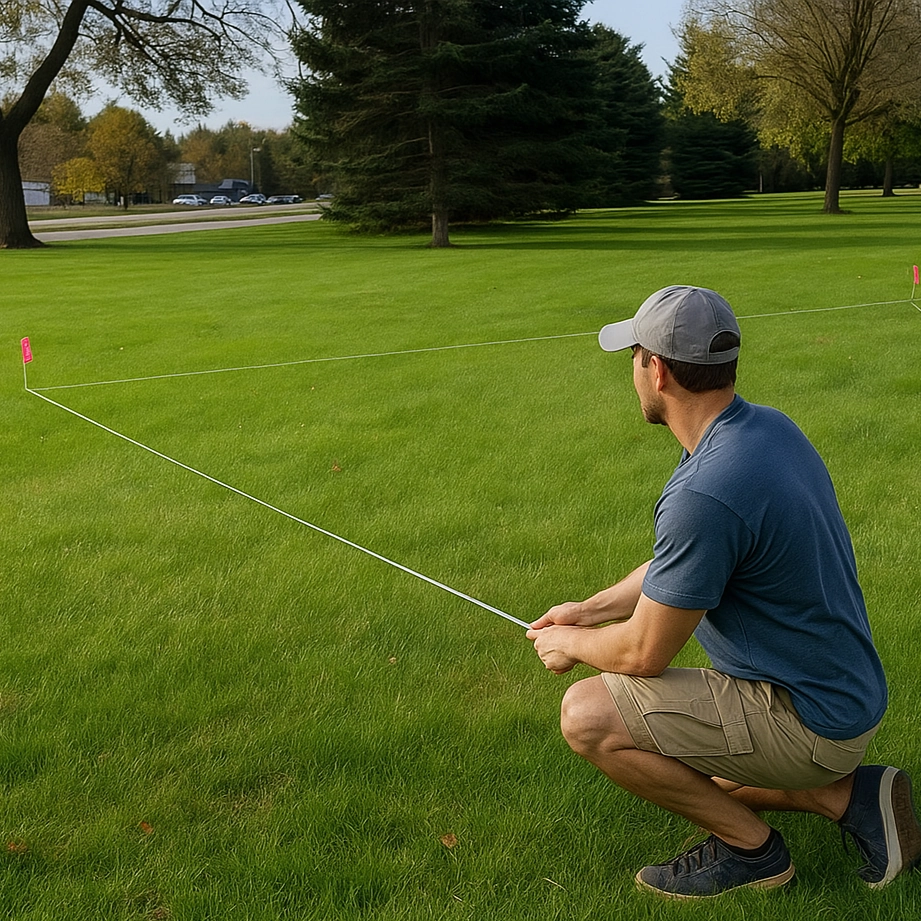

Step 1: Determining Shade Sail Positioning

Before you begin, deciding on the right placement for your shade sail ensures it provides adequate coverage and stays securely anchored.

Identify Shaded Areas

• Assess the area to be covered (e.g., patios, gardens, play areas).
• Check for existing structures or natural features (like trees) to use as anchor points.

Measuring Anchor Points

• Measure the height and spacing for attachment points.
• Calculate desired sail angles for runoff and aesthetics. Aim for at least one corner to be several feet lower for water drainage.

Sun Movement Consideration

Track where the sunlight falls throughout the day. This ensures optimal positioning of the sail for the intended time of use.

Tip: Use ropes stretched between anchor points to visualize the size and triangle/rectangle layout of your sail.

Step 2: Preparing the Fabric (Lofting)

Once the placement is finalized, the next step is to prepare and mark your fabric.

Materials for Lofting

• Shade fabric (HDPE, heavy-duty UV-resistant fabric recommended).
• Chalk or a soft marker.
• PVC pipes for creating smooth, curved edges.

Marking the Sail Shape

1. Lay the fabric on a flat surface (driveway, large table).
2. Use tape measures to mark the dimensions based on your measurements.
3. Add gentle inward curves (7% hollow) to each edge to improve tension later.

Tip for Beginners
Calculate hollow depth using this formula:
Hollow depth = Side length × 0.07
Example: A 200-inch side will have a 14-inch inward curve.

Step 3: Cutting the Fabric

Cutting with precision ensures a snug, taut shade sail once installed

Tools Required

• Hot knife or sharp scissors (hot knives help seal edges and prevent fraying).
• Weights (to hold the fabric steady).

Cutting Steps

1. Use PVC pipes as a guide for marking curved edges.
2. Secure fabric corners with weights or clamps to prevent movement.
3. Cut along the marked lines, ensuring smooth, clean edges.

Pro Tip: Save fabric scraps for corner patch reinforcements.

Step 4: Basting Panels Together

If your fabric isn’t wide enough for the shade size, you’ll need to join several panels.

Steps to Join Panels

1. Place double-sided tape along the seam line for easy alignment.
2. Lay the second fabric panel on top, ensuring alignment.
3. Temporarily secure the fabric with pins or staples at regular intervals before sewing.

Note: Maintain consistent fabric orientation so the texture and color match across panels.

Step 5: Reinforcing Corners

The corners are the most stressed parts of a shade sail, so reinforcement is critical.

Adding Corner Patches

1. Cut triangular or rounded patches from leftover fabric.
2. Place patches underneath each corner and secure with tape for temporary holding.
3. Sew securely along the edges of the patches, ensuring no gaps remain.

Why This Step Matters
Reinforced corners prevent tearing and ensure the sail lasts for years even under heavy tension.

Step 6: Sewing Seams and Creating Edges

Preparing the Edges

1. Fold 2 inches of fabric along each edge to create a hem.
2. Apply double-sided tape to hold the hem in place.
3. Overlap 2-inch polyester webbing along the folded hem for added strength.

Sewing the Edges

• Using a heavy-duty sewing machine, sew two parallel rows along each hemmed side.
• For additional support, consider sewing an additional row for middle seams.

Important: Avoid rushing through this step to prevent weak or misaligned stitching.

Step 7: Creating Hollows on the Sides

The hollow curvature on all sail edges is vital to its long-term function.

Shaping the Hollow

1. Lay the fabric flat and find the midpoint of each side.
2. Use a PVC pipe to bend into the measured hollow and mark the curve using chalk.
3. Reinforce the curve by applying additional stitching or webbing where necessary.

This step aligns the tension inward toward the center of the sail, reducing sagging or flapping in strong winds.

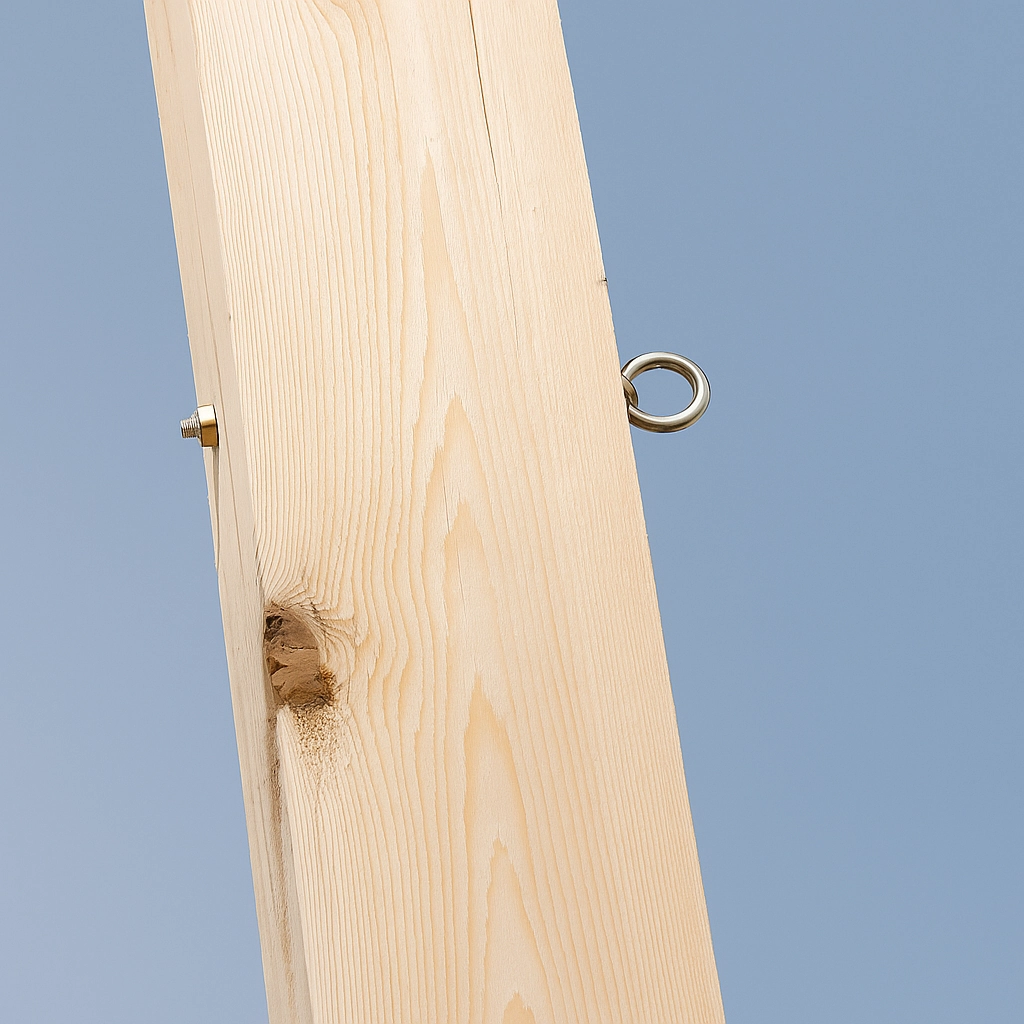

Step 8: Installing Attachment Hardware

Secure attachment points are the foundation of a safe and stable shade sail.

Wall and Post Hardware Suggestions

• Eye bolts for walls.
• Corner brackets for inside/outside corners.
• Turnbuckles for adjustable tension.
• Lag screws for strong embedment into wooden posts.

Installation

1. Drill pilot holes for all hardware.
2. Attach bolts or brackets snugly using a wrench.
3. Position posts at a slight outward angle (10–15 degrees) for stability.

Pro Tip: Test the hardware installation strength using temporary loads before proceeding.

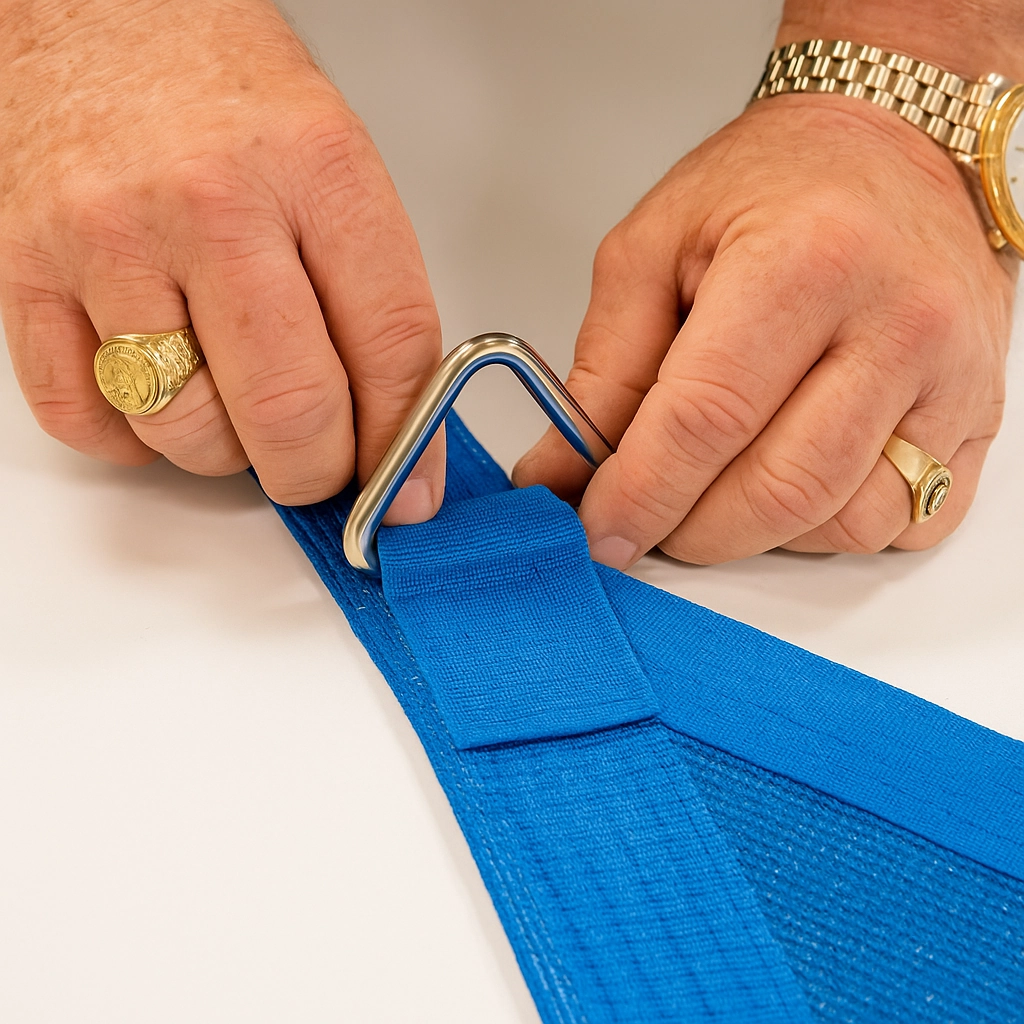

Step 9: Attaching and Sewing Corner Rings

Adding Stainless Steel Rings

1. Place D-rings, triangular rings, or round rings at each corner.
2. Wrap webbing and fabric over the ring, then sew multiple reinforcement rows.
3. Avoid uneven stitches as this can create weak points under tension.

These rings connect your sail to the anchor points securely.

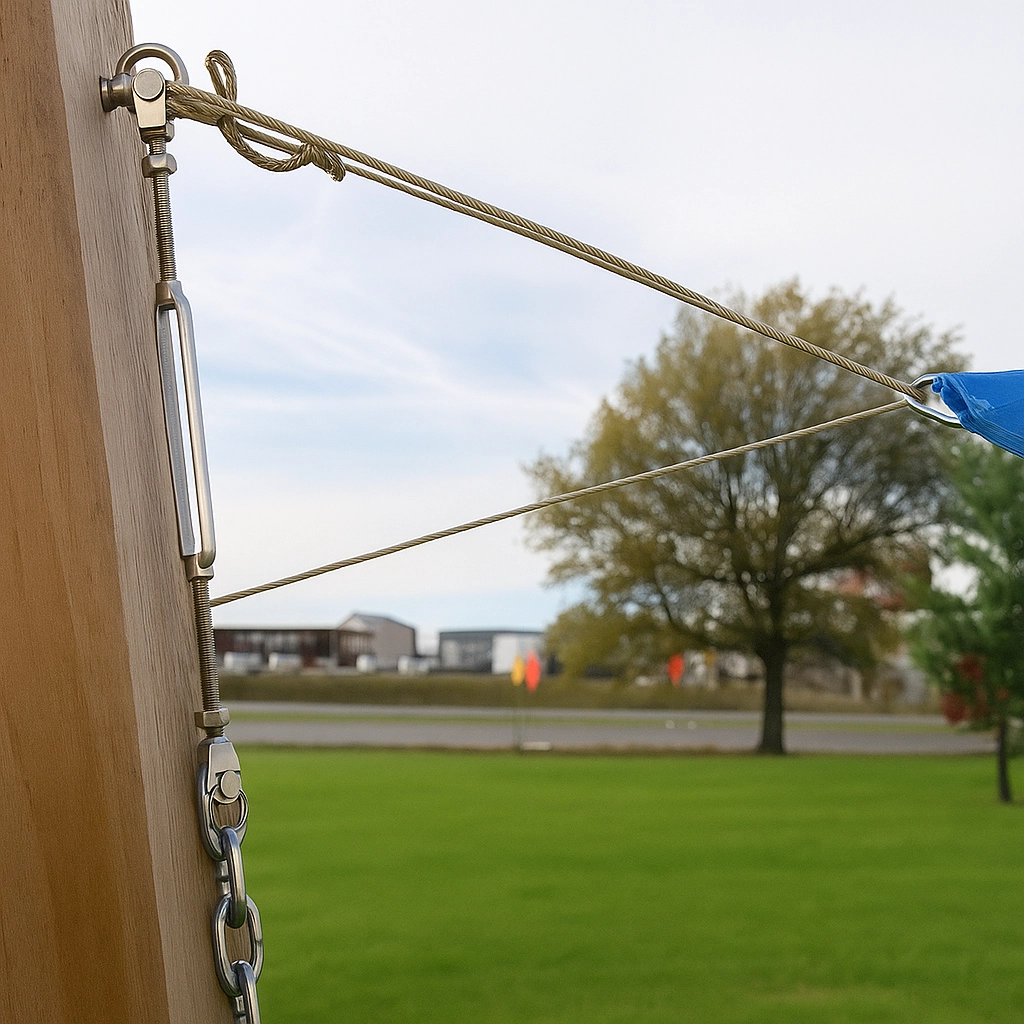

Step 10: Installing the Shade Sail

Installation Process

1. Attach the shade sail corners to anchor points using shackles or quick links.
2. Connect turnbuckles to at least two corners of the sail.

Tightening

• Gradually tighten turnbuckles, alternating between corners for even tension.
• Check for wrinkles or sagging and make micro-adjustments as needed.

Tools for Fine Adjustments

• Ratcheting straps (for temporary tensioning).
• Chains (to cover long gaps).

Safety Reminder: Always inspect hardware for wear before installation.

Step 11: Tensioning the Shade Sail

Proper tensioning ensures the sail doesn’t sag or flap in high winds.

Guidelines for Tensioning

• Begin with gentle tension and gradually increase tautness.
• Avoid over-tightening, as this stresses the fabric and hardware.

A correctly tensioned shade sail will have no wrinkles across the surface and should feel firm when tapped by hand.

Step Back and Enjoy Your Work

From planning to tensioning, you now have the knowledge to build your own high-quality shade sail. With patience and careful execution, your custom sail will provide years of shade, comfort, and style. If you’re still exploring options, check out Shade Sails for a variety of designs and sizes.

FAQs

1. Can I skip the hollow curvature on the edges of my shade sail?

No, the hollow edges are crucial for tension and durability. They prevent sagging and help reduce wind flapping, ensuring the sail maintains its shape long-term.

2. What can I do if my shade sail fabric is too small?

If the fabric isn’t wide enough, sew several panels together. Use double-sided tape to align the panels and ensure the texture and color match for a seamless look.

3. How tight should I tension my shade sail?

Start with a gentle tension and gradually tighten. Avoid over-tightening to prevent fabric or hardware damage; the sail should feel firm without wrinkles but not overly stretched.

4. Is it necessary to add guy wires for stability?

Yes, for posts supporting larger or multiple sails, guy wires provide extra stability. Attach them at a 45-degree angle and use turnbuckles to securely tighten them.
