Retractable awnings are an essential feature for creating comfortable outdoor spaces, especially in Canada where weather conditions can range from sunny and warm to wet and windy. They provide shade when you need it and can be neatly retracted when you don’t, offering a level of flexibility unmatched by fixed awnings. But what exactly happens when you extend or retract a retractable awning? How do these mechanisms work? Let’s break it down and explore both manual and motorized systems in detail.

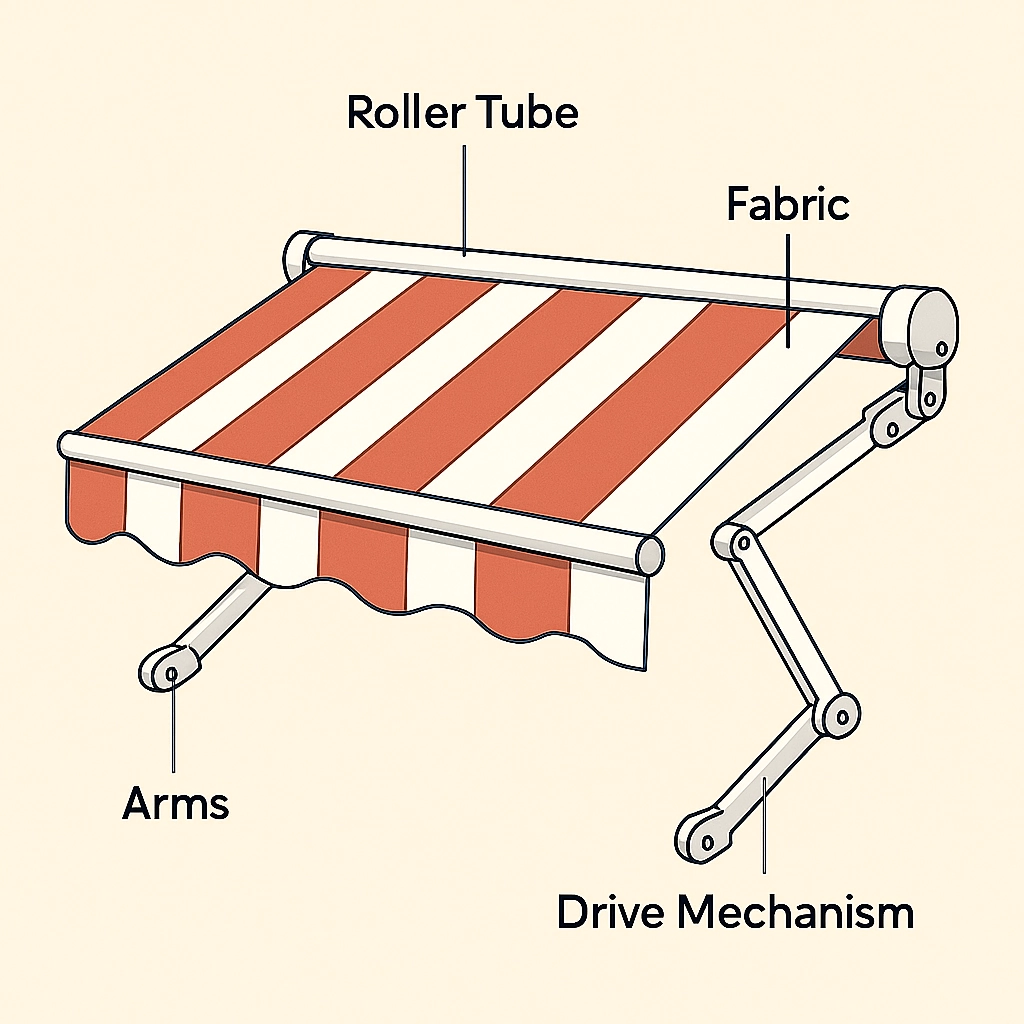

Understanding the Operational Mechanism of Retractable Awnings

Retractable awnings work by using a combination of structural components and mechanical systems designed to allow the fabric to extend or retract smoothly and securely. At their core, retractable awnings consist of:

1. Arms: These extend and retract to deploy or fold back the awning.
2. Roller Tube: A central tube that stores the awning fabric when it is retracted.
3. Fabric: Typically made of durable, weather-resistant materials like acrylic or polyester, the fabric rolls out with the arms.
4. Drive Mechanism: The mechanism that controls the movement of the awning, which can be either manual or motorized.

The process of extending and retracting the awning depends entirely on whether the system is manual or motorized. We’ll explore both below.

Manual Retractable Awnings

Manual awnings are operated by a hand crank or similar mechanism. Here’s how they work:

Step-by-Step Process:

1. Crank Mechanism: A manual awning features a hand crank connected to a gear system within the roller tube’s housing. When you rotate the crank in one direction, it unwinds the fabric from the roller tube.
2. Extension of Arms: As the roller tube unwinds, the spring-loaded or articulated arms begin to extend outward, pulling the fabric along with them.
3. Deployment Complete: The arms lock into position, keeping the awning fabric taut and providing consistent shade.

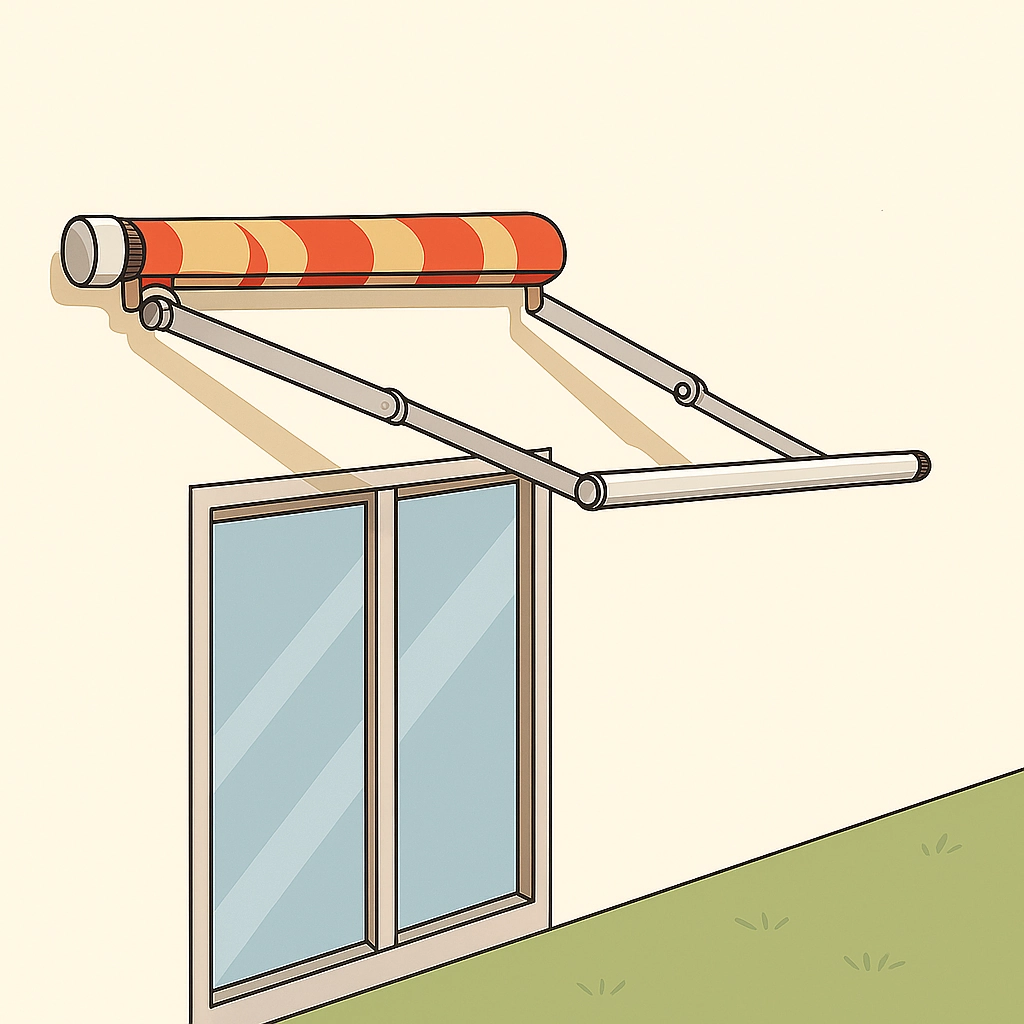

Retraction Process:

1. Rotating the hand crank in the opposite direction causes the fabric to roll back onto the roller tube.
2. The arms fold back into their closed position, tucking the fabric and mechanism neatly out of view.

Example:

Imagine you’re hosting a backyard barbecue. With a few turns of the hand crank, the awning extends over your patio, creating a shaded area for guests. If the wind picks up later, you can easily retract the awning by reversing the crank direction. Manual awnings are ideal for those seeking a budget-friendly and simple solution.

Tips for Smooth Operation:

• Regularly lubricate the crank mechanism to ensure it turns easily.
• Avoid forcing the crank if you encounter resistance; check for obstructions or misaligned parts.

Motorized Retractable Awnings

Motorized awnings rely on an electric motor to extend and retract the fabric. These systems are designed for maximum convenience and modern functionality.

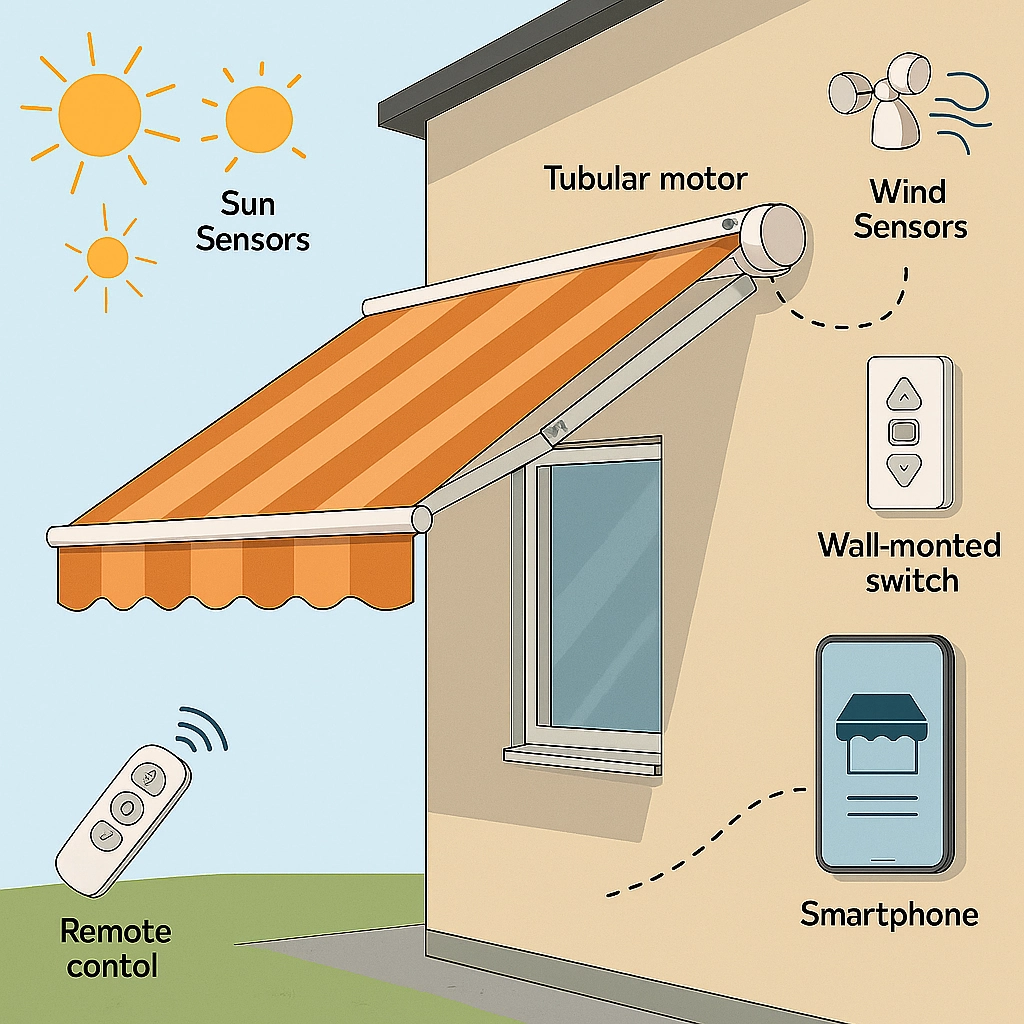

How Motorized Systems Work:

1. Tubular Motor

A motor is housed inside one end of the roller tube. Receiving power from your home’s electricity or a solar panel, the motor rotates the tube to either release or roll up the fabric.

2. Control Mechanisms

You can operate the motorized awning using:

• A handheld remote control.
• A wall-mounted switch.
• A smartphone app, which allows for programmed operations such as scheduling.

3. Smart Sensors

Many motorized awnings come equipped with sensors that automatically extend or retract the awning. For example:

• Sun Sensors: Extend the awning when sunlight intensity increases, helping reduce indoor heat during summer.
• Wind Sensors: Retract the awning if wind speeds reach a dangerous level, preventing damage.

Example:

Picture a motorized awning installed over your deck. With just the press of a button, the awning extends seamlessly as you prepare to enjoy a sunny afternoon outdoors. During sudden gusts of wind, the wind sensor detects the conditions and retracts the awning automatically, protecting it from potential damage. Motorized awnings are perfect for larger spaces or homeowners who value ease of use.

Key Features:

• Automation: Hands-free operation reduces the hassle of manual adjustments.
• Precision: Stops at the exact position needed to provide optimal shade.
• Quiet Operation: Motors are designed to operate quietly, maintaining a peaceful environment.

Comparison Between Manual and Motorized Systems

Feature	Manual	Motorized
Ease of Use	Requires physical effort	Operates with the push of a button or app control.
Suitability	Best for small areas or light use	Ideal for large patios and frequent adjustments.
Cost	More affordable upfront	Higher initial investment.
Maintenance	Minimal	May require occasional servicing for motor components.

Common Awning Problems and Their Solutions

Even with their straightforward operation, retractable awnings may experience issues from time to time. Here are some practical tips to address common concerns:

Problem 1: Awning Doesn’t Extend Smoothly

Cause: Misaligned arms or tension in the roller tube.
Solution: Inspect the mechanism and realign the arms or consult a professional if needed.

Problem 2: Motorized Awning Fails to Operate

Cause: Low power or clogged motor.
Solution: Check the power source and clean the motor housing.

Problem 3: Sagging Fabric

Cause: Worn-out fabric or insufficient tension in arms.
Solution: Tighten the arm springs or consider replacing the fabric.

Retractable awnings are an excellent investment for any Canadian homeowner, offering convenience, style, and protection against weather elements. Whether you prefer the simplicity of a manual crank system or the sophistication of a motorized mechanism, understanding how these awnings work empowers you to make the best choice for your home. For quality retractable Awnings that combine durability and innovative features, explore Aosom’s extensive range of Awnings.
