Assemble your HOMCOM Upholstered Kitchen Chairs, Modern Dining Chairs Set of 2 with Diamond Tufting and Steel Legs for Dining Room (Green) with this step-by-step guide, parts list, and care instructions.

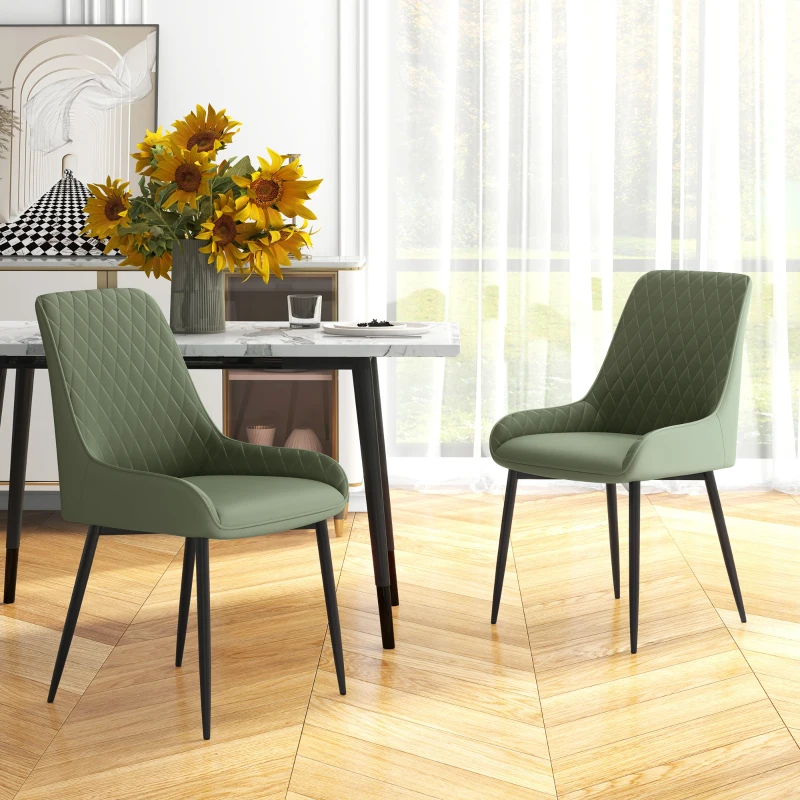

The HOMCOM Upholstered Dining Chair Set brings timeless style and comfort to your dining space. Designed with diamond-stitched tufting and soft foam padding, it blends elegance and durability. The sturdy steel legs ensure reliable support, while the smooth velvet-like fabric adds a modern touch perfect for everyday dining or entertaining.

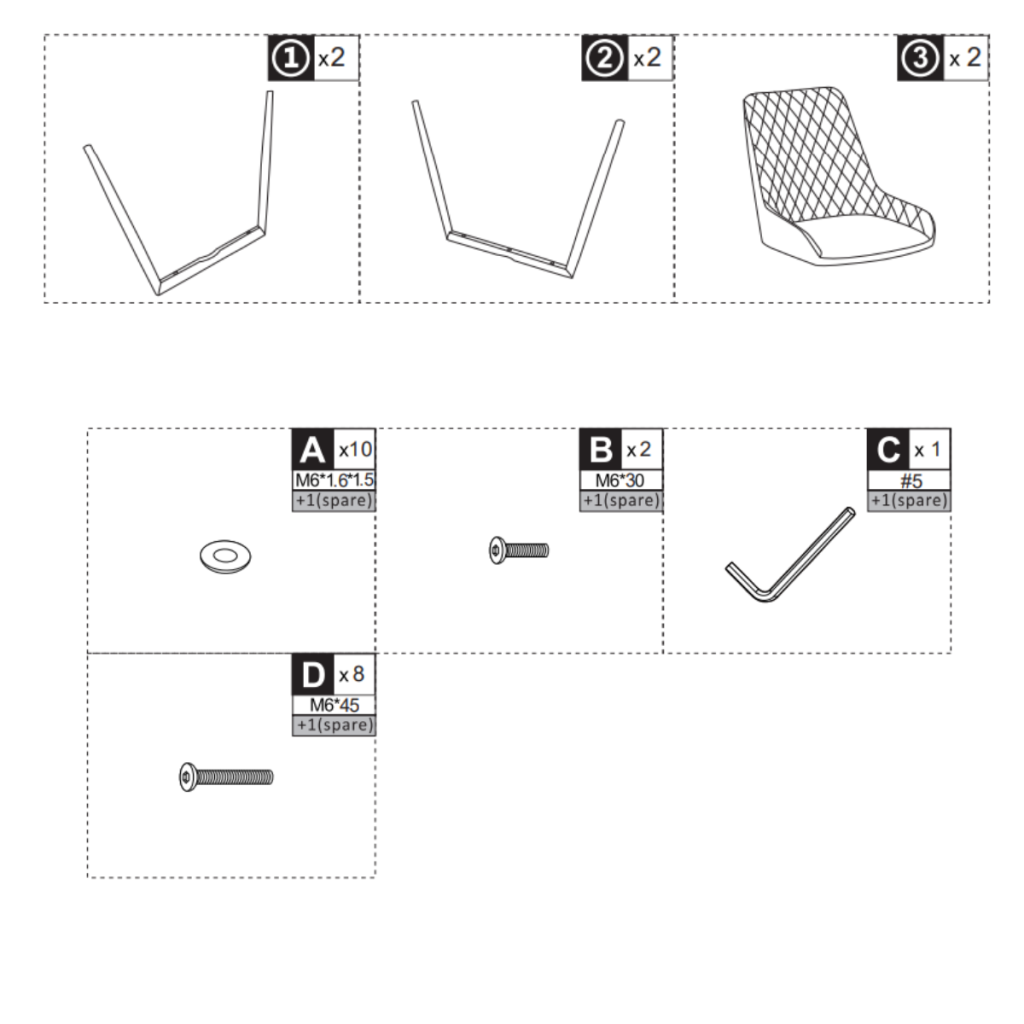

Parts
| Label | Description | Quantity |
| ① | Left Leg Frame | 2 |
| ② | Right Leg Frame | 2 |
| ③ | Seat with Upholstered Backrest | 2 |
Hardware
| Label | Description | Specification | Quantity |
| A | Washer | M6 × Ø16 × 1.5 mm | 10 (+1 spare) |
| B | Short Bolt | M6 × 30 mm | 2 (+1 spare) |
| C | Allen Key | #5 | 1 (+1 spare) |
| D | Long Bolt | M6 × 45 mm | 8 (+1 spare) |
Before You Begin
- Read all instructions carefully before starting assembly.
- Recommended assembly time: Approx. 20–25 minutes per chair.
- Recommended personnel: One person.
- Assemble on a flat, padded surface to avoid scratches or fabric damage.
- Verify all parts and hardware are included and undamaged before starting.
- Do not fully tighten screws until all parts are properly aligned.
- For indoor household use only.
Assembly Instructions
When assembling your HOMCOM Upholstered Kitchen Chairs (SKU: 835-188V00GN), follow each step carefully and in the order shown.

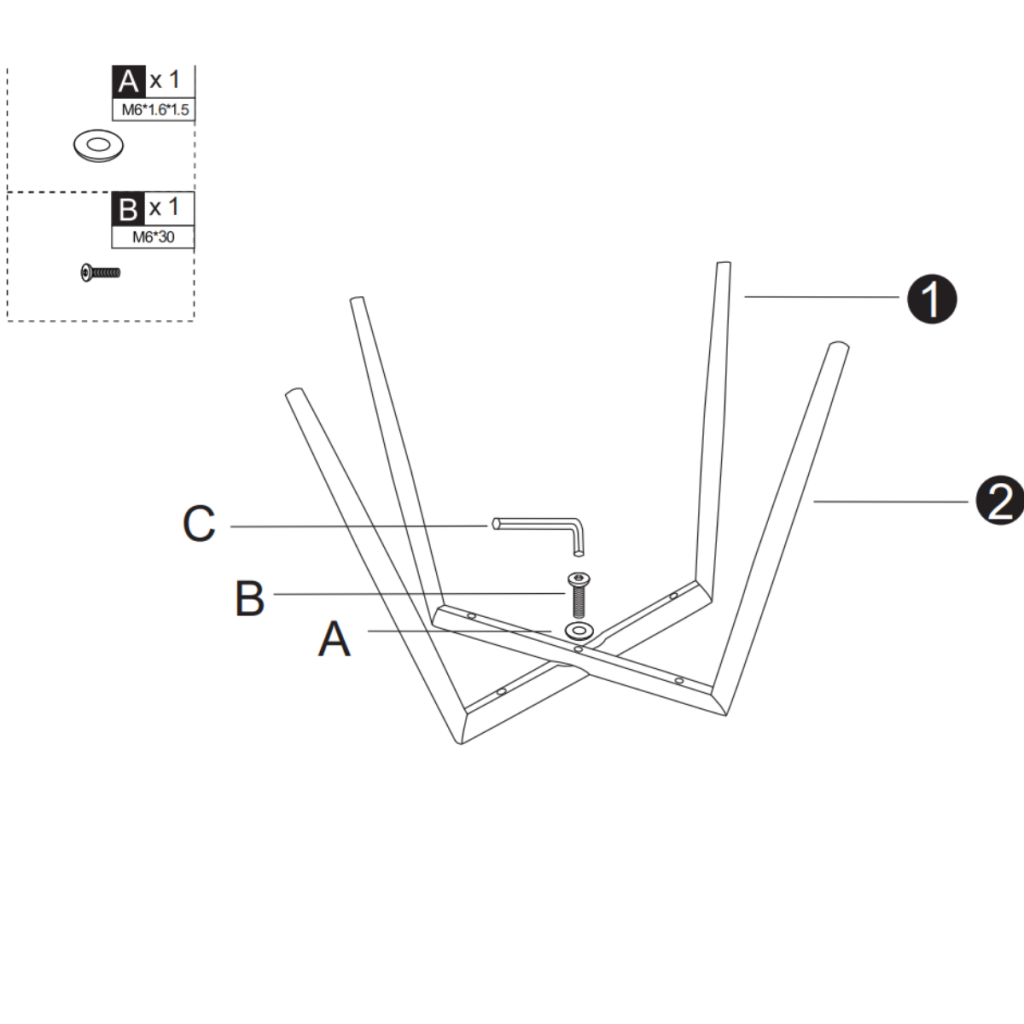

Step 1 – Connect Left and Right Leg Frames (① & ②)
- Place both leg frames (① and ②) on a flat, clean surface with the mounting holes facing upward.
- Align the lower crossbars of both frames so that the holes overlap perfectly at the center.
- Insert one washer (A) onto one bolt (B).
- Pass the bolt (B) with washer (A) through the aligned holes at the joint of both leg frames.
- Use the Allen key (C) to tighten the bolt (B) securely, joining the two frames together.
- Ensure both leg frames form a stable base structure before proceeding.
- Repeat this process to assemble the second set of legs for the other chair.

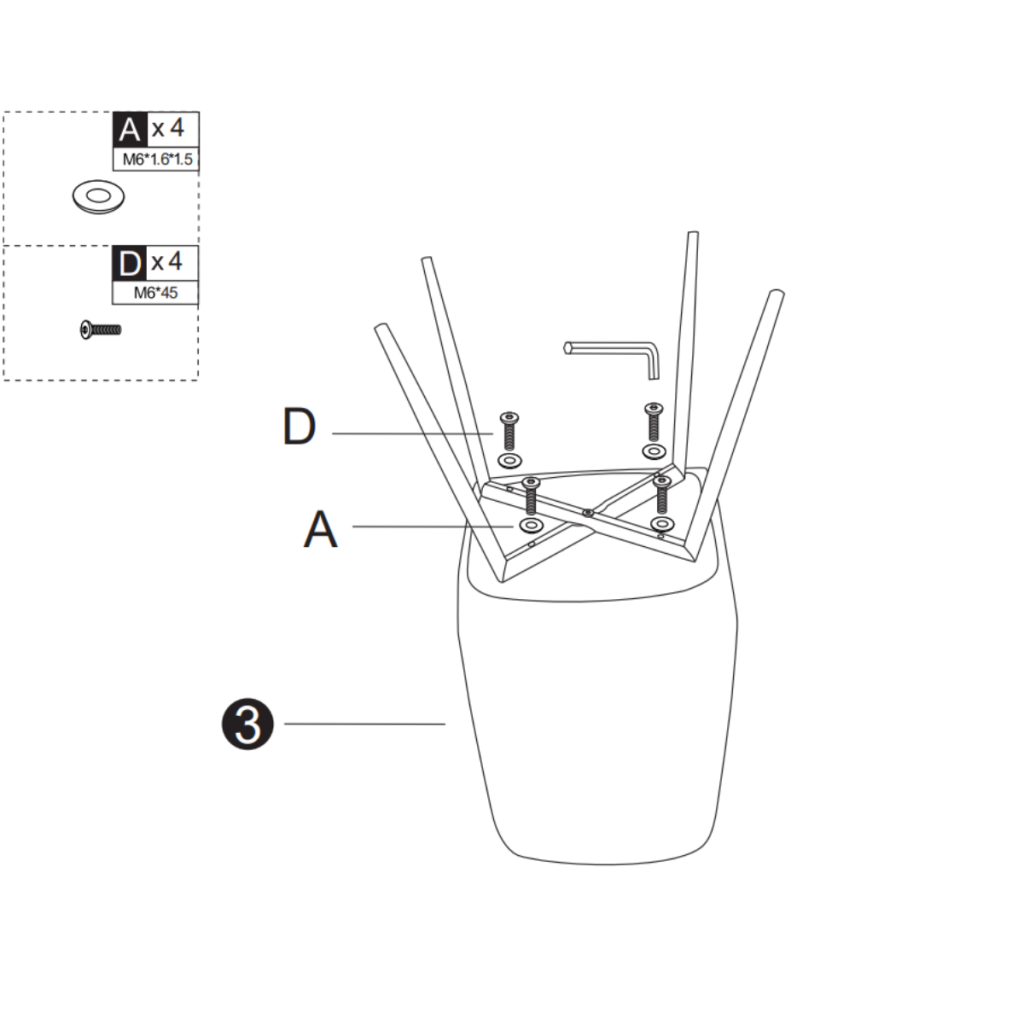

Step 2 – Attach the Leg Frame Assembly (① & ②) to the Seat (③)
- Place the upholstered seat (③) upside down on a soft, flat surface to avoid fabric damage.
- Position the assembled leg frame (from Step 1) over the pre-drilled holes on the underside of the seat.
- Align the mounting holes in the leg frame with those in the seat base.
- Insert one washer (A) onto each long bolt (D).
- Pass the bolts (D) with washers (A) through the leg frame holes and into the seat base.
- Tighten all bolts evenly using the Allen key (C), but do not overtighten to avoid damaging the threads.
- Confirm that the leg frame is securely attached and sits flush against the seat base.

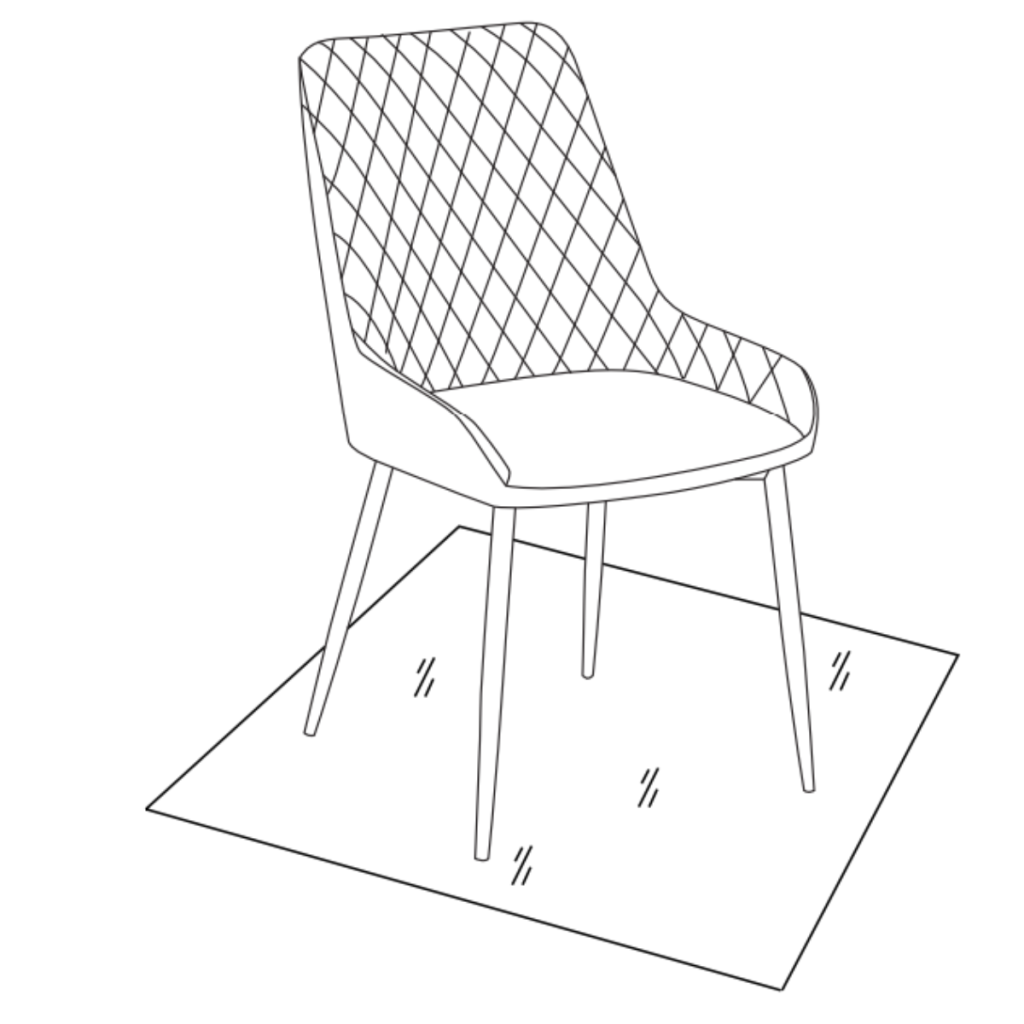

Step 3 – Final Adjustment and Completion
- Carefully turn the assembled chair upright and place it on a flat, even surface.
- Press gently on each corner to check for balance and stability.
- If the chair wobbles, slightly loosen the bolts, adjust the leg alignment, and retighten securely.
- Ensure all bolts are firmly tightened and the chair sits evenly on all four legs.
- Wipe away any fingerprints or dust with a soft, dry cloth.
Operating and Safety Information
- Place chairs only on flat, stable, and dry flooring.
- Keep away from direct flames, heaters, or high humidity.
- Do not exceed the maximum load capacity of 120 kg (264 lbs) per chair.
- Use only as intended for seating purposes.
- Do not stand or kneel on the seat or backrest.
Cleaning and Maintenance
- Wipe regularly with a soft, dry or slightly damp cloth.
- For stains, use a mild soap solution to avoid harsh detergents, bleach, or abrasives.
- Do not expose the chair to excessive moisture or direct sunlight for long periods.
- Periodically check and tighten all screws to maintain stability
Storage
- Store in a clean, dry area when not in use.
- Avoid damp environments to prevent mould or fabric discolouration.
- If stacking or storing, cover chairs with a protective cloth or wrap.
Ready to Use
Your HOMCOM Upholstered Kitchen Chairs are now ready for use.
The modern diamond-tufted design and supportive cushioning bring refined comfort to your dining area, perfect for both daily meals and gatherings.
You can also download the HOMCOM Upholstered Kitchen Chairs (SKU: 835-188V00GN) manual PDF for future reference.
Thank you for choosing HOMCOM, crafted with comfort, durability, and elegant design in mind. For technical support or product questions, please contact Aosom LLC Customer Service for friendly assistance.
FAQs
1. What should I do if the assembly instructions of Kitchen Chair seem unclear?
Compare each step with the part labels before tightening any bolts. Lay out all hardware on a flat surface to match the manual images. Following carefully skipping steps can cause misalignment.
2. How can I identify the correct bolts and washers of kitchen chair from the manual?
Match each label (A, B, D) with the size listed in the parts table.Keep similar items in separate groups to avoid mixing them. Use the Allen key provided to test-fit before final assembly.
3. The kitchen chair manual says not to tighten bolts fully ,why is that important?
Leaving bolts slightly loose helps align all parts correctly. Once all pieces are fitted, tighten evenly for a stable frame. Overtightening early can cause misaligned holes or stripped threads.
