Raised garden bed height determines root expansion capacity, moisture stability, nutrient buffering, soil temperature behavior, structural pressure, and physical working comfort. Choosing the correct height is not about preference, it is about matching plant biology with soil physics and structural load.
This guide walks step-by-step through every factor that influences raised bed height so you can build once and get it right.
1. Root Depth Comes First (Plant Biology Drives Height)
The most important variable is how deep roots naturally grow, which ultimately depends on what to grow in your raised garden bed. Restricted root systems reduce water uptake, limit nutrient access, and increase plant stress during temperature swings.
Root Depth Reference Table
| Crop Type | Root Behavior | Absolute Minimum Depth | Optimal Bed Height |
| Leafy greens | Shallow feeder roots | 6–8 in | 8–12 in |
| Herbs | Fibrous shallow roots | 6–10 in | 10–12 in |
| Radish, scallions | Compact taproots | 8–10 in | 12 in |
| Carrots, beets | Moderate taproots | 10–12 in | 12–15 in |
| Peppers | Medium root spread | 12–14 in | 15–18 in |
| Tomatoes | Deep and wide roots | 14–18 in | 16–20 in |
| Cucumbers & squash | Expanding lateral roots | 12–16 in | 16–18 in |
| Asparagus, berries | Deep perennial roots | 18–24 in | 20–24 in |
Tip: For beds taller than 18 inches, full soil fill is not always necessary. Instead, you can layer a raised bed strategically to reduce cost while maintaining root performance.
2. Surface Under the Bed Changes Everything
Raised beds behave differently depending on what lies beneath them, particularly when you need to level on slope before setting the frame.
A. Installed Directly on Soil
When placed on natural ground, roots can extend below the frame.
Recommended heights:
- 10–12 inches (basic setup)
- 12–18 inches (improved moisture buffering)
Before filling a raised bed, loosen the soil beneath at least 6–8 inches deep. This improves root penetration and drainage efficiency.
B. Installed on Concrete, Decking, or Pavers
Roots cannot penetrate downward.
Minimum effective height: 16–18 inches
Better range: 18–24 inches
Tip: Drainage design becomes critical in this scenario. Without proper drainage, excess moisture accumulates quickly.
3. Soil Volume, Water Retention & Temperature Stability
Height affects more than root space; it changes how soil behaves.
Moisture Buffering
| Bed Height | Moisture Stability |
| 8–10 in | Dries very quickly |
| 12 in | Moderate drying |
| 16–18 in | Stable moisture balance |
| 24 in | Strong buffering capacity |
Taller beds hold more soil mass, which:
- Retains moisture longer
- Stabilizes temperature swings
- Reduces rapid stress during hot days
Tip: Shallow beds warm faster in spring but also dry out faster in summer.
4. Structural Pressure and Wall Stability
Wet soil is heavy. One cubic foot of moist soil can weigh 75–100 pounds. As height increases, outward pressure increases significantly.
Structural Reinforcement Guidelines
| Height | Reinforcement Requirement |
| 8–12 in | Minimal |
| 15–18 in | Corner posts recommended |
| 20–24 in | Mid-span braces required |
| 30+ in | Full internal bracing + strong corner supports |
Tip: Ignoring reinforcement in taller beds often results in bowing walls within one growing season.
5. Ergonomic Height Planning (Working Comfort)
Height also affects how you physically interact with the bed.
Comfort Planning Table
| Gardening Position | Suggested Height |
| Ground-level gardening | 10–15 in |
| Reduced bending | 18–24 in |
| Waist-level access | 24–30 in |
| Standing-friendly design | 30–36 in |
Tip: Higher beds reduce bending but dramatically increase soil requirement and structural demand.
6. Soil Volume Planning (Cost & Material Efficiency)
Before you build a raised bed, calculate soil needs carefully to avoid underestimating volume or exceeding your material budget.
Example: 4 ft × 8 ft Bed
| Height | Cubic Feet Required | Approx Cubic Yards |
| 12 in | 32 cu ft | 1.2 yd³ |
| 16 in | 43 cu ft | 1.6 yd³ |
| 18 in | 48 cu ft | 1.8 yd³ |
| 24 in | 64 cu ft | 2.4 yd³ |
| 30 in | 80 cu ft | 3.0 yd³ |
Formula: Length × Width × Depth (in feet)
Tip: Understanding soil volume prevents underestimation and budget surprises.
7. Layering Strategy for Beds Over 18 Inches
For beds taller than 18 inches, full soil fill is not always necessary.
Bottom Layer Options:
- Coarse branches
- Small logs
- Untreated wood chips
- Leaves
Top Layer Requirement:
Maintain at least 10–12 inches of quality planting mix at the top.
This approach:
- Reduces soil cost
- Maintains root health
- Preserves aeration
Avoid compacting filler layers too tightly.
8. Drainage Engineering by Height
Bed height influences how water moves through soil, but soil composition plays an equally important role. Different heights behave differently during rainfall and irrigation.
Shallow Beds (Under 12 Inches)
These beds:
- Drain quickly
- Warm quickly in spring
- Dry out faster during heat
Management tips:
- Use mulch to slow evaporation
- Water more consistently
- Avoid very sandy soil mixes
Shallow beds respond quickly to weather changes, so monitoring moisture is important.
Medium Beds (16–18 Inches)
This height range offers balanced performance.
Benefits:
- Stable drainage
- Good moisture retention
- Reduced plant stress
- Suitable for most vegetables
This is why 16–18 inches is often considered the most reliable overall option.

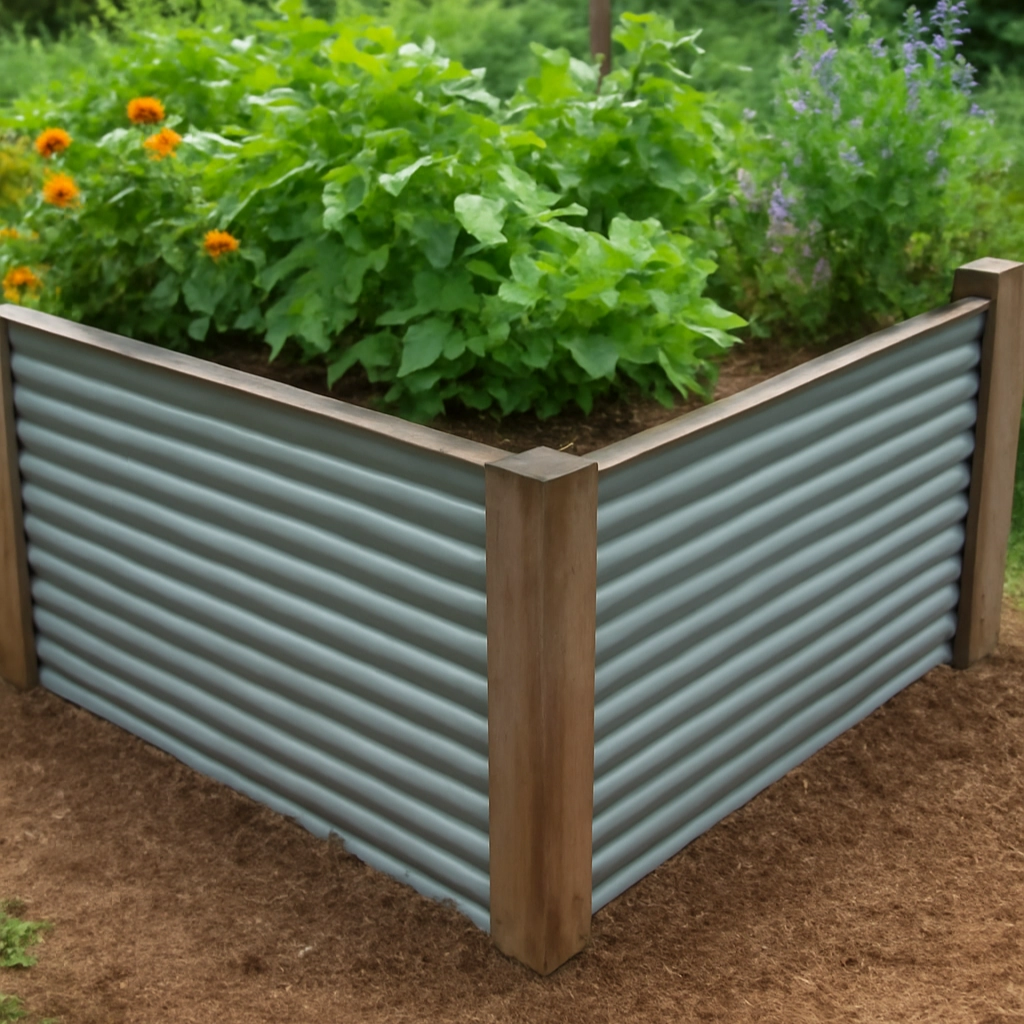

Tall Beds (24 Inches and Above)
- Drain efficiently
- Provide strong root buffering
- Require more soil planning
Because of their depth, they benefit from a well-balanced soil mix that includes compost and some aeration material.
9. Height vs Width Coordination
Height planning should always consider bed width. A tall bed that is too wide becomes difficult to maintain, especially when reaching the center.
Stepping inside the bed to reach plants leads to soil compaction, which reduces aeration and root health.
Guidelines:
- Access from both sides: up to 4 ft wide
- Access from one side only: 2–2.5 ft wide
Tip: As height increases, keeping width manageable improves long-term usability.
The Height That Rarely Regrets
If you want a single height that balances crop flexibility, moisture stability, structural integrity, and cost efficiency, a 16–18 inch Raised Garden Bed remains the most reliable and universally adaptable choice.
Shorter beds work under specific conditions. Taller beds serve ergonomic goals. But a 16–18 inch Raised Garden Bed consistently delivers performance across climates, crops, and surfaces. Build once. Choose the height that supports both roots and structure.
FAQs
Yes, you can stack an additional frame on top or attach extension boards securely at the corners. Use longer screws or structural brackets to prevent separation between layers,check wall stability first, as added height increases outward soil pressure.
Install mid-span braces or internal cross supports to reduce soil pressure stress.Reinforce corners with thicker posts anchored deeper into the ground.If severe, partially remove soil before restructuring to relieve pressure.
Grass can be left underneath if light is blocked with cardboard or mulch.Avoid plastic barriers, as they may interfere with natural drainage.Over time, the grass decomposes and integrates into the lower soil layer.
